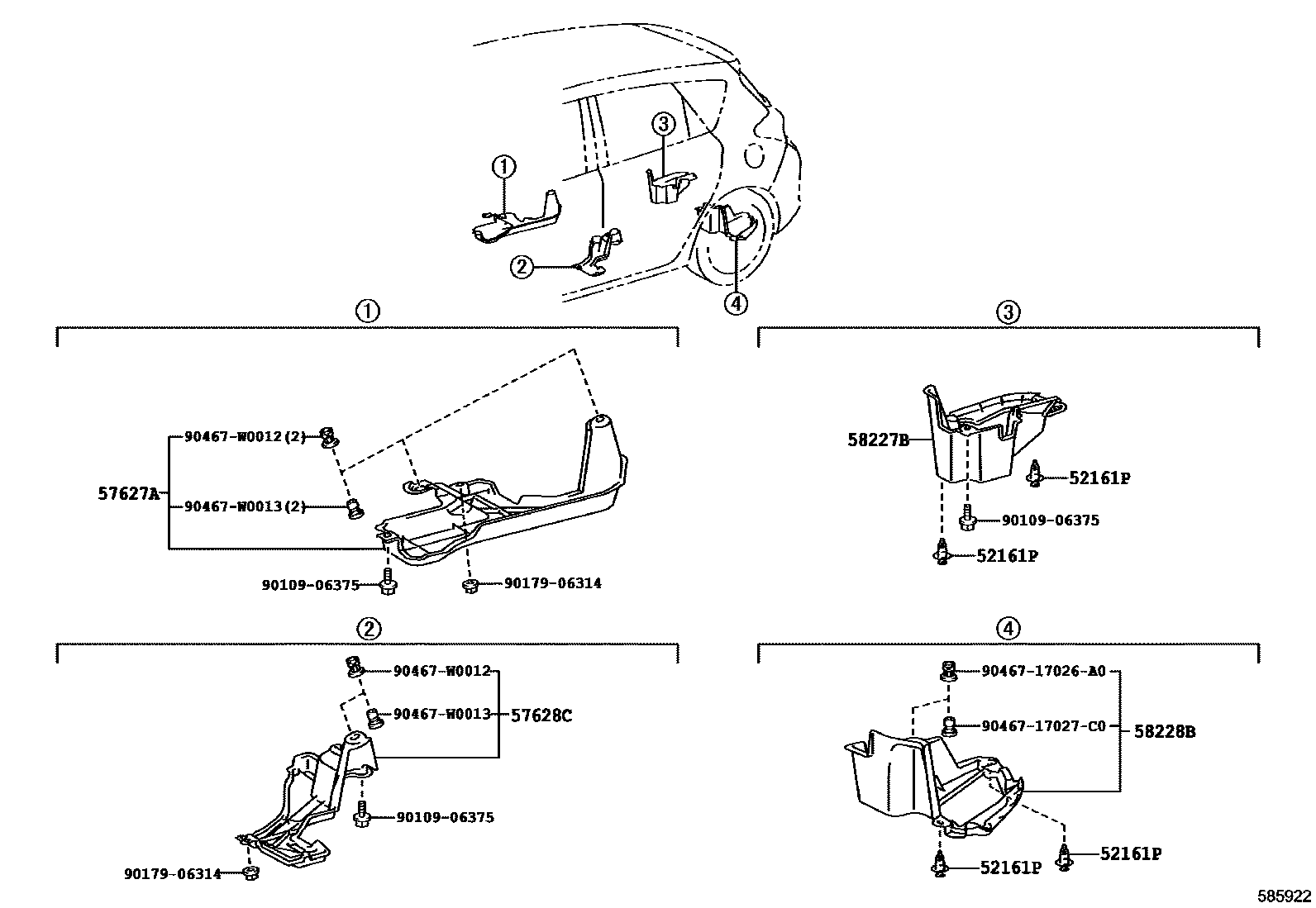

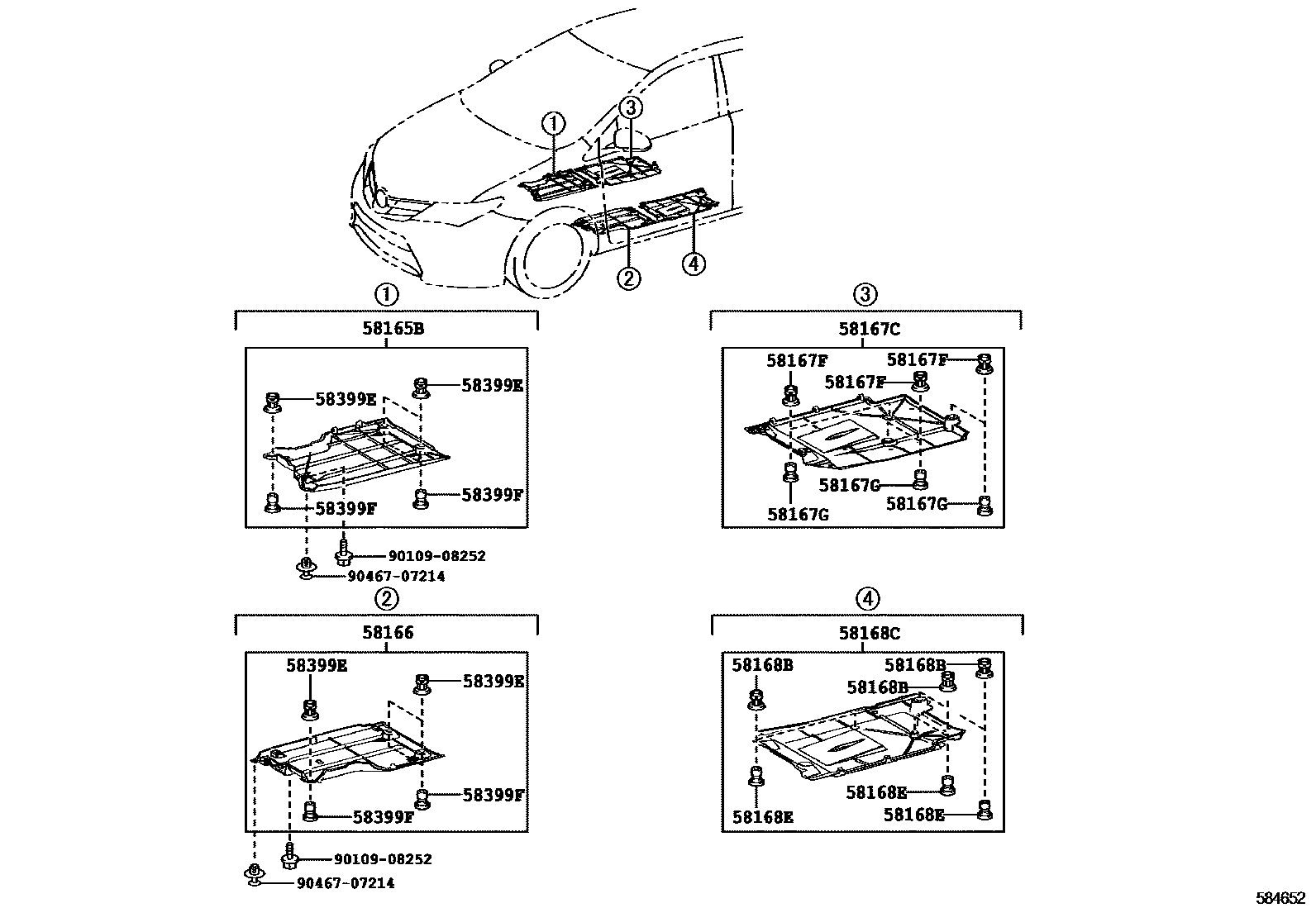

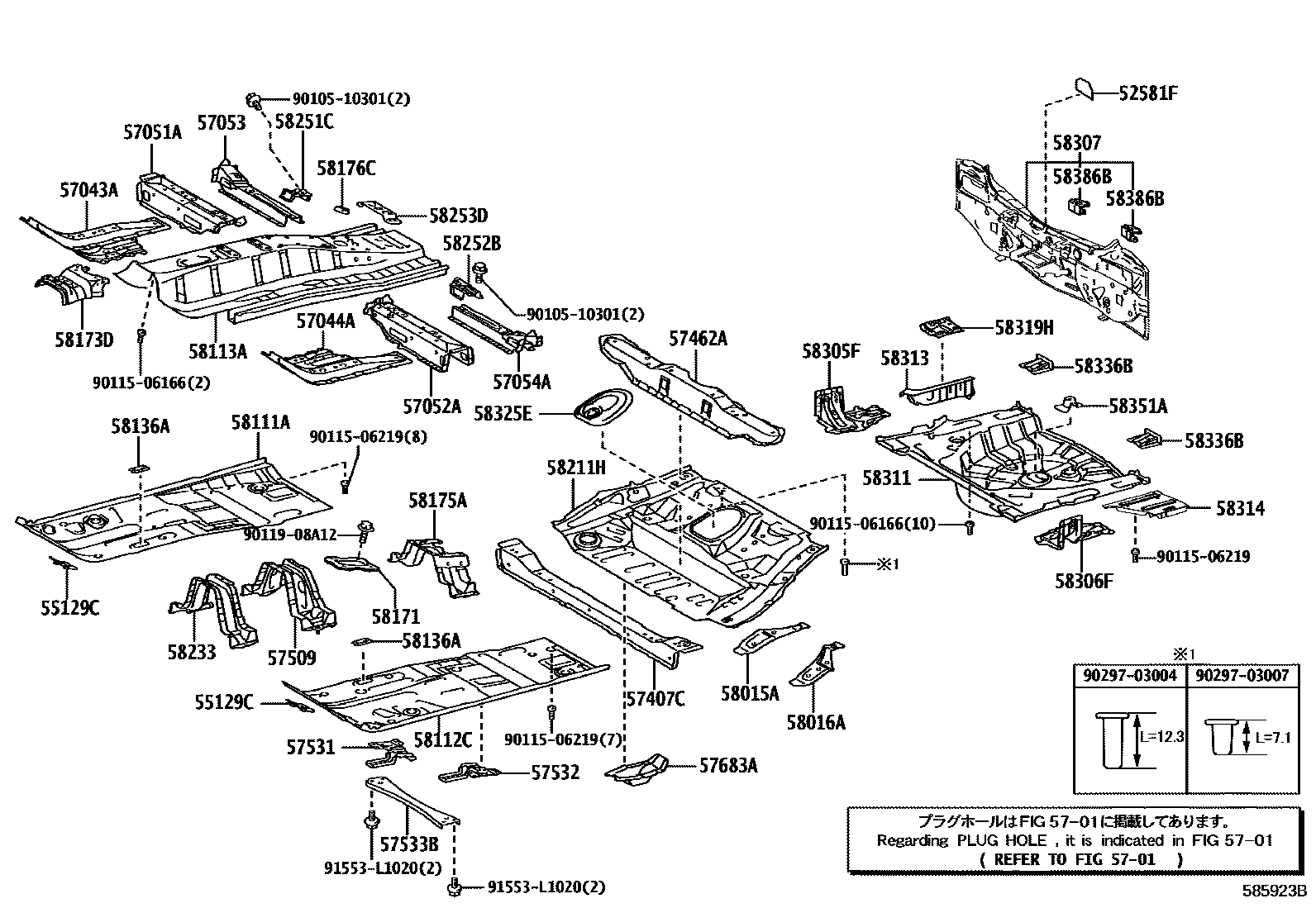

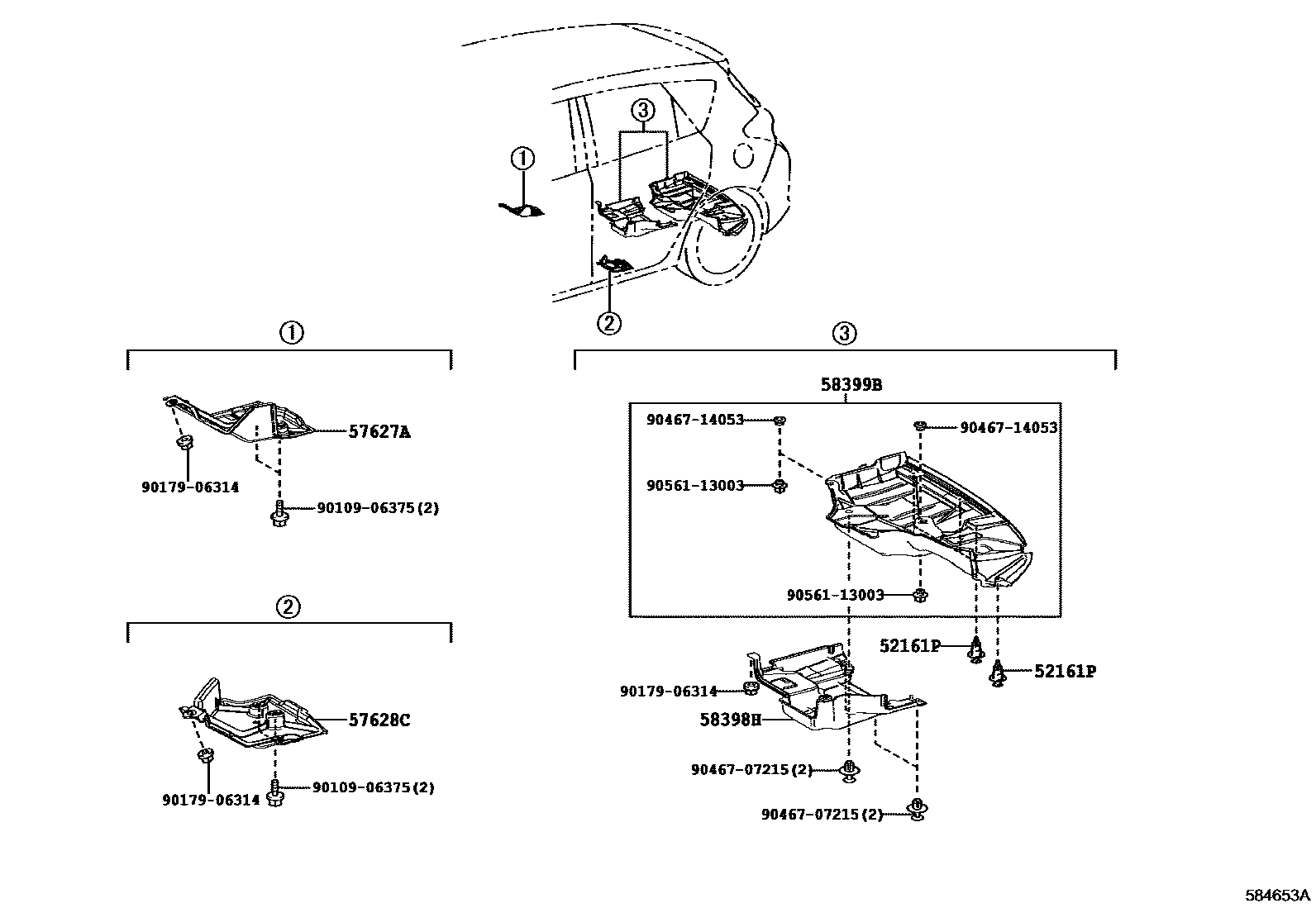

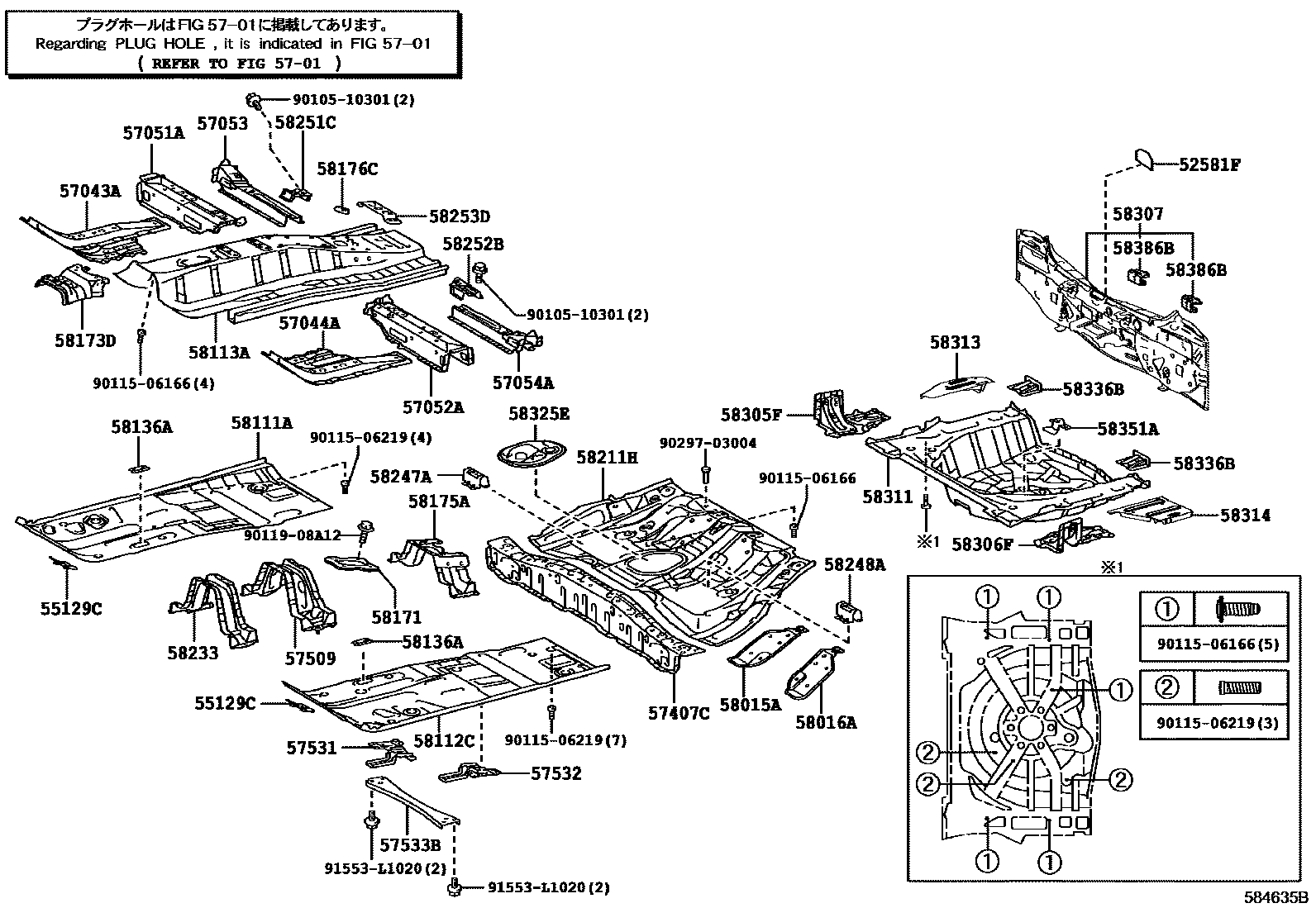

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 6 images and 58 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161P | Rear bumper insert | 52161-16010 |
| 52581F | rear bumper protector | 52581-12140 |
| 55129C | Front panel hole cover | 55129-12040 · 55139-12050 |
| 57043A | Right front longitudinal beam rear reinforcement sub-assembly | 57043-12020 |
| 57044A | Left front longitudinal beam rear reinforcement sub-assembly | 57044-12020 |
| 57051A | Front floor right cross member sub-assembly | 57051-12060 |
| 57052A | Front floor left cross member sub-assembly | 57052-12010 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-12010 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-12010 |
| 57407C | Center floor No. 1 beam sub-assembly | 57407-02160 · 57407-12120 · 57407-12122 |
| 57462A | Center floor beam No. 2 | 57405-02010 |
| 57509 | Front floor center reinforcement sub-assembly | 58161-12231 |
| 57531 | Front floor center bracket right bracket | 57531-12010 |
| 57532 | Front floor center bracket left bracket | 57532-12010 |
| 57533B | Front floor center bracket | 57533-12010 |
| 57627A | Rear floor right longitudinal member cover | 57627-02090 · 57627-12090 |
| 57628C | Rear floor left longitudinal member cover | 57628-02100 · 57628-12130 |
| 57683A | No. 1 fuel tank mounting bracket | 57683-02120 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-02170 · 58015-47041 · 58015-47042 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-02150 · 58016-47031 |
| 58111A | Front floor right bottom panel | 58111-12920 · 58111-76901 |
| 58112C | Front floor left bottom panel | 58112-12902 |
| 58113A | front floor center panel | 58113-12901 · 58113-76901 |
| 58136A | Front floor access hole cover | 58136-12040 |
| 58165B | Front floor right cover | 58165-02050 · 58165-12100 |
| 58166 | Front floor left cover | 58166-75020 |
| 58167C | Front floor center right cover | 58167-02060 · 58167-12020 |
| 58167F | Clamp No. 1 (for lower floor cover) | 90467-W0012 |
| 58167G | Clip No. 2 (for lower floor cover) | 90467-W0013 |
| 58168C | Front floor center left cover | 58168-12020 |
| 58171 | Parking brake base reinforcement | 58171-12120 |
| 58173D | No. 4 ECU mounting bracket | 58173-12020 |
| 58175A | No. 1 parking brake base reinforcement | 57805-12151 |
| 58176C | Parking brake base No. 2 reinforcement | 58176-12020 |
| 58211H | central floor base | 58211-02911 · 58211-12930 |
| 58227B | Front floor right panel | 58227-12050 |
| 58228B | Front floor left panel | 58228-12050 |
| 58233 | Exhaust pipe mounting bracket | 58203-12070 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-12090 |
| 58248A | Rear left seat cushion hinge reinforcement | 58247-12090 |
| 58251C | Front floor right bracket | 58251-12040 |
| 58252B | Front floor left bracket | 58252-12040 |
| 58253D | Parking brake cable bracket | 58253-12060 |
| 58305F | Rear floor right side panel sub-assembly | 58305-12040 |
| 58306F | Rear floor left side panel sub-assembly | 58306-12030 |
| 58307 | Body lower back panel sub-assembly | 58307-12B40 · 58307-12B41 |
| 58311 | rear floor pan | 58311-12371 · 58311-76010 |
| 58313 | Rear floor right panel | 58313-02140 · 58313-12340 |
| 58314 | rear floor left panel | 58314-12340 |
| 58319H | auxiliary floor | 58319-02030 |
| 58325E | Rear floor access hole cover | 58325-02160 · 58325-12130 |
| 58336B | Rear floor pan reinforcement | 58336-12090 |
| 58351A | Spare tire rack bracket | 58351-12060 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-12030 |
| 58398H | No. 1 floor under cover | 58398-12030 |
| 58399B | Floor No. 2 lower cover | 58399-12030 |
| 58399E | Clamp No. 1 (for lower floor cover) | 90467-W0012 |
| 58399F | Clip No. 2 (for lower floor cover) | 90467-W0013 |
