Toyota COROLLA 前围板和挡风玻璃 — Figure 5503

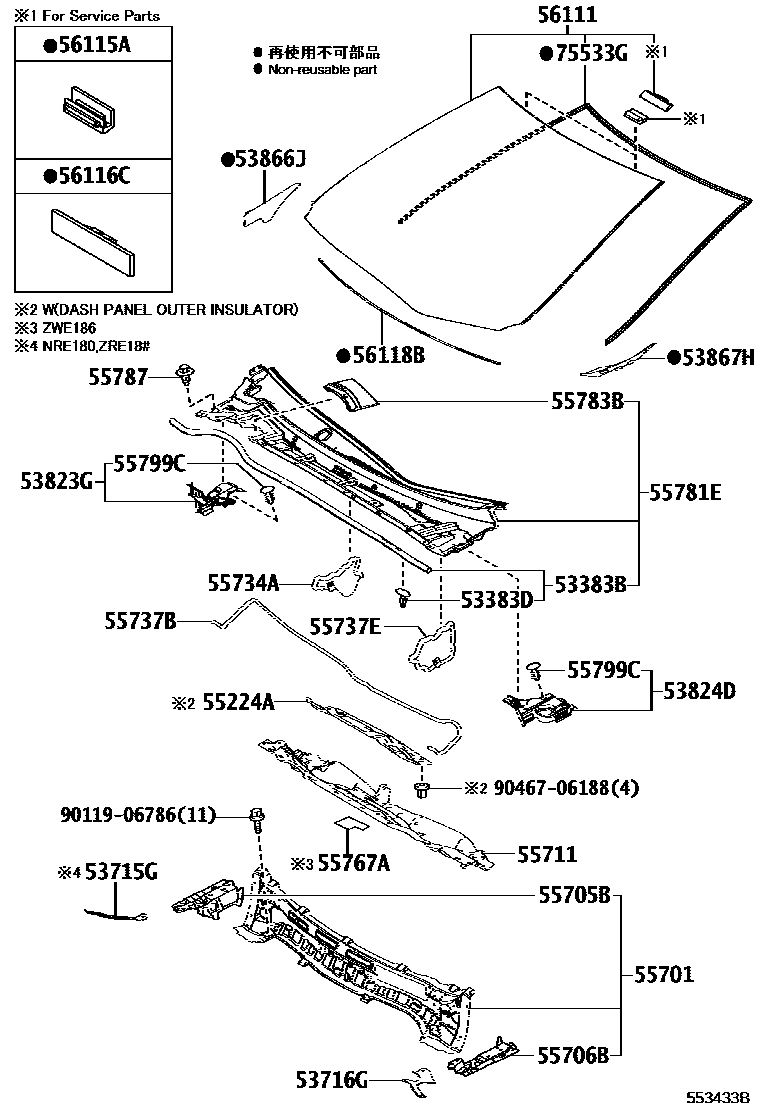

Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-12190 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 67867-12150 |
| 53715G | Right front fender fender rear extension | 53715-12050 |
| 53716G | Left front fender fender rear extension | 53716-12060 |
| 53823G | No. 2 right front side panel protector | 53825-12081 |
| 53824D | No. 2 left front side panel protector | 53826-12031 |
| 53866J | Right front fender to cowl side seal | 53866-12040 |
| 53867H | Left front fender to cowl side seal | 53867-12050 |
| 55224A | No. 2 outer insulation pad for front wall | 55224-02061 · 55224-12060 |
| 55701 | Front apron sub-assembly | 55700-12B90 · 55700-12C10 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-12140 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-12150 |
| 55711 | Front outer panel | 55701-12B30 · 55701-12B80 |
| 55734A | Right waterproof cover | 55734-12210 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-74010 |
| 55737E | No. 2 heater duct splash guard seal | 55737-12140 |
| 55767A | No. 5 front wall heat shield | 55767-12040 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-12470 · 55708-12471 |
| 55783B | Ventilation grille on center cowl No. 1 | 55783-12310 |
| 56111 | windshield | 56101-12860 · 56101-12861 · 56101-12A80 · 56101-12A81 · 56101-12C80 · 56101-12D50 · 56101-12D60 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-22050 |
| 75533G | Windshield outer protective strip | 75533-12690 |
