Toyota COROLLA 仪表板和手套箱 — Figure 5501

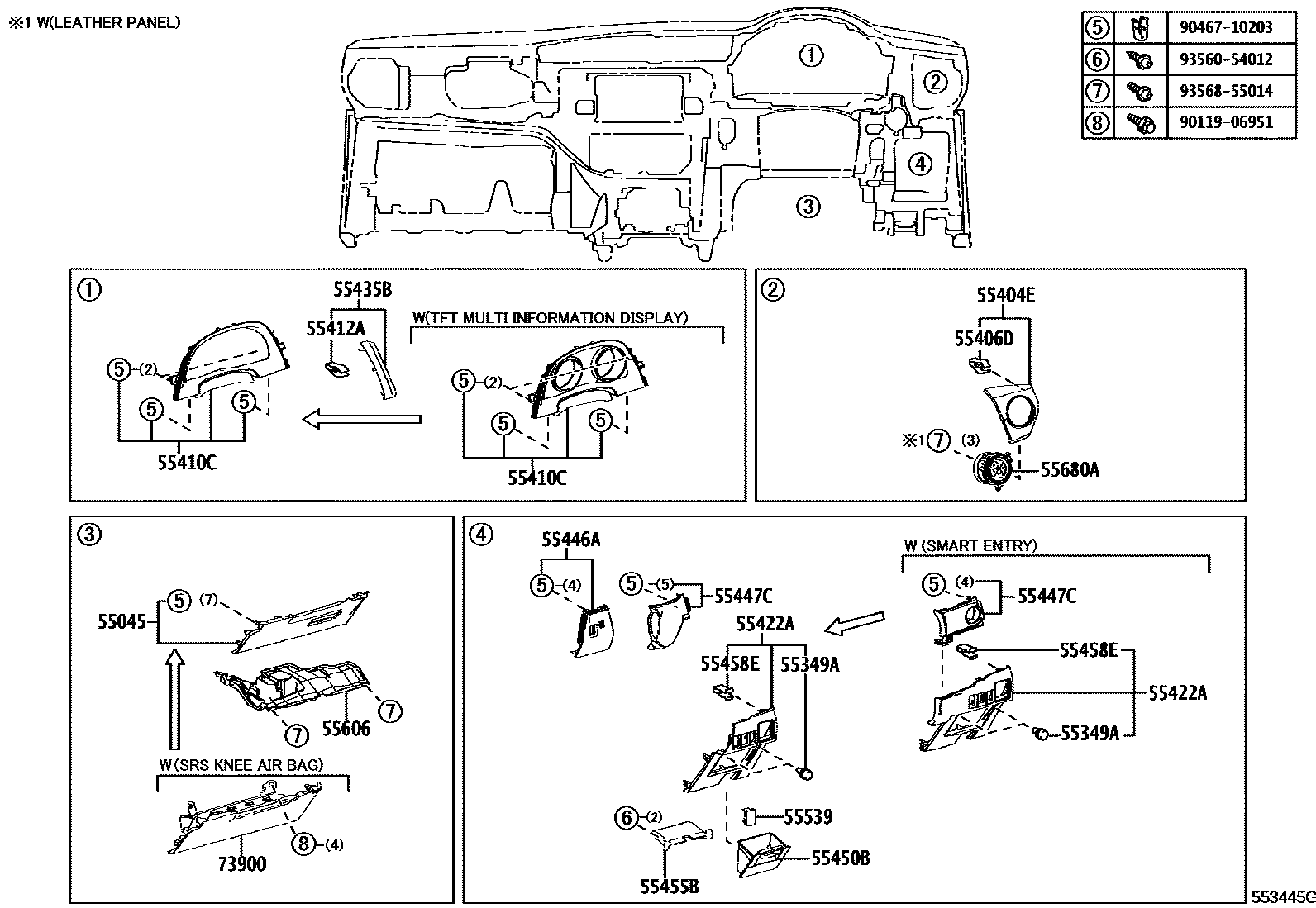

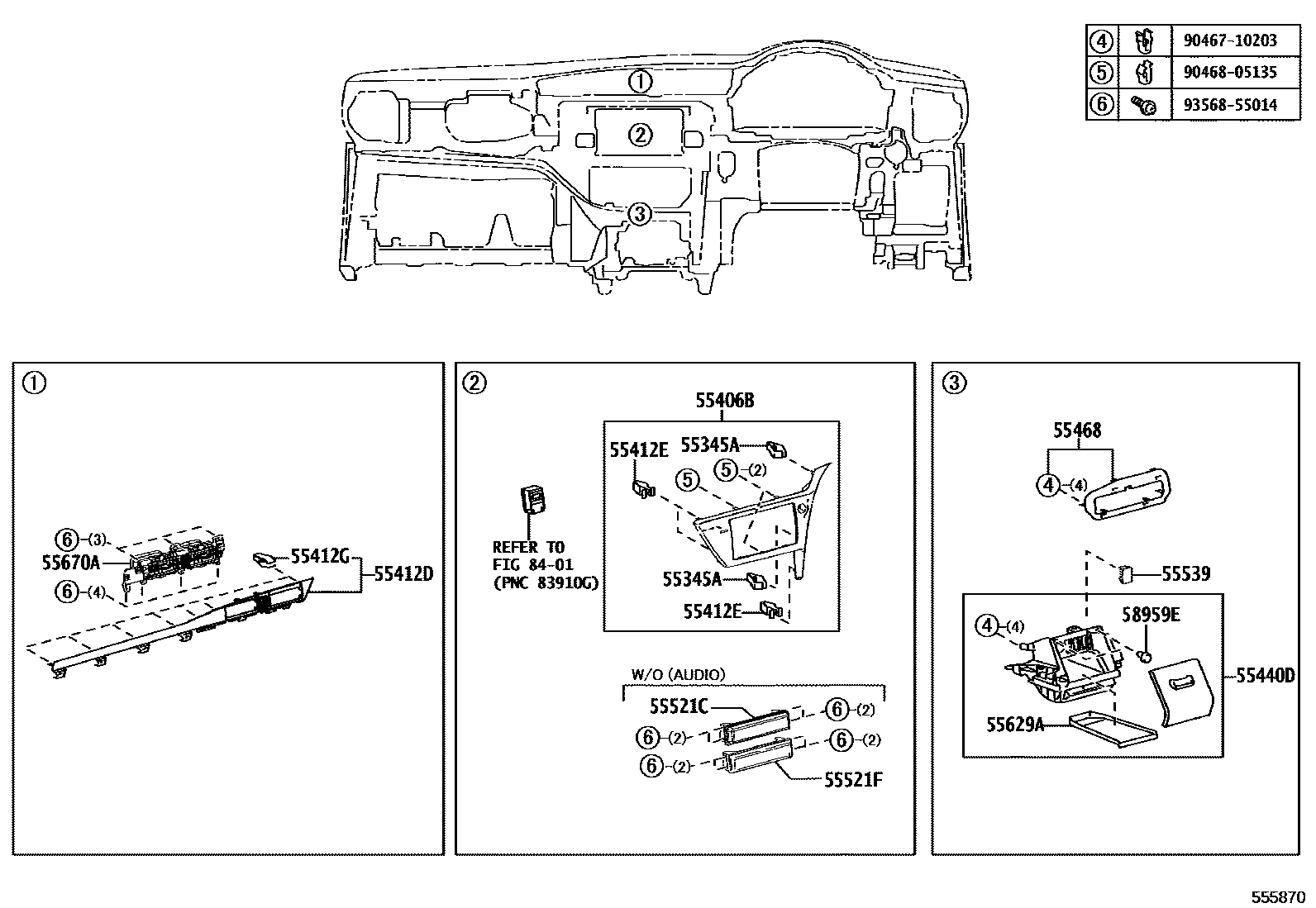

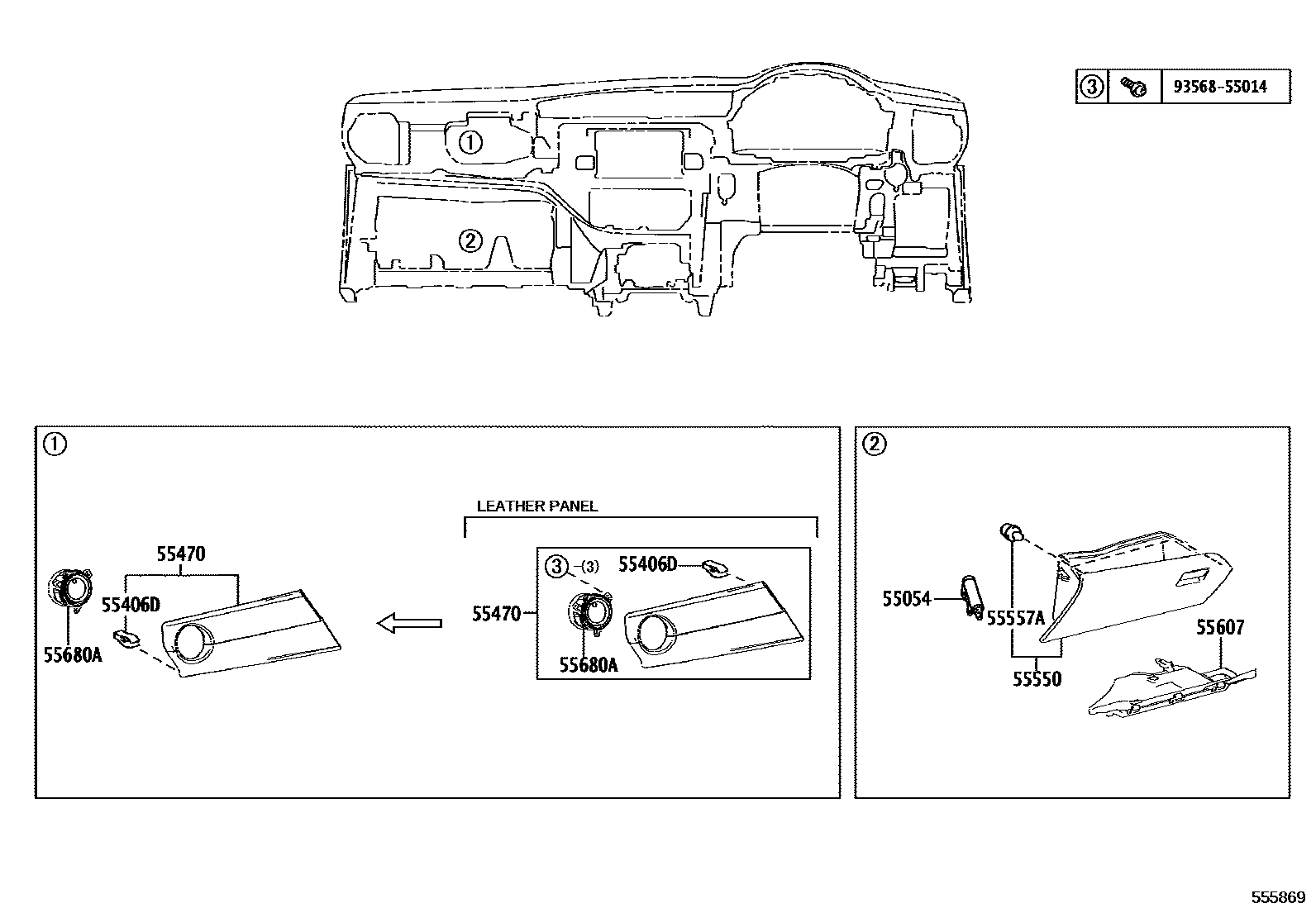

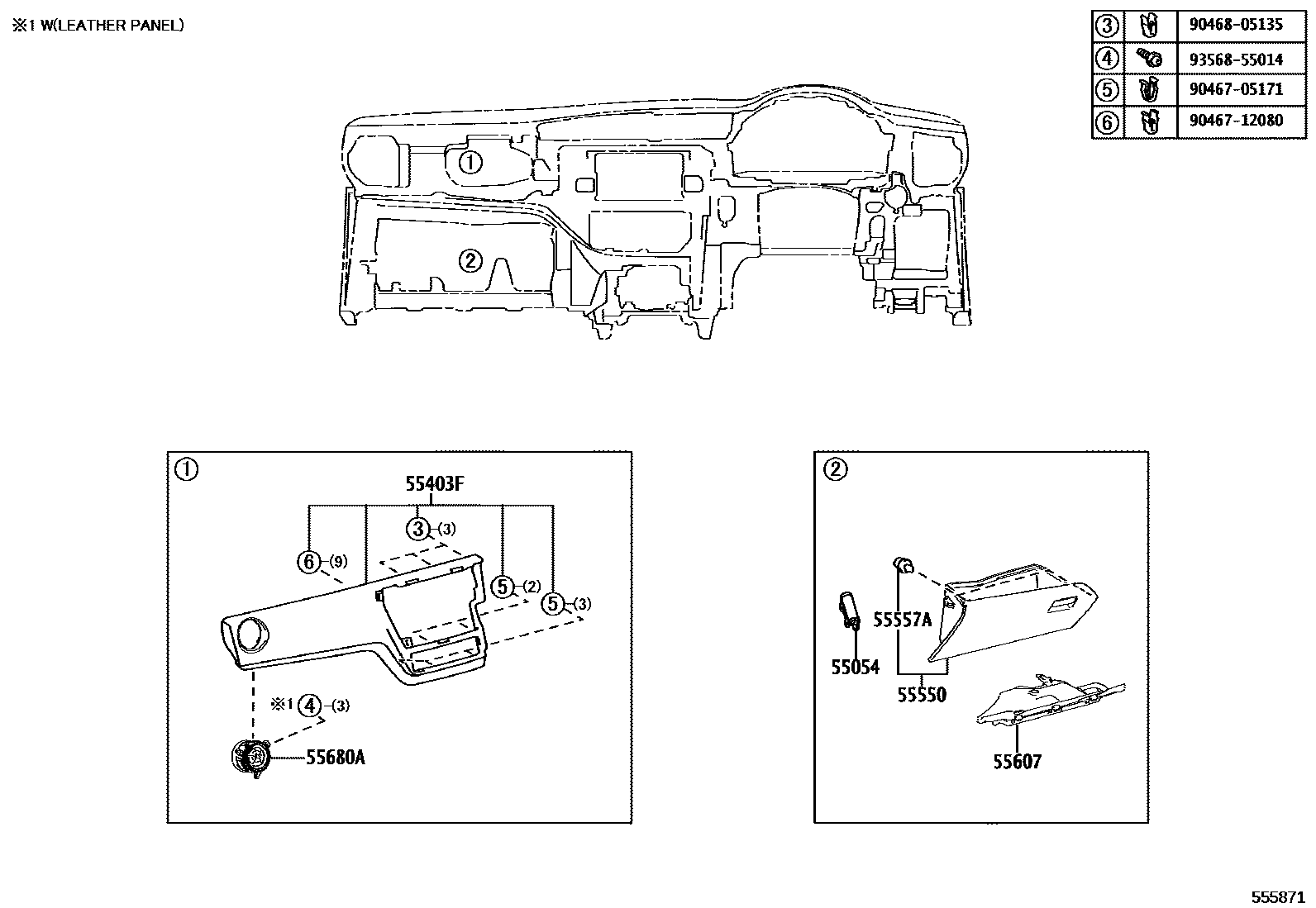

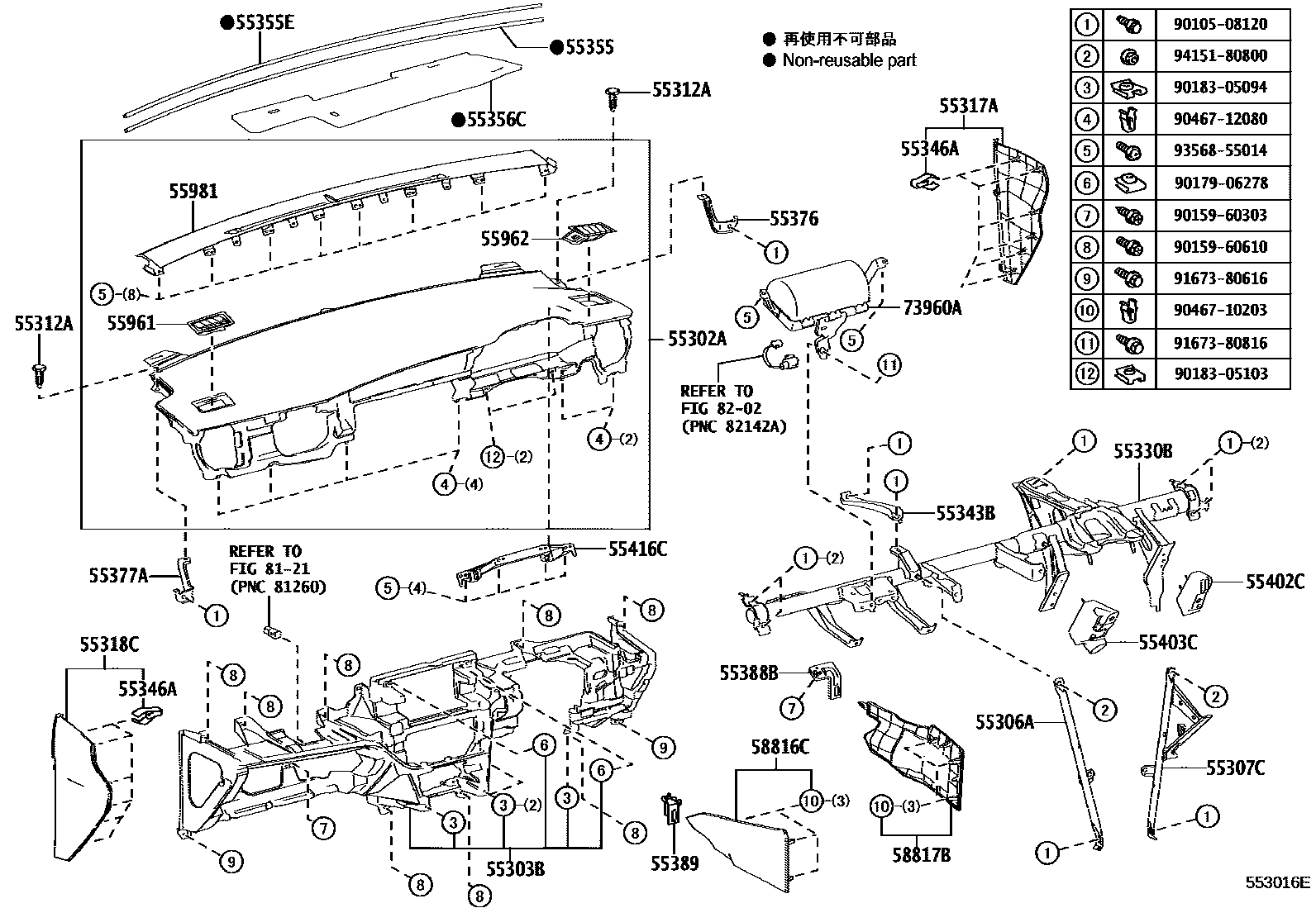

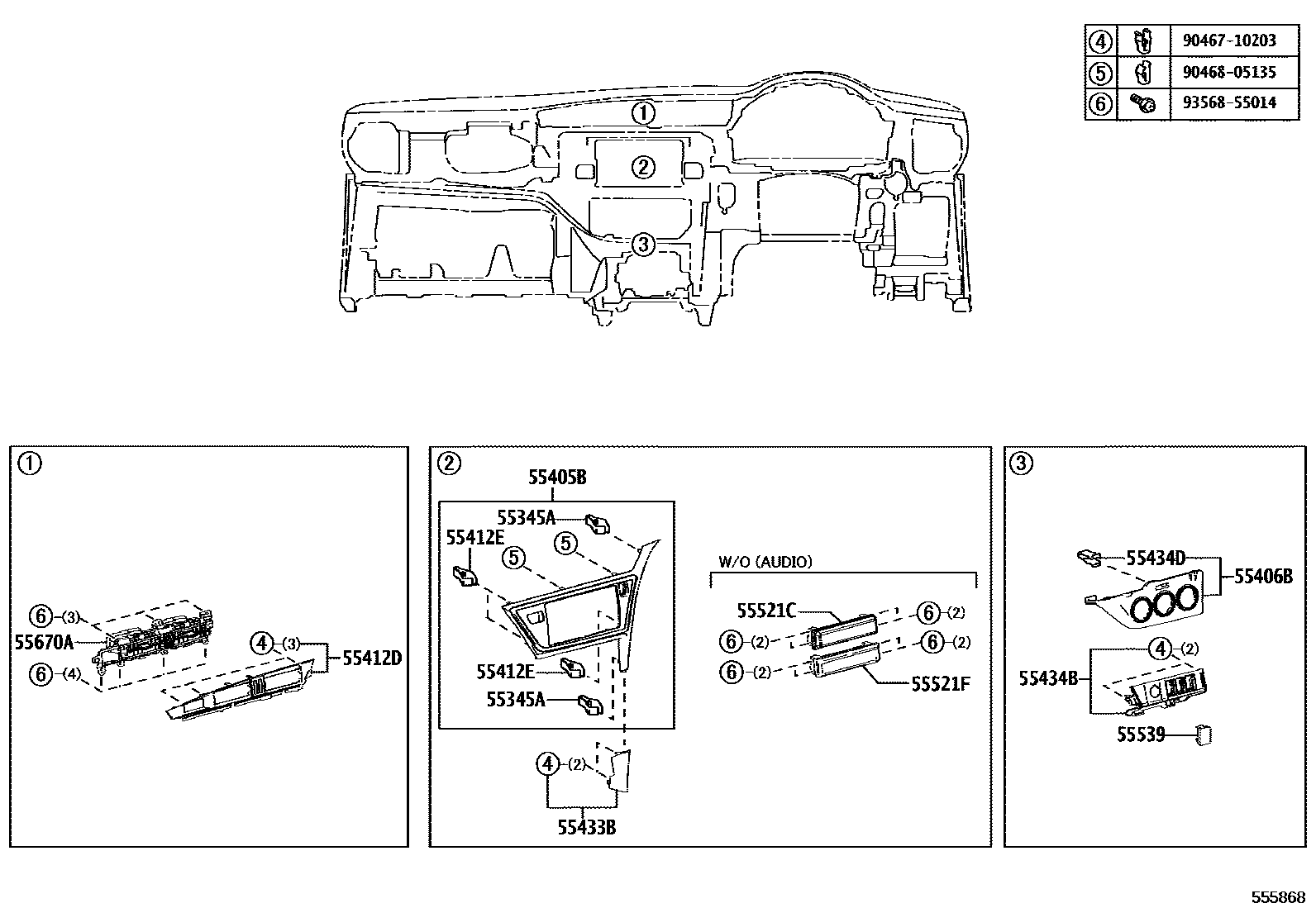

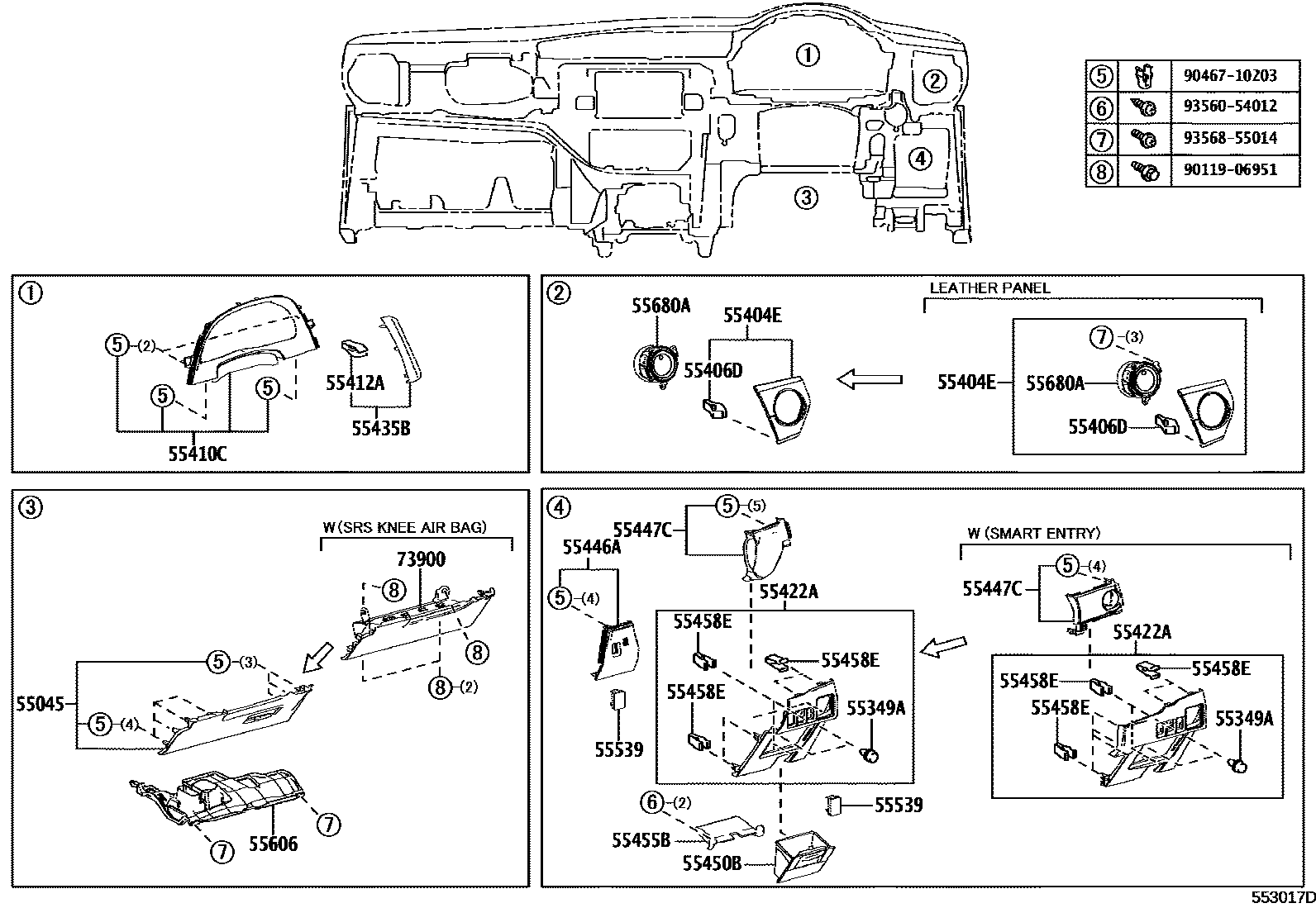

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 7 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-35010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-12480 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-12390 · 55307-12400 |
| 55312A | Dashboard clip | 52161-16010 |
| 55330B | Instrument panel reinforcement assembly | 55330-12580 · 55330-12600 |
| 55343B | Center bracket (dashboard to cowl) | 55343-12070 |
| 55349A | Dashboard cushion | 58959-60060 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-12170 · 55355-12200 · 55355-12260 |
| 55355E | Dashboard cushion | 55355-12210 · 55355-12220 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-12100 · 55356-12220 |
| 55376 | Instrument panel mounting bracket No. 1 | 55376-12150 |
| 55377A | Instrument panel mounting bracket No. 2 | 55377-12140 |
| 55388B | Mounting bracket on the right side of the console | 55389-42020 |
| 55389 | Console left side mounting bracket | 55388-42020 |
| 55402C | Dashboard lower right pad sub-assembly | 55402-12110 |
| 55403C | Instrument panel lower left pad sub-assembly | 55403-12110 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-12640 |
| 55410C | Instrument cluster decorative panel assembly | 55410-12A90 |
| 55412D | Center instrument cluster decorative panel | 55412-12800 · 55412-12870 |
| 55412E | Decorative clips at the end of the instrument cluster | 90467-05172 · 90467-10203 · 90467-12080 |
| 55416C | Instrument cluster decorative panel fixings | 55416-12140 |
| 55434D | Center dashboard lower decorative panel clip | 90467-10203 |
| 55455B | coin box | 55455-12070 |
| 55458E | Clip (for instrument panel lower cover) | 90467-10203 |
| 55468 | Heater switch hole cover | 55468-12060 · 55468-12070 |
| 55521C | stereo system hole cover | 55521-12190 |
| 55521F | Stereo system hole cover No. 2 | 55521-20150 |
| 55539 | Spare switch hole cover | 55539-52060 |
| 55557A | Glove box cover limit pad | 55557-60050 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-12150 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-12060 |
| 55629A | Dashboard bottom cushion | 55629-12050 |
| 55670A | Instrument panel central air register assembly | 55670-12640 |
| 58959E | Armrest box cover cushion | 58959-60060 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-12180 · 73960-12480 |
