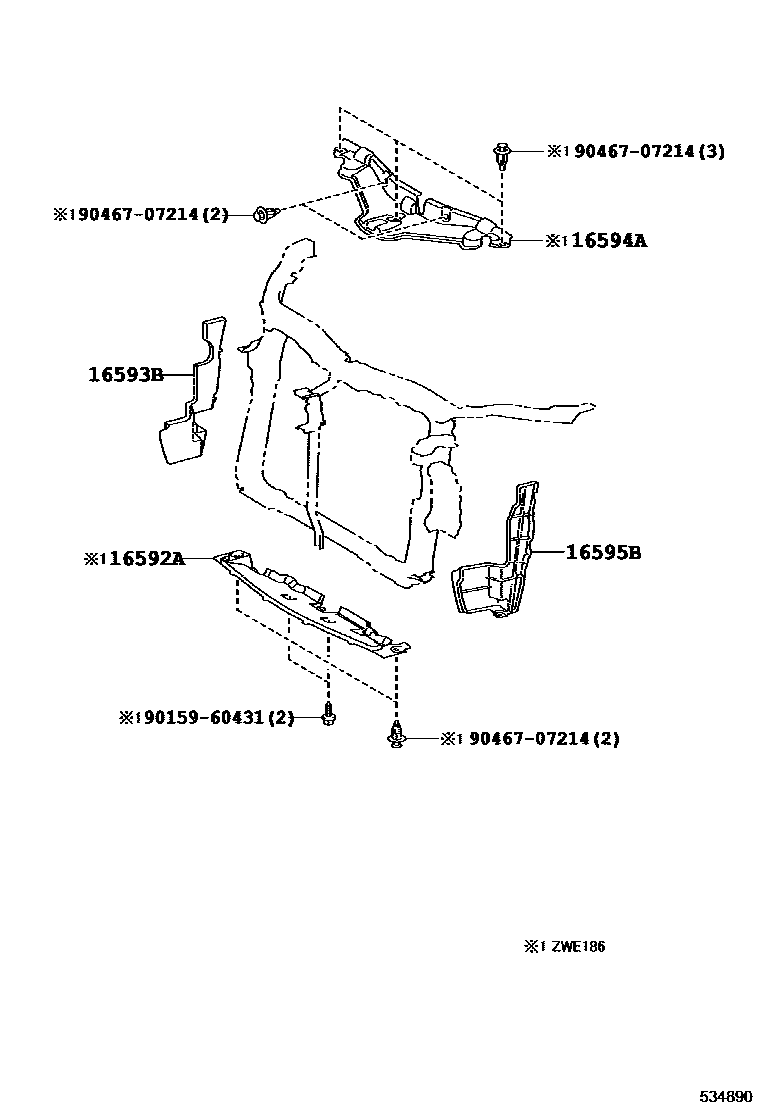

Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304
Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 2 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16592A | Radiator deflector No. 3 | 16592-37050 |
| 16593B | No. 1 radiator right deflector | 16593-37010 · 16593-37050 · 16593-37090 |
| 16594A | Radiator deflector No. 2 | 16594-37030 |
| 16595B | No. 1 radiator left deflector | 16595-37010 · 16595-37060 · 16595-37100 |
| 53117E | Radiator grille lower bracket | 53117-21011 |
| 53187A | Radiator right side bracket stay | 53187-12030 |
| 53188B | Radiator left bracket stay | 53188-12030 |
| 53201 | Radiator bracket sub-assembly | 53201-12906 |
| 53202 | Radiator right side bracket sub-assembly | 53202-12520 |
| 53202D | Radiator bracket cushion | 90541-09117 |
| 53203 | Radiator left bracket sub-assembly | 53203-12490 |
| 53204 | Radiator bracket to cross member bracket sub-assembly | 53209-12161 |
| 53205 | Radiator upper bracket sub-assembly | 53205-12310 |
| 53213A | Radiator upper right bracket | 53107-12030 |
| 53214A | Radiator upper left bracket | 53108-12040 |
| 53215 | Muffler on the right side of the front panel | 55211-02190 |
| 53216 | Silencer on the left side of the front panel | 55212-02020 |
| 53218A | Radiator lower support | 53218-12901 |
| 53271E | Right headlight mounting bracket | 53271-12100 |
| 53272C | Left headlight mounting bracket | 53272-12070 |
| 53301G | engine cover cushion | 53384-50010 |
| 53701 | Right front fender fender sub-assembly | 53701-12A40 |
| 53702 | Left front fender fender sub-assembly | 53702-12A50 |
| 53710J | Right front fender fender assembly | 53710-12030 |
| 53713C | Right front fender fender front extension | 53713-12160 |
| 53720B | Left front fender fender assembly | 53720-12030 |
| 53725D | No. 2 front spring bracket right side reinforcement | 53725-12040 |
| 53726B | No. 2 front spring bracket left reinforcement | 53726-12040 |
| 53731D | Right front fender to cowl side upper beam | 53731-12170 |
| 53732D | Left front fender to cowl side upper beam | 53732-12150 |
| 53733D | Right front fender to cowl side front lower beam | 53733-12070 |
| 53734C | Left front fender to cowl side front lower beam | 53734-12070 |
| 53735J | No. 5 front fender fender liner | 53735-12070 |
| 53737 | Right front fender to front wall side sill | 53737-12120 |
| 53738 | Left front fender to front wall side sill | 53738-12080 |
| 53747A | Fender fender right extension | 53747-12060 |
| 53748A | Fender fender left extension | 53748-12070 |
| 53813C | Right front fender extension | 53813-12160 |
| 53814C | Left front fender extension | 53814-12110 |
| 55101 | Front apron sub-assembly | 55101-12C30 · 55101-12C40 |
| 55137A | Right side bracket (front wall to frame) | 55137-12070 · 55137-12071 |
| 55138A | Left side bracket (front wall to frame) | 55138-12040 · 55138-12041 |
| 55210 | Front wall insulation pad assembly | 55210-02620 · 55210-12650 |
| 55210A | clip | 90467-11122 |
| 55210C | clip | 90467-11127 |
| 55223A | Front wall outer heat insulation pad | 55223-12170 · 55223-47060 |
