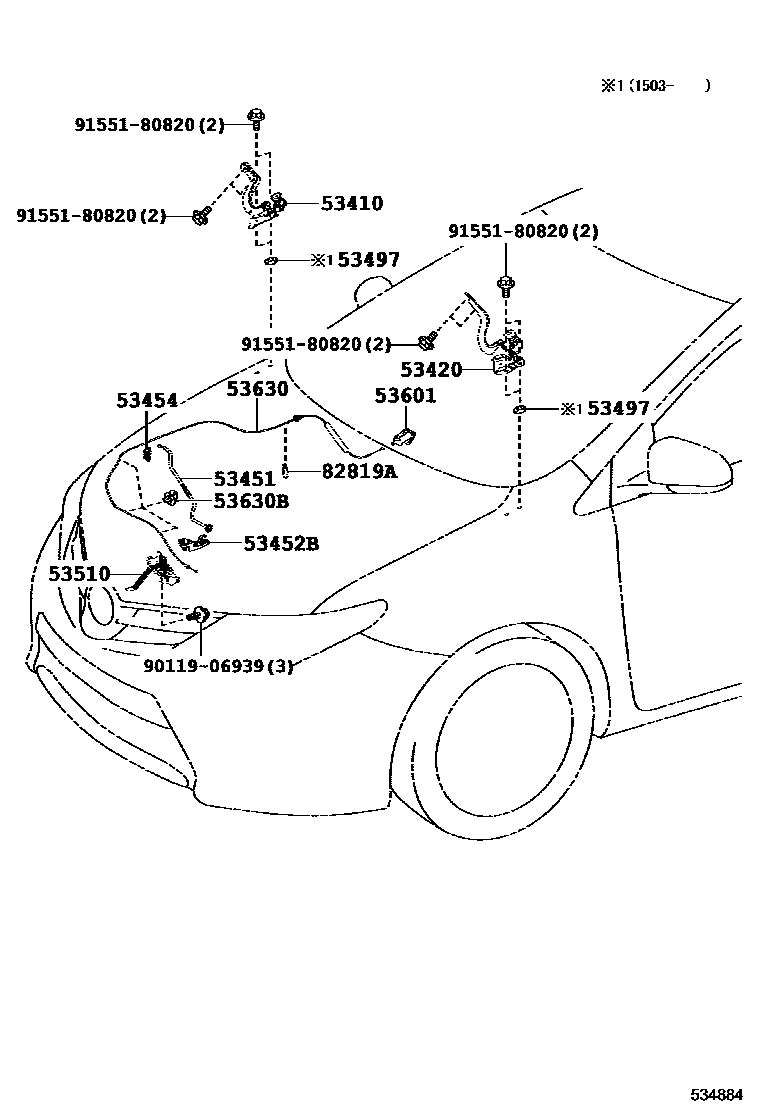

Toyota COROLLA 发动机盖锁和铰链 — Figure 5303
Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-12600 |
| 53420 | Engine cover left hinge assembly | 53420-12590 |
| 53451 | Engine cover support rod | 53440-12190 · 53440-12191 · 53440-12192 |
| 53452B | Engine cover support rod bracket | 53452-02170 · 53452-12120 |
| 53454 | Engine cover support rod clip | 53454-12040 |
| 53497 | No. 1 engine cover hinge gasket | 53497-42010 |
| 53510 | Engine cover lock assembly | 53510-12B00 · 53510-12B01 · 53510-12B40 · 53510-12B41 |
| 53630 | Engine hood lock control cable assembly | 53630-12600 |
| 53630B | Clip (for hood lock control cable) | 90469-06005 |
| 82819A | Wire harness seal | 82817-1A810 |
