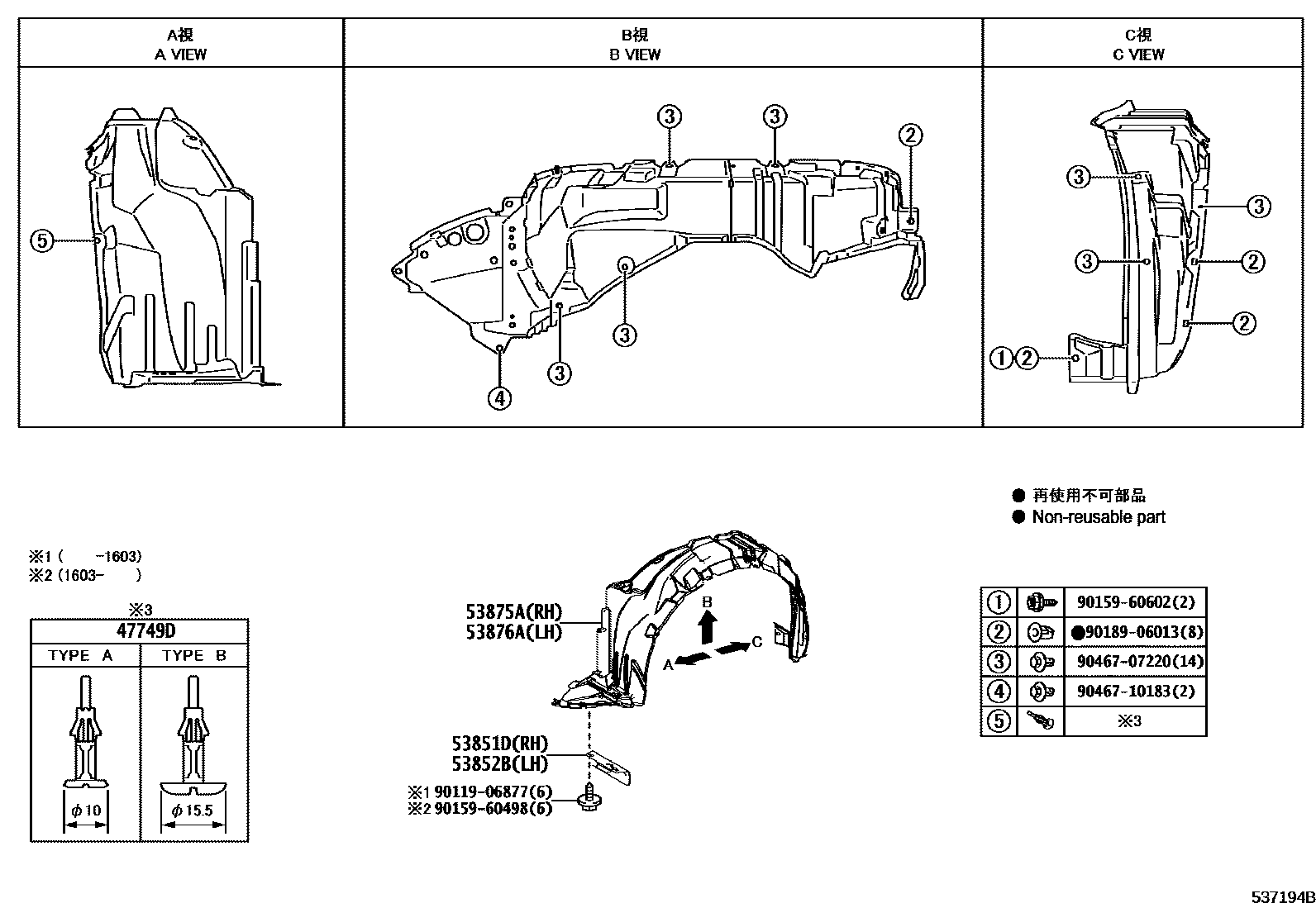

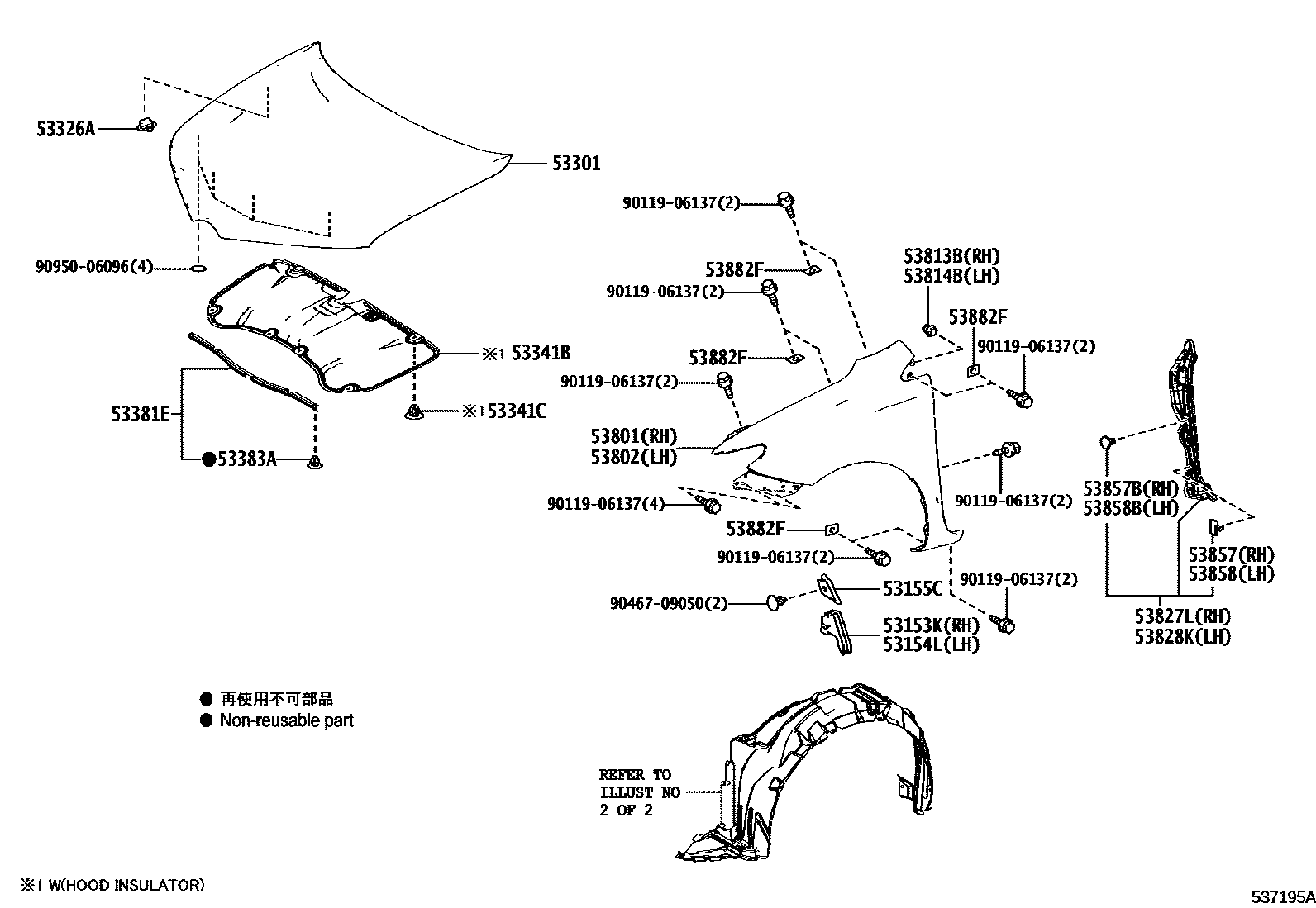

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749D | pin fixing clip | 47749-50090 · 47749-58010 |
| 53153K | Radiator grille right deflector | 53153-02010 |
| 53154L | Radiator grille left deflector | 53154-02010 |
| 53155C | Radiator grille seal No. 1 | 53155-12070 · 53155-12080 |
| 53301 | Engine cover sub-assembly | 53301-12B10 |
| 53326A | Engine cover protective strip clip | 53326-52010 |
| 53341B | engine cover gasket | 53341-12250 · 53341-12360 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 |
| 53381E | Engine cover to radiator bracket seal | 53381-12270 |
| 53383A | Clamp (for engine cover to cowl upper cover seal) | 90467-08011 |
| 53801 | Right front fender sub-assembly | 53811-12B70 · 53811-12C00 |
| 53802 | Left front fender sub-assembly | 53812-12B70 · 53812-12C00 |
| 53813B | Right front fender extension | 53813-48011 |
| 53814B | Left front fender extension | 53813-48011 |
| 53827L | Right front fender side panel protector | 53827-12130 |
| 53828K | Left front fender side panel protector | 53828-12130 |
| 53851D | Right front fender outer panel pad | 53851-12140 |
| 53852B | Left front fender exterior panel pad | 53852-12130 |
| 53857 | Right front fender external panel fixing piece | 53857-12010 |
| 53857B | Right front fender external panel fixing piece | 53857-47011 |
| 53858 | Left front fender external panel fixing piece | 53857-12010 |
| 53858B | Left front fender external panel fixing piece | 53857-47011 |
| 53875A | Right front fender lining | 53875-12560 · 53875-12561 · 53875-12590 |
| 53876A | Left front fender lining | 53876-12540 · 53876-12541 · 53876-12570 |
| 53882F | front fender seal | 53882-16030 |
