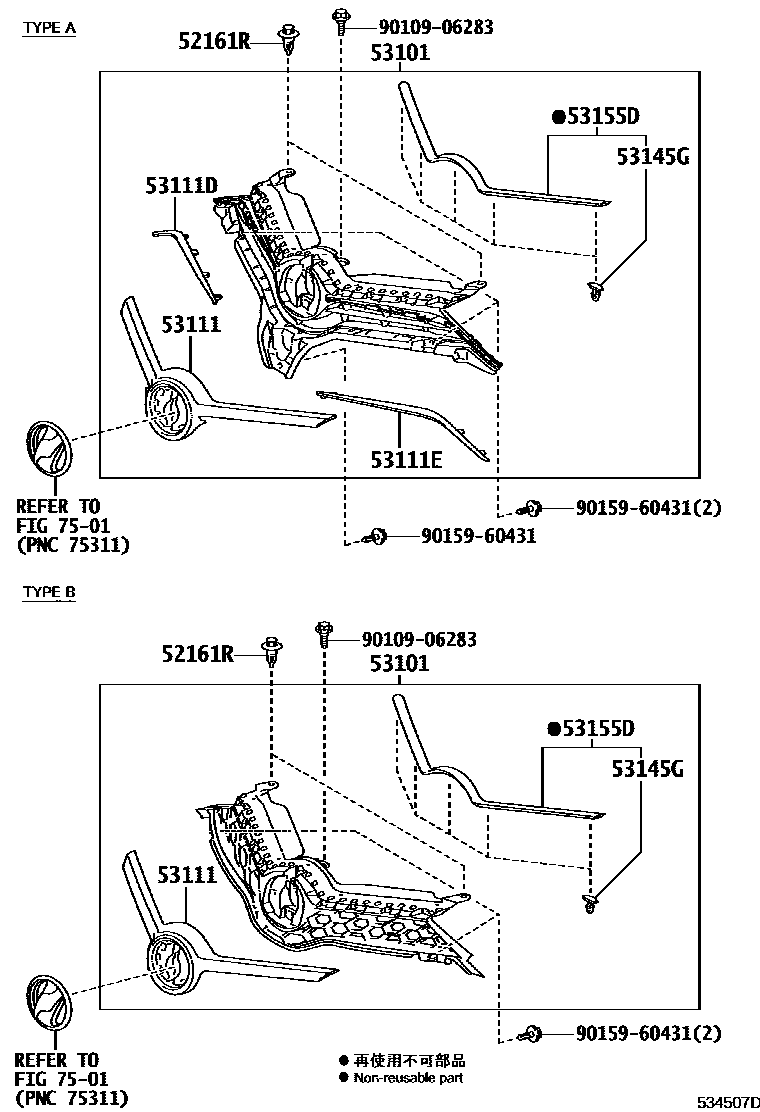

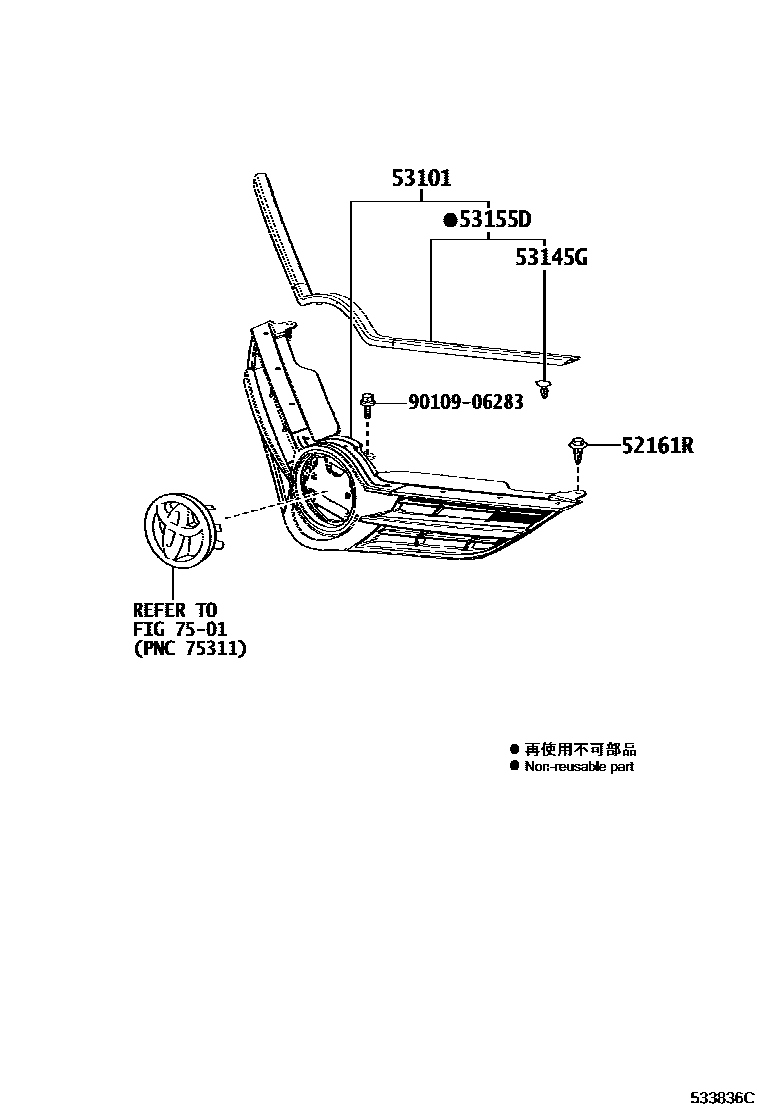

Toyota COROLLA radiator grille — Figure 5301
Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161R | front bumper insert | 52161-16010 |
| 53101 | Radiator grille sub-assembly | 53100-12480 · 53100-12481 · 53100-12490 · 53100-12491 |
| 53111 | radiator grille | 53111-12E00 · 53111-12E10 |
| 53111D | Protective strip on the right side of the radiator grille | 53121-12280 |
| 53111E | Radiator grille left protective strip | 53122-12210 |
| 53145G | Radiator grille clip | 53145-60030 |
| 53155D | Radiator grille seal No. 1 | 53037-12070 · 53037-12080 |
