Toyota COROLLA 后保险杠及附件 — Figure 5202

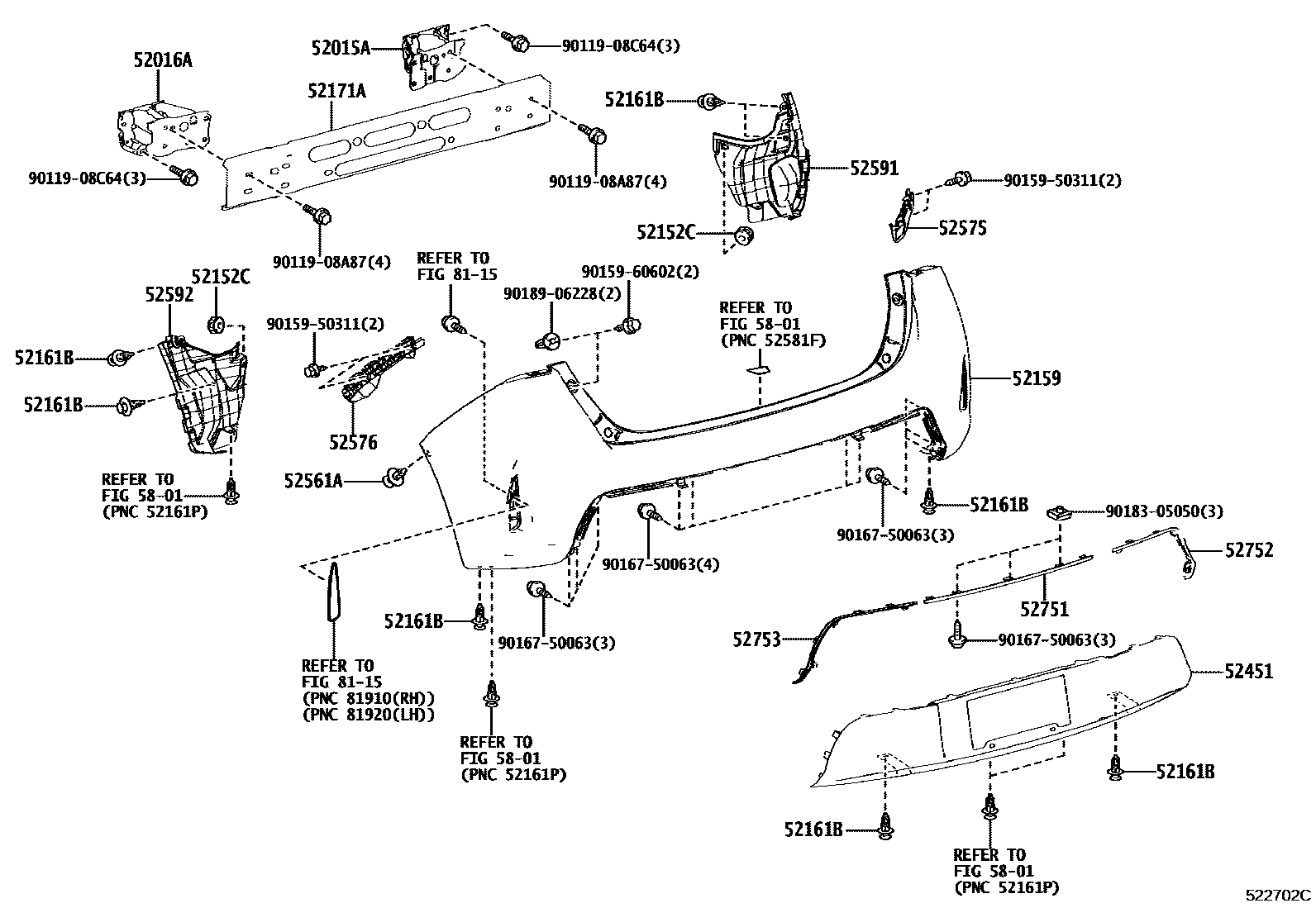

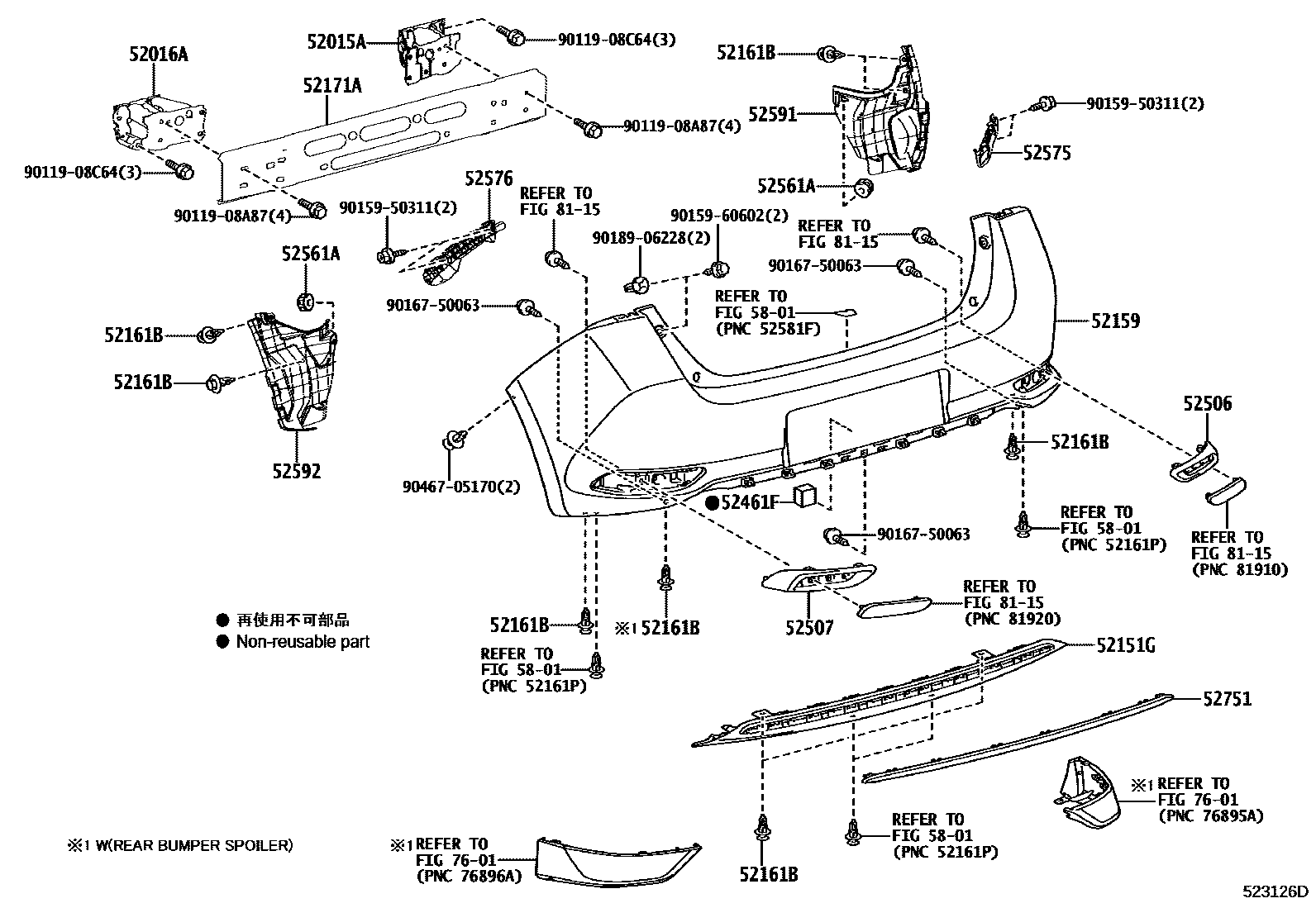

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-12310 |
| 52016A | Rear bumper left arm sub-assembly | 52016-12280 |
| 52151G | Rear bumper extension | 52151-12380 |
| 52159 | rear bumper cover | 52159-12945 · 52159-12949 · 52159-12950 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52171A | Rear bumper reinforcement No. 1 | 52171-12240 |
| 52451 | Rear bumper anti-impact parts | 52453-12050 · 52453-12090 |
| 52461F | rear bumper lining | 52461-48030 |
| 52506 | Rear bumper right extension section sub-assembly | 52681-12090 |
| 52507 | Rear bumper left extension section sub-assembly | 52682-12090 |
| 52561A | Clip (for rear bumper mount) | 90467-05170 |
| 52575 | Rear bumper right side fixing bracket | 52575-12190 |
| 52576 | Rear bumper left side fixing bracket | 52576-12190 |
| 52591 | Rear bumper right seal | 52591-12290 |
| 52592 | Rear bumper left seal | 52592-12210 |
| 52751 | Rear bumper protection strip | 52751-12250 · 52751-12260 · 52751-12270 · 52751-12280 · 52751-12290 |
| 52752 | Rear bumper right side protective strip | 52752-12030 · 52752-12040 · 52752-12050 |
| 52753 | Rear bumper left protective strip | 52753-12040 · 52753-12050 · 52753-12060 |
