Toyota COROLLA 前保险杠及附件 — Figure 5201

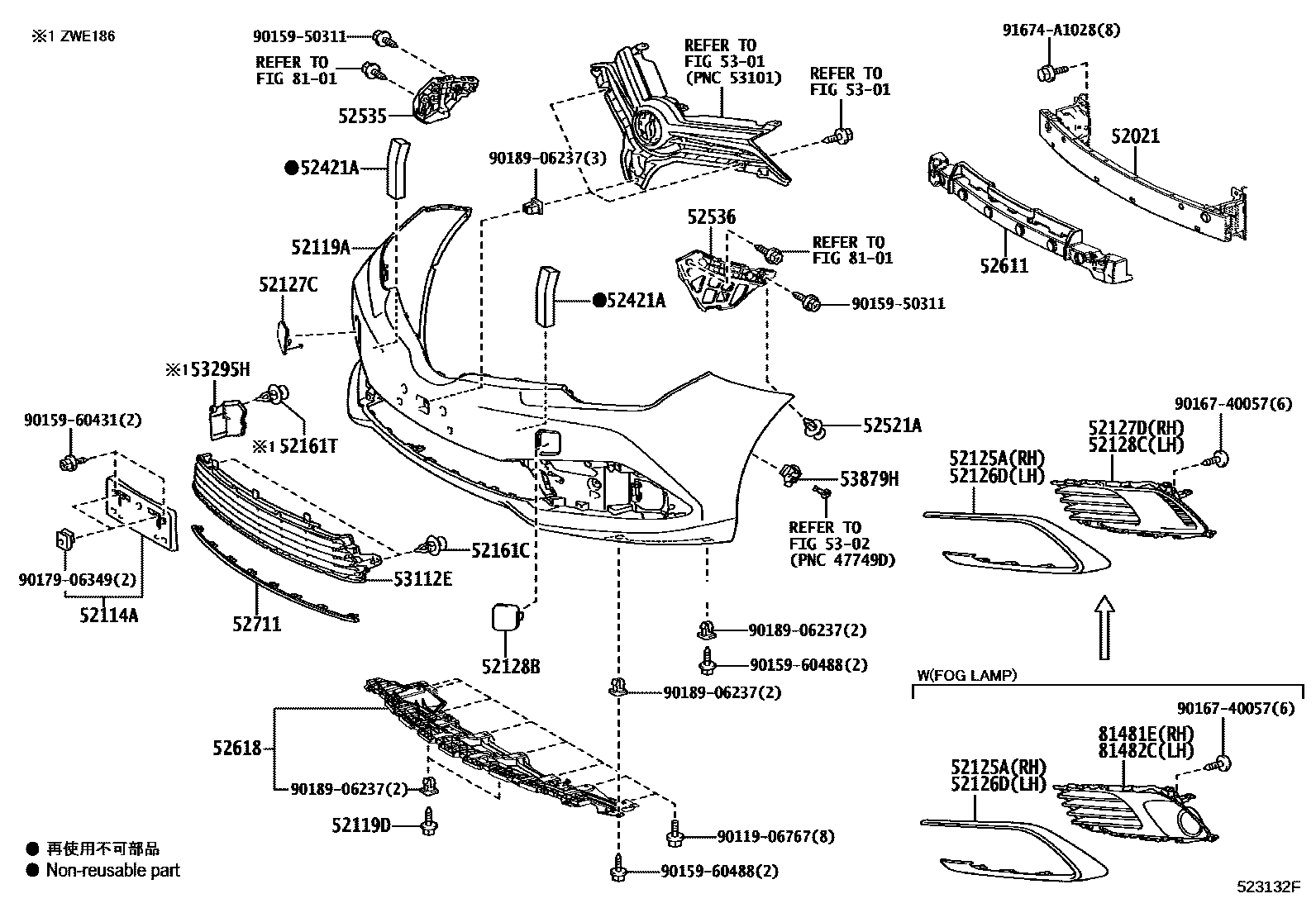

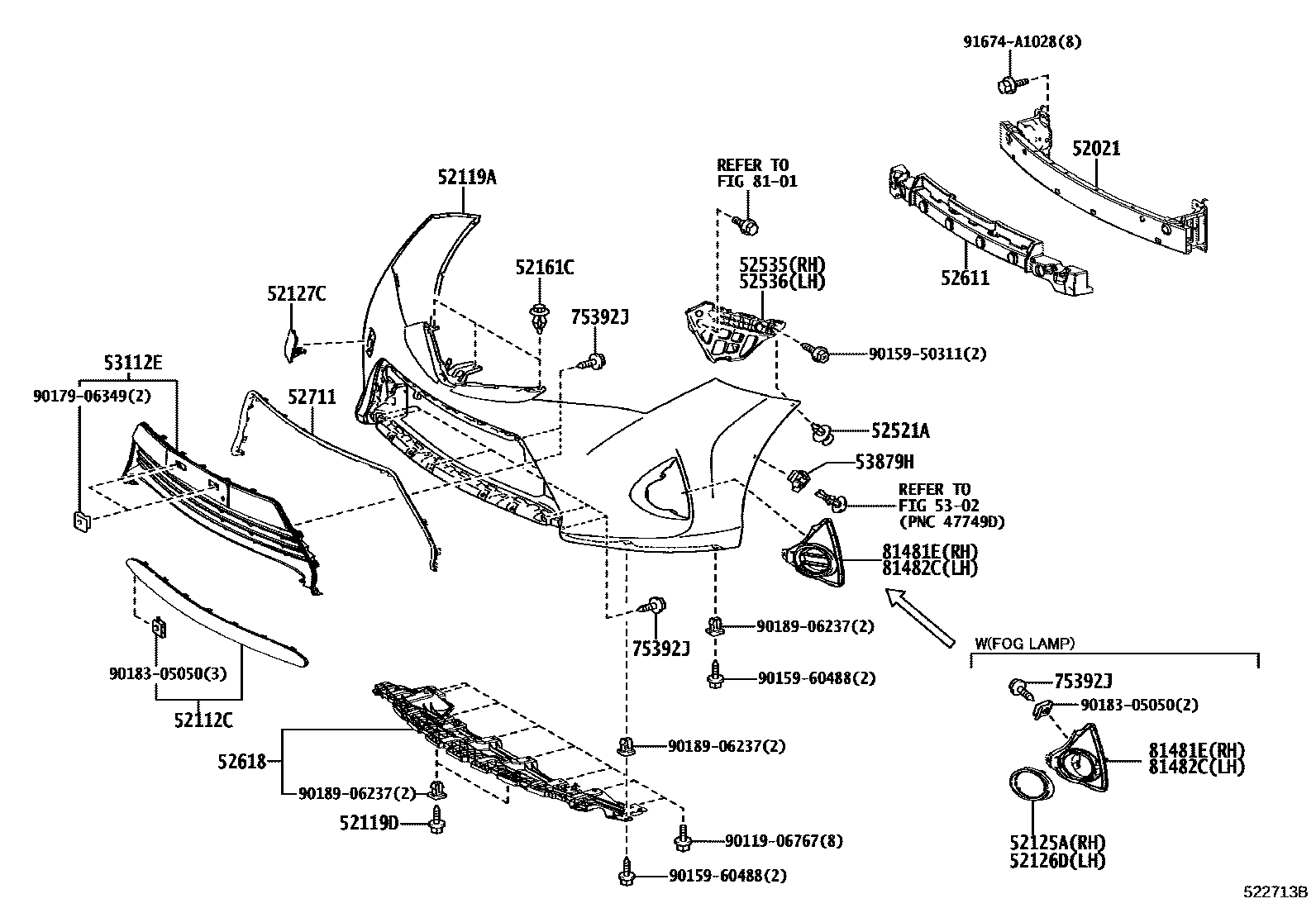

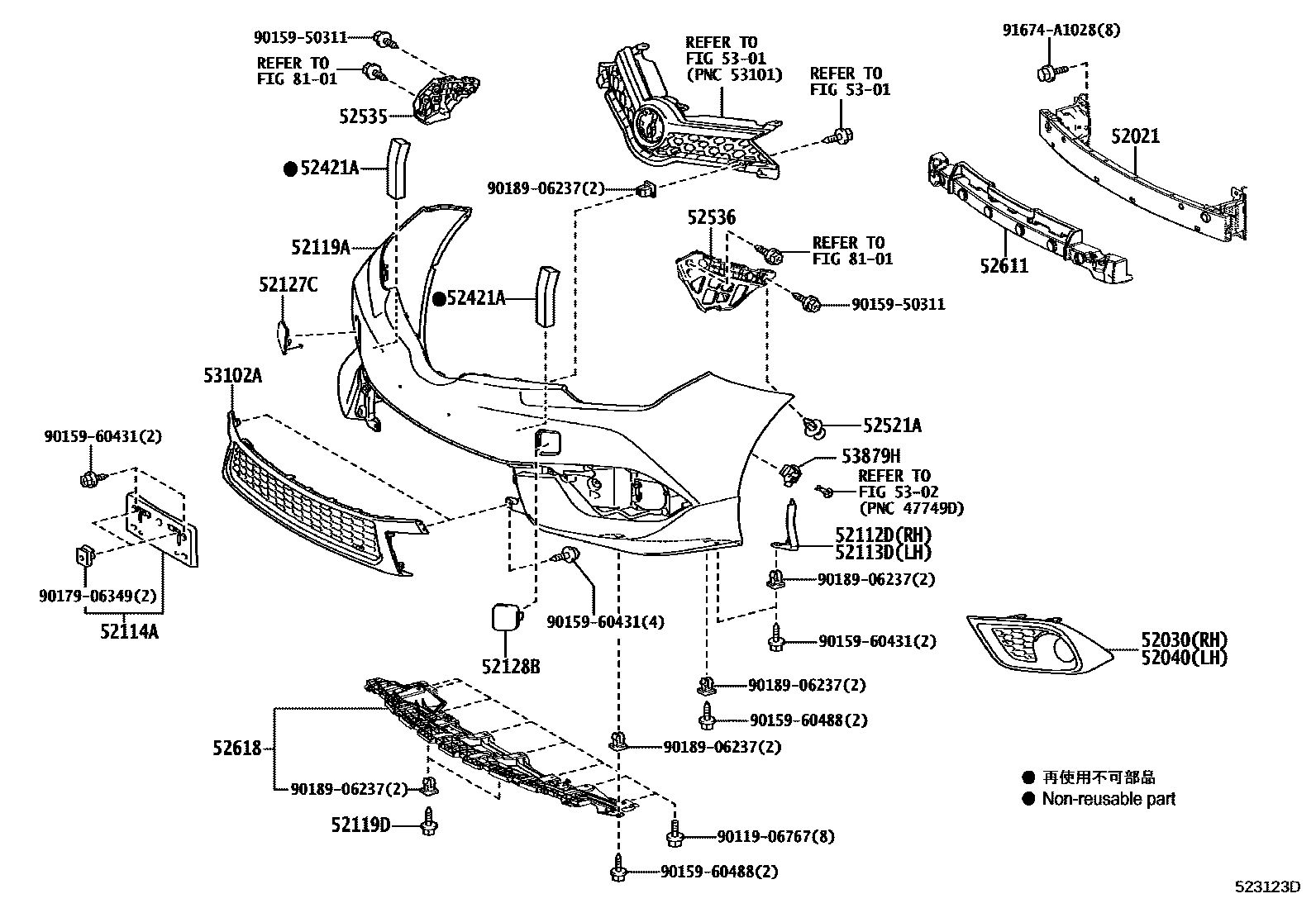

Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 3 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-12320 · 52021-12380 |
| 52030 | Front bumper right hole cover assembly | 52030-12100 |
| 52040 | Front bumper left hole cover assembly | 52040-12100 |
| 52112C | Front bumper extension | 52112-12230 · 52112-12240 · 52112-12280 |
| 52112D | Front bumper right extension | 52112-12270 |
| 52113D | Front bumper left extension | 52113-12230 |
| 52114A | Front bumper extension mounting bracket | 52114-12200 |
| 52119A | front bumper cover | 52119-12977 · 52119-12978 · 52119-12981 · 52119-12983 · 52119-12984 · 52119-12988 · 52119-12989 · 52119-12991 · 52119-12992 |
| 52119D | Screw No. 1 | 90159-60488 |
| 52125A | Right fog light mounting bracket | 52125-12050 · 52125-12070 · 52125-12080 · 52125-12090 |
| 52126D | Left fog light mounting bracket | 52126-12040 · 52126-12060 · 52126-12070 · 52126-12080 |
| 52127C | Front bumper hole cover | 52127-12910 · 52127-12912 |
| 52127D | Front bumper right hole cover | 81481-12310 |
| 52128B | Front bumper left hole cover | 52128-12914 |
| 52128C | Front bumper left hole cover | 81482-12220 |
| 52161C | front bumper insert | 52161-16010 |
| 52161T | front bumper insert | 52161-16010 |
| 52421A | front bumper lining | 52422-12140 |
| 52521A | Clip (for front bumper mount) | 90467-05170 |
| 52535 | Front bumper right side fixing bracket | 52535-12130 |
| 52536 | Front bumper left fixed bracket | 52536-12130 |
| 52611 | front bumper energy absorber | 52611-12330 · 52611-12360 |
| 52618 | Front bumper lower shock absorber | 52618-12030 |
| 52711 | Front bumper protection strip | 52711-12290 · 52711-12300 · 52711-12310 · 52711-12320 · 52711-12330 |
| 53102A | Radiator lower grille sub-assembly | 53102-12100 |
| 53112E | No. 1 radiator lower grille | 53102-12050 · 53112-12330 · 53112-12340 · 53112-12380 |
| 53295H | Radiator lower air deflector | 53295-12030 |
| 53879H | Front fender lining fixing parts | 53879-50020 · 53879-58010 |
| 75392J | External protective strip fixings | 75392-42030 |
| 81481E | Right fog light cover | 81481-12230 · 81481-12250 · 81481-12320 |
| 81482C | Left fog light cover | 81482-12180 · 81482-12190 · 81482-12230 |
