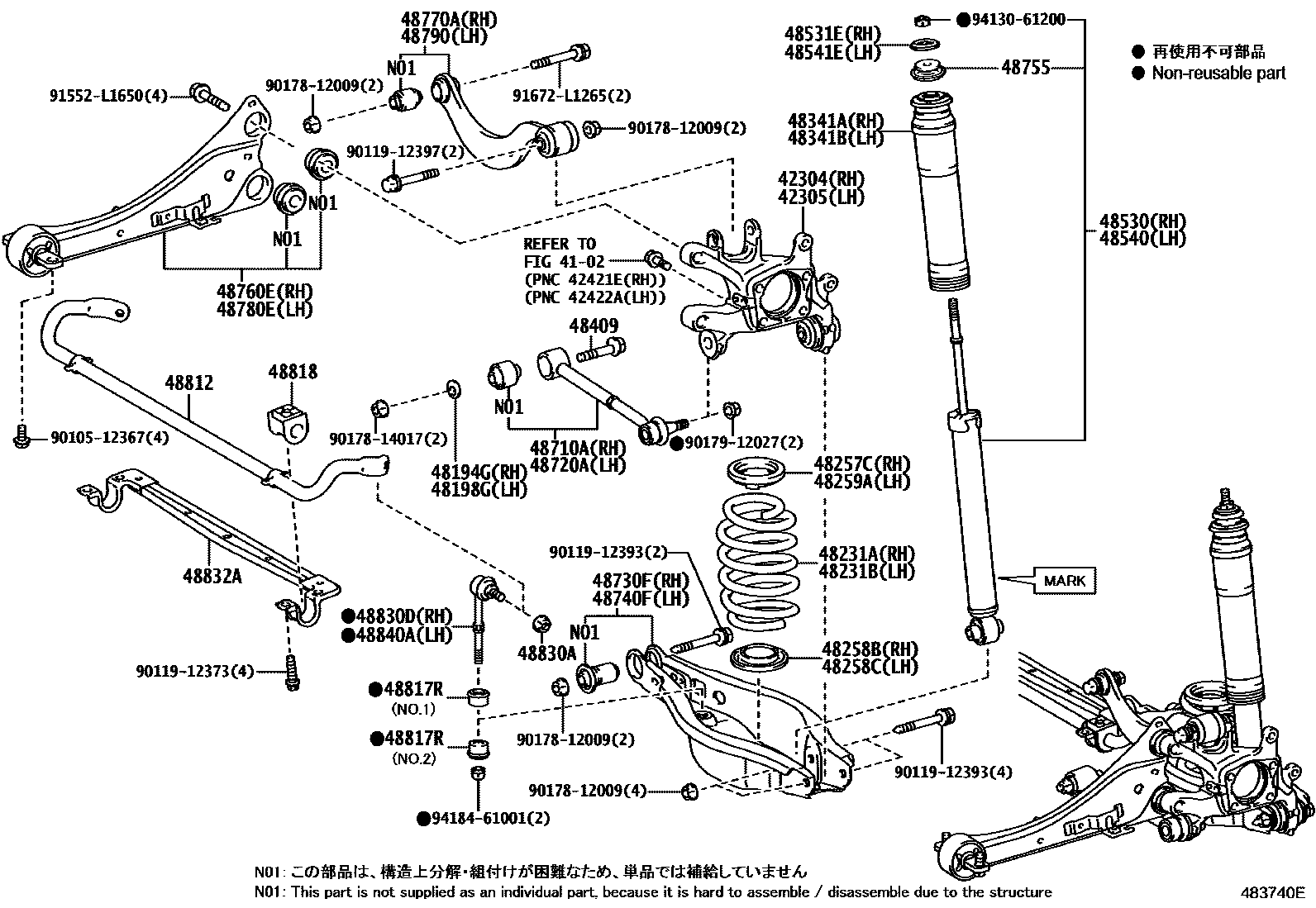

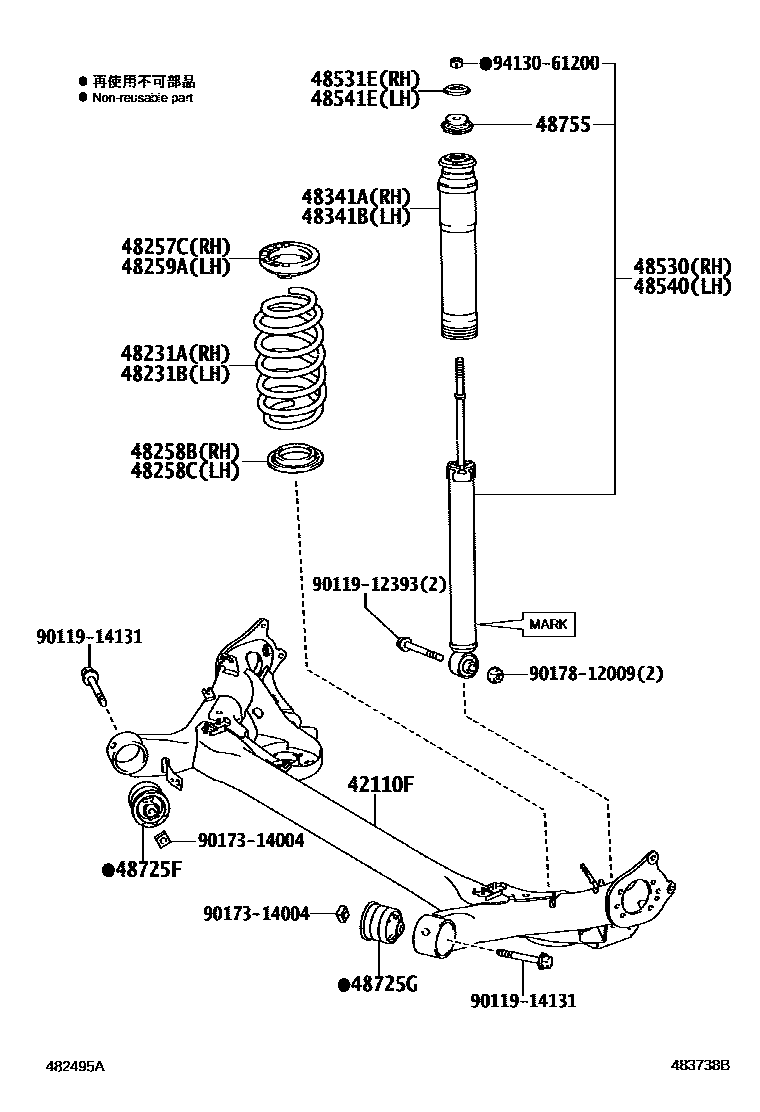

Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804
Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42110F | rear axle assembly | 42101-12171 |
| 42304 | Rear axle right bracket sub-assembly | 42304-12240 |
| 42305 | Rear axle left bracket sub-assembly | 42305-12240 |
| 48194G | No. 1 right rear suspension camber angle adjustment cam | 48198-42010 |
| 48198G | No. 1 left rear suspension camber angle adjustment cam | 48198-42010 |
| 48231A | Right rear coil spring | 48231-12C60 · 48231-12D80 |
| 48231B | Left rear coil spring | 48231-12C60 · 48231-12D80 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-52010 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-12050 · 48258-52030 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-12050 · 48258-52030 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-52010 |
| 48341A | No. 1 right rear spring buffer block | 48341-12240 |
| 48341B | No. 1 left rear spring buffer block | 48341-12240 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-42030 |
| 48530 | Right rear shock absorber assembly | 48530-80649 · 48530-80749 · 48530-80787 |
| 48531E | No. 1 buffer pad block (for right rear shock absorber) | 90948-02159 |
| 48540 | Left rear shock absorber assembly | 48530-80649 · 48530-80749 · 48530-80787 |
| 48541E | No. 1 cushion block (for left rear shock absorber) | 90948-02159 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-72010 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-72010 |
| 48725F | Right rear axle bracket bushing | 48725-12590 |
| 48725G | Left rear axle bracket bushing | 48725-12590 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-12240 |
| 48740F | Left rear suspension No. 2 arm assembly | 48730-12240 |
| 48755 | rear suspension mount | 48755-12100 |
| 48760E | Right rear trailing arm assembly | 48760-12010 |
| 48770A | Right rear upper control arm assembly | 48770-12010 |
| 48780E | Left rear trailing arm assembly | 48780-12140 |
| 48790 | Left rear upper control arm assembly | 48770-12010 |
| 48812 | rear stabilizer bar | 48812-12380 |
| 48817R | Stabilizer bumper (for rear stabilizer link) | 48817-12020 · 48817-12030 |
| 48818 | Rear stabilizer bar bushing | 48818-12280 |
| 48830A | Nut (for rear stabilizer link) | 94151-21241 |
| 48830D | Right rear stabilizer bar link assembly | 48830-12070 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-76010 |
| 48840A | Left rear stabilizer bar link assembly | 48830-12070 |
