Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

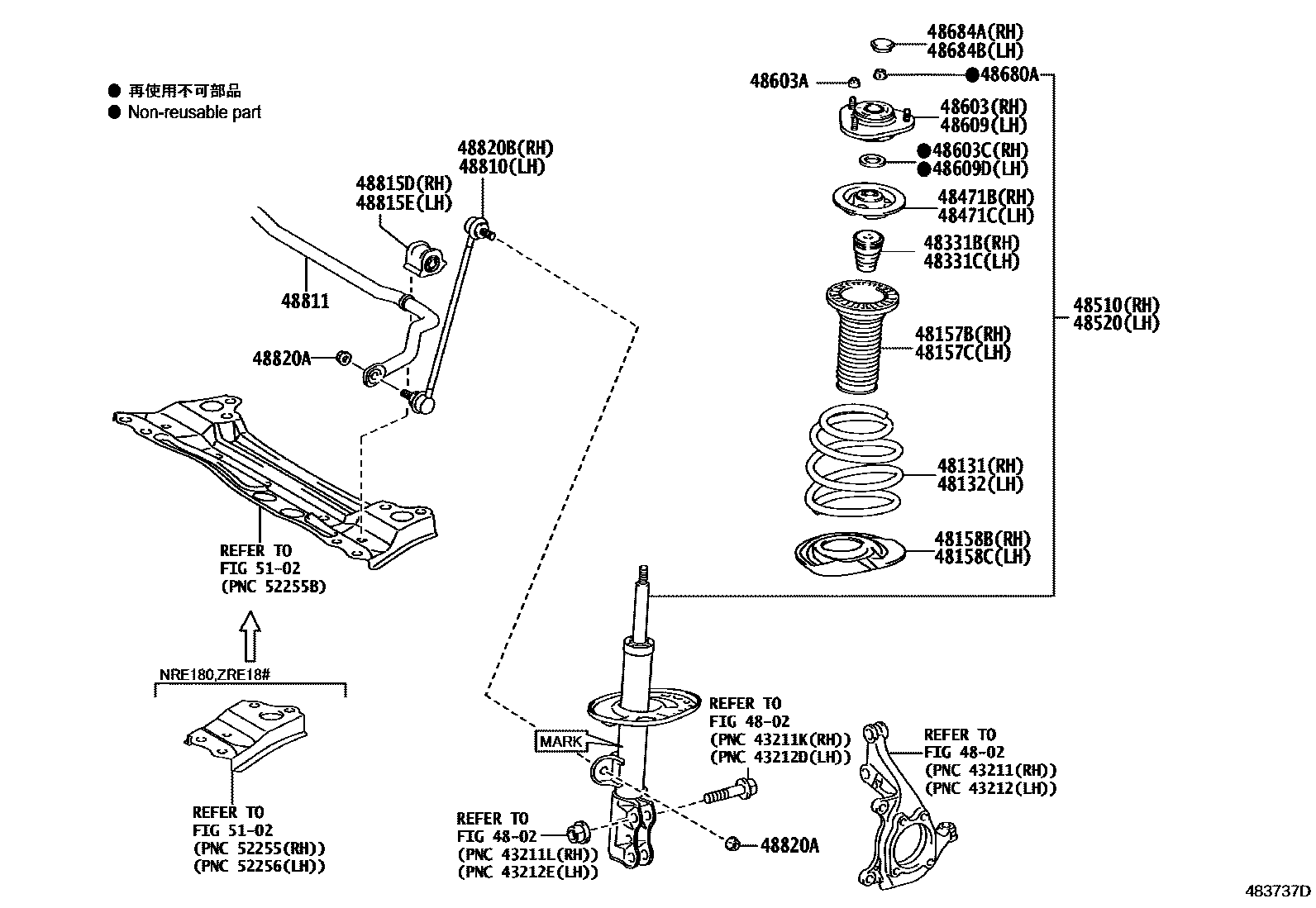

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-12E00 · 48131-12E10 · 48131-12E50 · 48131-12E80 · 48131-12F50 |
| 48132 | Left front coil spring | 48131-12E00 · 48131-12E10 · 48131-12E50 · 48131-12E80 · 48131-12F50 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-12110 · 48157-12111 · 48157-76010 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-12110 · 48157-12111 · 48157-76010 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-12060 · 48158-76010 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-12060 · 48158-76010 |
| 48331B | Right front spring buffer block | 48331-12250 |
| 48331C | Left front spring buffer block | 48331-12250 |
| 48471B | Front coil spring upper right seat | 48044-42010 |
| 48471C | Front coil spring upper left seat | 48044-42010 |
| 48510 | Right front shock absorber assembly | 48510-80593 · 48510-80758 · 48510-80825 |
| 48520 | Left front shock absorber assembly | 48520-80308 · 48520-80435 · 48520-80499 |
| 48603 | Right front suspension bearing sub-assembly | 48609-12600 |
| 48603A | Nut (for front suspension mount) | 90178-10030 |
| 48603C | Dust seal (for right front suspension mount) | 90303-22002 |
| 48609 | Left front suspension bearing sub-assembly | 48609-12600 |
| 48609D | Dust seal (for left front suspension mount) | 90303-22002 |
| 48680A | Nut (for front mount to front shock absorber) | 90179-14015 |
| 48684A | Right front suspension support dust cover | 48684-52010 |
| 48684B | Left front suspension support dust cover | 48684-52010 |
| 48810 | Left front stabilizer bar link assembly | 48820-42030 |
| 48811 | front stabilizer bar | 48811-12A10 |
| 48815D | Right front stabilizer bar bushing | 48815-12390 · 48815-72020 |
| 48815E | Left front stabilizer bar bushing | 48815-12370 · 48815-72010 |
| 48820A | Nut (for front stabilizer bar link) | 90179-12151 |
| 48820B | Right front stabilizer bar link assembly | 48820-42030 |
