Toyota COROLLA 制动配管和卡箍 — Figure 4708

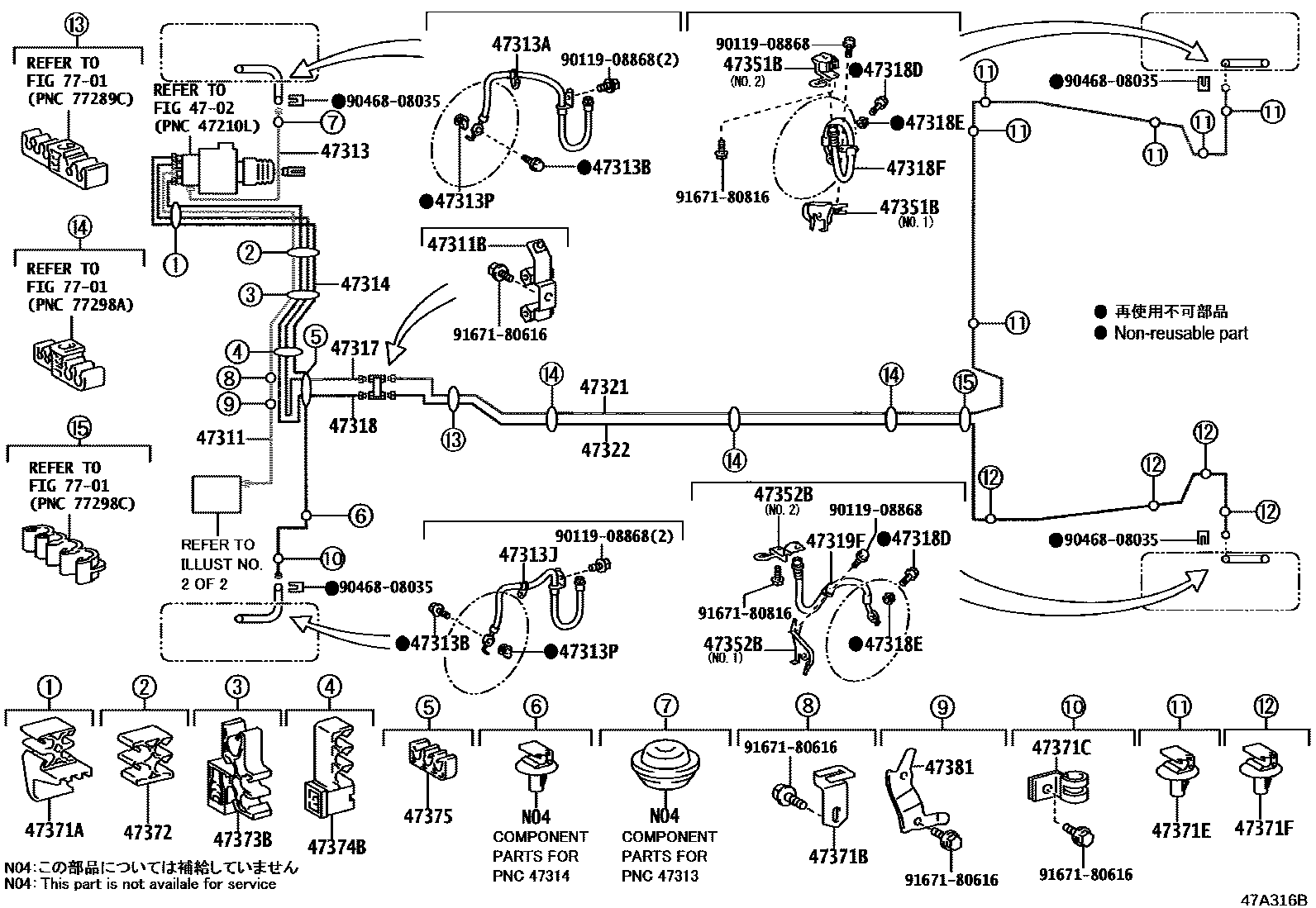

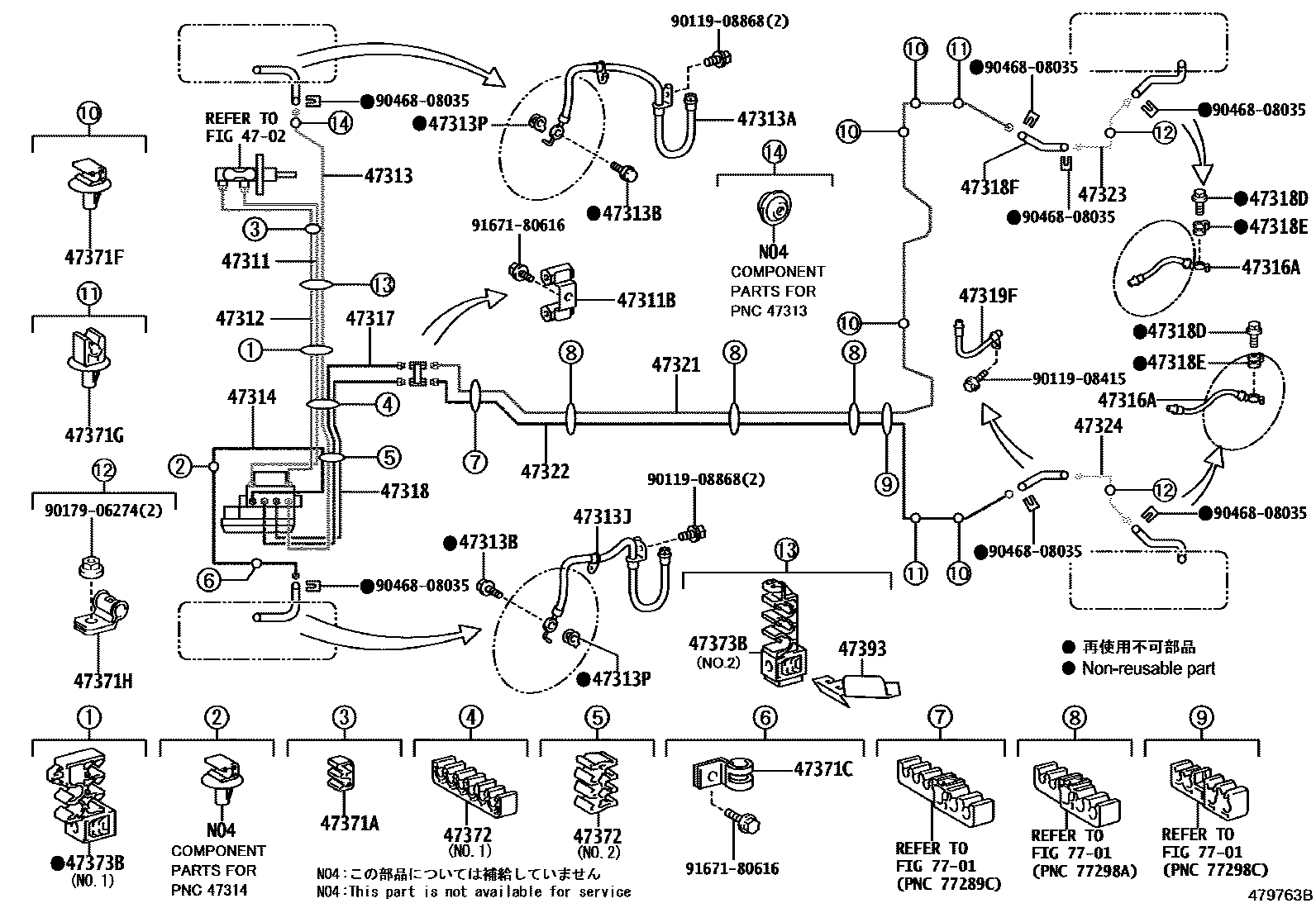

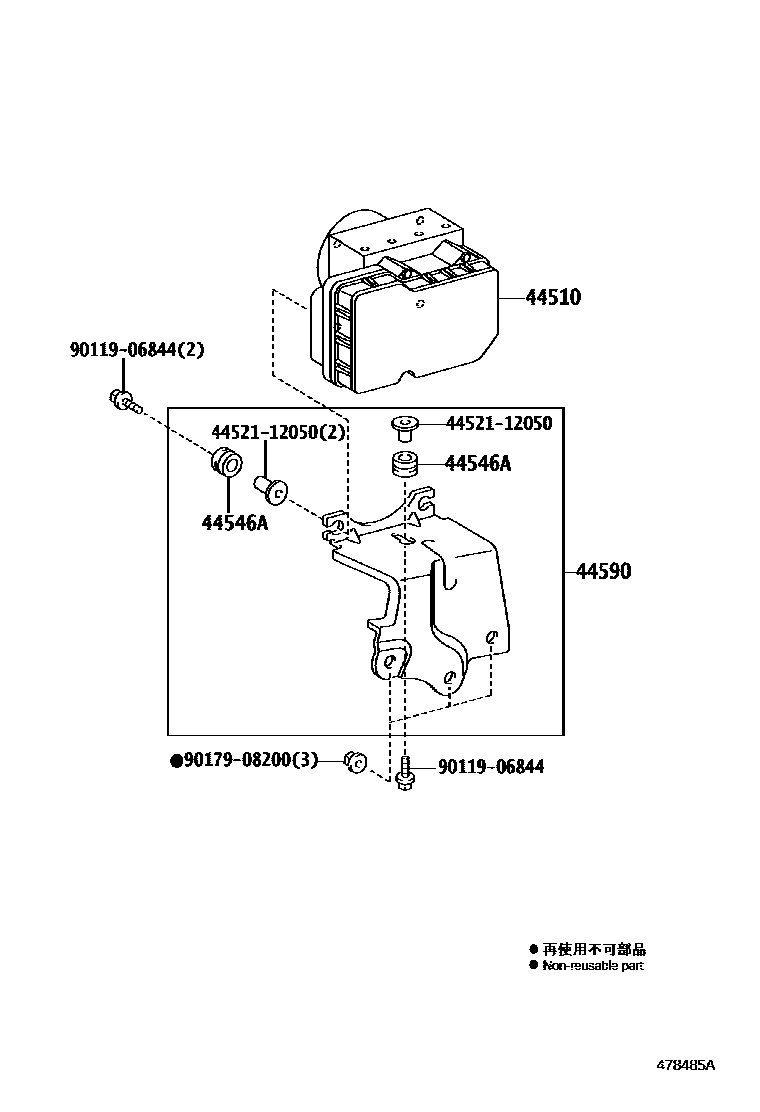

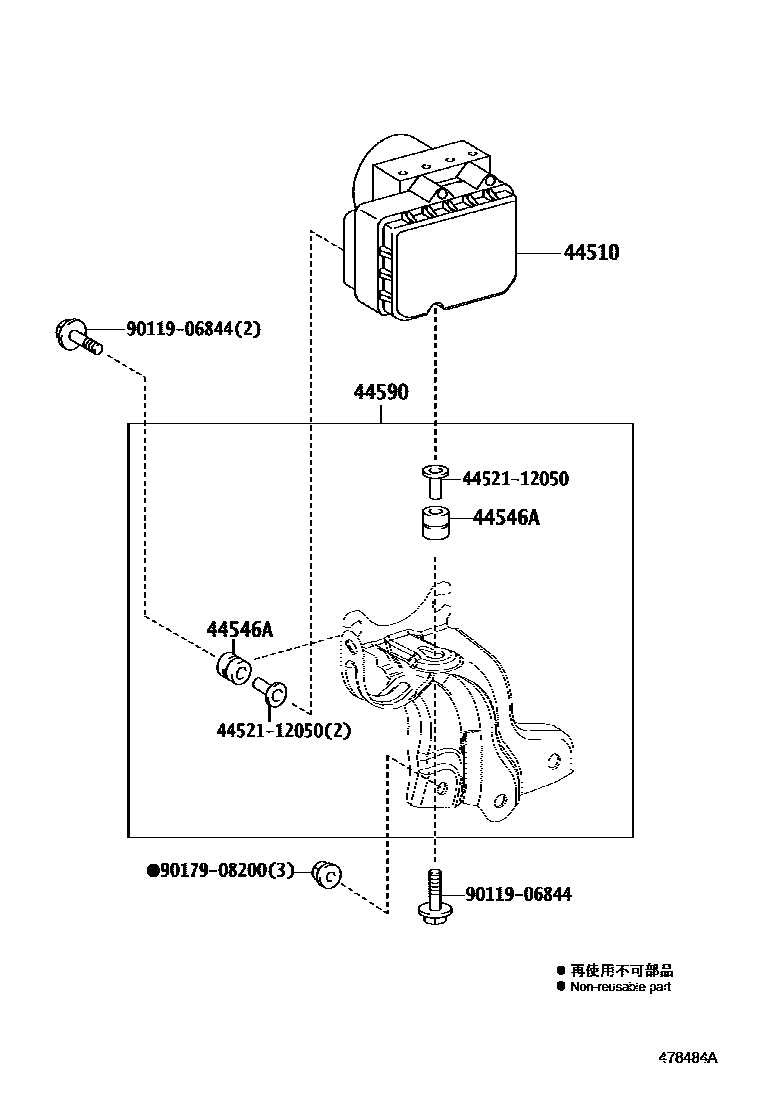

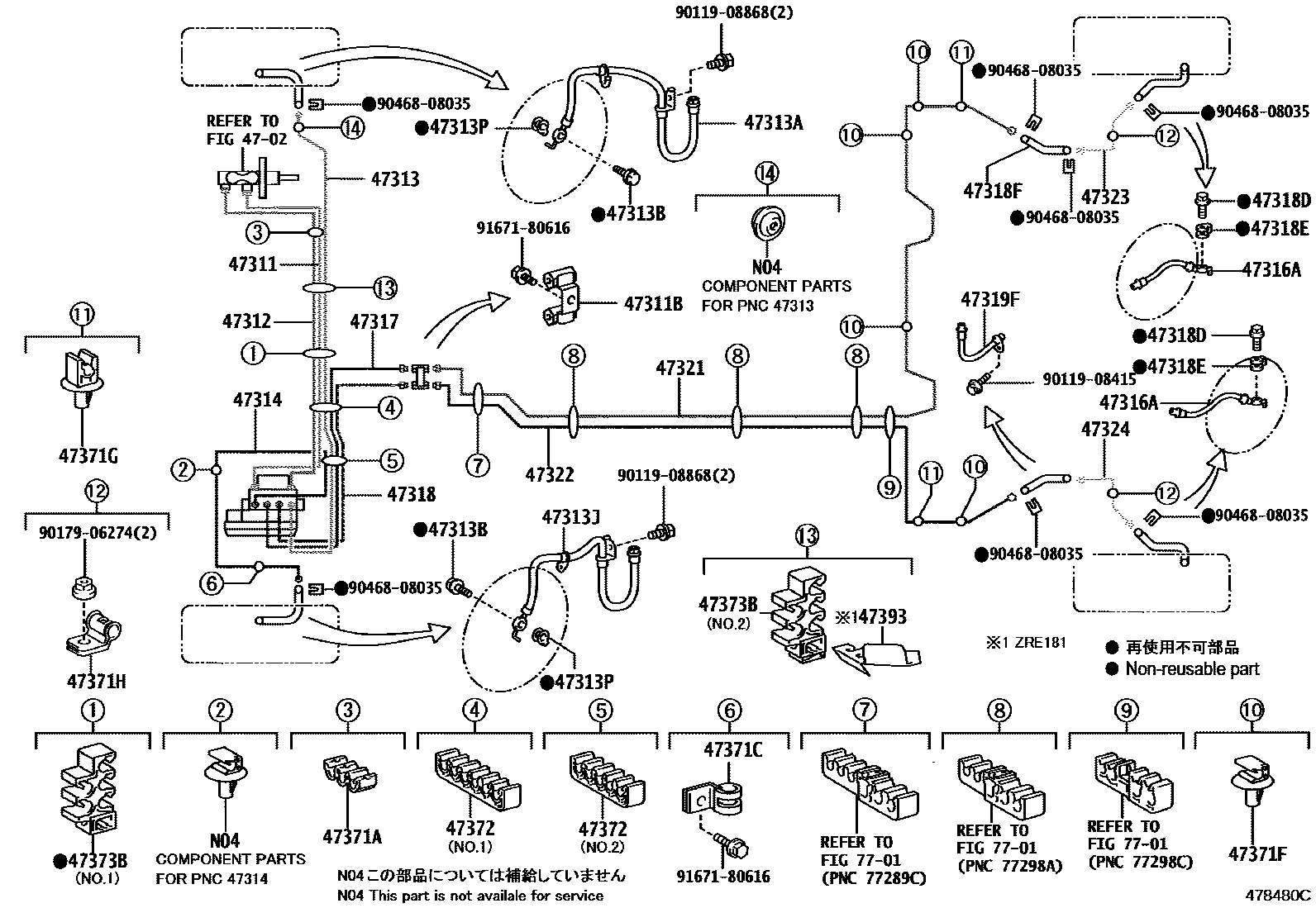

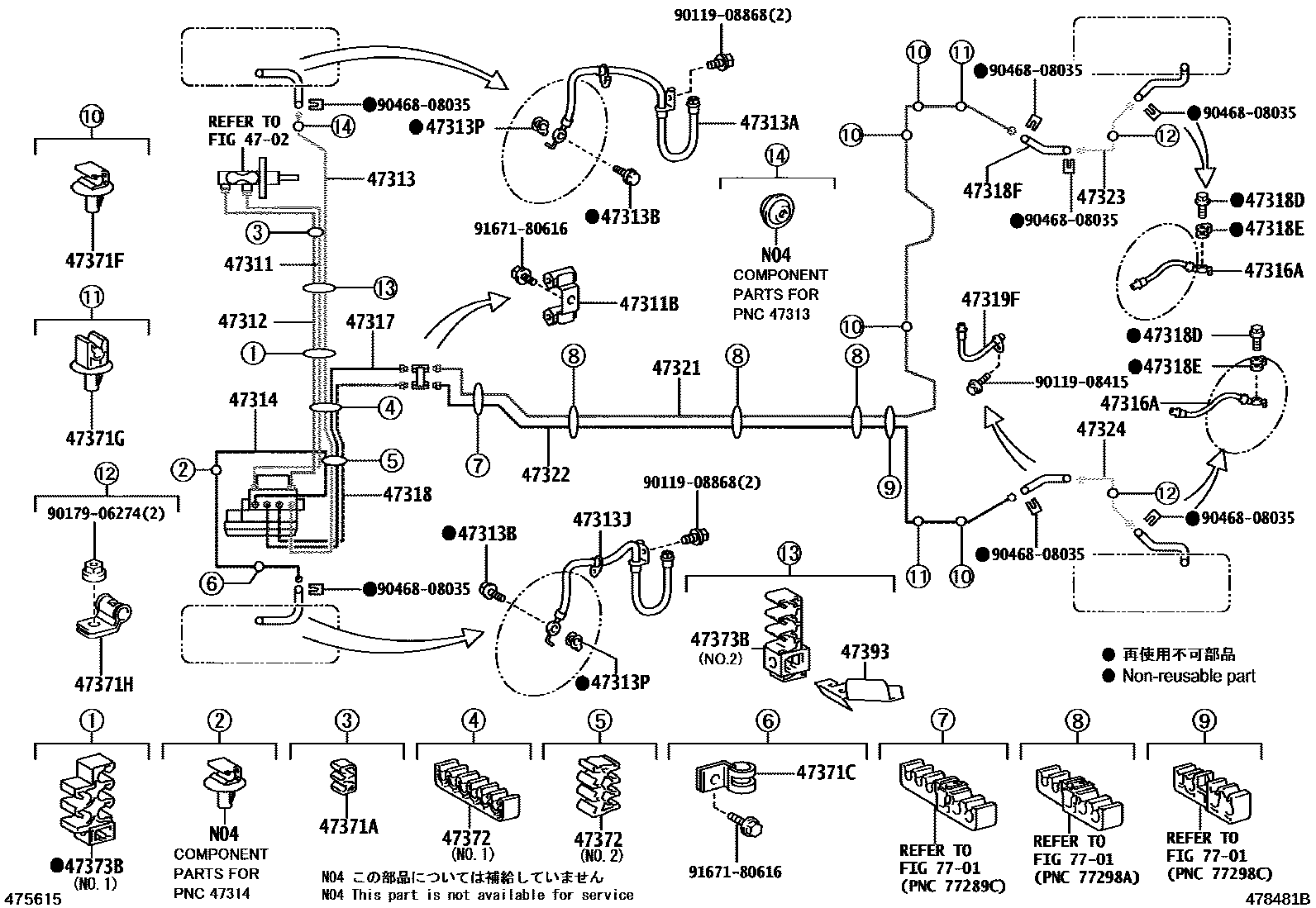

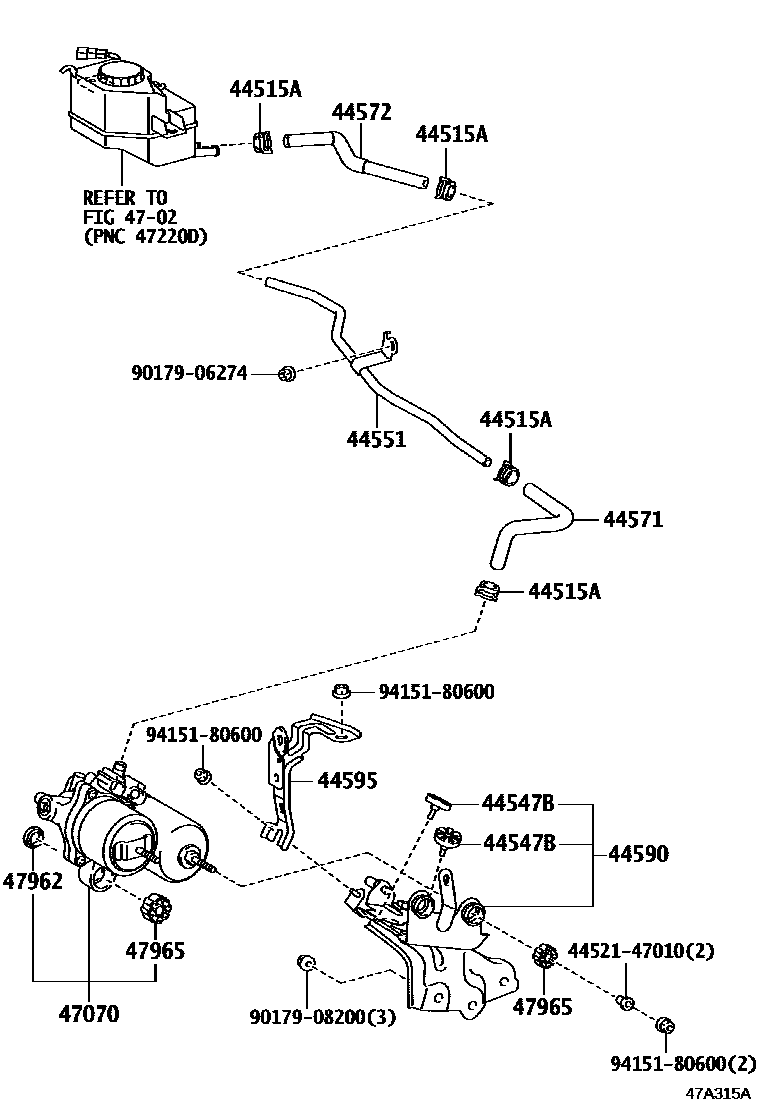

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 7 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-12880 · 44050-12A00 · 44050-12A01 · 44050-12A10 · 44050-12A11 · 44050-12A80 |
| 44515A | Clamp (for brake actuator hose) | 96137-41501 |
| 44546A | Brake actuator bolt cushion | 44546-12110 |
| 44547B | brake actuator bracket cushion | 47131-47070 |
| 44551 | No. 1 brake actuator pipe | 44551-47040 |
| 44571 | brake actuator hose | 44571-47040 |
| 44572 | No. 2 brake actuator hose | 44572-12020 |
| 44590 | Brake actuator bracket assembly | 44590-12080 · 44590-12210 · 44590-47050 |
| 44595 | No. 5 brake actuator bracket | 44595-47010 |
| 47070 | Brake booster pump assembly | 47070-12020 |
| 47311 | No. 1 front brake pipe | 47311-12B20 · 47311-12C10 · 47311-12C20 · 47311-12C21 · 47311-76010 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10279 · 90412-10285 |
| 47312 | No. 2 front brake pipe | 47312-12660 · 47312-12740 · 47312-12750 · 47312-12751 |
| 47313 | No. 3 front brake pipe | 47313-12730 · 47313-12820 · 47313-12830 · 47313-12A10 · 47313-76010 |
| 47313A | No. 1 front flexible hose | 90947-02G30 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-02G31 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-12610 · 47314-12750 · 47314-12760 · 47314-12770 · 47314-76020 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-02F87 |
| 47317 | No. 7 front brake pipe | 47317-12460 · 47317-12560 · 47317-12570 · 47317-12580 · 47317-76010 |
| 47318 | No. 8 front brake pipe | 47318-12600 · 47318-12700 · 47318-12710 · 47318-12720 · 47318-76010 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-02F85 · 90947-02G32 |
| 47319F | Left rear flexible hose | 90947-02F86 · 90947-02G33 |
| 47321 | No. 1 rear brake pipe | 47321-12290 · 47321-12430 · 47321-12460 |
| 47322 | No. 2 rear brake pipe | 47322-12450 · 47322-12590 · 47322-12630 |
| 47323 | No. 3 rear brake pipe | 47323-12230 · 47323-47050 |
| 47324 | No. 4 rear brake pipe | 47324-12190 · 47324-47050 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-12210 · 47351-12220 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-12180 · 47352-12190 |
| 47371A | No. 1 brake pipe clamp | 90464-00868 · 90464-00899 · 90949-01D77 · 90949-01D92 · 90949-01E22 |
| 47371B | No. 6 brake pipe clamp | 47371-47060 |
| 47371C | No. 7 brake pipe clamp | 90461-10781 |
| 47371E | No. 9 brake pipe clamp | 90949-01D17 |
| 47371F | No. 10 brake pipe clamp | 90949-01D17 |
| 47371G | No. 11 brake pipe clamp | 90949-01D29 |
| 47371H | No. 12 brake pipe clamp | 90461-10843 |
| 47372 | No. 2 brake pipe clamp | 90464-00876 · 90464-00890 · 90464-00892 · 90464-00900 · 90464-00933 · 90949-01E15 · 90949-01E17 · 90949-01E21 · 90949-01E23 |
| 47373B | No. 3 brake pipe clamp | 90949-01D43 · 90949-01D45 · 90949-01D63 · 90949-01D68 · 90949-01D71 · 90949-01E20 · 90949-01E24 |
| 47374B | No. 4 brake pipe clamp | 90949-01D08 |
| 47375 | No. 5 brake pipe clamp | 90464-00857 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-75010 |
| 47393 | brake pipe heat shield | 47393-20030 |
| 47962 | brake booster pump collar | 47962-60090 |
| 47965 | brake booster pump bushing | 47965-30010 |
