Toyota COROLLA 车轮和车轮盖 — Figure 4103

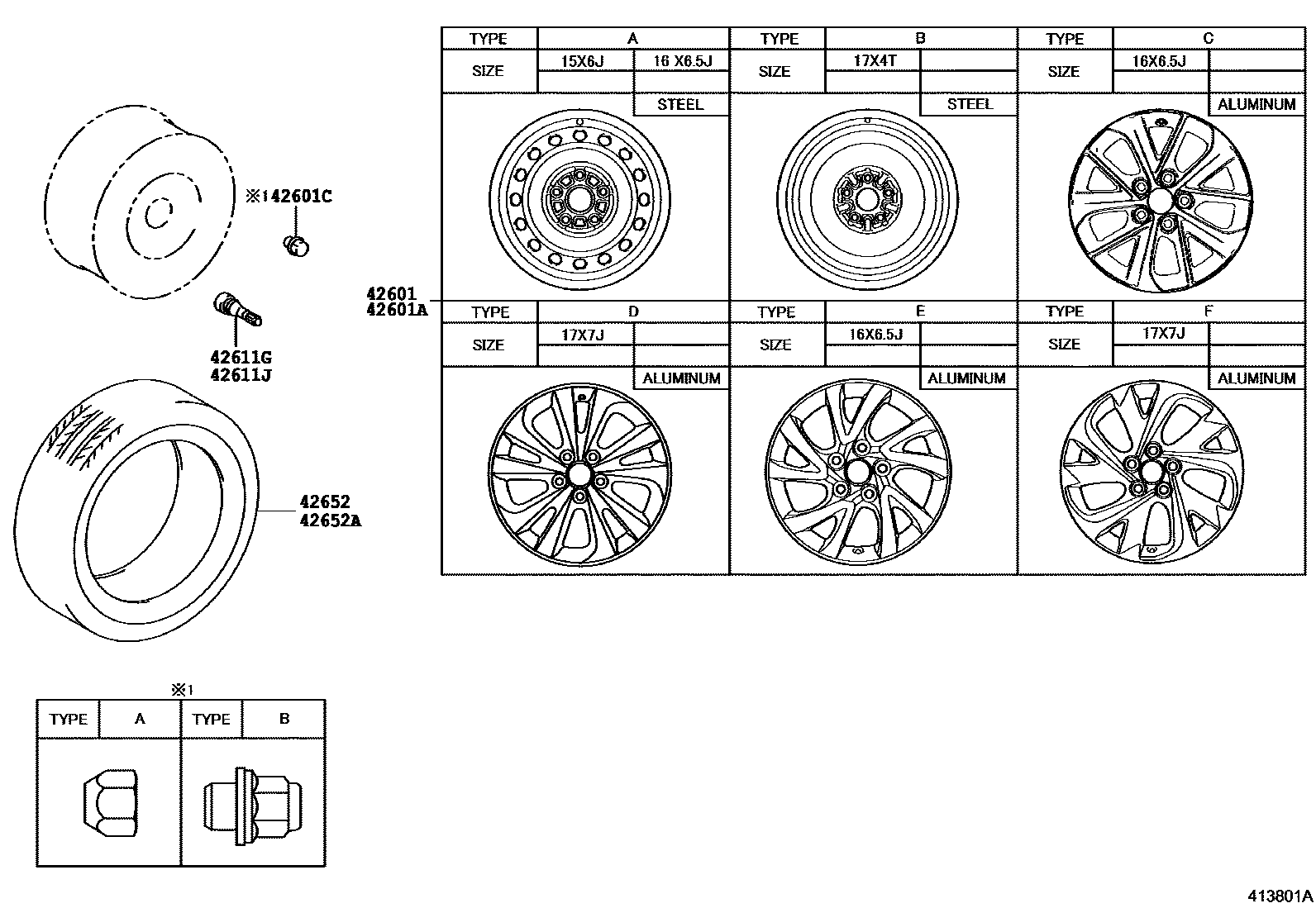

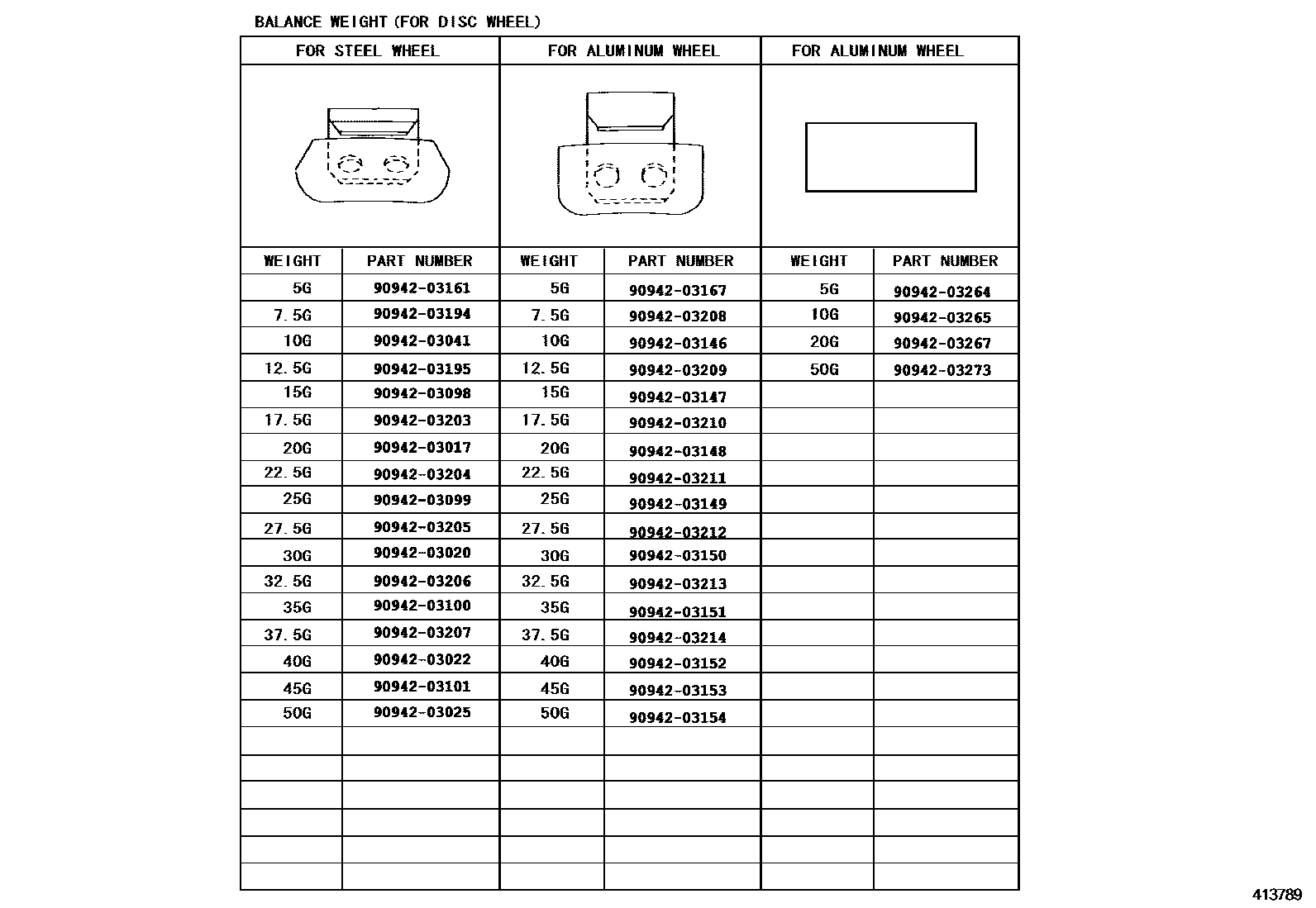

Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-12A10 · 42611-12C70 · 42611-12C80 · 42611-12C90 · 42611-12D10 · 42611-12D20 · 4261A-12030 |
| 42601A | Spoke wheel (for spare tire) | 42611-12A10 · 42611-12C70 · 42611-75100 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 |

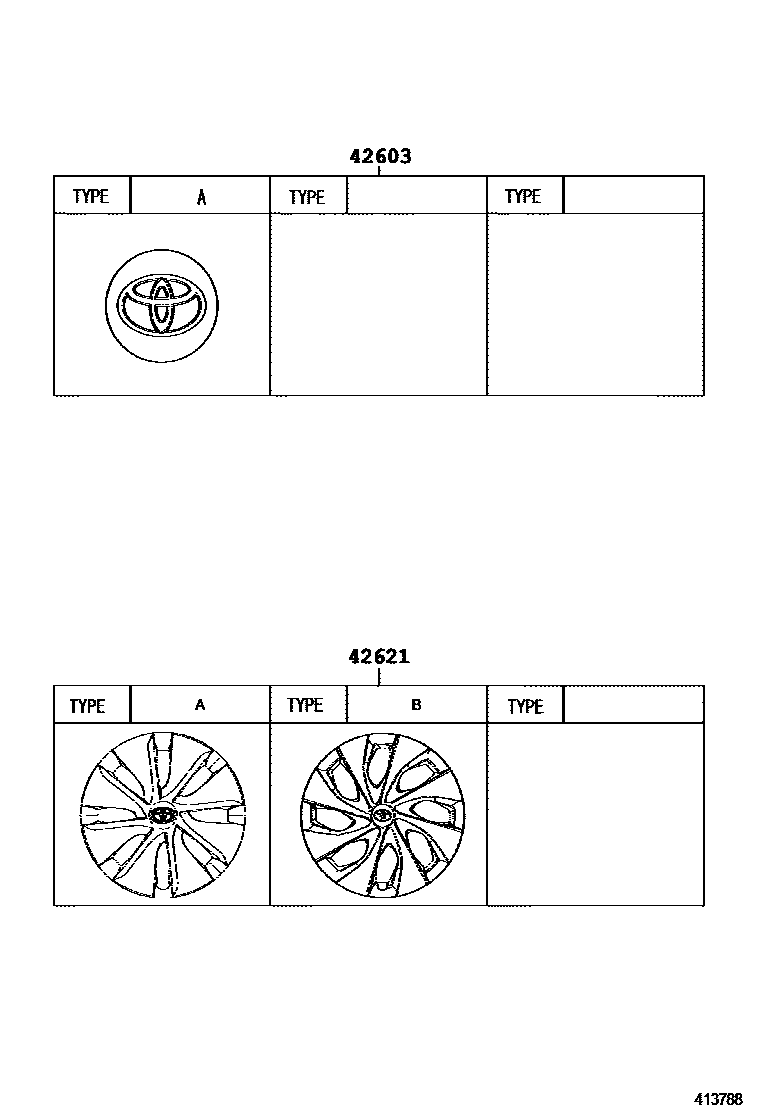

| 42603 | Wheel hub decorative parts sub-assembly | 42603-12760 · 42603-48130 · 42603-48140 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42621 | wheel cover | 42602-12870 · 42602-12880 |
| 42652 | tires | 42652-12B81 · 42652-12C01 · 42652-12C40 · 42652-12C41 · 42652-12C60 · 42652-12C61 · 42652-12D11 · 42652-12D31 · 42652-12D71 · 42652-12D90 · 42652-12F80 · 42652-47180 · 42652-47192 |
| 42652A | Tire (for Spare Wheel) | 42652-12B81 · 42652-12C01 · 42652-12C40 · 42652-12C41 · 42652-12C60 · 42652-12C61 · 42652-12D11 · 42652-12D31 · 42652-12F80 · 42652-2B460 · 4265A-76010 |
