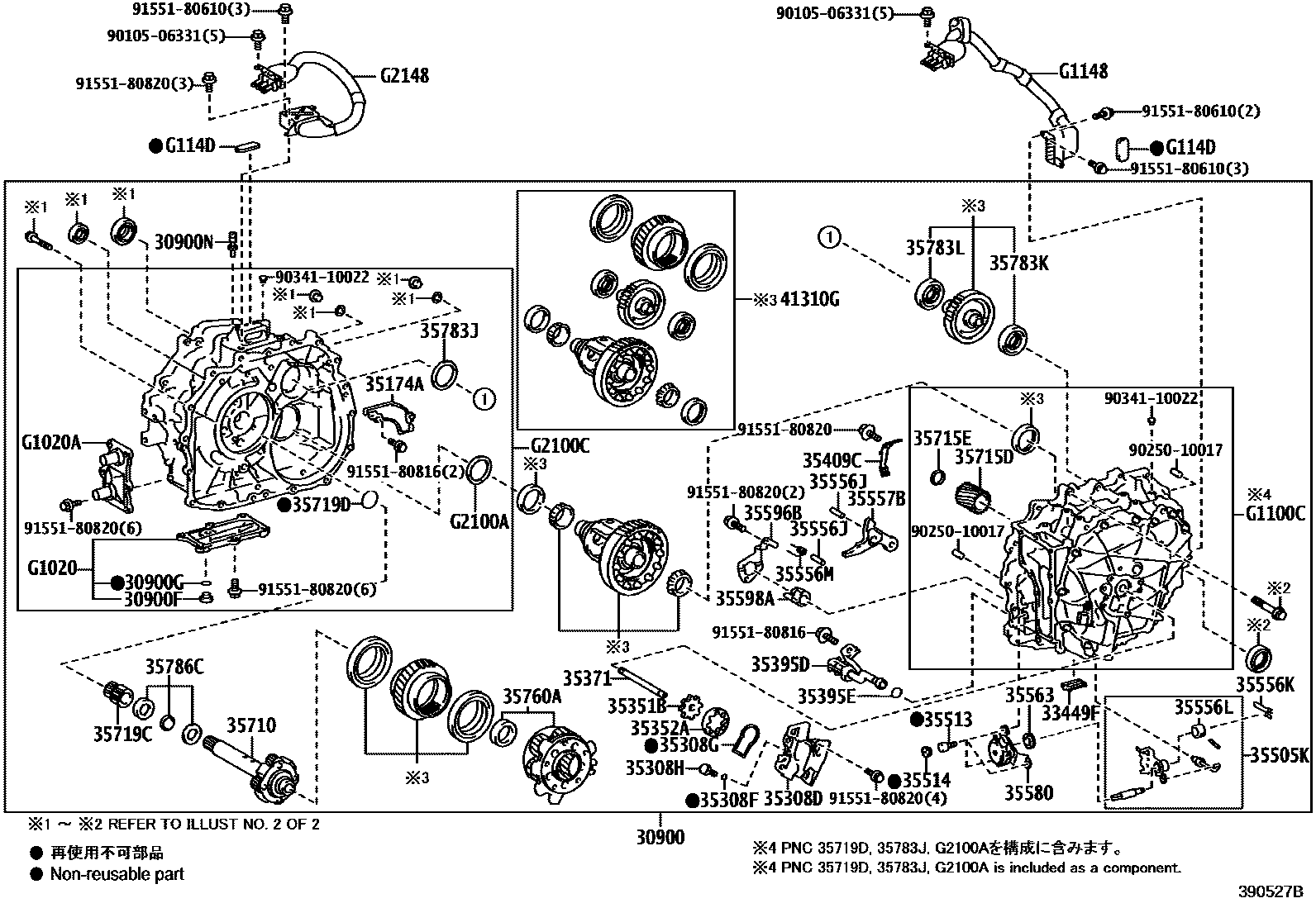

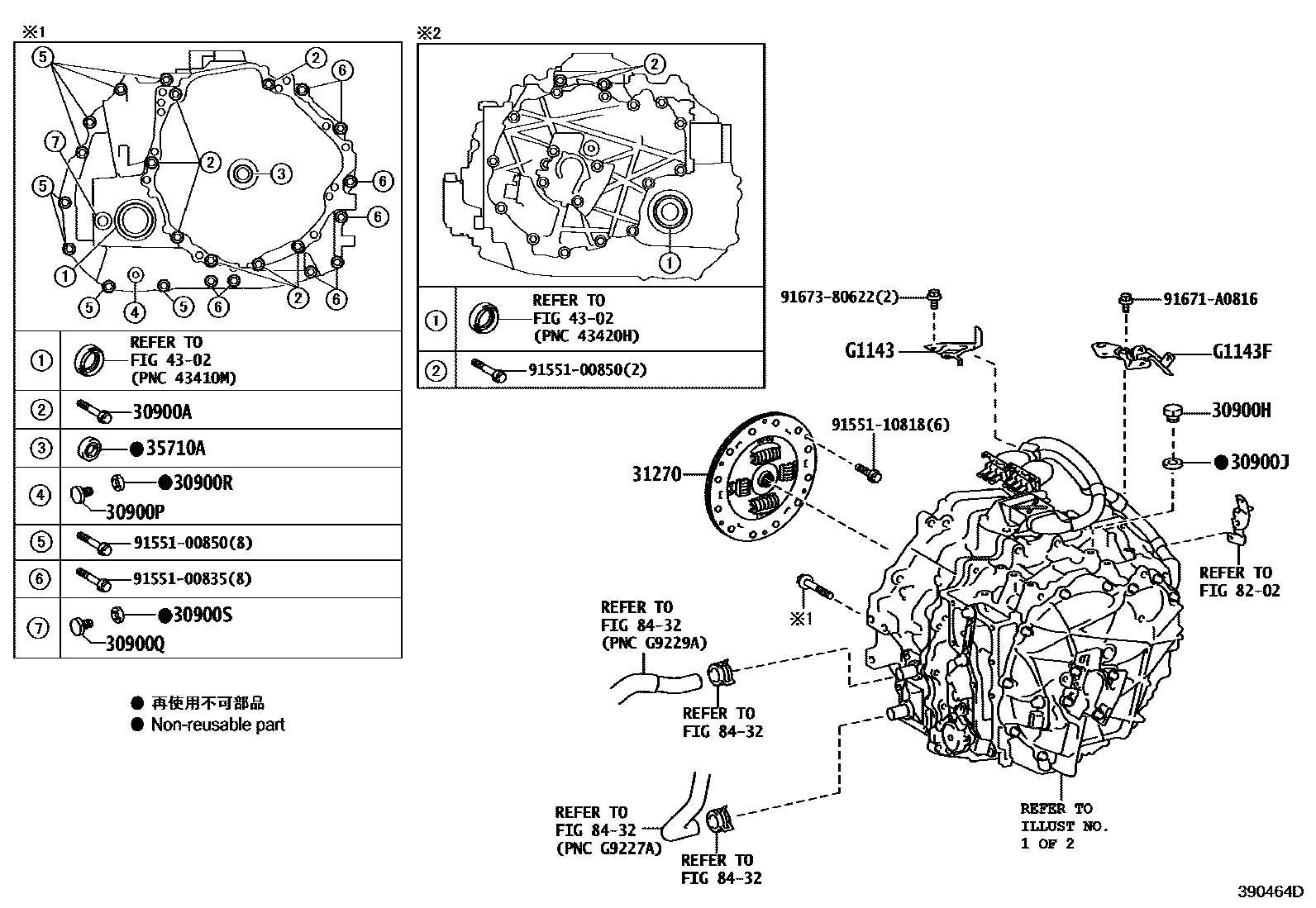

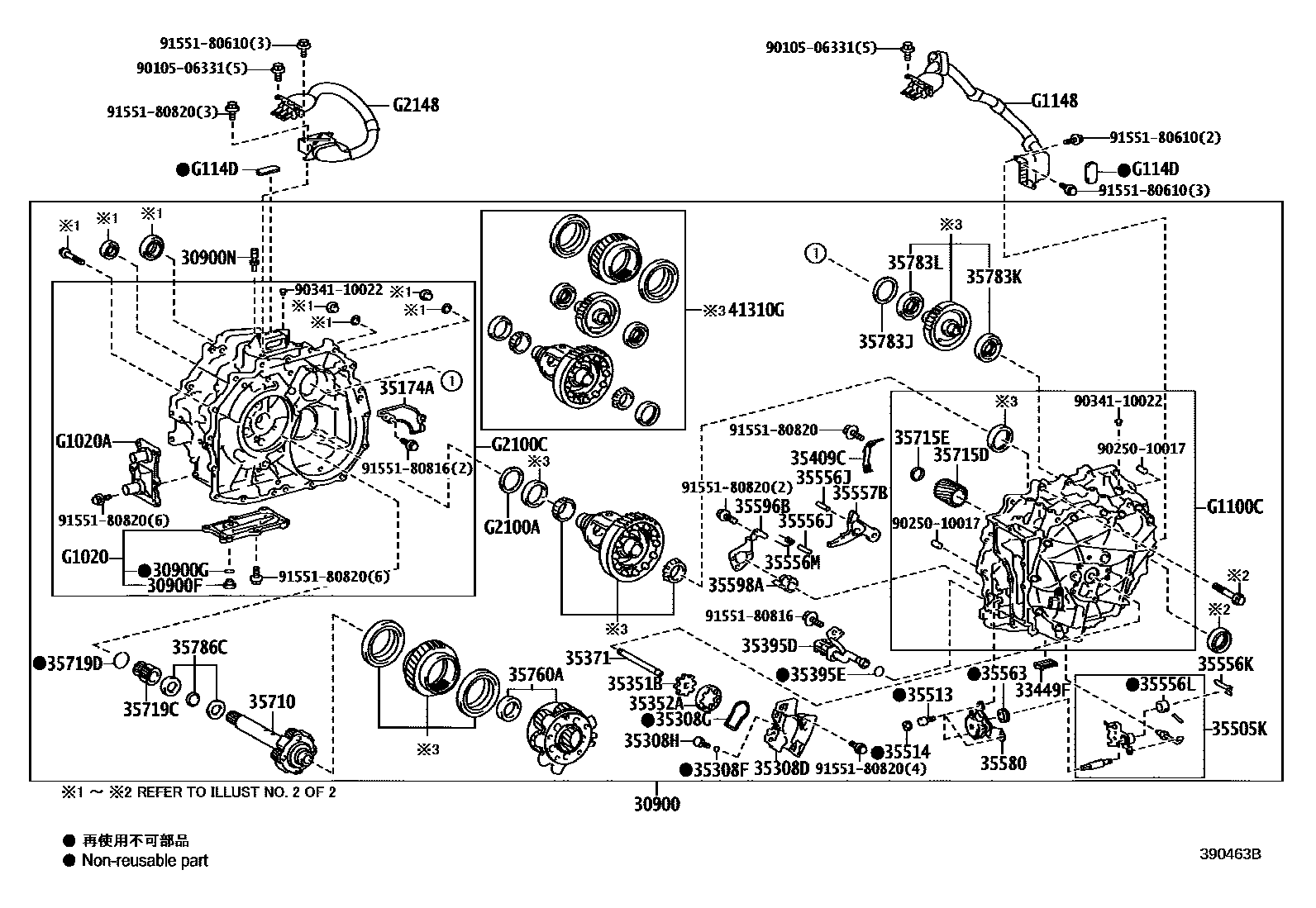

Toyota COROLLA 传动桥总成(HEV 或 BEV 或 FCEV) — Figure 3901
Toyota COROLLA EPC diagram 3901, 传动桥总成(HEV 或 BEV 或 FCEV), with 3 images and 58 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30900 | Hybrid vehicle transmission axle assembly | 30900-47064 · 30900-47084 |
| 30900A | Bolts (used to secure the transaxle and engine of hybrid vehicles) | 91612-61045 |
| 30900F | No. 2 headed straight thread plug (for transaxle housing and transaxle housing) | 90341-18016 |
| 30900G | Gasket No. 2 (for transaxle housing and transaxle housing) | 90430-18008 |
| 30900H | No. 3 headed straight thread plug (for transaxle housing and transaxle housing) | 90341-18060 |
| 30900J | No. 3 gasket (for transaxle housing and transaxle housing) | 90430-18008 |
| 30900N | Breather plug (for transaxle) | 90930-03201 |
| 30900P | Drain plug (HEV) | 90341-18016 |
| 30900Q | Oil filling plug (HEV) | 90341-18016 |
| 30900R | Drain plug gasket (HEV) | 90430-18008 |
| 30900S | Oil filling plug gasket (HEV) | 90430-18008 |
| 31270 | Transmission input damper assembly | 31270-47060 |
| 33449F | No. 1 transmission magnet | 33449-12020 |
| 35174A | Transmission axle housing oil separator | 35174-47010 |
| 35308D | Transmission oil pump cover sub-assembly | 35308-47040 |
| 35308F | No. 1 O-ring (for transmission oil pump cover) | 90301-06196 |
| 35308G | No. 2 O-ring (for transmission oil pump cover) | 90301-51005 |
| 35308H | Screw plug (for transmission oil pump cover) | 90341-08001 |
| 35351B | Transaxle oil pump active rotor | 35351-47040 |
| 35352A | Transmission oil pump driven rotor | 35352-47020 |
| 35371 | oil pump drive shaft | 35371-47040 |
| 35395D | Transmission oil filter | 35395-47040 |
| 35395E | O-ring (for transmission axle oil filter) | 90301-11019 |
| 35409C | Manual lock spring sub-assembly | 35409-75010 |
| 35505K | No. 1 parking lock lever sub-assembly | 35505-79005 |
| 35513 | shift control actuator bolt | 35513-47010 |
| 35514 | Shift control actuator bolt cover | 35514-47010 |
| 35556J | Parking lock pawl shaft | 35556-48010 |
| 35556K | stop spring | 90524-09003 |
| 35556L | septum | 90560-20006 |
| 35556M | torsion spring | 90949-03134 |
| 35557B | Parking pawl | 35557-47030 |
| 35563 | Shift control actuator seal | 35563-75010 |
| 35580 | Shift control actuator assembly | 35580-47020 |
| 35596B | Claw block | 35596-48010 |
| 35598A | Parking lock cover | 35598-47020 |
| 35710 | Input shaft assembly | 35710-47041 |
| 35710A | T-type oil seal (for input shaft) | 90311-21003 |
| 35715D | Rear planetary gear train sun gear | 35715-47010 |
| 35715E | Shaft snap ring (for rear planetary gear train sun gear) | 90520-22026 |
| 35719C | planetary gear system sun gear | 35719-47040 |
| 35719D | Snap ring (for planetary gear train sun gear) | 90520-31035 · 90520-31036 · 90520-31037 · 90520-31038 · 90520-31039 · 90520-31040 · 90520-31041 · 90520-31042 · 90520-31043 · 90520-31044 · 90520-31045 · 90520-31046 · 90520-31047 · 90520-31048 · 90520-31049 · 90520-31050 · 90520-31051 · 90520-31052 · 90520-31053 · 90520-31054 · 90520-31055 · 90520-31056 · 90520-31057 · 90520-31058 · 90520-31059 · 90520-31060 · 90520-31061 · 90520-31062 · 90520-31063 |
| 35760A | No. 1 rear planetary gear assembly | 35760-47030 · 35760-47040 |
| 35783J | Spacer (for countershaft driven gear) | 90564-50281 · 90564-50282 · 90564-50283 · 90564-50284 · 90564-50285 · 90564-50286 · 90564-50287 · 90564-50288 · 90564-50289 · 90564-50290 · 90564-50291 · 90564-50292 · 90564-50293 |
| 35783K | No. 1 radial ball bearing (for countershaft driven gear) | 90363-30082 |
| 35783L | No. 2 radial ball bearing (for countershaft driven gear) | 90363-34005 |
| 35786C | No. 1 thrust bearing race | 35786-49005 |
| 41310G | Differential and countershaft gear assembly | 41310-47903 · 41310-47905 |
| G1020 | No. 1 motor water jacket cover assembly | G1020-47010 |
| G1020A | No. 2 motor water jacket cover assembly | G1020-47020 |
| G1100C | Hybrid vehicle motor assembly | G1100-47091 · G1100-49005 |
| G1143 | Motor cable bracket | G1143-47020 |
| G1143F | No. 2 motor cable bracket | G1143-47030 |
| G1148 | Motor cable | G1148-47051 |
| G114D | Motor cable terminal cover | G114D-47021 |
| G2100A | Gasket (for right side of differential case) | 90564-64031 · 90564-64032 · 90564-64033 · 90564-64034 · 90564-64035 · 90564-64036 · 90564-64037 · 90564-64038 · 90564-64039 · 90564-64040 · 90564-64041 · 90564-64042 · 90564-64043 · 90564-64044 · 90564-64045 · 90564-64046 · 90564-64047 · 90564-64048 · 90564-64049 · 90564-64050 · 90564-64051 · 90564-64052 · 90564-64053 · 90564-64054 · 90564-64055 · 90564-64056 · 90564-64057 · 90564-64058 · 90564-64059 · 90564-64060 · 90564-64061 |
| G2100C | Hybrid vehicle generator assembly | G2100-47091 · G2100-49005 |
| G2148 | generator cable | G2148-47051 |
