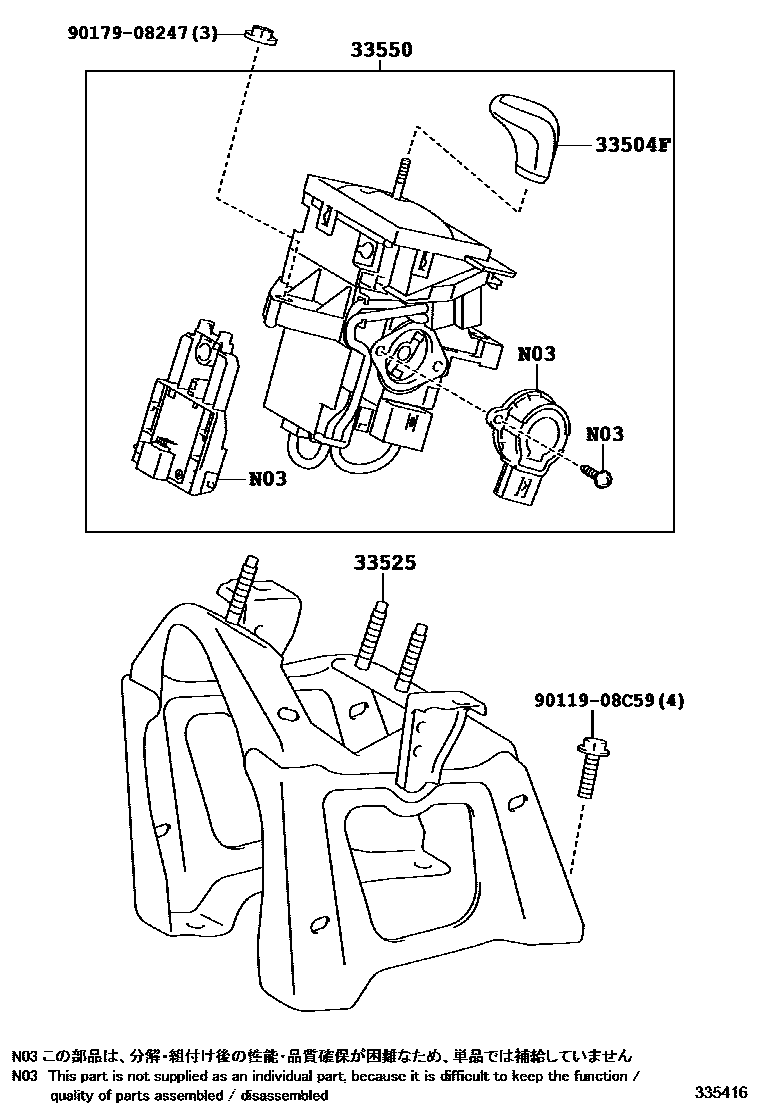

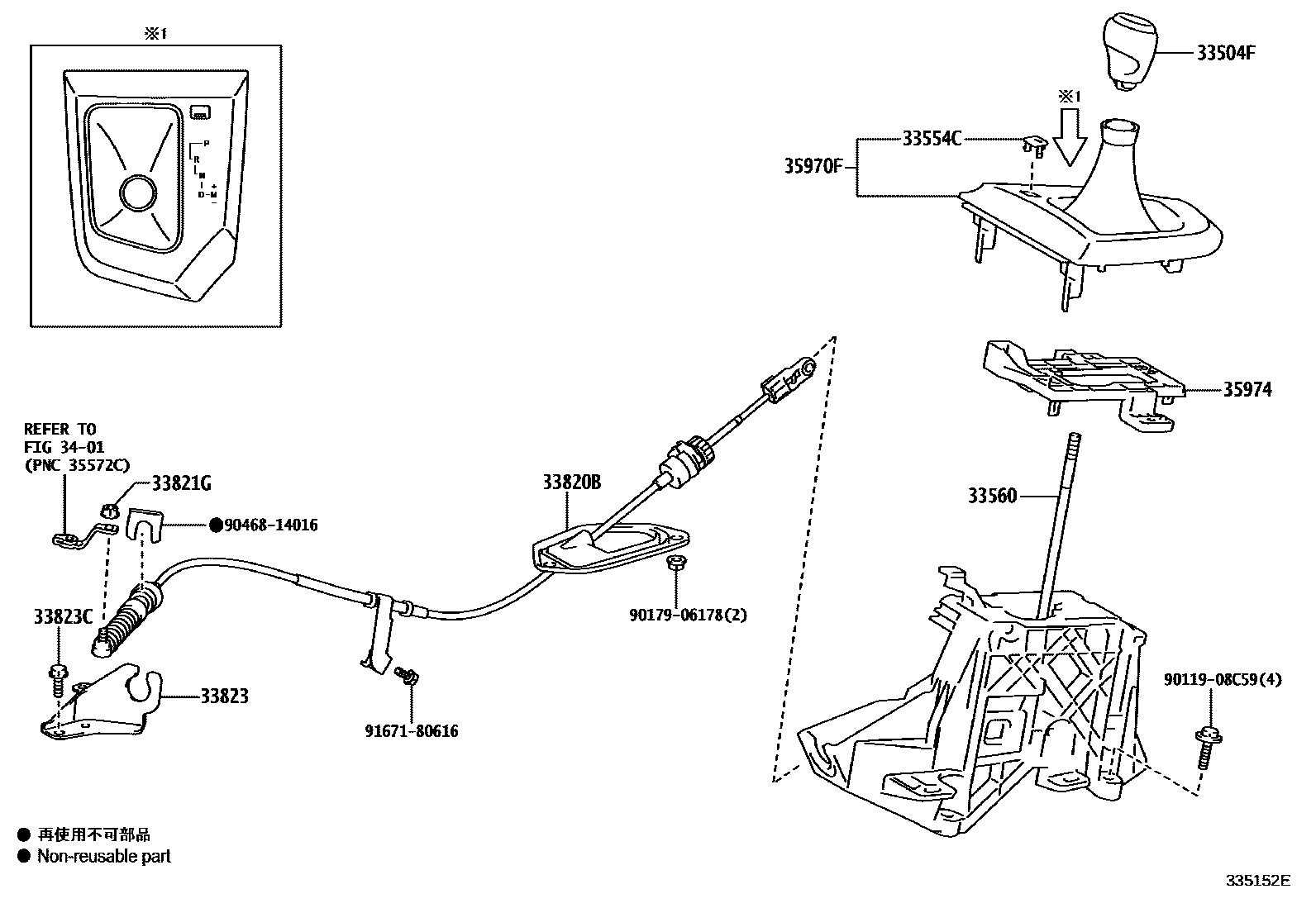

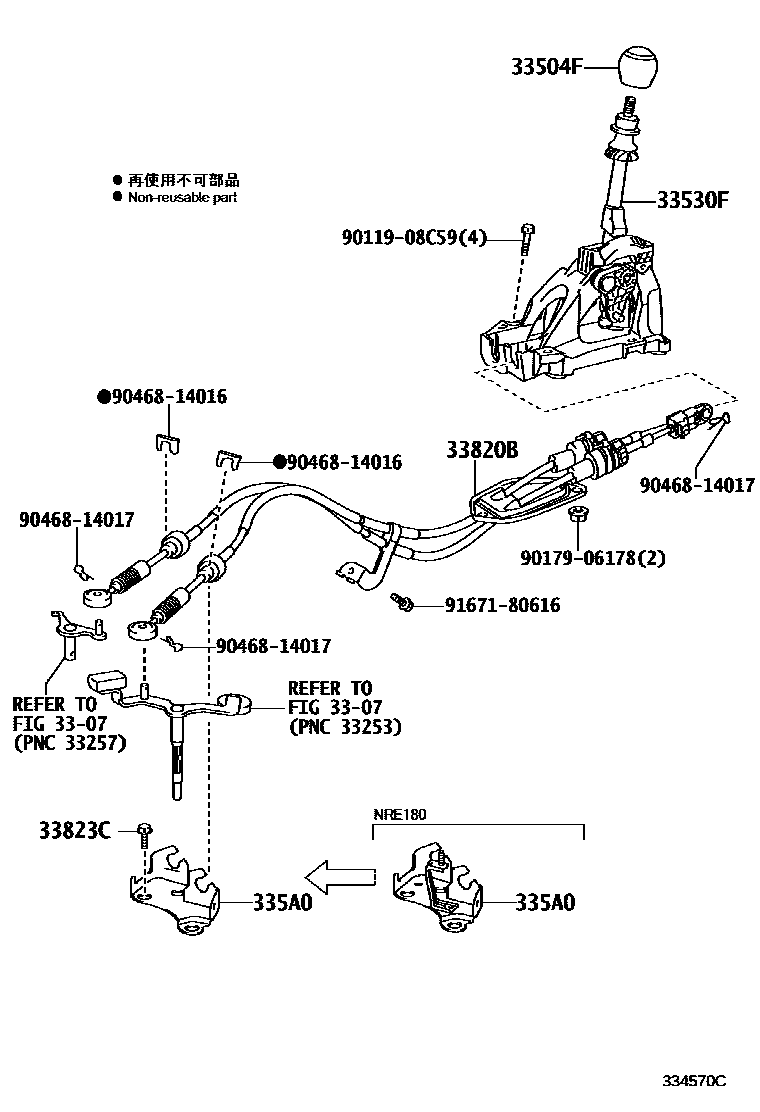

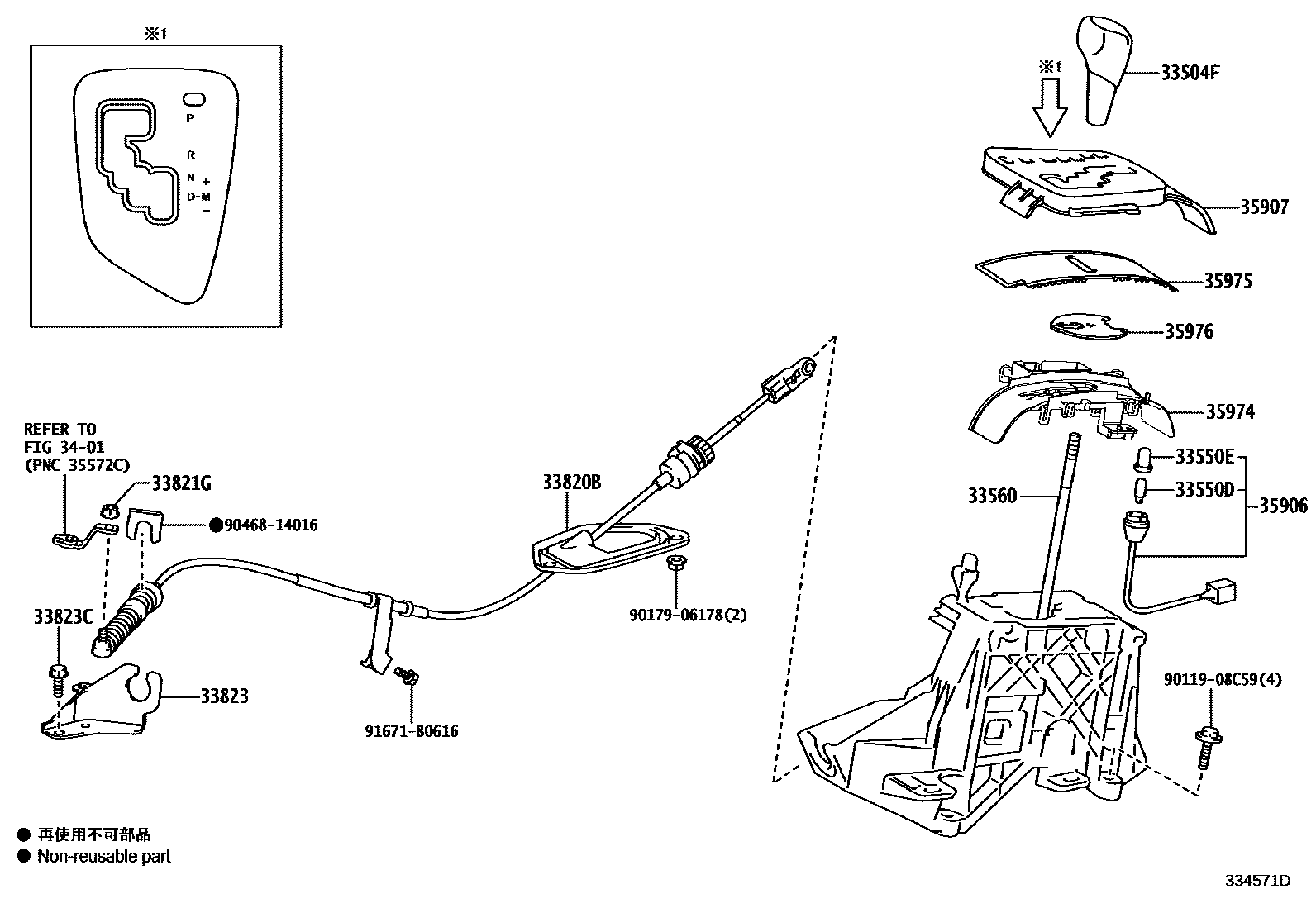

Toyota COROLLA Shift Lever & Retainer — Figure 3312
Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 4 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33504F | Shift lever handle sub-assembly | 33504-19005 |
| 33525 | shift lever bracket | 58123-02100 |
| 33530F | Shift lever assembly (for floor shift) | 33530-12C30 |
| 33550 | Transmission floor shift assembly | 33550-12J30 |
| 33550D | position indicator light bulb | 90981-11018 |
| 33550E | position indicator cover | 90339-04049 |
| 33554C | Shift lock release button cover | 33554-12200 |
| 33560 | Shift lock control unit assembly | 33560-12490 · 33560-12520 · 33560-12570 · 33560-12610 |
| 335A0 | Control cable bracket assembly | 335A0-12010 · 335A0-20010 |
| 33820B | Transmission control cable assembly | 33820-12E60 · 33820-12E70 · 33820-12G10 · 33820-12G11 · 33820-20A50 |
| 33821G | Nut (for transmission control cable) | 90179-08040 |
| 33823 | No. 1 transmission control cable bracket | 33823-12190 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08079 · 90119-08C60 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-20160 |
| 35907 | Position indicator light housing sub-assembly (for floor shift) | 35907-12670 |
| 35970F | Position indicator light housing assembly | 35970-12350 · 35970-12351 |
| 35974 | Position indicator light lower shell | 35974-12360 · 35974-12410 |
| 35975 | Slide cover (for position indicator light) | 35975-12450 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-21070 |
