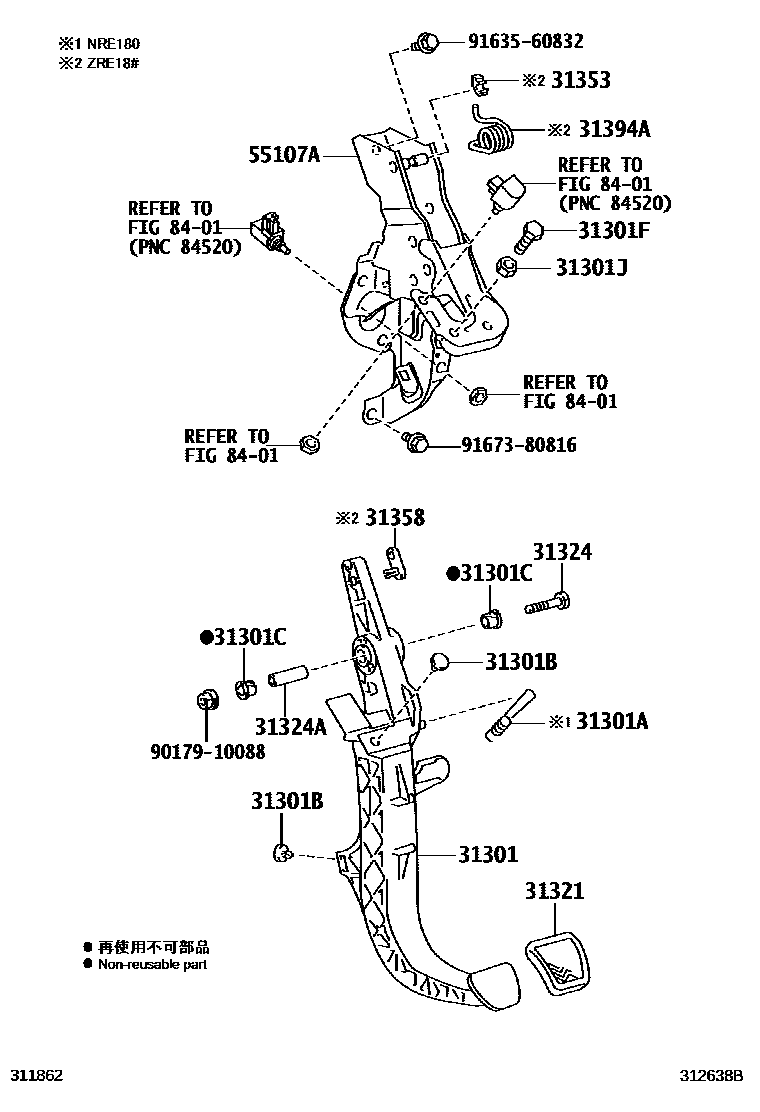

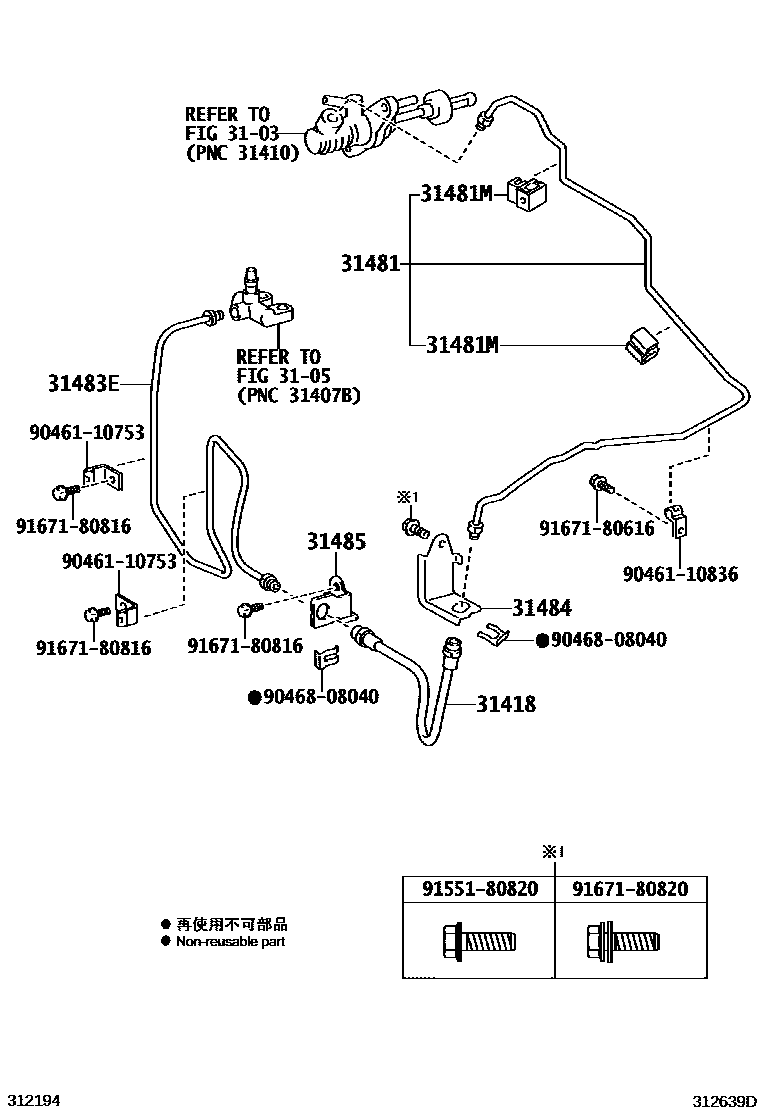

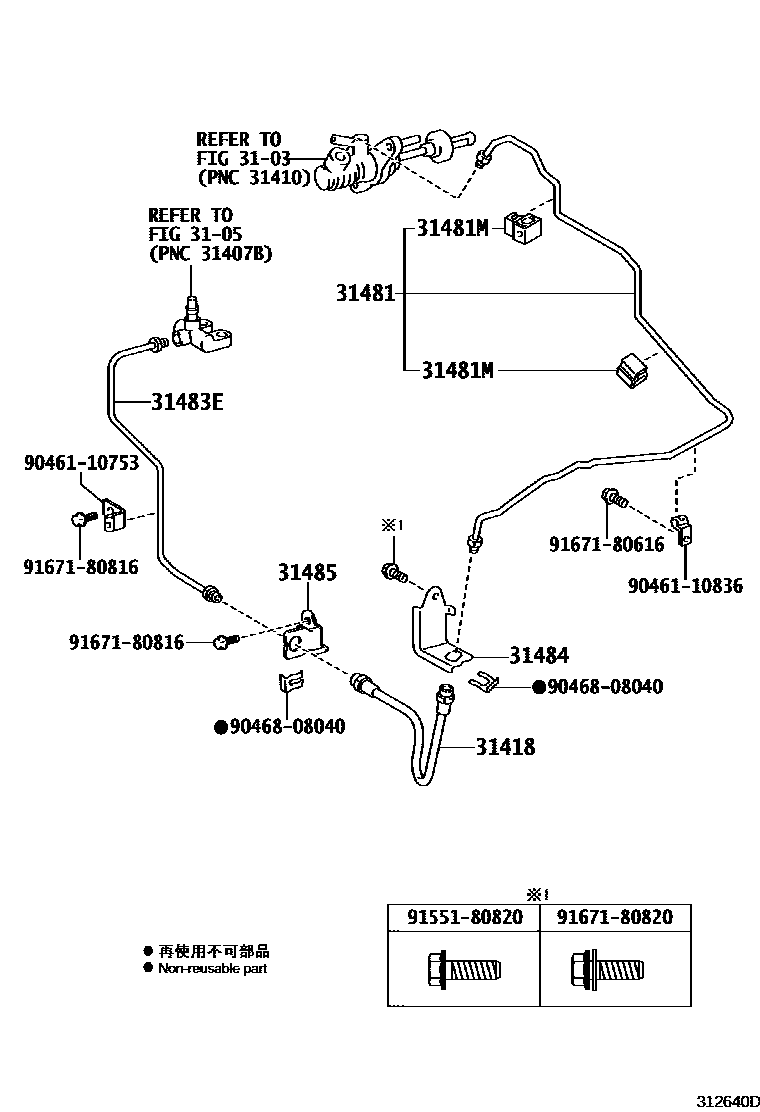

Toyota COROLLA 离合器踏板和挠性软管 — Figure 3102
Toyota COROLLA EPC diagram 3102, 离合器踏板和挠性软管, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31311-12371 |
| 31301A | Spring (for clutch pedal) | 90507-14047 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10369 |
| 31301J | Nut (for clutch pedal stop) | 94130-61000 |
| 31321 | clutch pedal pad | 31321-42010 |
| 31324 | clutch pedal shaft | 90101-10039 |
| 31324A | clutch pedal collar | 90387-10003 |
| 31353 | Clutch pedal spring retainer | 31353-26010 |
| 31358 | center spring cover | 31358-42010 |
| 31394A | Pedal spring with hook | 31394-12060 |
| 31418 | clutch hose | 90947-02E28 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-12370 |
| 31481M | Clamp (for clutch master cylinder tube) | 90949-01C82 |
| 31483E | Clutch release bleeder pipe | 31483-12140 · 31483-12150 · 31483-12170 |
| 31484 | Flexible hose bracket (for clutch) | 31484-12500 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-12440 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-12271 · 55107-12291 |
