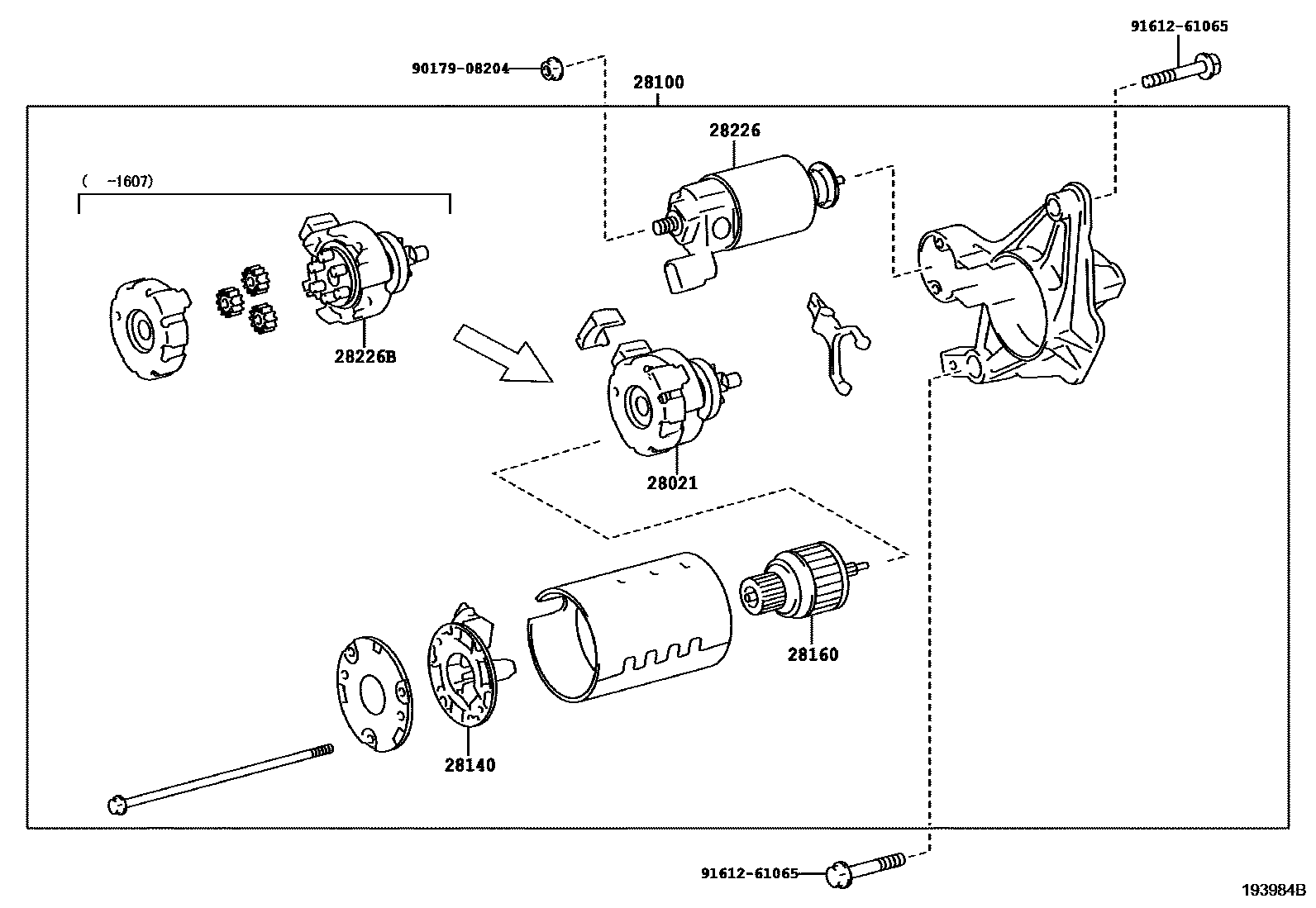

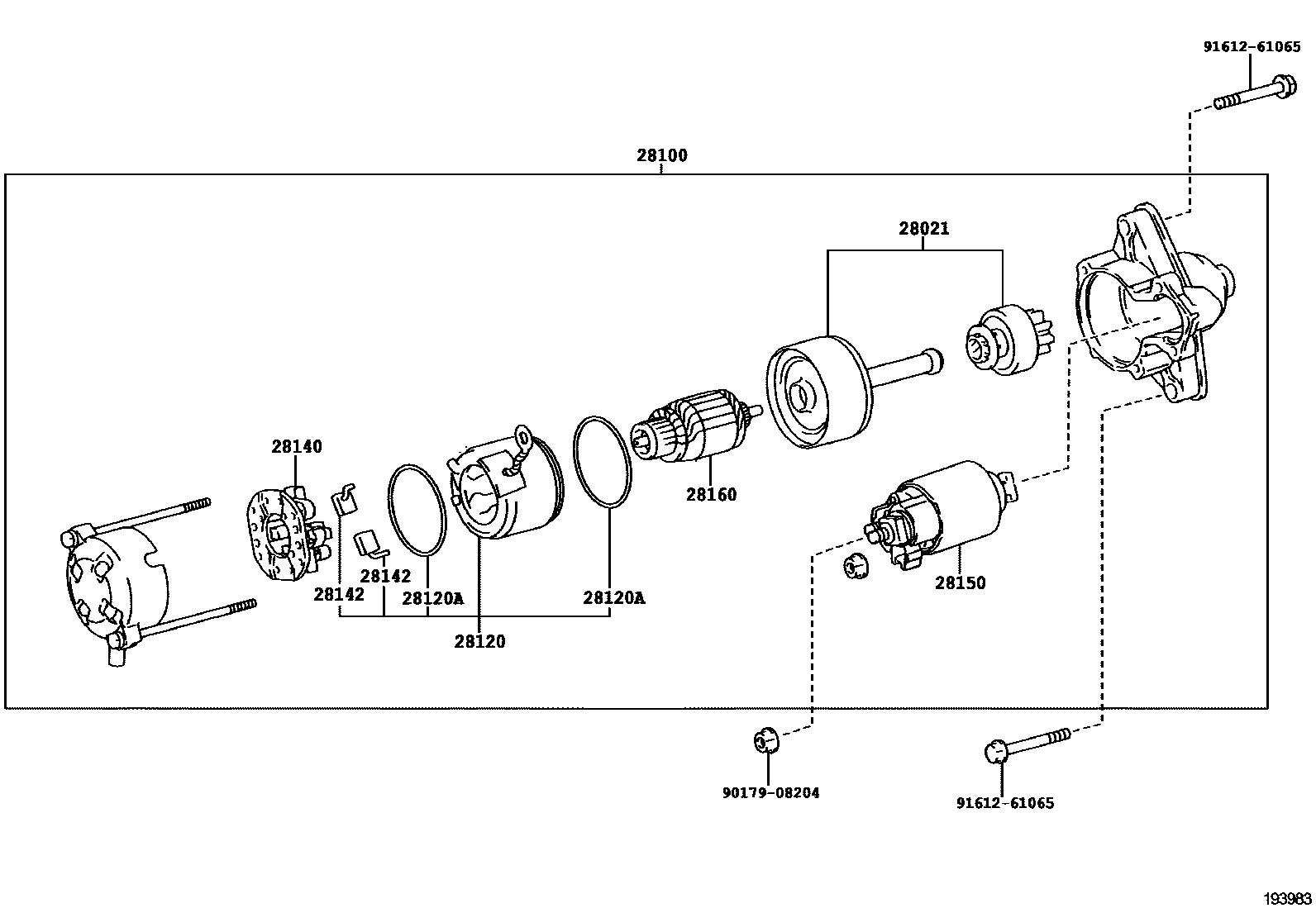

Toyota COROLLA 起动机 — Figure 1904
Toyota COROLLA EPC diagram 1904, 起动机, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-47170 · 28021-70020 |
| 28100 | Starter assembly | 28100-37021 · 28100-47170 · 28100-47171 |
| 28120 | Starter yoke assembly | 28120-47120 |
| 28120A | O-ring (for starter yoke) | 90099-14092 |
| 28140 | Starter brush holder assembly | 28140-21070 · 28140-70020 |
| 28142 | starter brush | 28142-70020 |
| 28150 | Starter electromagnetic switch assembly | 28150-22100 |
| 28160 | Starter armature assembly | 28160-21070 · 28160-70021 |
| 28226 | battery terminal starter assembly | 28226-21080 · 28226-21081 |
| 28226B | starter magnetic switch | 28226-47170 |
