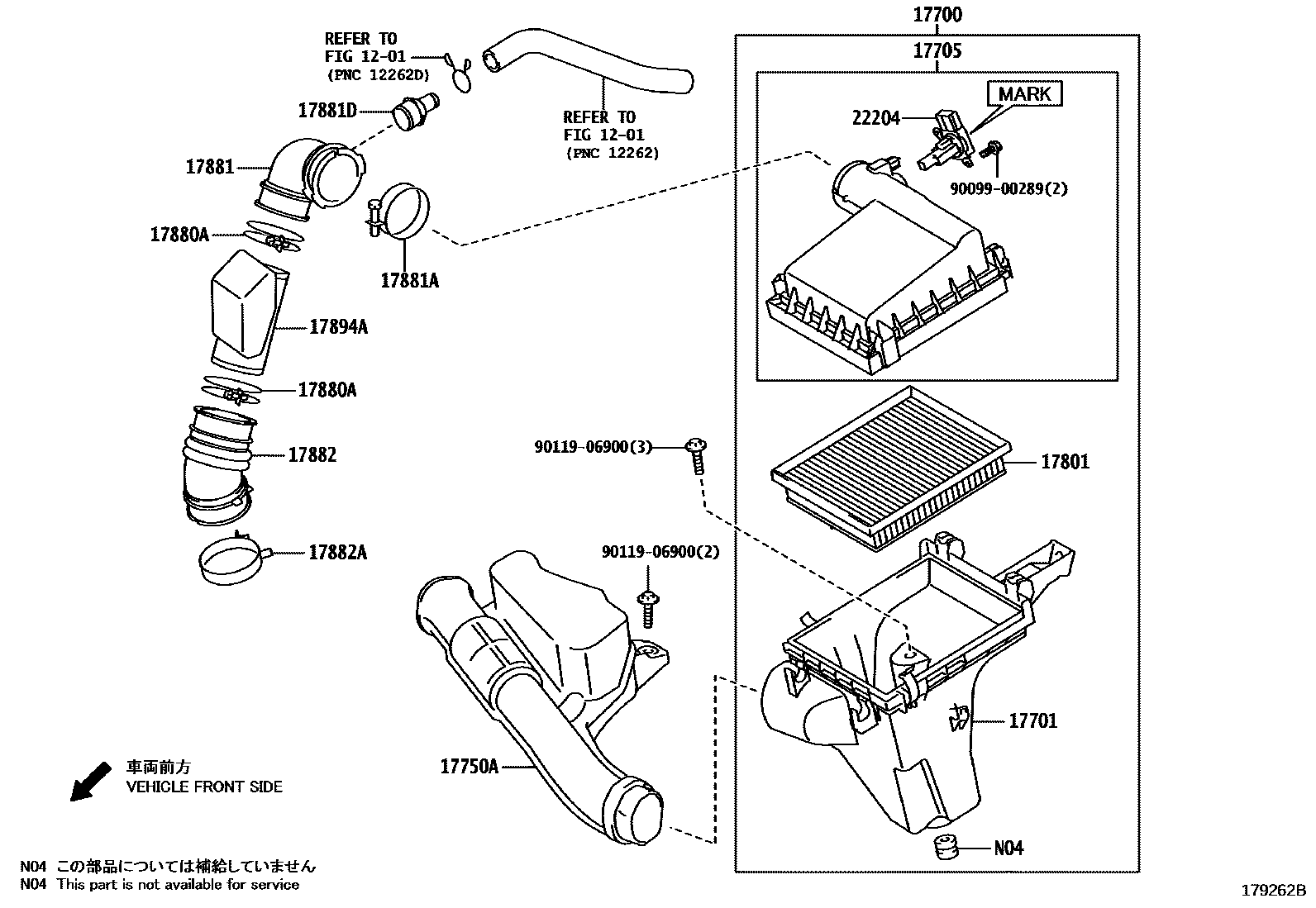

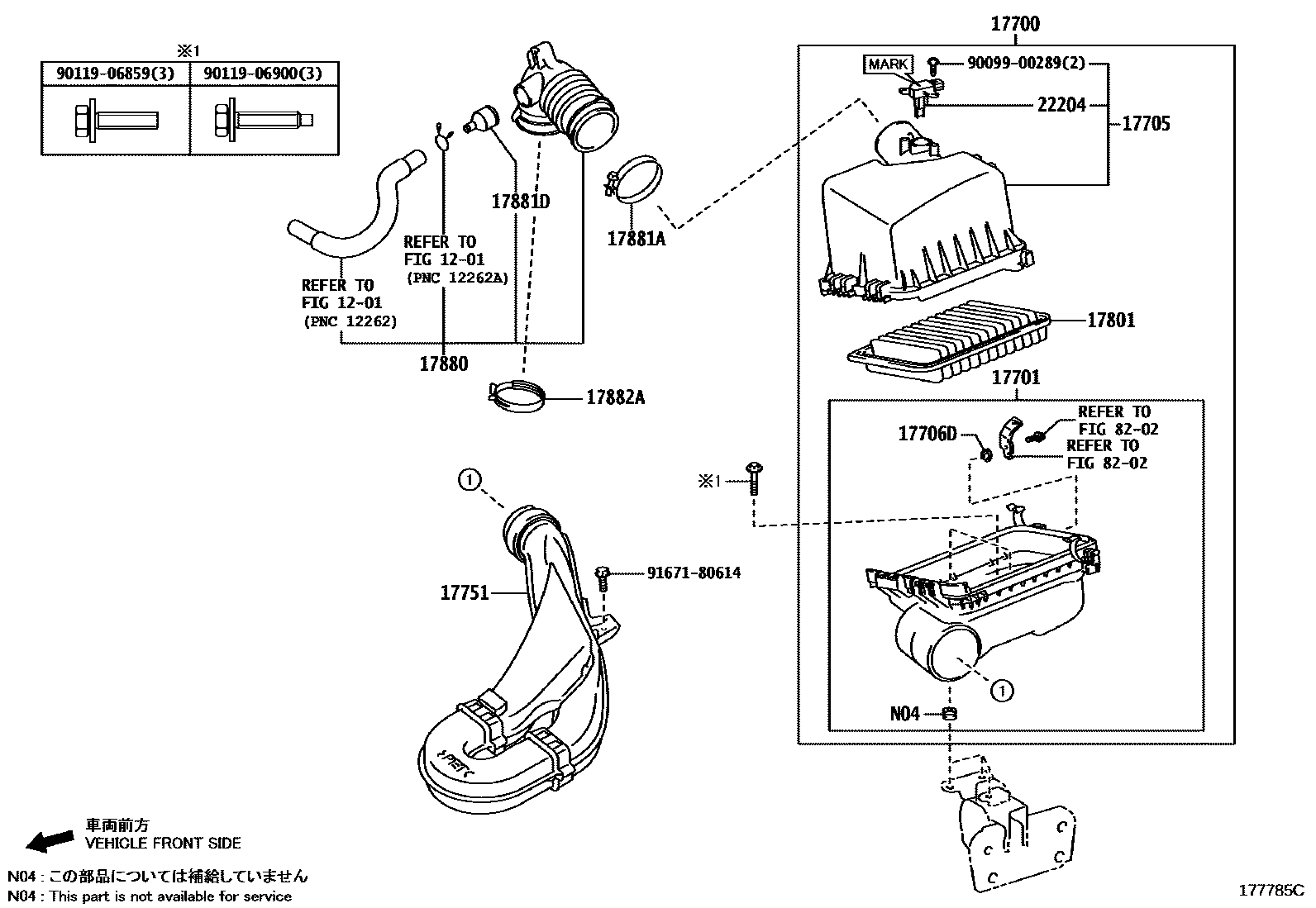

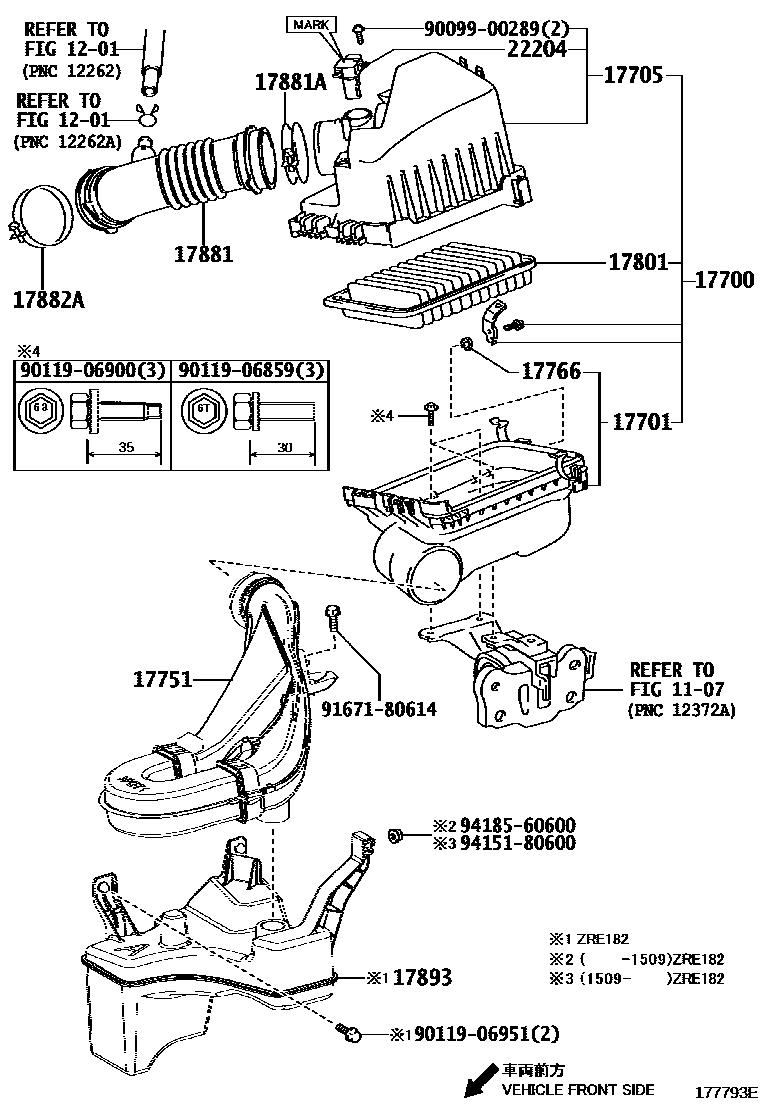

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17700 | air filter assembly | 17700-37231 · 17700-37252 · 17700-47131 |
| 17701 | Air filter housing sub-assembly | 17701-21110 · 17701-37170 |
| 17705 | Air filter cover sub-assembly | 17705-37111 · 17705-37121 · 17705-47081 |
| 17706D | Air filter stay sub-assembly | 17706-21010 |
| 17750A | Air filter air inlet assembly | 17750-37070 |
| 17751 | No. 1 air filter air inlet | 17751-37120 · 17751-47070 |
| 17766 | No. 2 air filter stay | 17706-21010 |
| 17801 | Air filter element sub-assembly | 17801-21050 · 17801-37021 |
| 17880 | Air cleaner hose assembly | 17880-47010 |
| 17880A | hose clamp | 96111-10750 |
| 17881 | No. 1 air cleaner hose | 17880-22110 · 17880-22120 · 17881-37120 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10650 · 96111-10750 |
| 17881D | Connector tube (for air cleaner hose) | 90904-06008 |
| 17882 | No. 2 air cleaner hose | 17882-37040 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-62002 · 96111-10780 |
| 17893 | Intake resonator | 17893-37060 |
| 17894A | No. 2 intake resonator | 17894-37010 |
| 22204 | Intake air flow meter assembly | 22204-0T040 · 22204-0V010 · 22204-0V020 · 22204-28010 |
