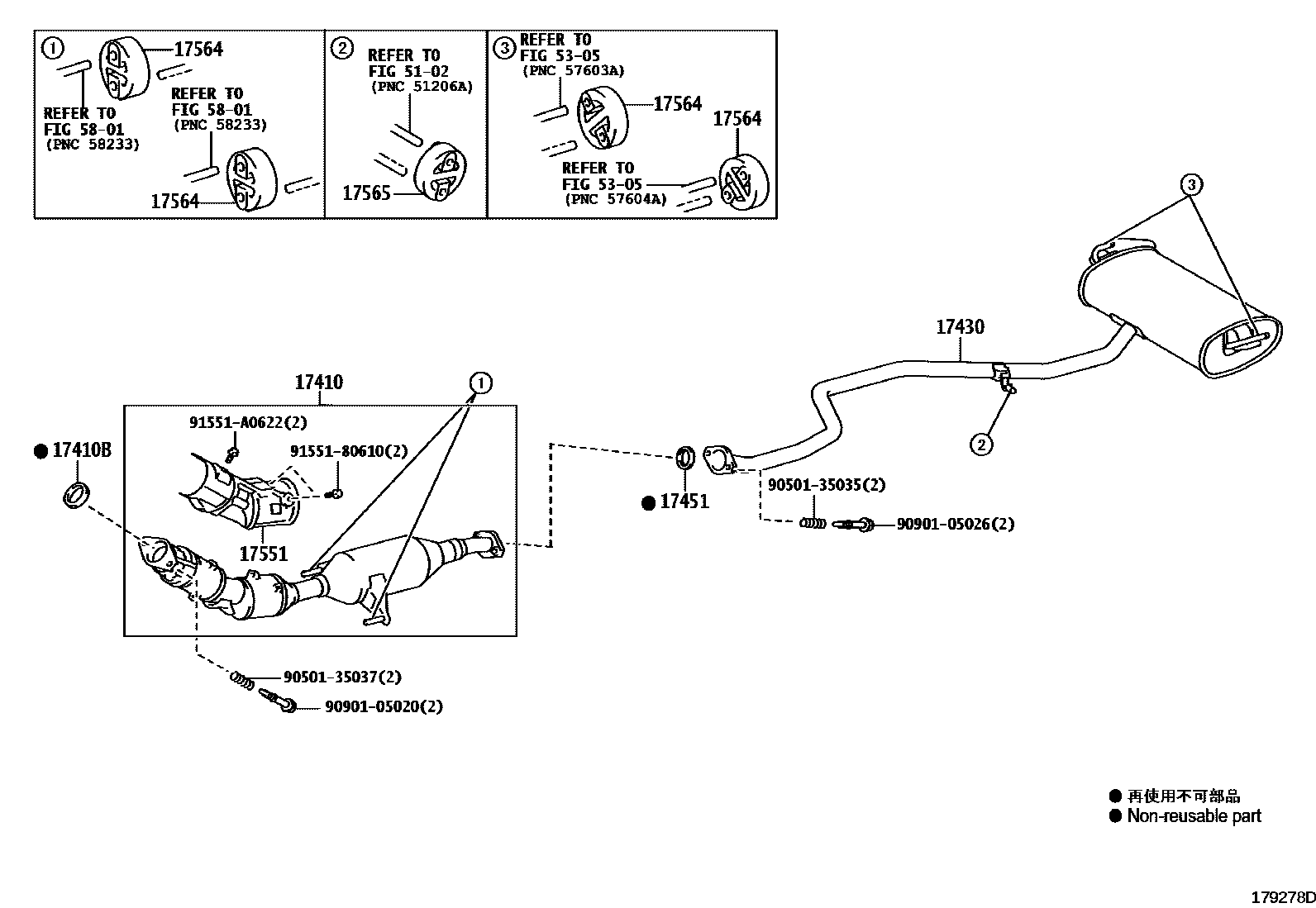

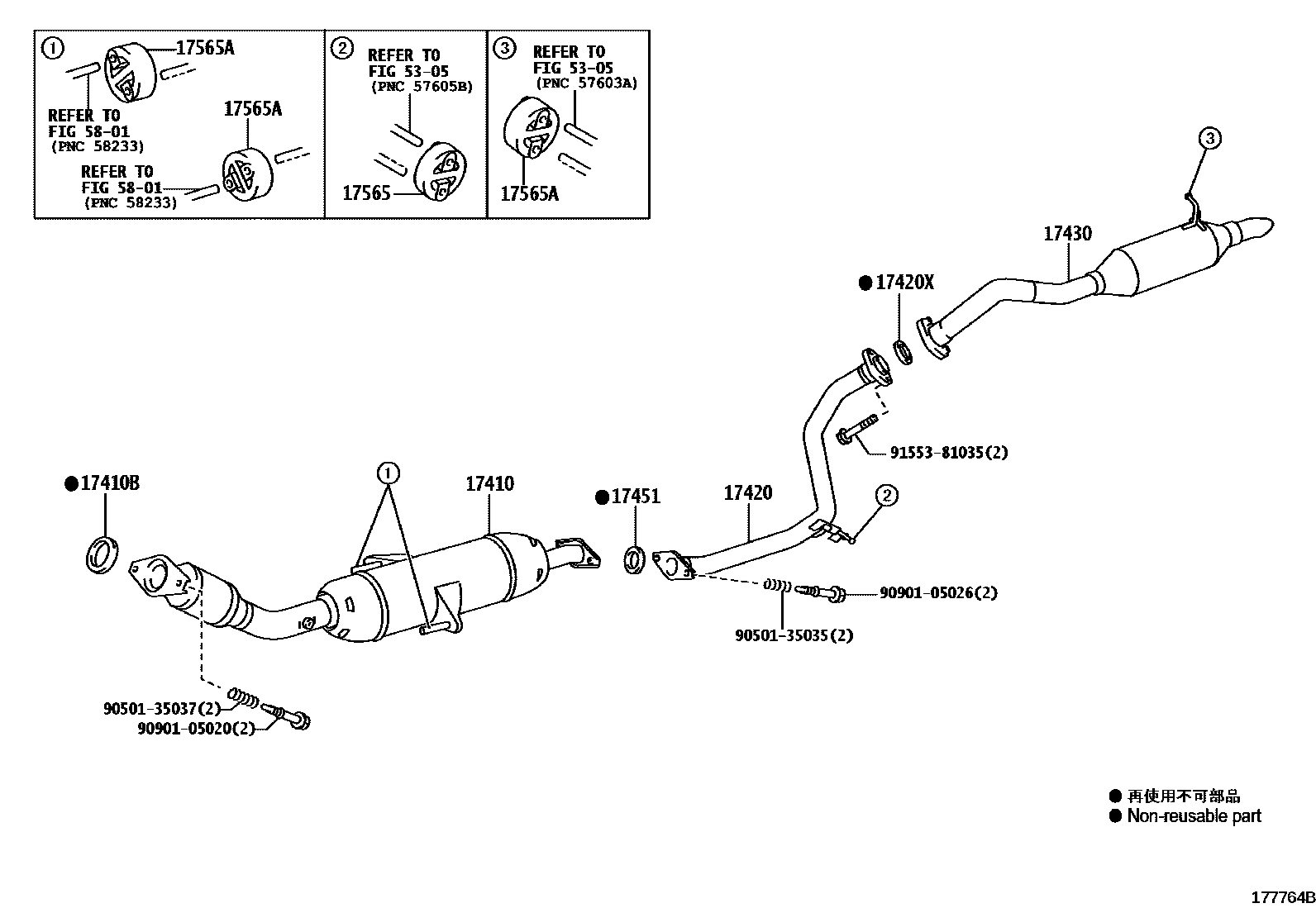

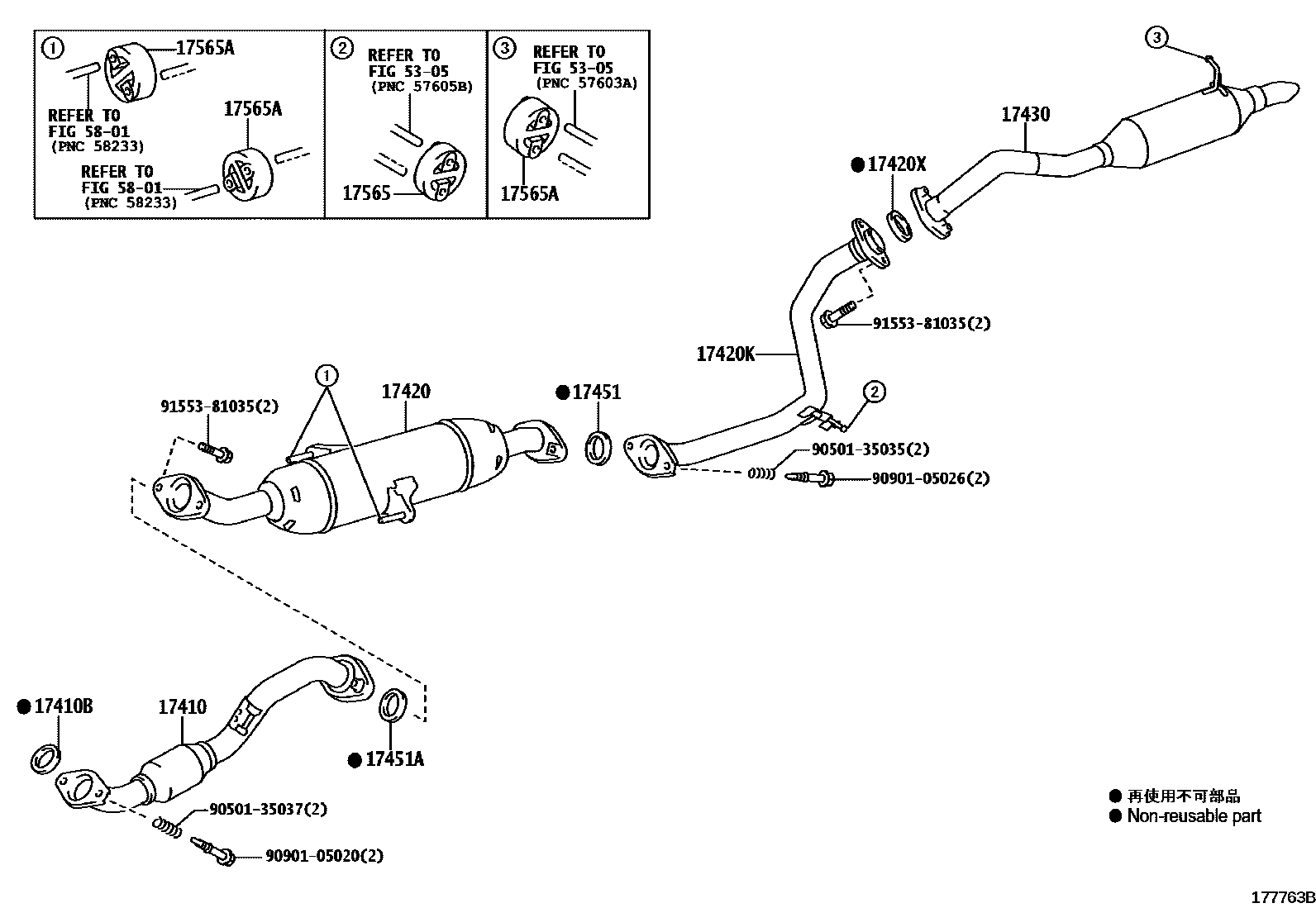

Toyota COROLLA Exhaust Pipe — Figure 1702
Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-37340 · 17410-37620 · 17410-37770 · 17410-37A60 · 17410-37A70 · 17410-47110 |
| 17410B | Exhaust pipe gasket | 17451-28040 · 17451-47020 |
| 17420 | Central exhaust pipe assembly | 17420-22110 · 17420-47070 |
| 17420K | No. 2 central exhaust pipe assembly | 17420-22110 |
| 17420X | Center exhaust pipe liner | 90917-06089 |
| 17430 | Exhaust tailpipe assembly | 17430-37670 · 17430-47141 |
| 17451 | Exhaust pipe gasket | 17451-23042 · 17451-28032 |
| 17451A | No. 2 exhaust pipe gasket | 90917-06089 |
| 17551 | No. 1 exhaust pipe insulation pad | 17551-37040 |
| 17564 | No. 4 exhaust pipe lifting lug | 17565-22040 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-22030 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-22040 |
