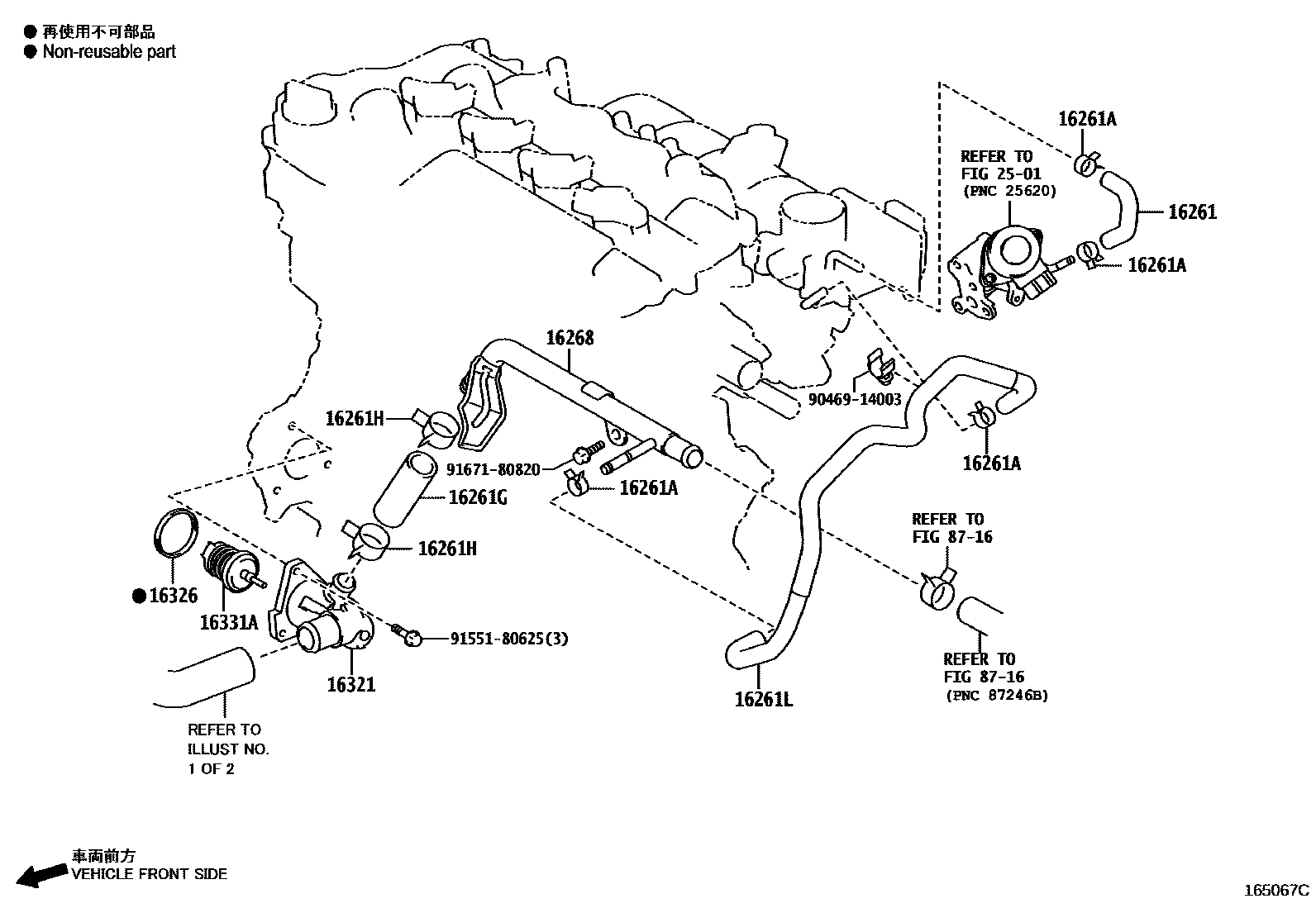

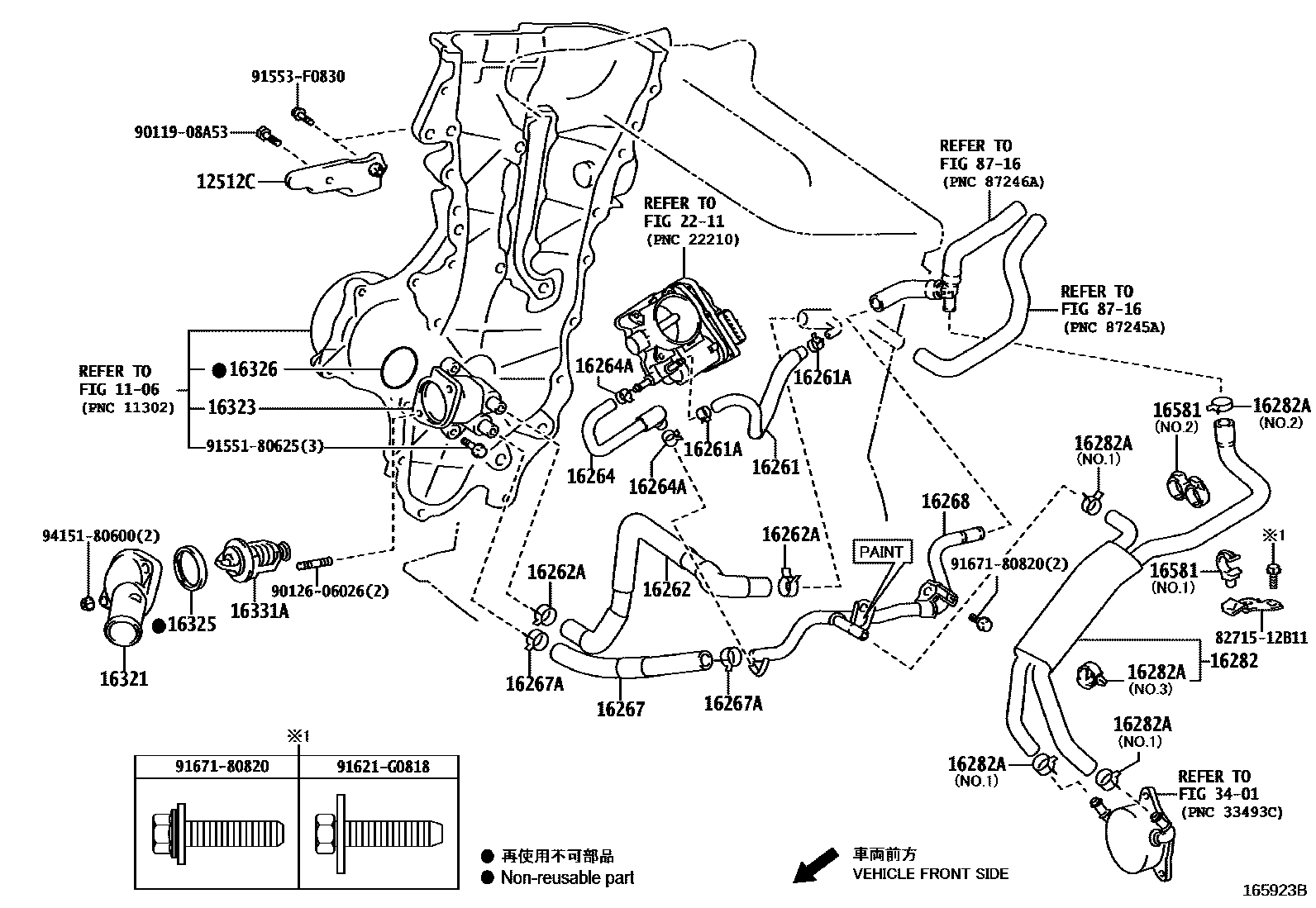

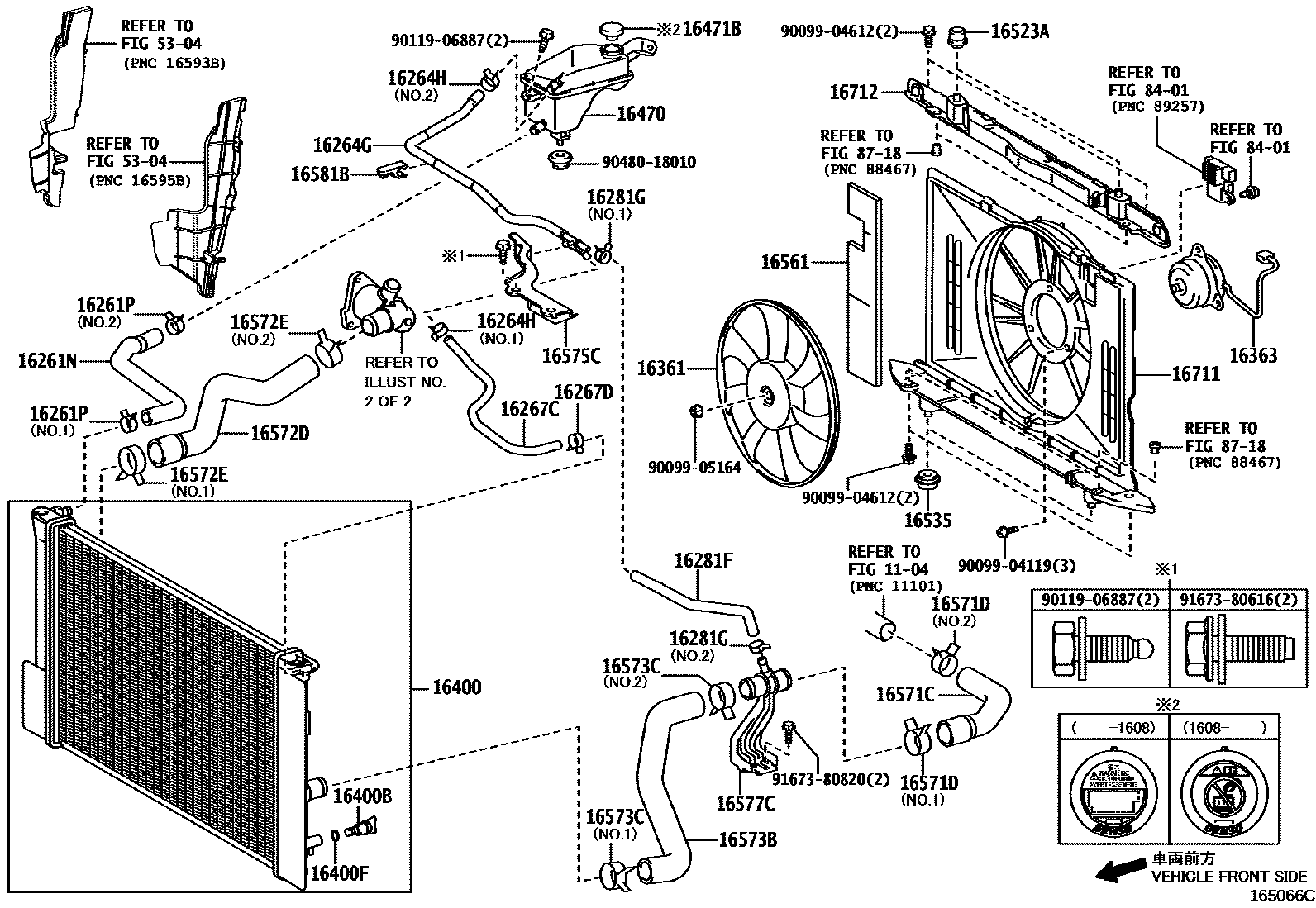

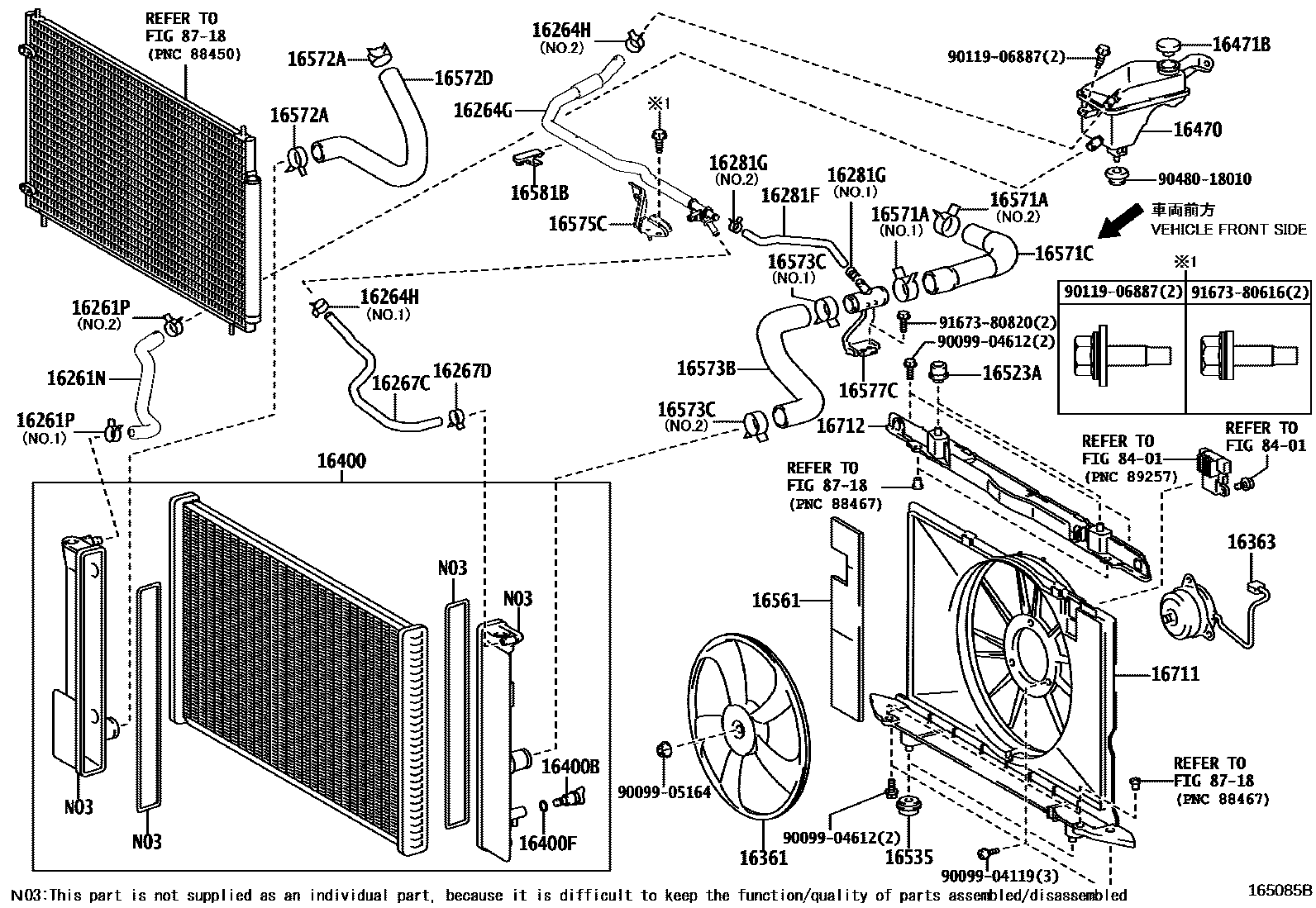

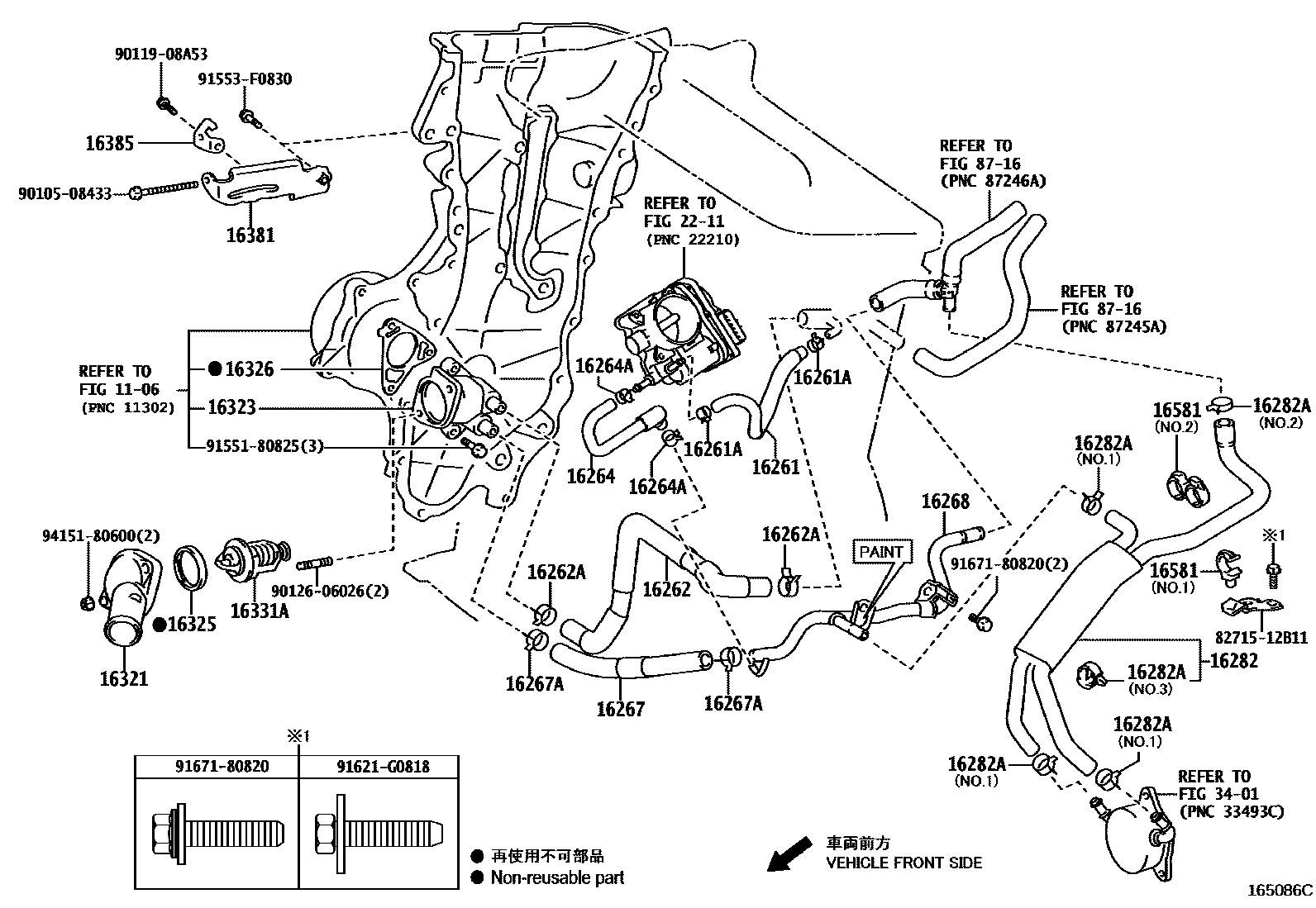

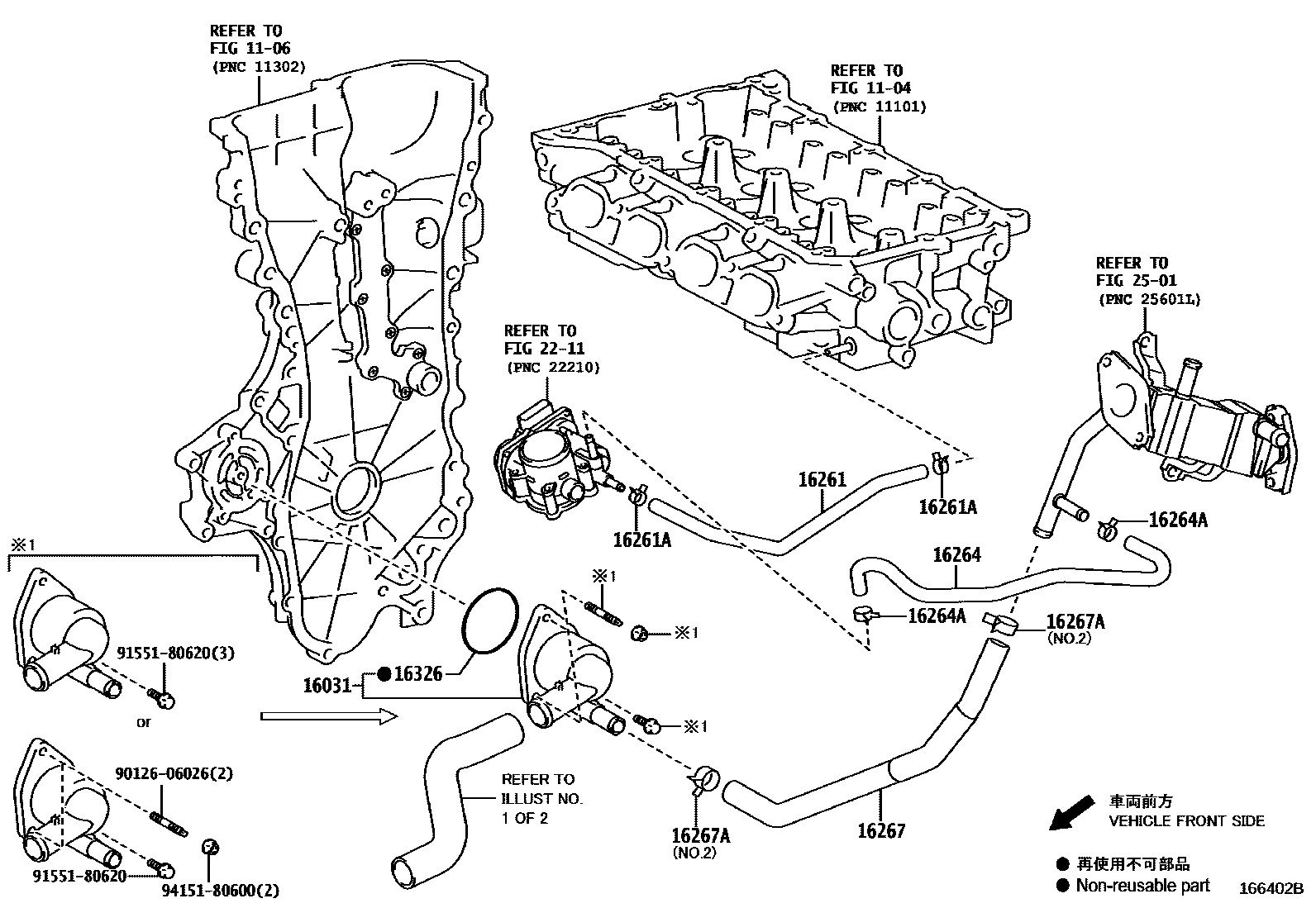

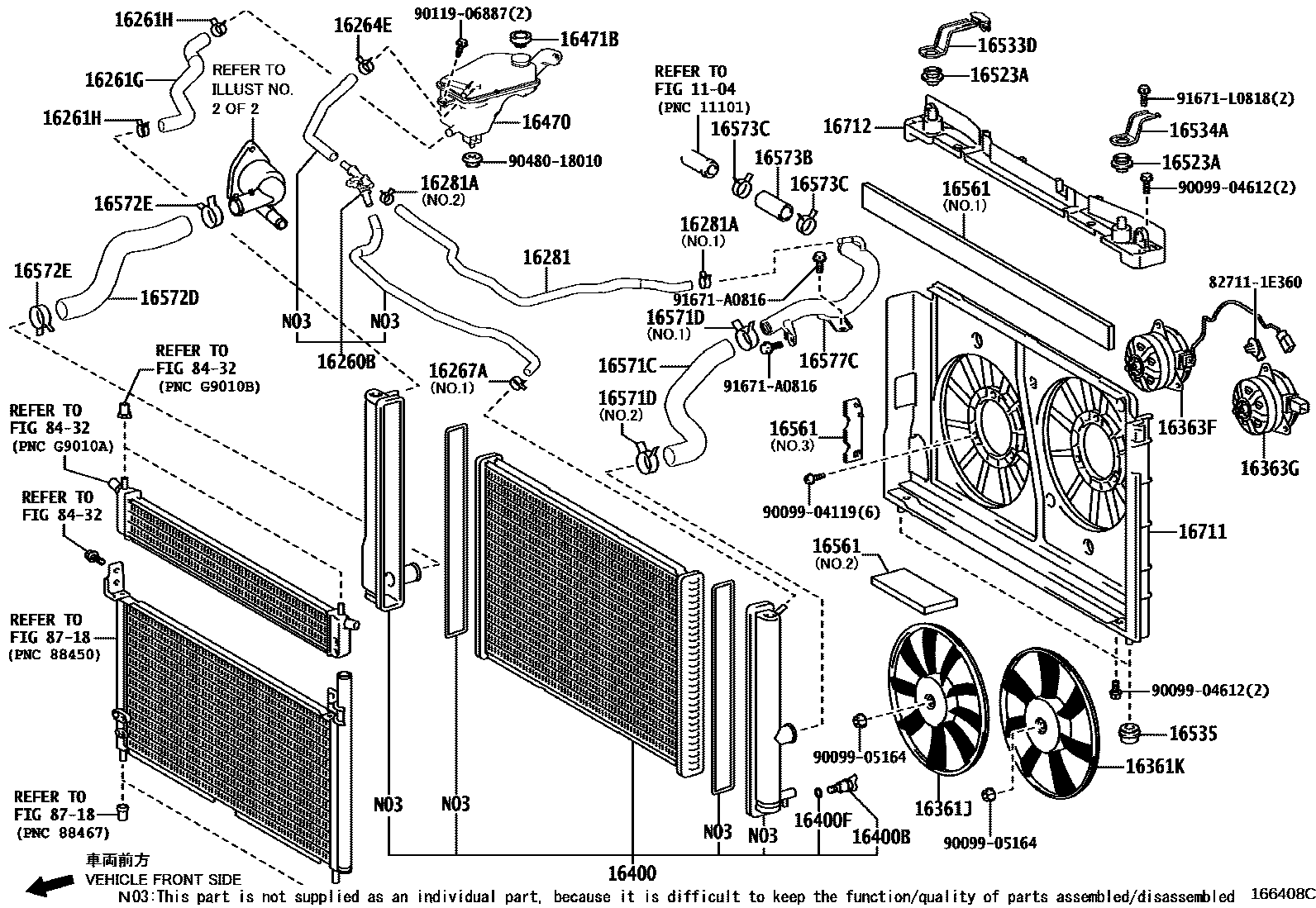

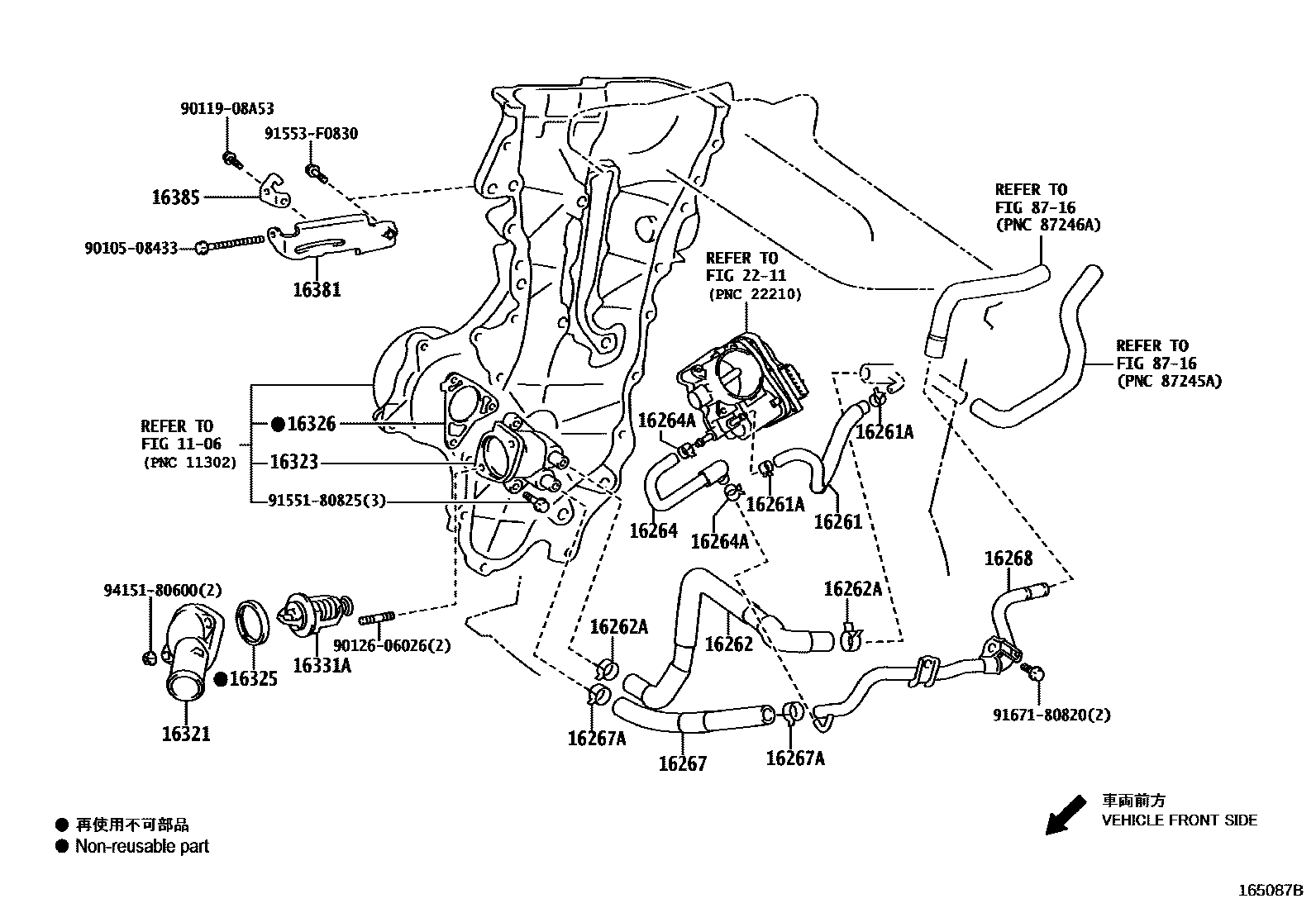

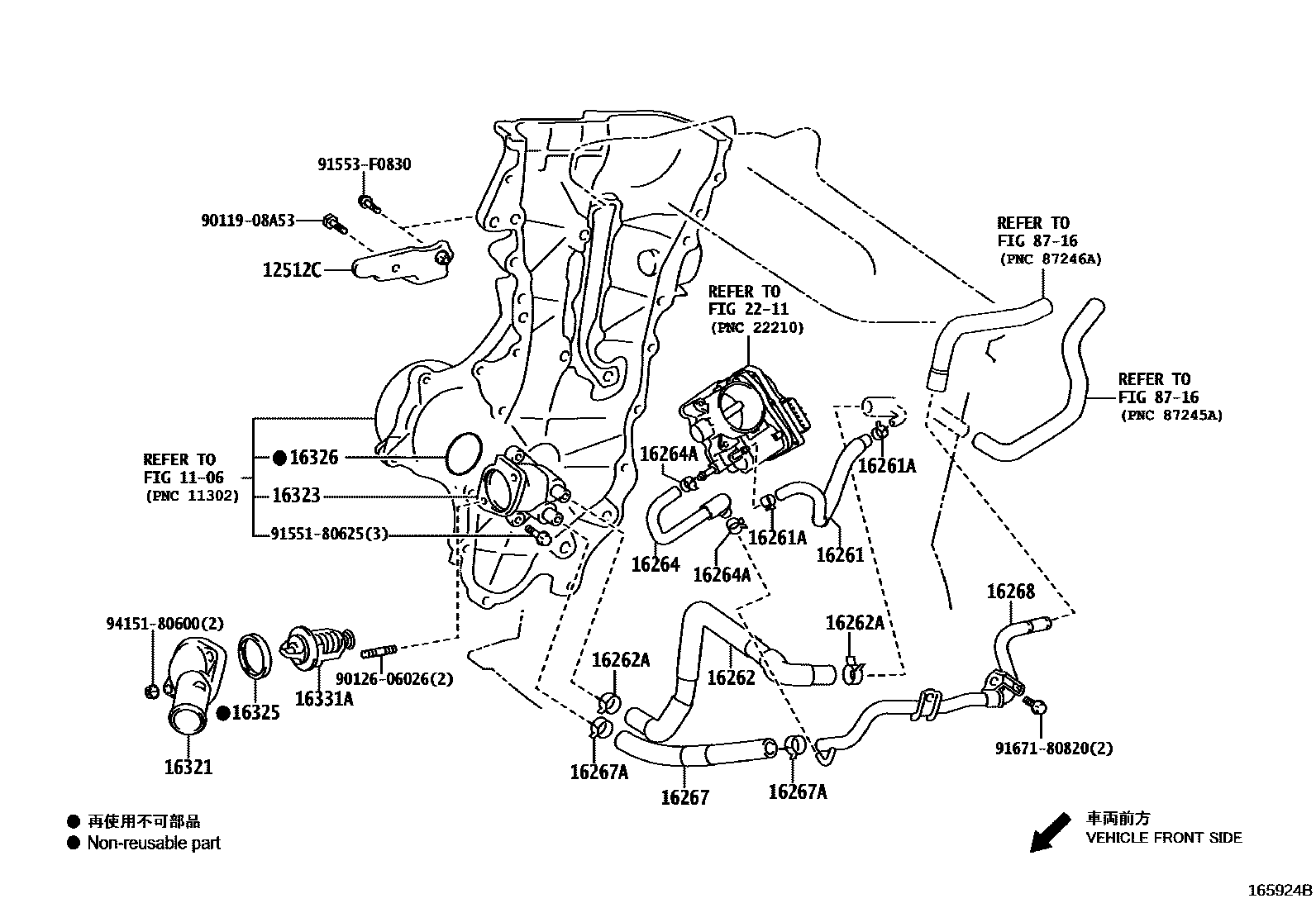

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 9 images and 65 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12512C | No. 2 generator bracket | 12512-37010 |
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-37010 |
| 16260B | Water bypass pipe assembly | 16260-37110 |
| 16261 | HOSE, WATER BY-PASS | 16261-37052 · 16261-37081 · 16261-47010 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 96136-41501 · 96137-41501 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-37110 · 16261-47020 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 96136-42501 · 96136-42901 |
| 16261L | HOSE, WATER BY-PASS | 16261-47030 |
| 16261N | HOSE, WATER BY-PASS, NO.2 | 16261-47040 |
| 16261P | CLIP, WATER BY-PASS HOSE NO.2 | 96136-42201 · 96136-42501 |
| 16262 | water inlet hose | 16262-37010 |
| 16262A | Clamp (for water inlet hose) | 96136-42501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-37042 · 16264-37050 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 96137-41501 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 96136-42101 |
| 16264G | HOSE, WATER BY-PASS, NO.3 | 16264-47040 |
| 16264H | Clamp (for No. 3 water bypass hose) | 90467-15022 · 96136-42101 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-37010 · 16267-37050 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 96136-41901 · 96136-42501 |
| 16267C | HOSE, WATER BY-PASS, NO.4 | 16267-21030 |
| 16267D | CLIP, WATER BY-PASS HOSE NO.4 | 90467-15022 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-37021 · 16268-37031 · 16268-47031 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-37140 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 96136-41901 · 96137-41701 |
| 16281F | HOSE, WATER BY-PASS, NO.5 | 16281-37040 |
| 16281G | CLIP, WATER BY-PASS HOSE NO.5 | 90467-17013 · 96136-41901 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16260-37080 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 16581-37090 · 96134-41900 · 96136-42501 · 96136-52201 |
| 16321 | water inlet | 16321-37010 · 16321-47011 |
| 16323 | HOUSING, WATER INLET | 16323-37021 · 16323-37040 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-28010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-37010 · 16326-37020 · 16326-37030 · 16326-47010 · 16326-47020 |
| 16331A | thermostat | 90916-03144 · 90916-03147 · 90916-03151 |
| 16361 | Fan | 16361-0N040 · 16361-22100 |
| 16361J | Right fan | 16361-28360 |
| 16361K | left fan | 16361-37010 |
| 16363 | cooling fan motor | 16363-21090 · 16363-22100 · 16363-22120 |
| 16363F | Right cooling fan motor | 16363-37010 |
| 16363G | Left cooling fan motor | 16363-37020 |
| 16381 | Fan belt adjustment lever | 16381-37030 |
| 16385 | Fan belt adjustment slider | 16385-37010 |
| 16400 | Radiator assembly | 16400-22160 · 16400-37270 · 16400-37290 |
| 16400B | Radiator drain switch screw plug | 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16470 | Radiator reservoir assembly | 16480-22080 |
| 16471B | Reservoir tank cover | 16475-28140 · 16475-37010 · 16475-37011 |
| 16523A | Radiator bracket cushion | 16523-21050 · 16523-36010 |
| 16533D | Radiator right side support | 16533-0T040 |
| 16534A | Radiator left support | 16534-0T010 |
| 16535 | Radiator lower support | 16535-0R040 · 16535-47010 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-22030 · 16561-37020 · 16561-37031 · 16561-37080 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 96136-43901 · 96136-44301 |
| 16571C | Radiator hose No. 1 | 16571-22190 · 16571-37140 · 16571-47050 |
| 16571D | No. 1 radiator hose clip | 96136-43901 · 96136-44301 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 96136-44301 |
| 16572D | Radiator hose No. 2 | 16572-22130 · 16572-37120 · 16572-47040 |
| 16572E | No. 2 radiator hose clip | 96136-43901 · 96136-44301 |
| 16573B | Radiator hose No. 3 | 16573-37040 · 16573-37050 |
| 16573C | No. 3 radiator hose clamp or clip | 90466-35001 · 96136-43901 · 96136-44301 |
| 16575C | No. 1 water hose clamp bracket | 16575-47010 |
| 16577C | radiator pipe | 16577-37020 · 16577-37030 |
| 16581 | Hose clamp (for water hose) | 16581-21030 · 16581-21060 |
| 16581B | Hose clamp (for radiator hose) | 16581-36020 |
| 16711 | fan cover | 16711-0D201 · 16711-22140 · 16711-37040 |
| 16712 | No. 2 fan cover | 16712-22041 · 16712-37090 · 16712-37100 |
