Toyota COROLLA Engine Oil Pump — Figure 1501

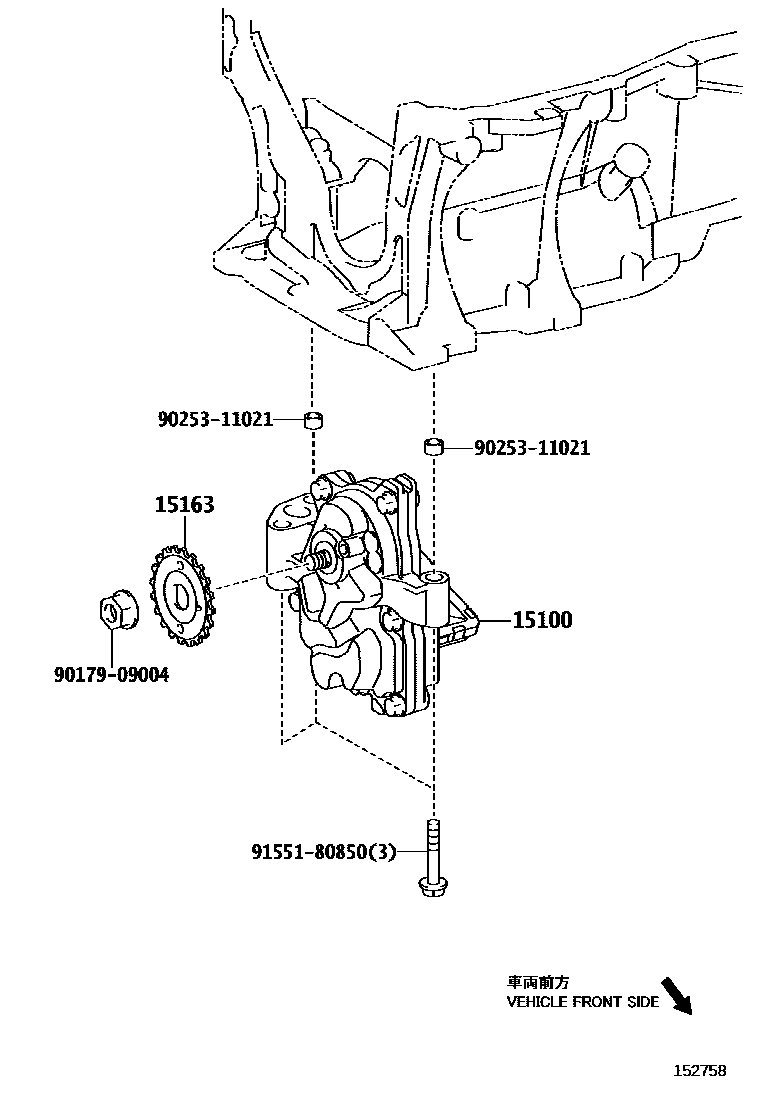

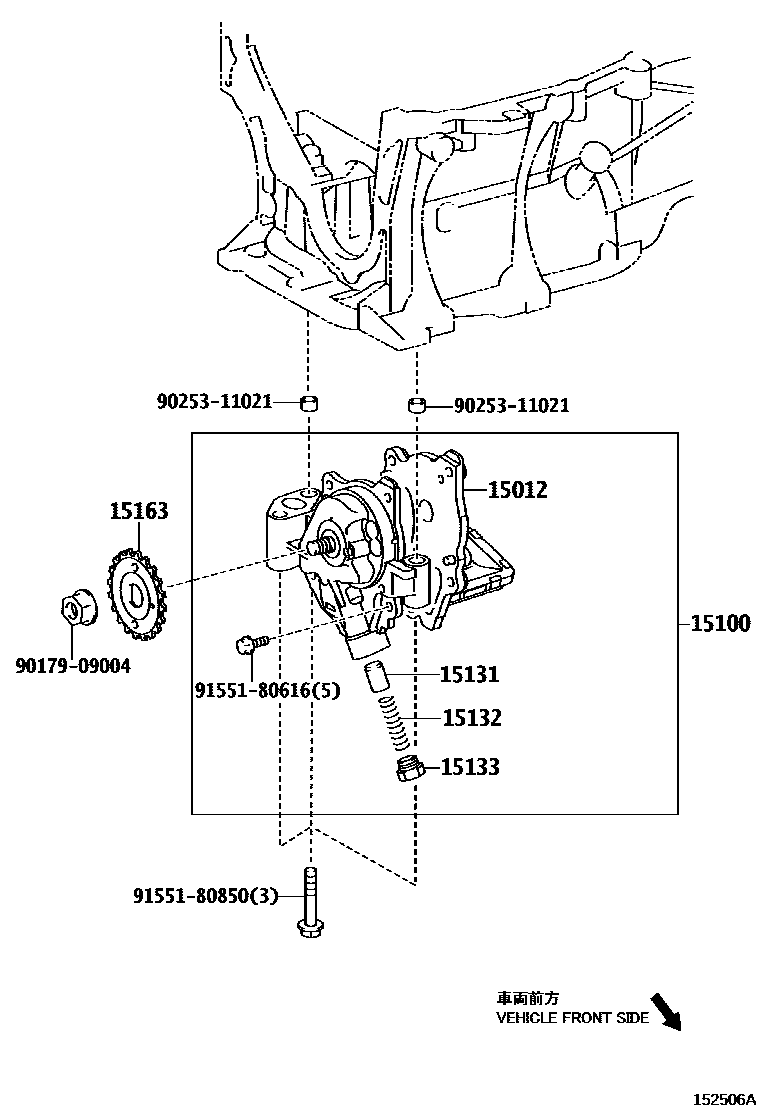

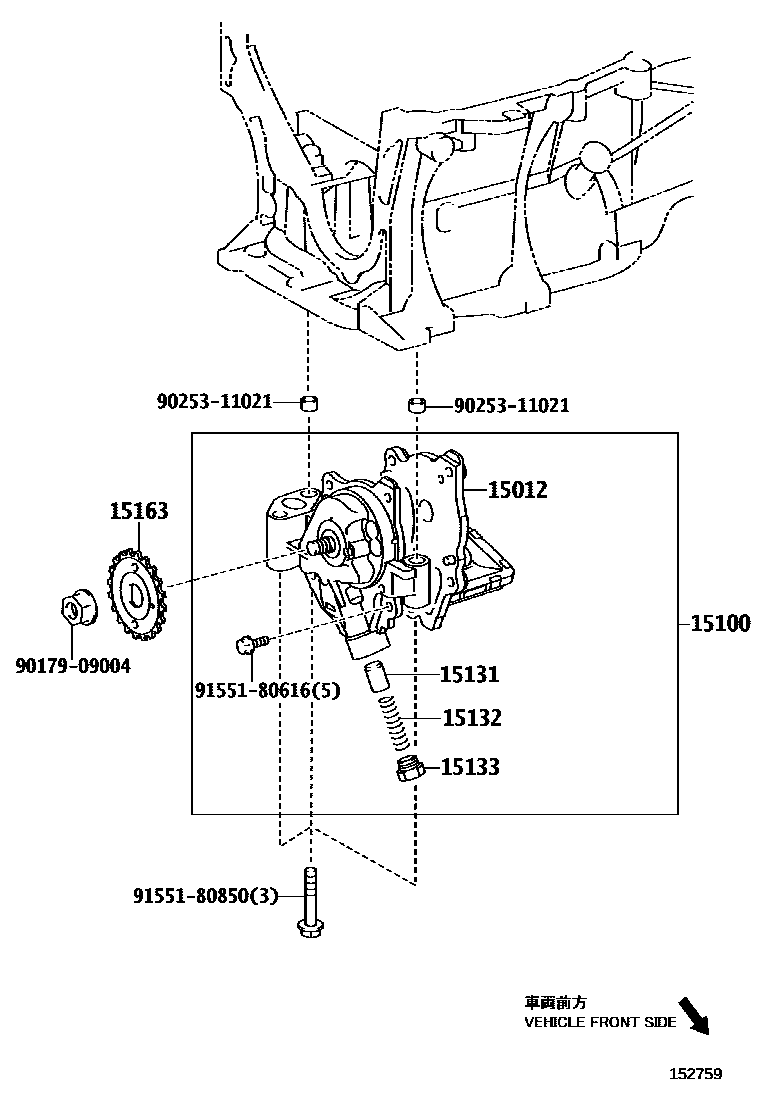

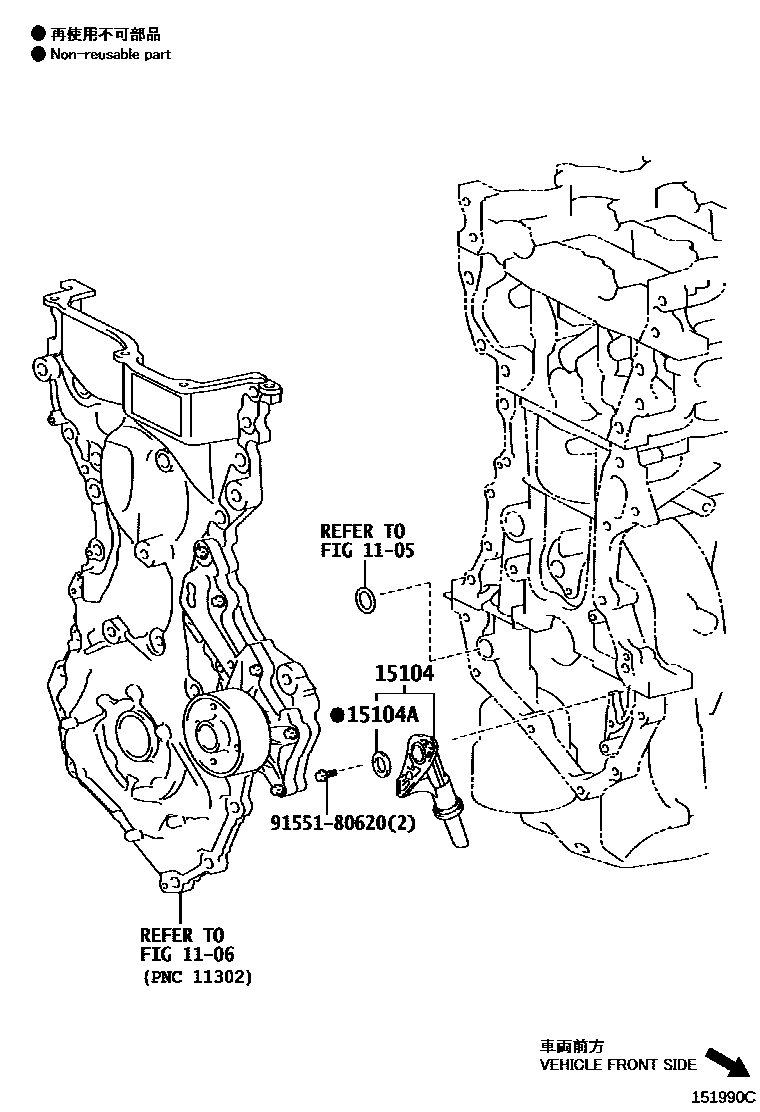

Toyota COROLLA EPC diagram 1501, Engine Oil Pump, with 4 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15012 | Oil pump cover sub-assembly | 15012-37010 |
| 15100 | Oil pump assembly | 15100-37020 · 15100-37021 · 15100-37030 · 15100-37040 |
| 15104 | Oil filter sub-assembly | 15104-47040 |
| 15104A | O-ring (for oil filter) | 90301-22018 |
| 15131 | Oil pump pressure reducing valve | 15131-0A040 |
| 15132 | Oil pump pressure reducing valve spring | 15132-46060 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-28020 |
| 15163 | Oil pump drive shaft gear | 15163-28010 |
