Toyota COROLLA Crankshaft & Piston — Figure 1301

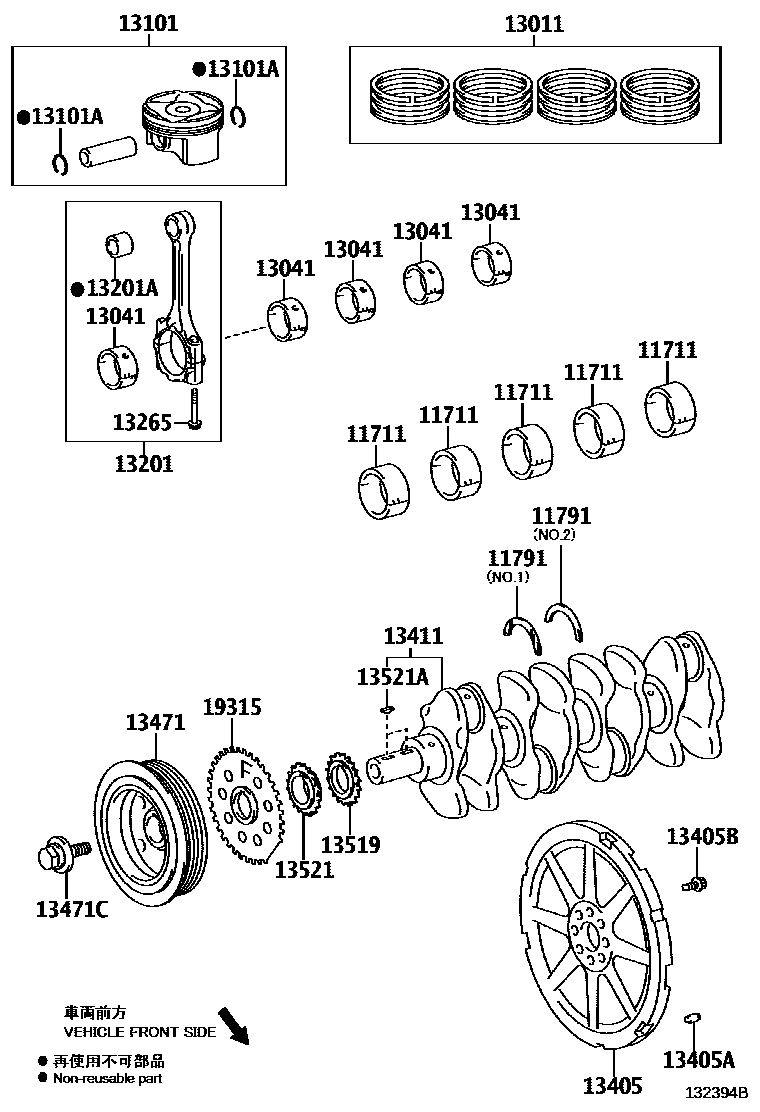

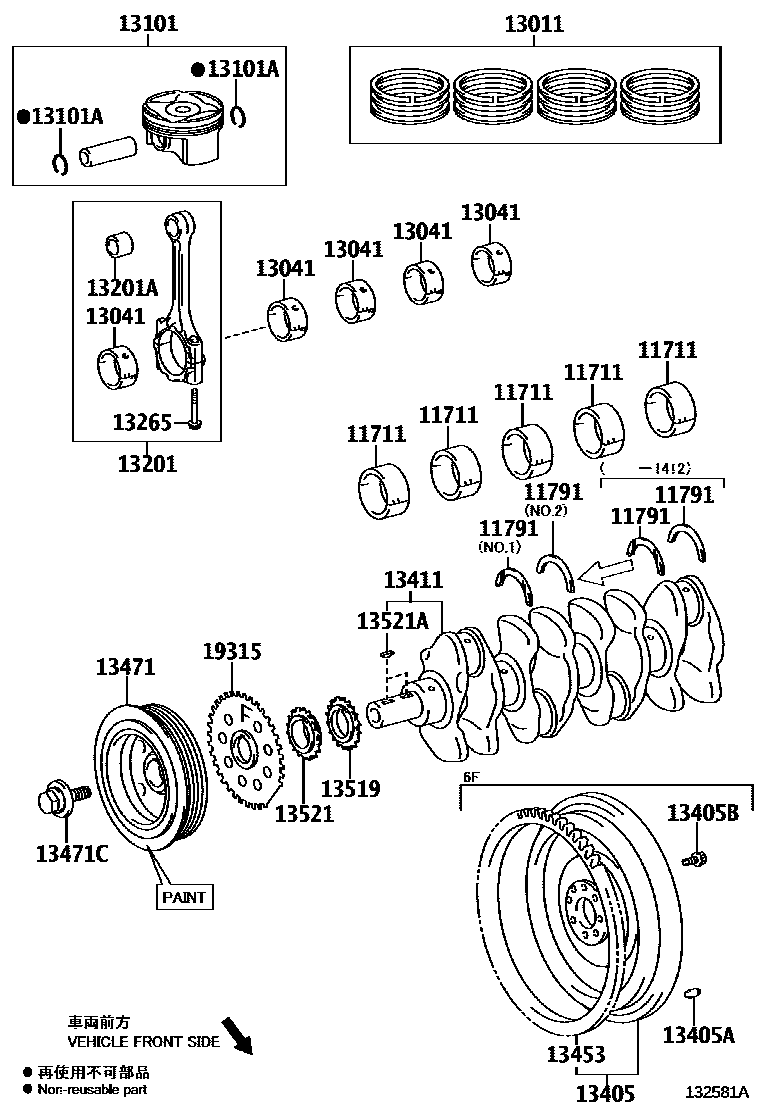

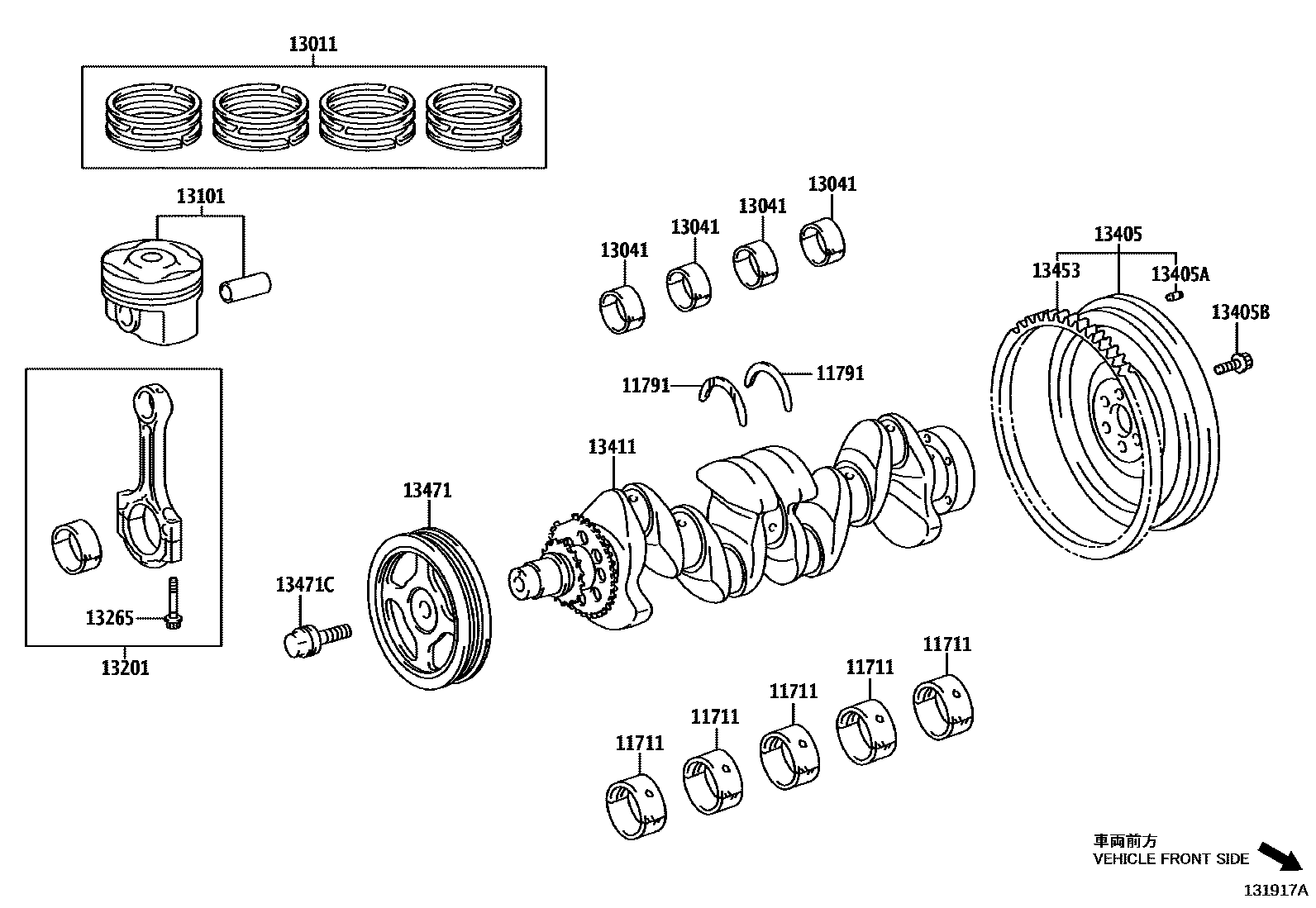

Toyota COROLLA EPC diagram 1301, Crankshaft & Piston, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11791 | Thrust washer on crankshaft | 11791-22020 · 11791-37010 · 11791-47010 · 11791-47011 |
| 13011 | Piston ring assembly | 13011-37090 · 13011-37260 · 13011-37290 · 13011-37300 · 13011-47031 · 13011-47032 · 13011-47033 |
| 13101 | Piston sub-assembly with pin | 13101-0T080 · 13101-0T280 · 13101-0T290 · 13101-37071 · 13101-37240 · 13101-37290 · 13101-47021 · 13101-47022 · 13101-47110 |
| 13101A | Bore snap ring (for piston pin) | 90520-20064 |
| 13201 | Connecting rod sub-assembly | 13201-09A30 · 13201-39185 · 13201-49086 · 13201-49087 |
| 13201A | Bushing (for connecting rod small end) | 90999-73151 |
| 13265 | Connecting rod bolts | 13265-21020 · 13265-22020 |
| 13405 | Flywheel sub-assembly | 13405-37050 · 13405-37051 · 13405-47030 · 13451-37080 |
| 13405A | Direct sales (for flywheel) | 90250-08120 |
| 13405B | Flywheel fixing bolt | 90913-01027 · 90913-01029 |
| 13411 | crankshaft | 13401-0T061 · 13401-37010 · 13401-37011 · 13401-37020 · 13401-37021 · 13401-47011 |
| 13453 | flywheel ring gear | 13453-0T010 · 13453-10010 |
| 13471 | crankshaft pulley | 13470-37041 · 13470-37042 · 13470-37050 · 13470-37060 · 13470-47070 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-12345 · 90119-14106 · 90119-14175 |
| 13519 | Oil pump driving gear | 13519-37010 |
| 13521 | Crankshaft timing gear or sprocket | 13521-37010 · 13521-37011 |
| 13521A | Key (for crankshaft timing gear) | 90280-04003 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-37020 |
