Toyota COROLLA Engine Mounting — Figure 1107

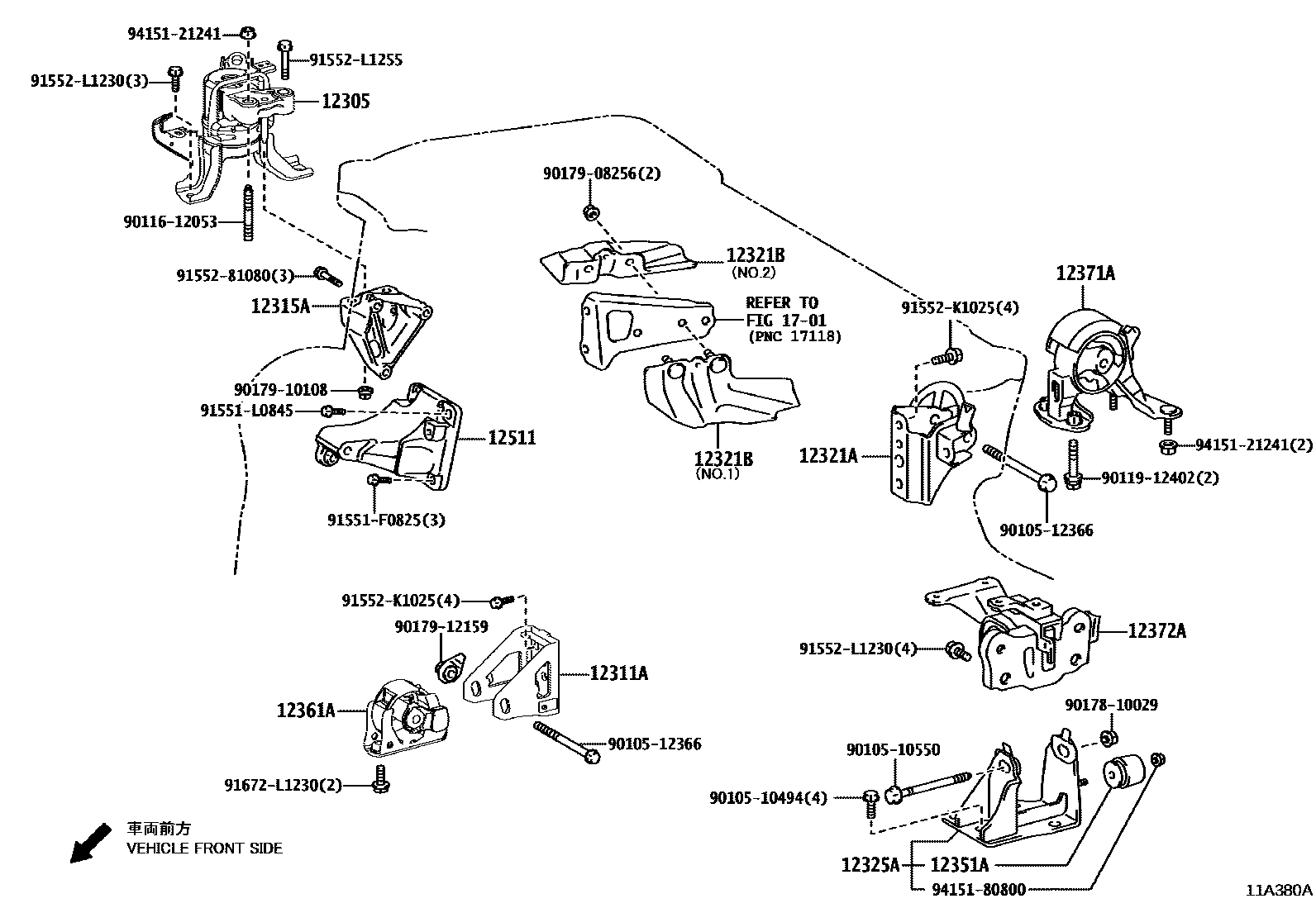

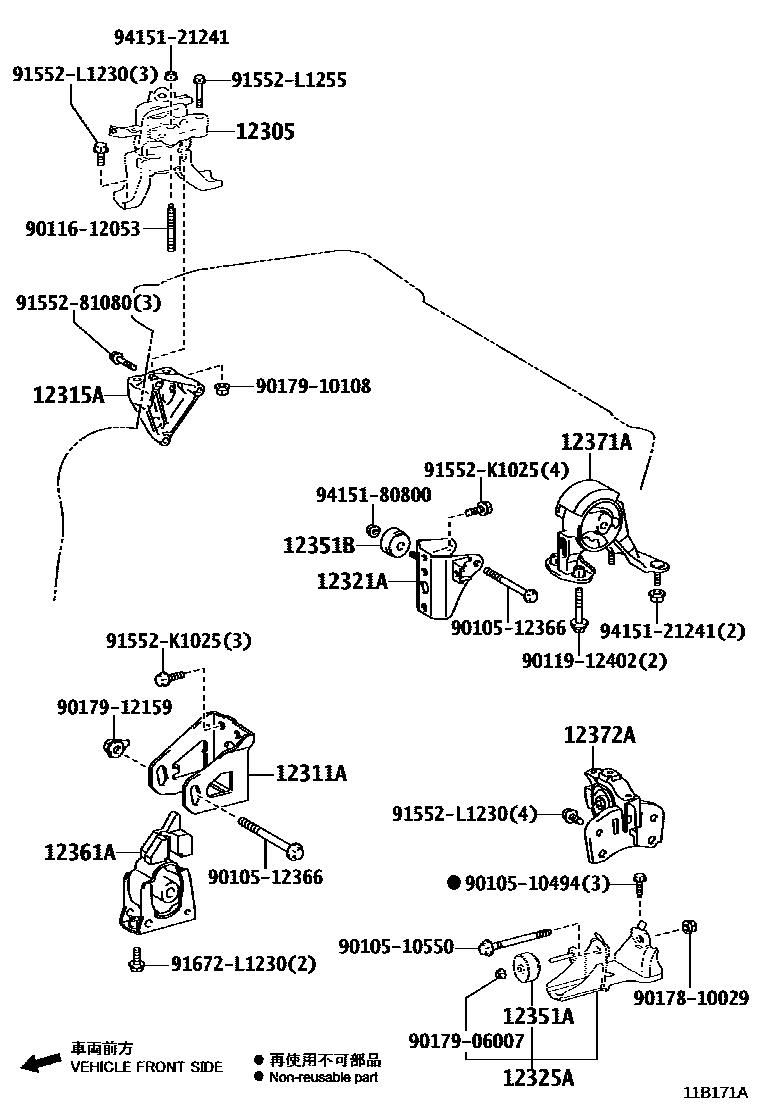

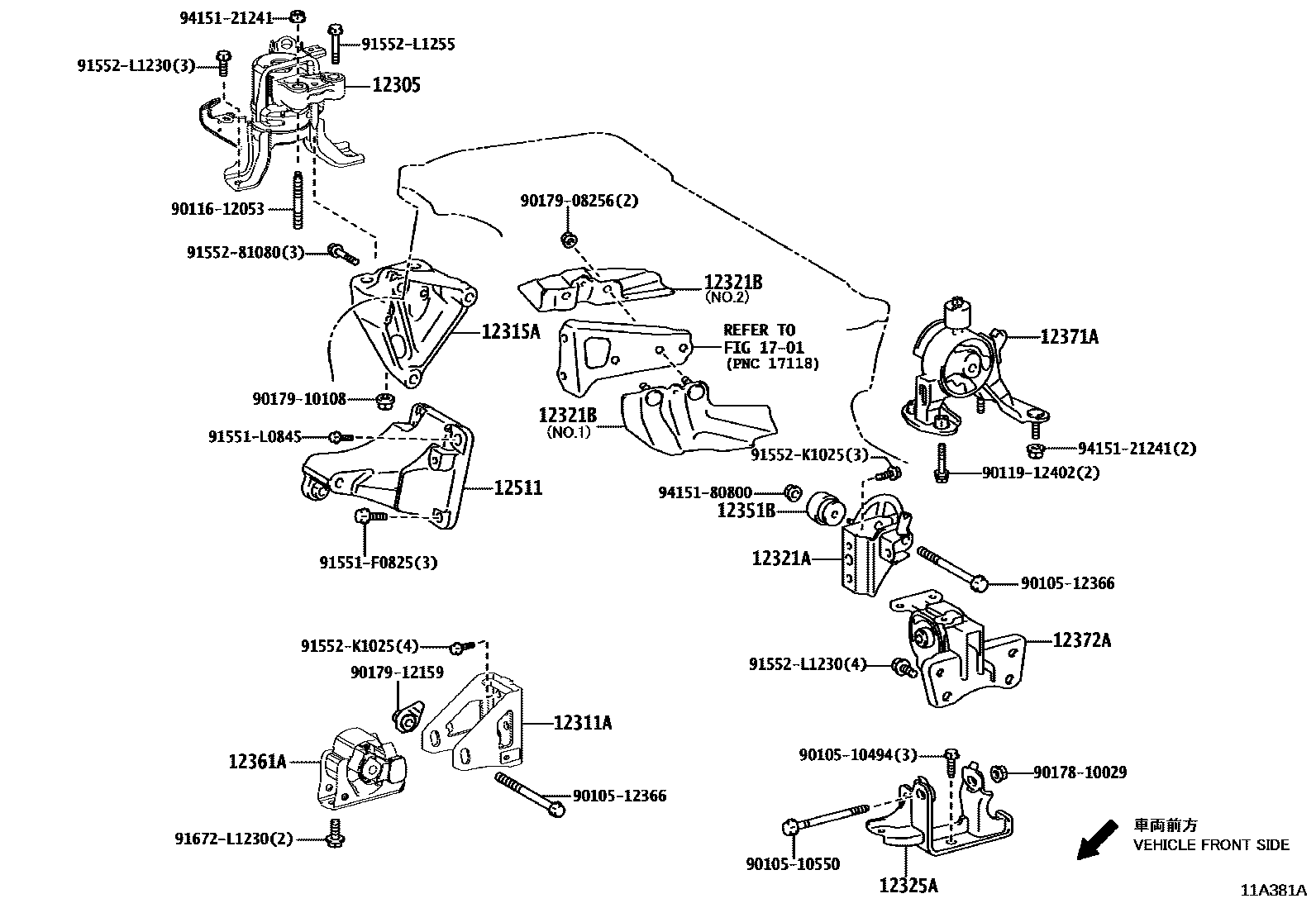

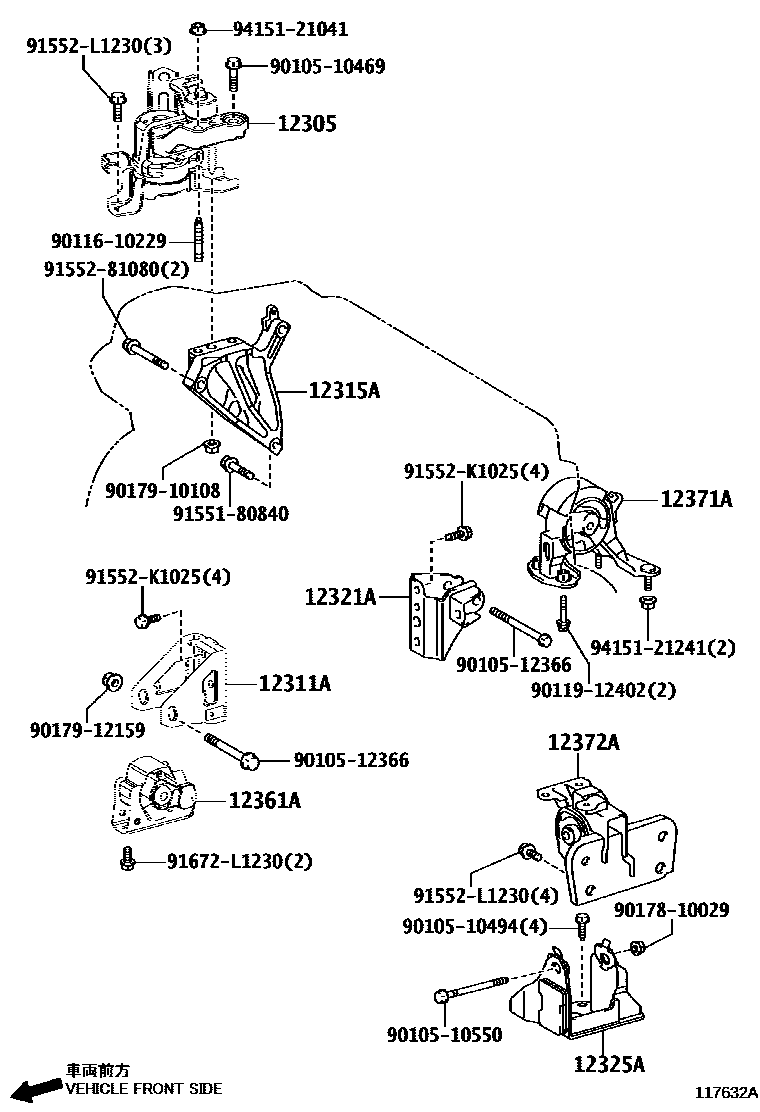

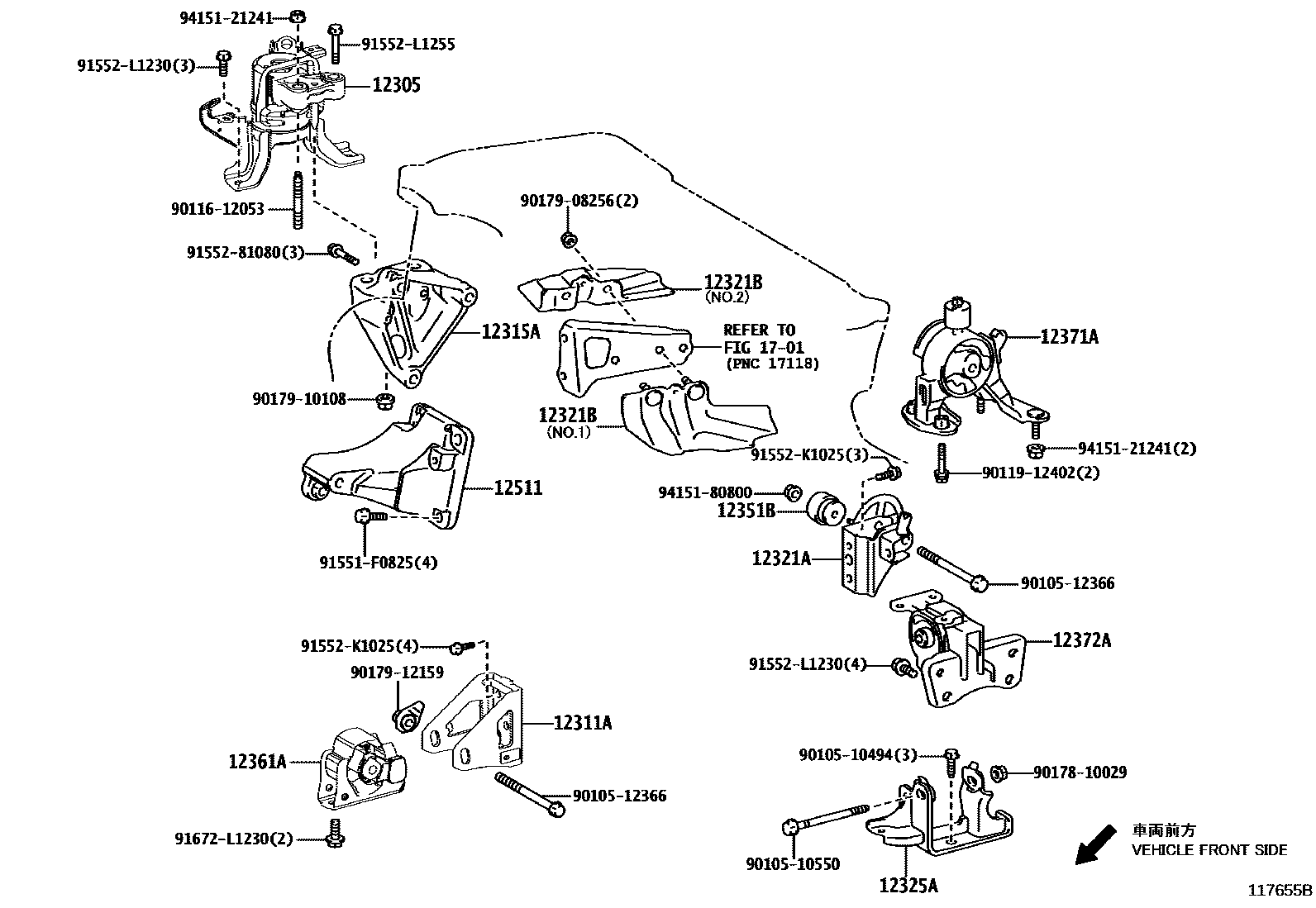

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 6 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-0Y070 · 12305-37150 · 12305-37370 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-37170 · 12311-37240 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-37030 · 12315-37100 · 12315-47040 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-37060 · 12321-37100 · 12321-37140 · 12321-47050 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-12060 · 43498-12051 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12304-37100 · 12304-37160 · 12325-0Y080 · 12325-22300 |
| 12351A | Engine mount shock absorber (for vibration isolation pad) | 12351-26010 · 12351-37140 |
| 12351B | engine mount shock absorber | 12351-23010 · 12351-37120 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-37160 · 12361-37161 · 12361-37170 · 12361-37171 · 12361-37260 |
| 12371A | Engine rear mount vibration isolation pad | 12371-37130 · 12371-37131 · 12371-37132 · 12371-37140 · 12371-37141 · 12371-37270 · 12371-37410 · 12371-37411 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0Y070 · 12372-37080 · 12372-37190 · 12372-37210 |
| 12511 | No. 1 generator bracket | 12501-37020 · 12511-37010 |
