Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 3 images and 4 PNC and OE references.

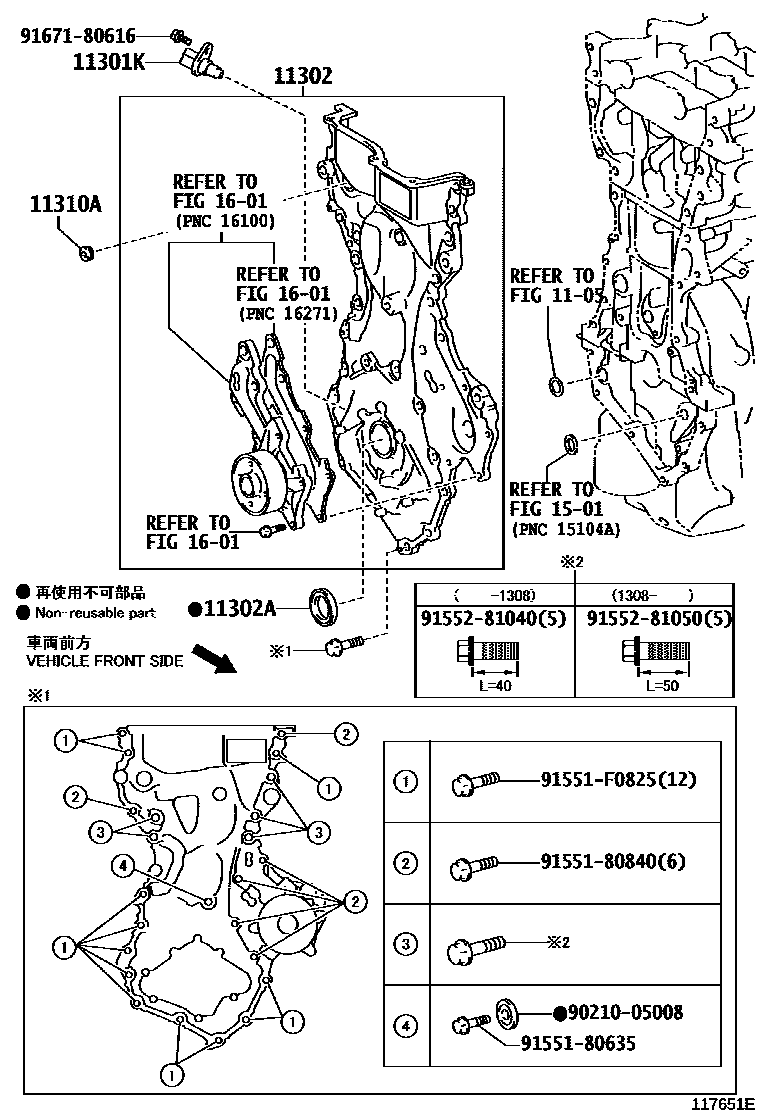

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 117651E
Timing Gear Cover & Rear End Plate — 117651E (201208 – 999999)

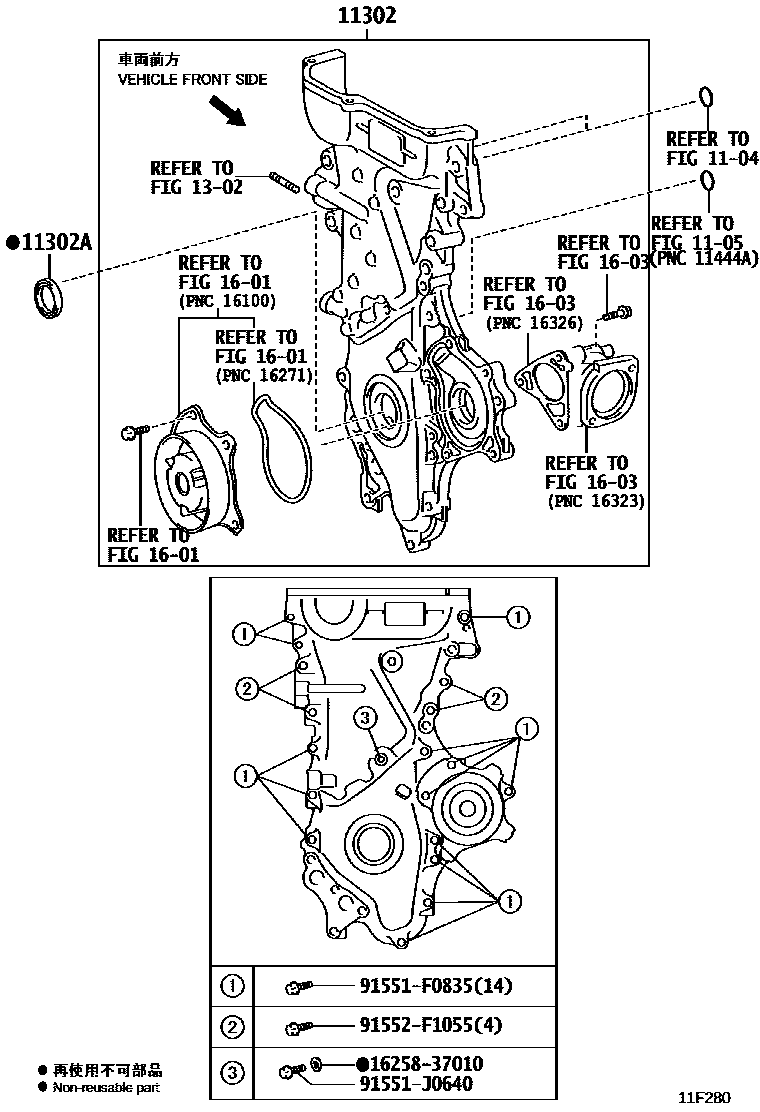

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 11F280
Timing Gear Cover & Rear End Plate — 11F280 (201208 – 999999)

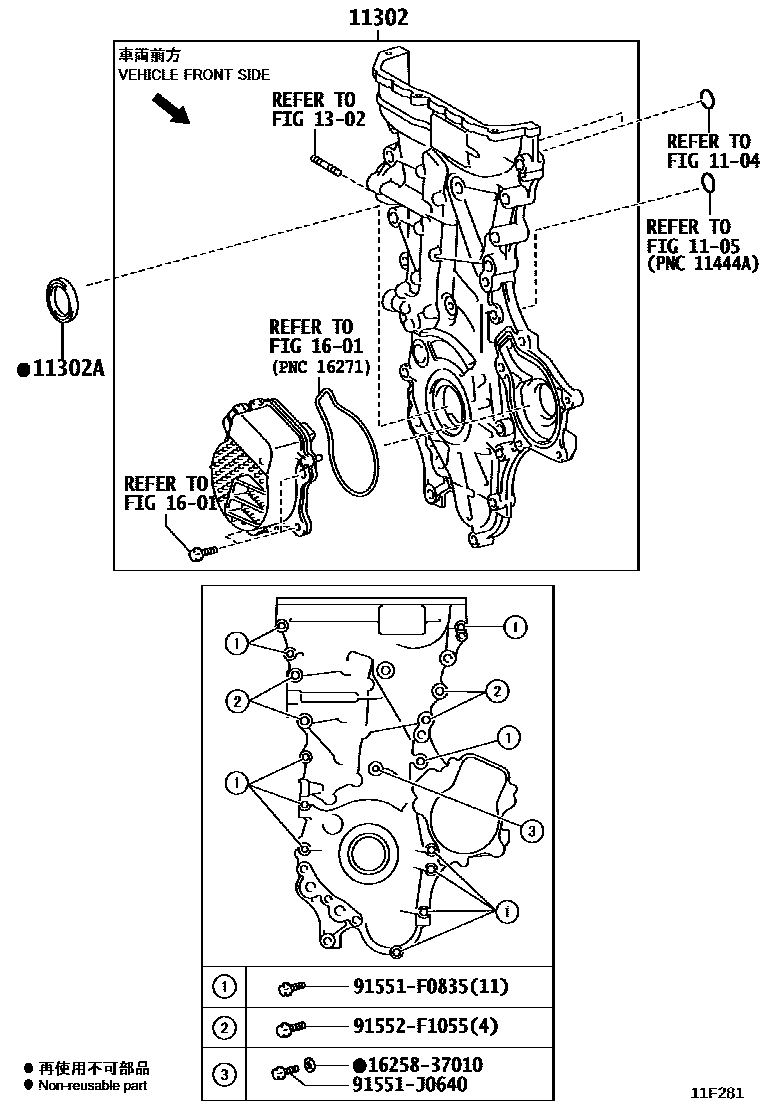

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 11F281
Timing Gear Cover & Rear End Plate — 11F281 (201604 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301Kcrankshaft position sensor90919-05073
11302TIMING CHAIN OR BELT COVER SUB-ASSY11310-37011 · 11310-37040 · 11310-37062 · 11310-47040 · 11310-47041 · 11310-47042
11302AOil seal (for timing chain or timing belt cover)90311-25021 · 90311-25032 · 90311-38096
11310ATapered thread plug (for timing chain cover)90344-53006
