Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 8 images and 2 PNC and OE references.

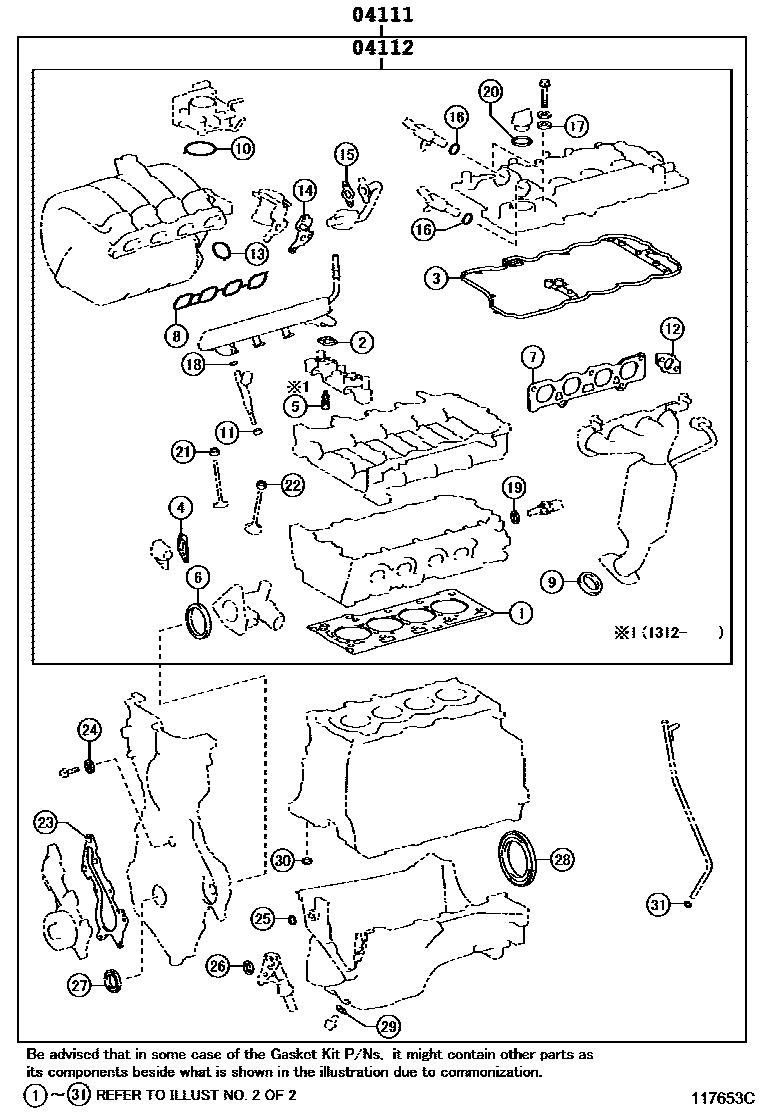

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 117653C
Engine Overhaul Gasket Kit — 117653C (201208 – 999999)

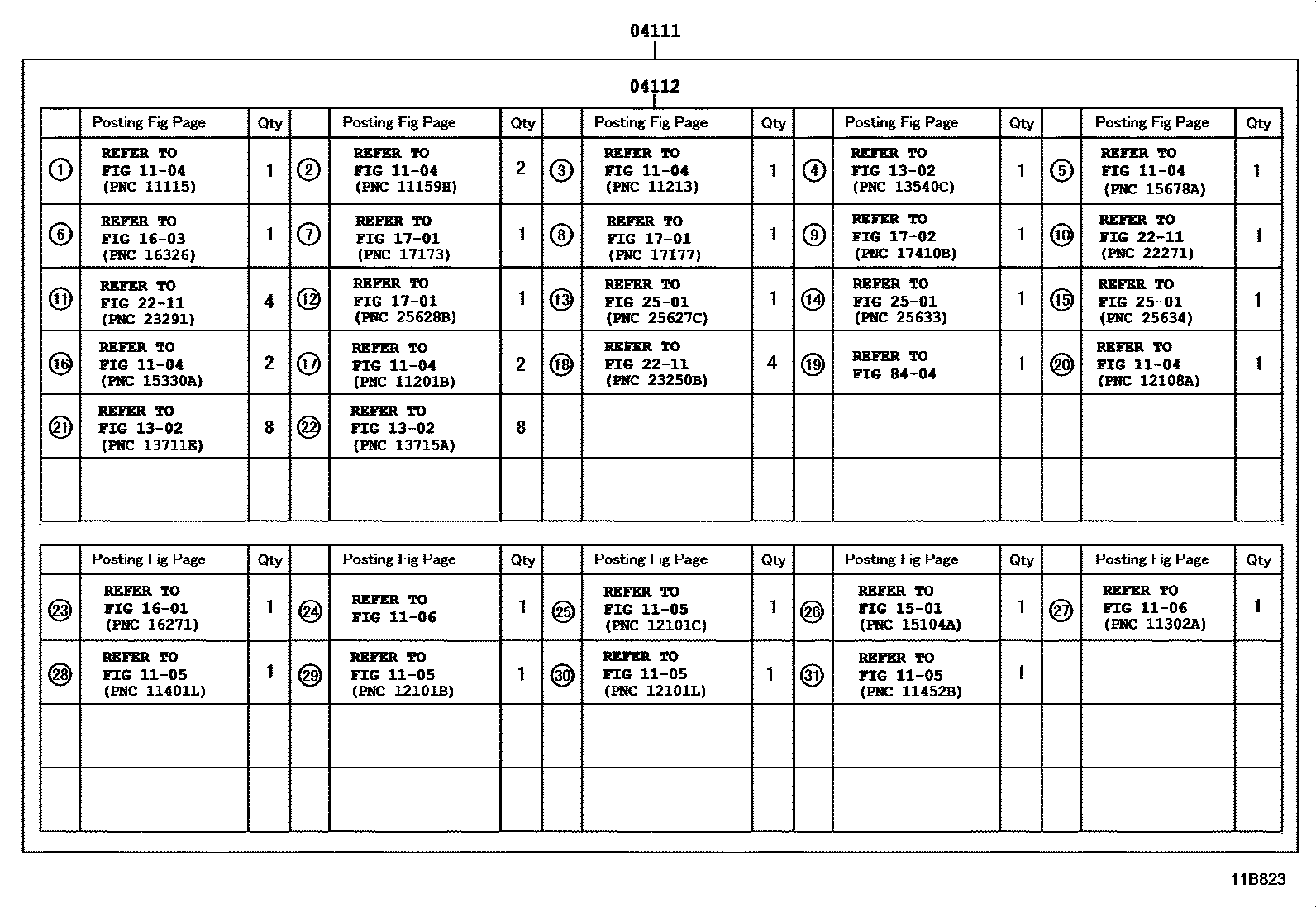

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B823
Engine Overhaul Gasket Kit — 11B823 (201208 – 999999)

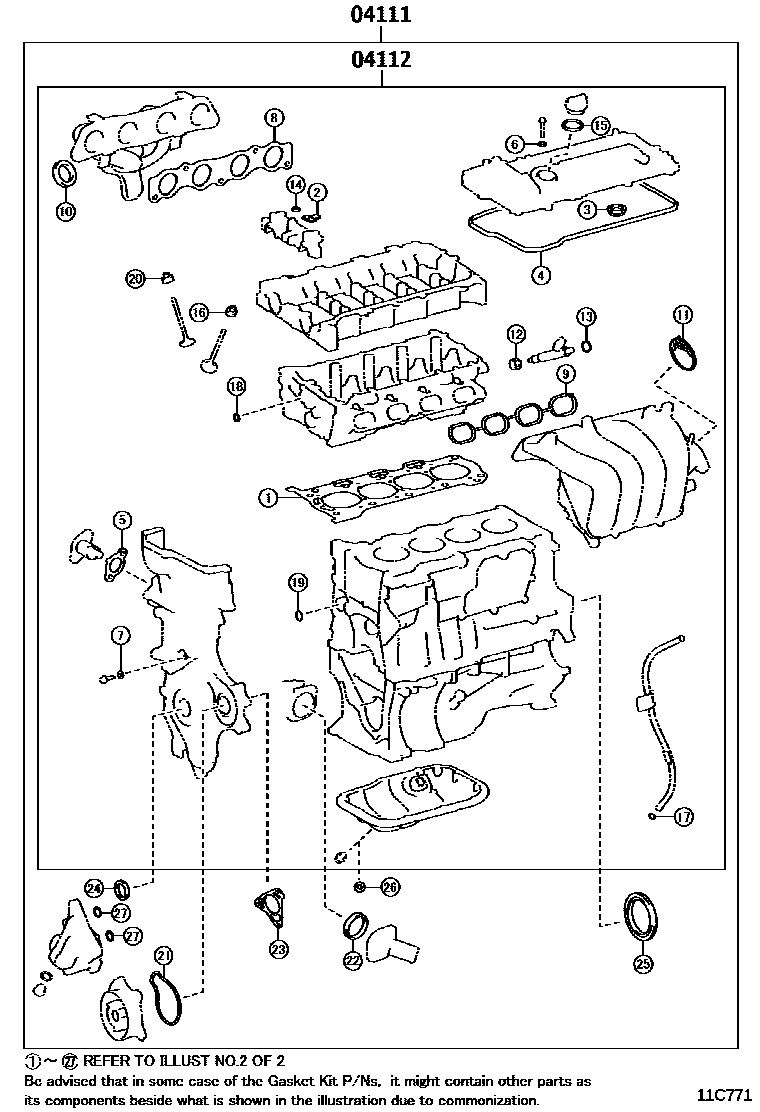

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C771
Engine Overhaul Gasket Kit — 11C771 (201208 – 999999)

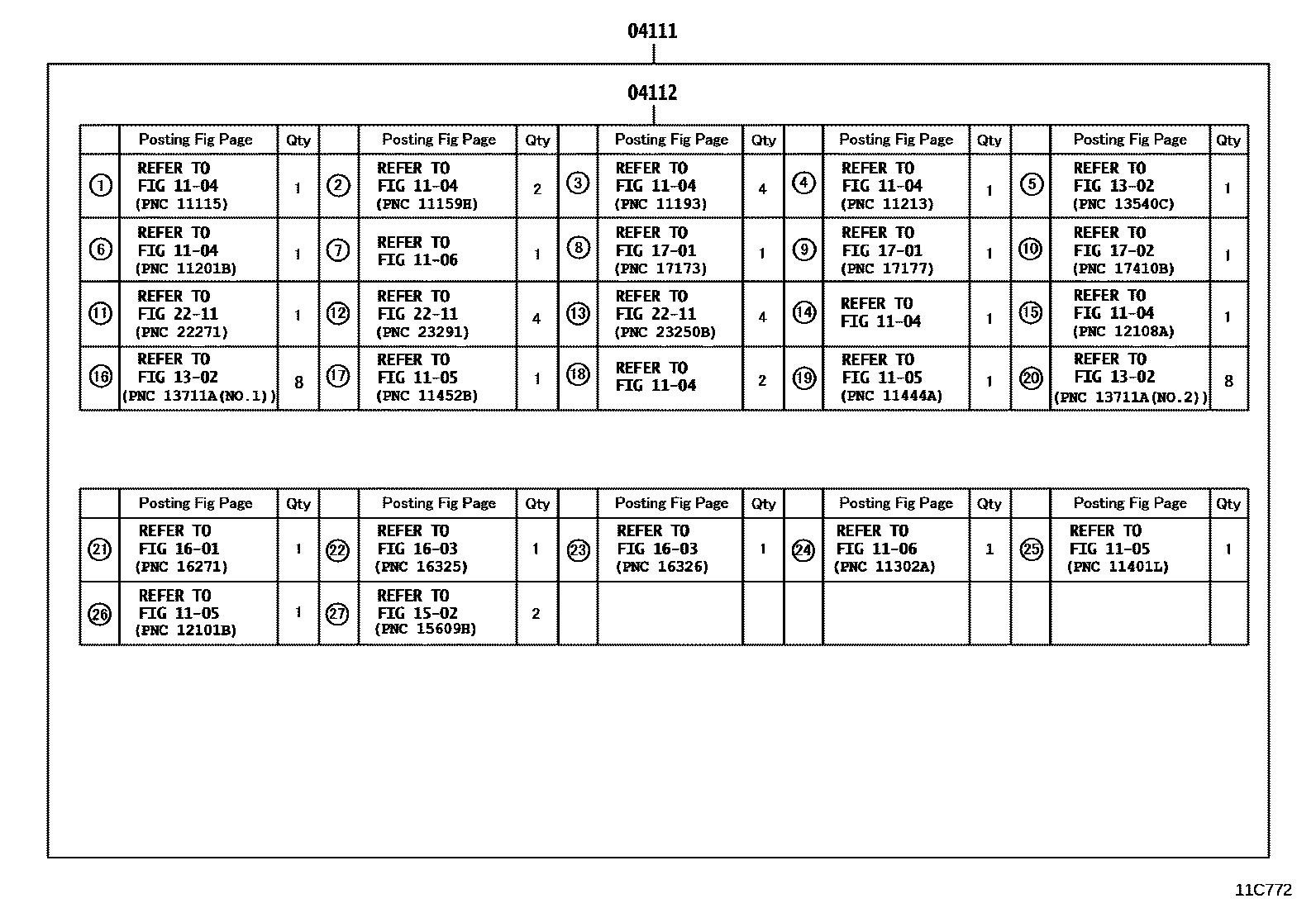

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C772
Engine Overhaul Gasket Kit — 11C772 (201208 – 999999)

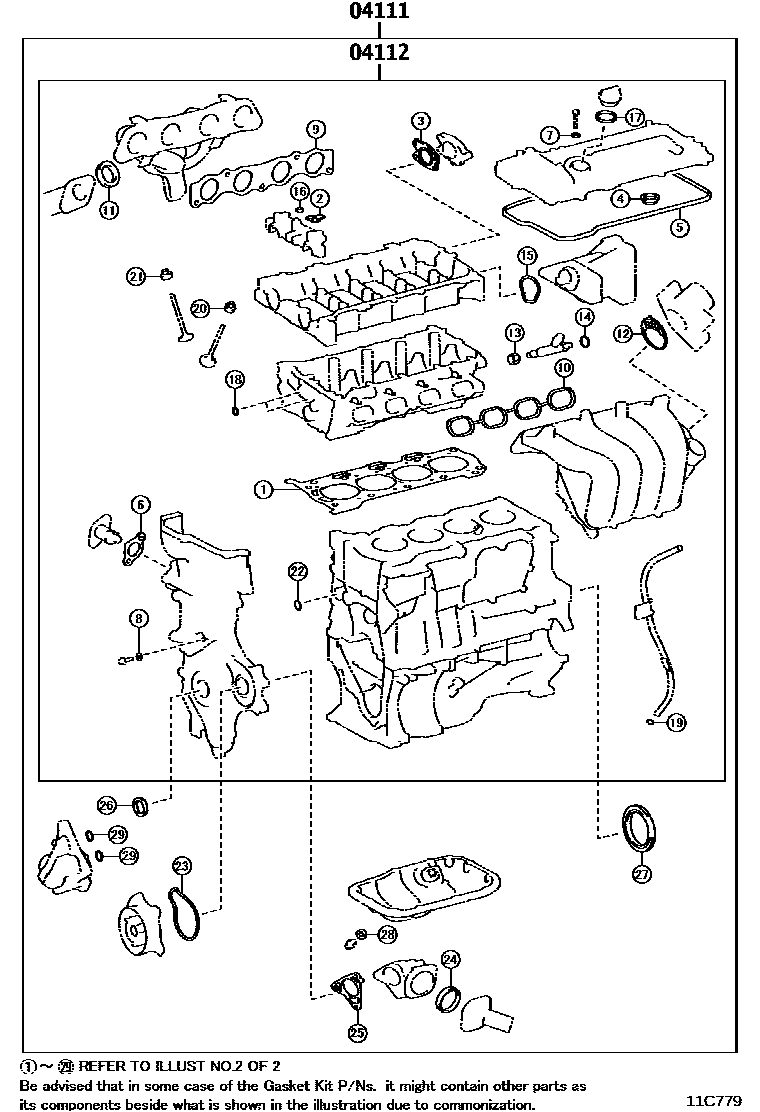

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C779
Engine Overhaul Gasket Kit — 11C779 (201208 – 999999)

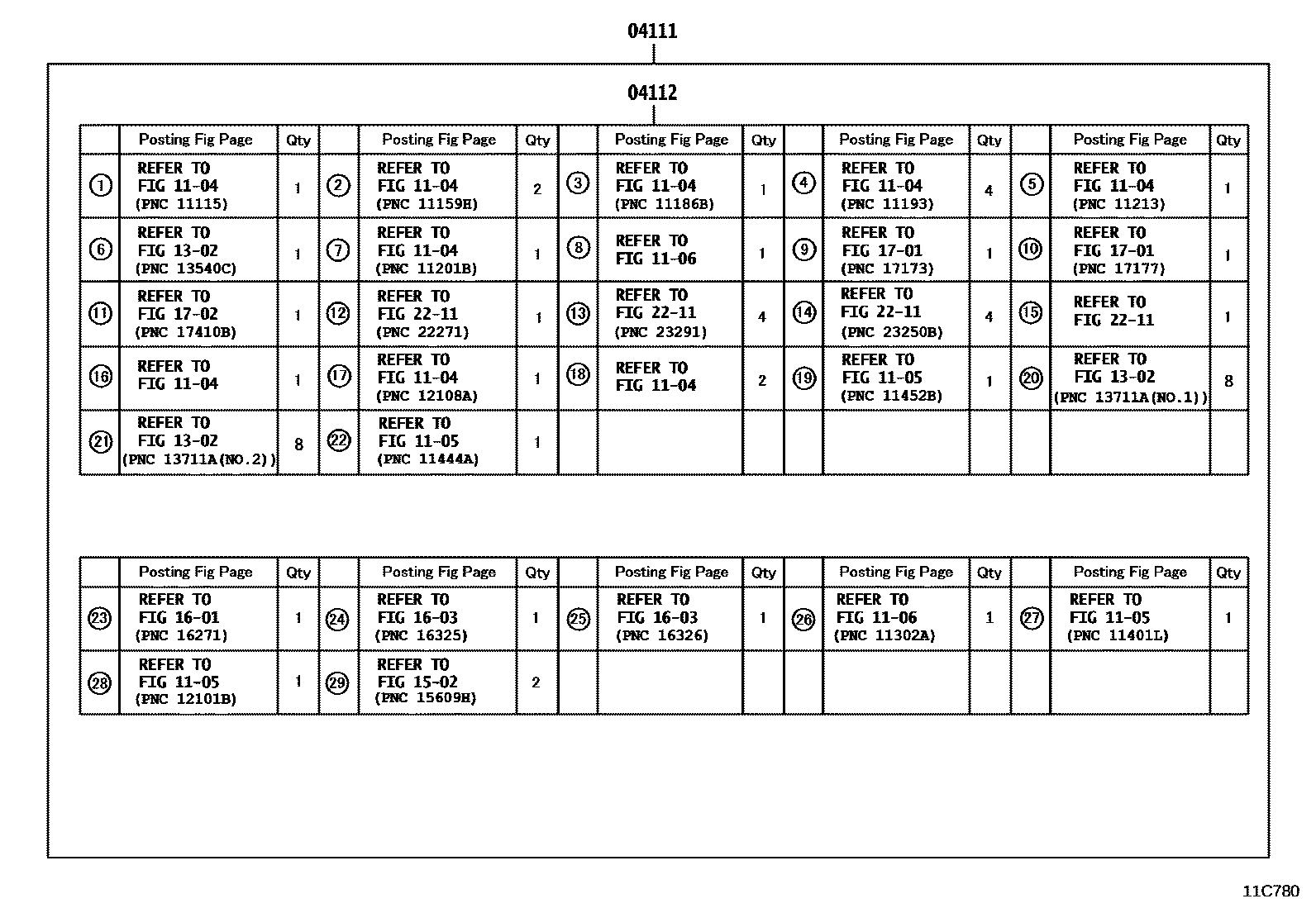

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C780
Engine Overhaul Gasket Kit — 11C780 (201208 – 999999)

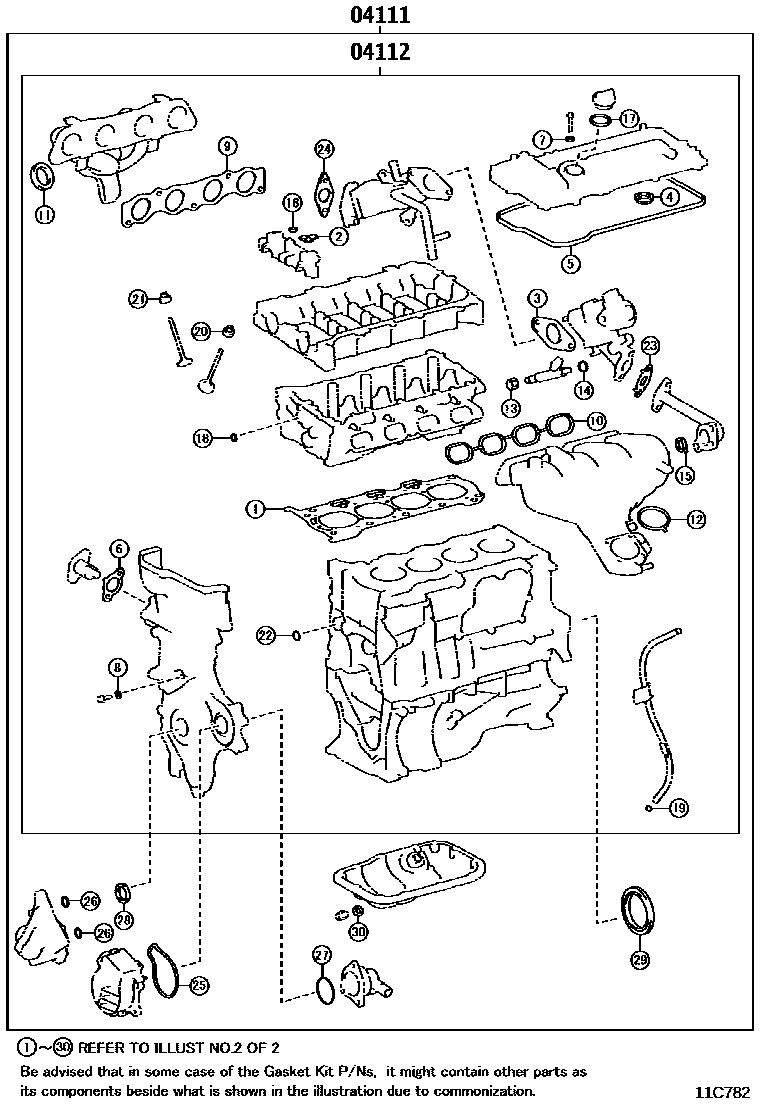

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C782
Engine Overhaul Gasket Kit — 11C782 (201604 – 999999)

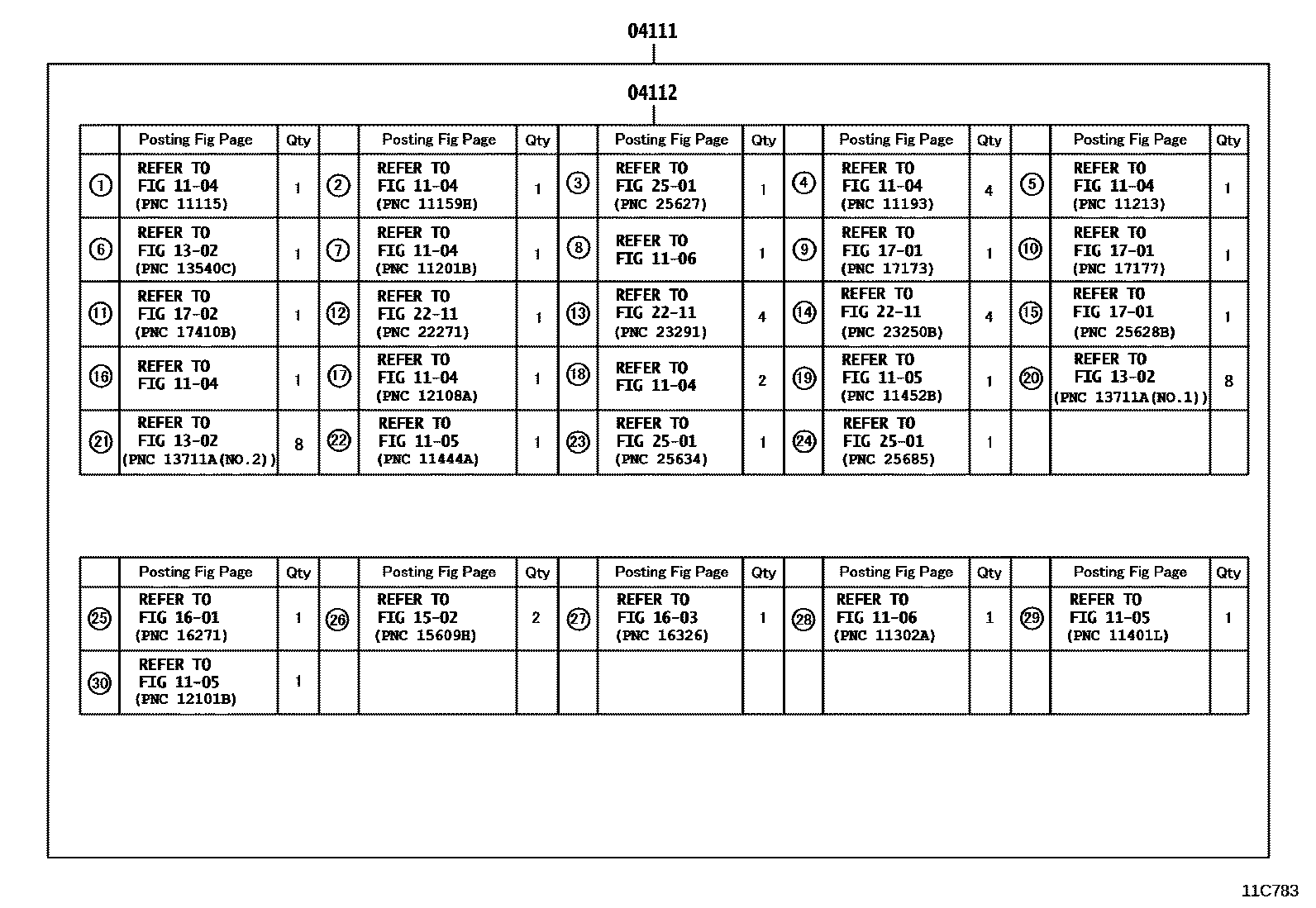

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11C783
Engine Overhaul Gasket Kit — 11C783 (201604 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-37096 · 04111-37097 · 04111-37274 · 04111-37275 · 04111-37315 · 04111-37471 · 04111-47076 · 04111-47077 · 04111-47190
04112Engine valve grinding pad assembly04112-37075 · 04112-37076 · 04112-37223 · 04112-37224 · 04112-37253 · 04112-37371 · 04112-47036 · 04112-47130
