Toyota COROLLA Short Block Assembly — Figure 1102

Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

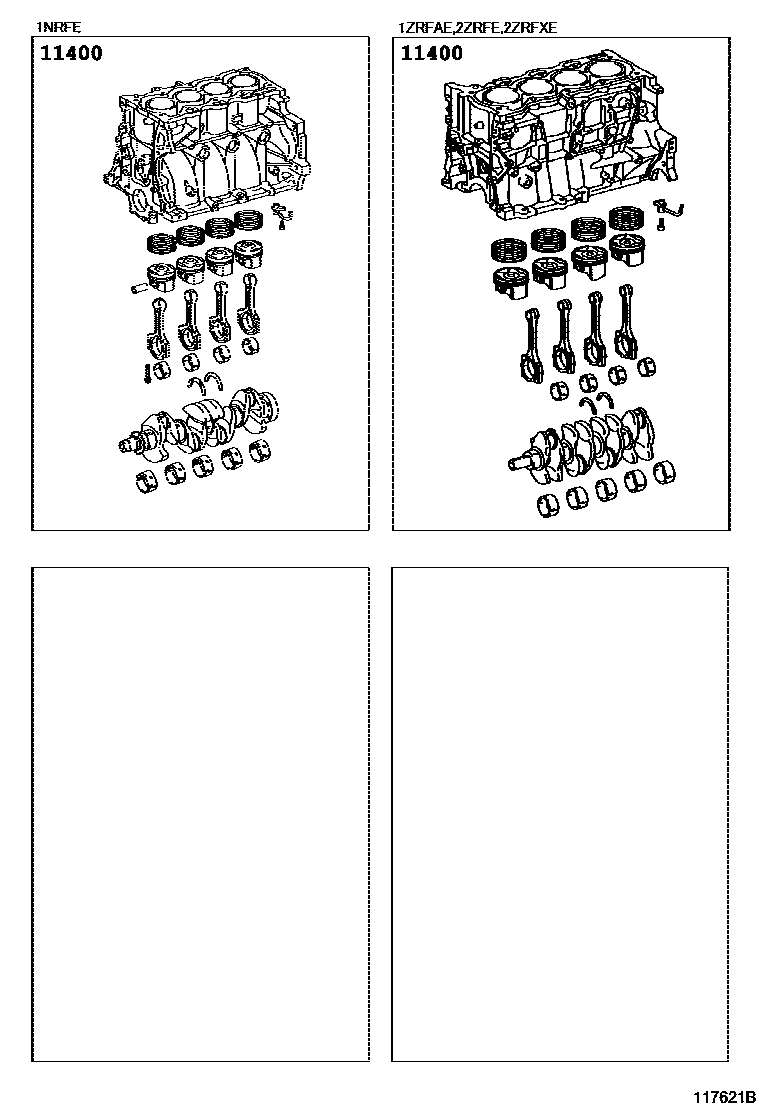

Toyota COROLLA Short Block Assembly EPC diagram — 117621B
Short Block Assembly — 117621B (201208 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-37081 · 11400-37131 · 11400-37140 · 11400-47090 · 11400-47091 · 11400-47140
