Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

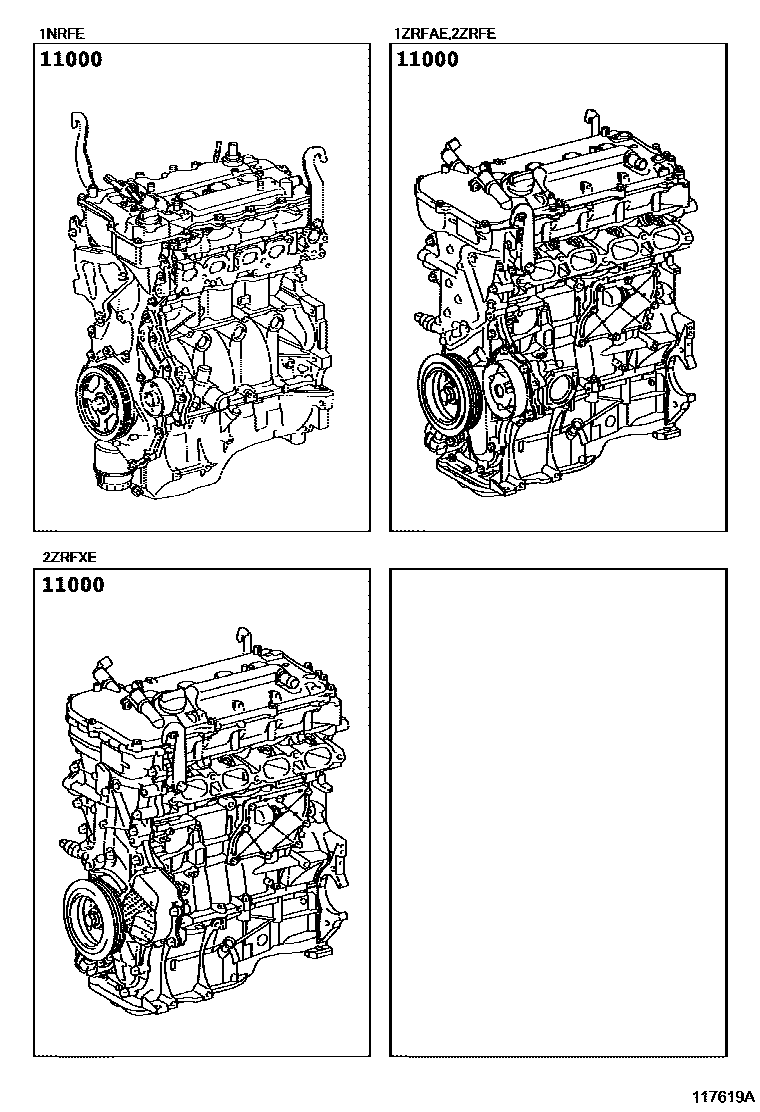

Toyota COROLLA Partial Engine Assembly EPC diagram — 117619A
Partial Engine Assembly — 117619A (201208 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-37440 · 19000-37450 · 19000-37472 · 19000-37720 · 19000-37721 · 19000-37740 · 19000-37741 · 19000-47180 · 19000-47181 · 19000-47340
