Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714

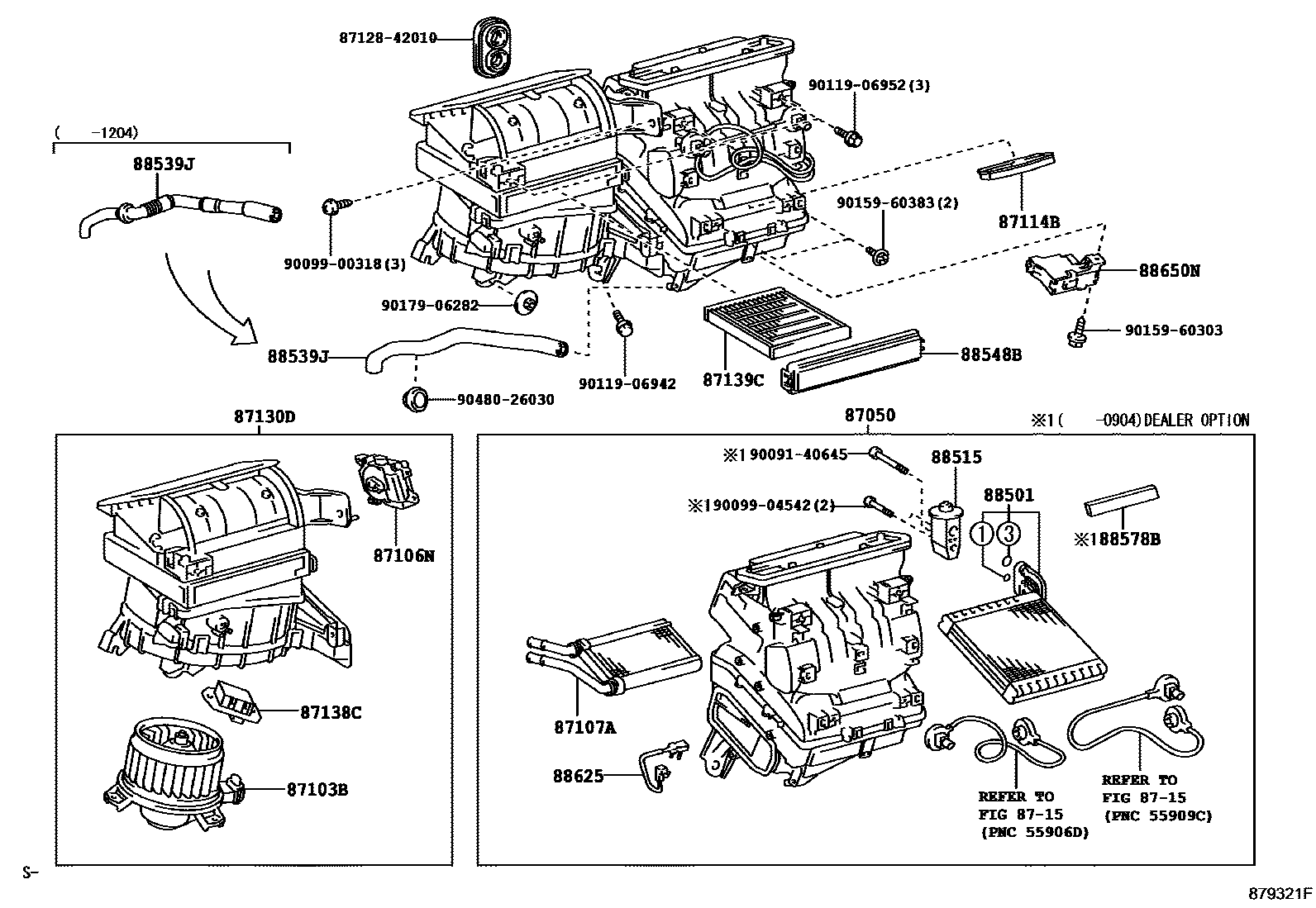

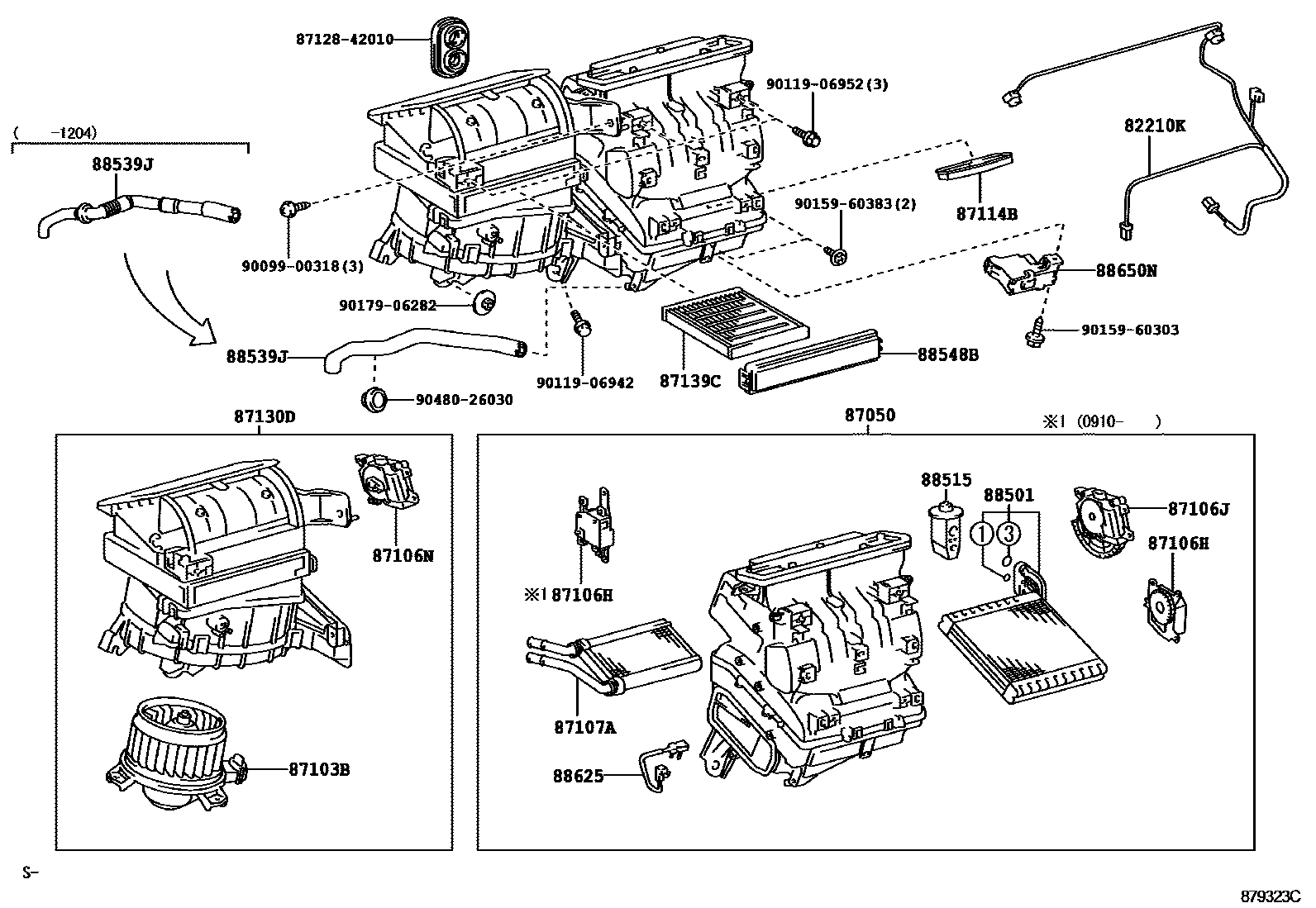

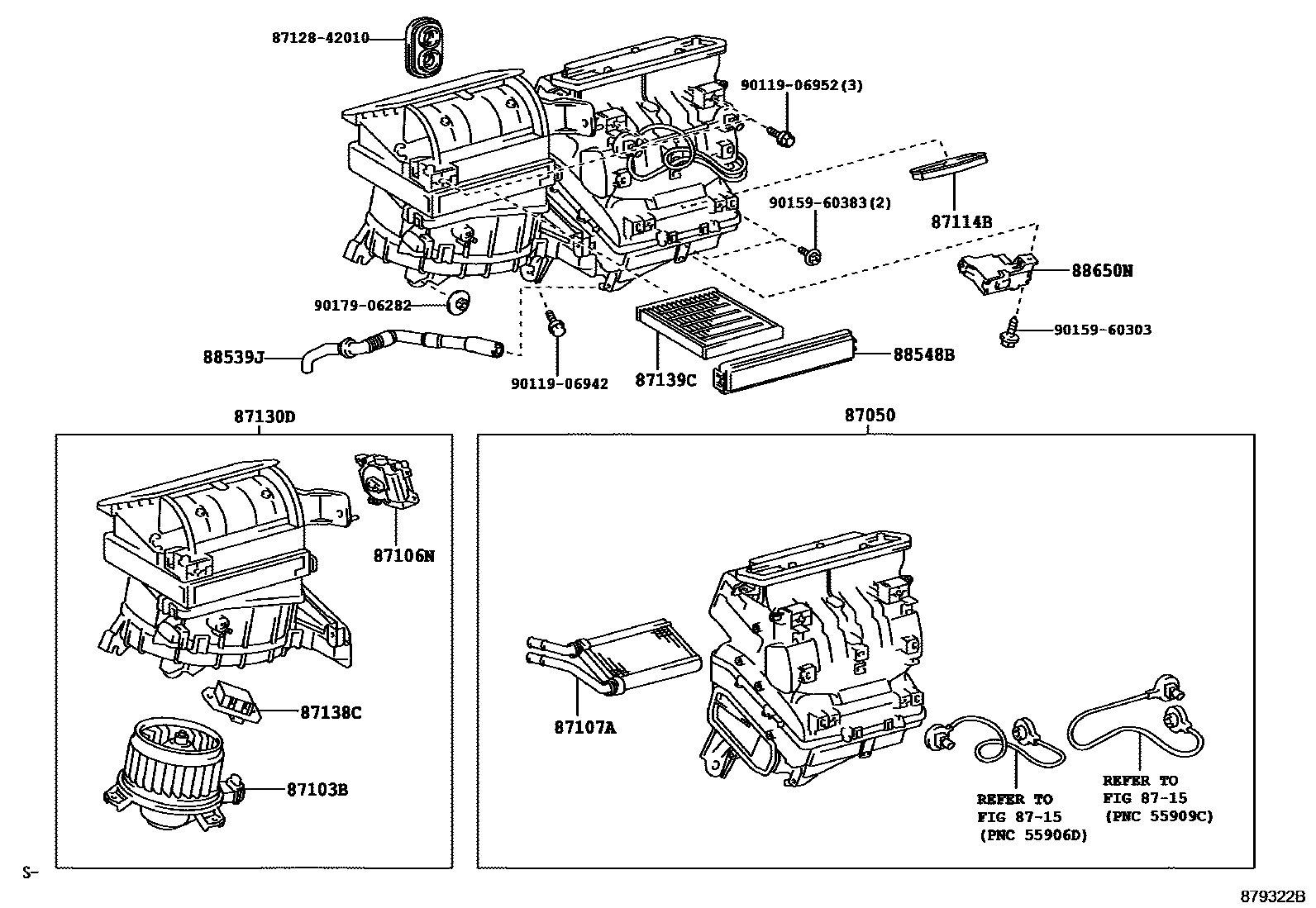

Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-12020 · 82212-12040 |
| 87050 | Air conditioning radiator assembly | 87050-12310 · 87050-12311 · 87050-12330 · 87050-12350 · 87050-12370 |
| 87103B | Blower motor sub-assembly with fan | 87103-12060 · 87103-42070 · 87103-42081 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-12170 · 87106-42090 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-42100 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-42110 · 87106-42120 |
| 87107A | Heater radiator device sub-assembly | 87107-42170 |
| 87114B | heater cover | 87114-12080 |
| 87130D | Blower assembly | 87130-12430 · 87130-12431 · 87130-12511 · 87130-12530 · 87130-12531 |
| 87138C | Blower resistor | 87138-26150 |
| 87139C | air purification filter | 87139-30040 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-0K090 · 88501-26210 · 88501-26211 · 88501-72020 |
| 88515 | Cooler expansion valve | 88515-12100 · 88515-26070 · 88515-42090 |
| 88539J | Cooler drain hose | 88539-12190 · 88539-12210 |
| 88548B | air filter housing | 88548-42010 |
| 88578B | Cooling unit seal No. 1 | 88578-12550 |
| 88625 | Cooler No. 1 Thermistor | 88625-26090 |
| 88650N | Air conditioning amplifier assembly | 88650-12A80 · 88650-12B01 · 88650-12B20 · 88650-12E20 |
