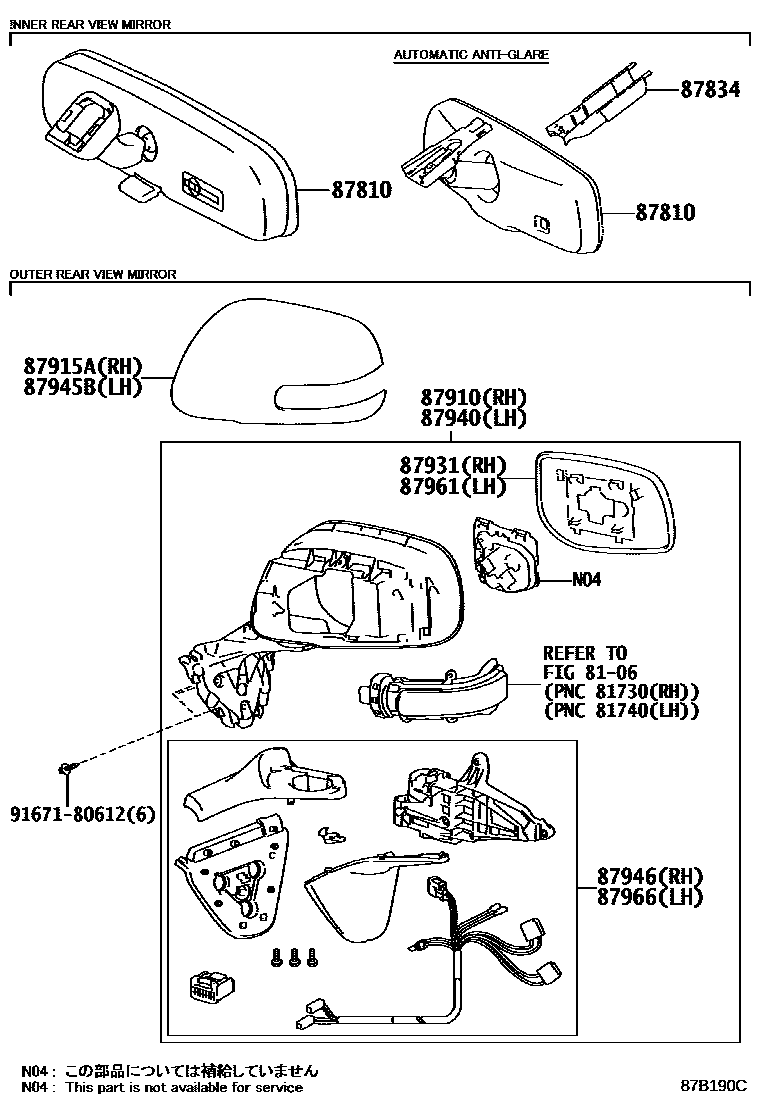

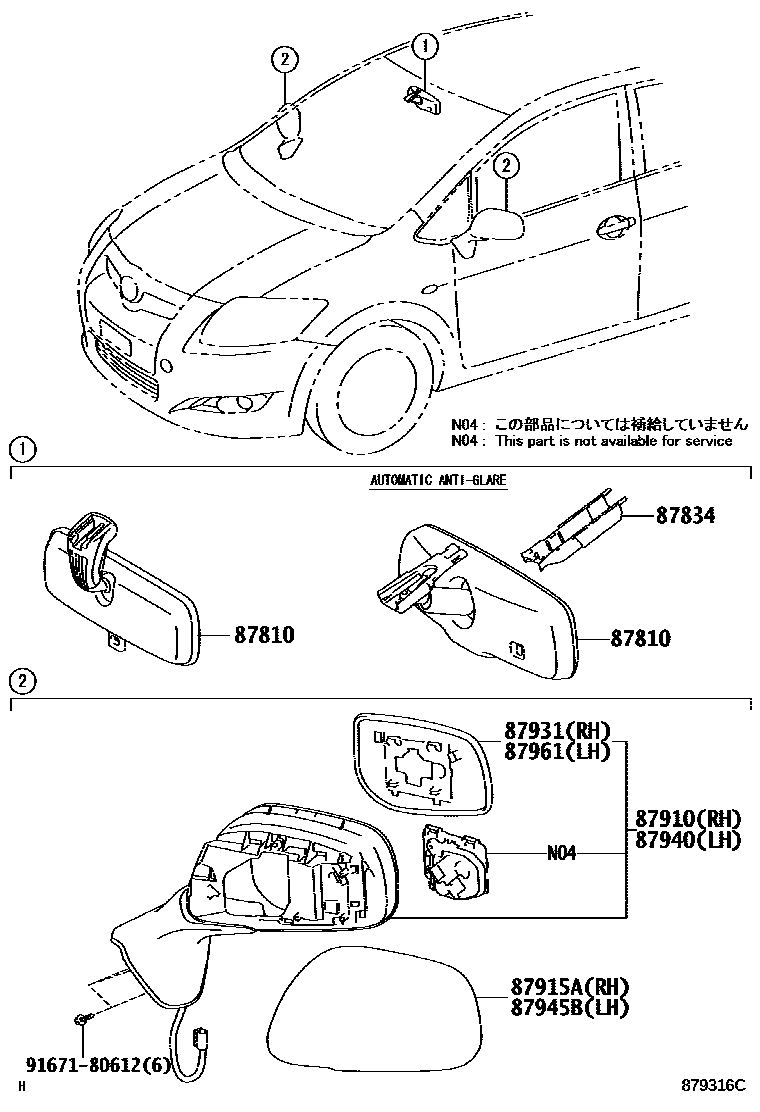

Toyota COROLLA 后视镜 — Figure 8701
Toyota COROLLA EPC diagram 8701, 后视镜, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-02090 · 87810-0D011 · 87810-0F050 · 87810-0W111 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-33010 |
| 87910 | Right exterior rearview mirror assembly | 87910-12B00 · 87910-12E10 · 87910-12E30 |
| 87915A | Right exterior rearview mirror cover | 87915-12050 · 87915-44040 |
| 87931 | Right exterior rearview mirror | 87931-12B00 · 87931-22A10 |
| 87940 | Left exterior rearview mirror assembly | 87940-12B10 · 87940-12E30 · 87940-12E50 |
| 87945B | Left exterior rearview mirror cap | 87945-12050 · 87945-44040 |
| 87946 | Right exterior rearview mirror retractor | 87946-12E30 |
| 87961 | Left exterior rearview mirror | 87961-12B10 · 87961-22A20 |
| 87966 | Left exterior rearview mirror retractor | 87966-12E50 |
