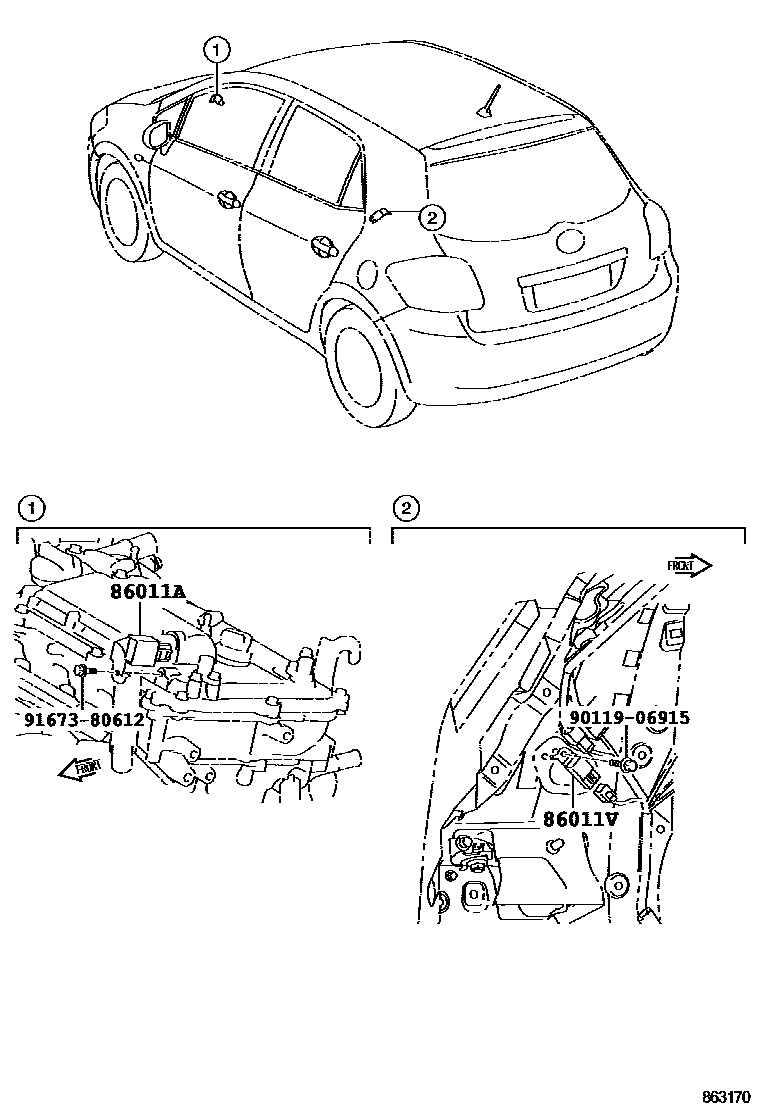

Toyota COROLLA 收音机、放大器和冷凝器 — Figure 8601
Toyota COROLLA EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04194 |
| 86011V | radio settings phase modulator | 90980-04179 |
| 86120 | Radio assembly | 86120-12A70 · 86120-12A71 · 86120-12C50 · 86120-12C70 · 86120-1A240 · 86120-1A241 |
| 86120A | Radio switch knob | 90010-23031 · 90010-24142 · 90011-23019 |
| 86211 | No. 1 radio bracket | 86211-12400 · 86211-12450 |
| 86212 | No. 2 radio bracket | 86212-12380 · 86212-12440 |
