Toyota COROLLA 后清洗器 — Figure 8504

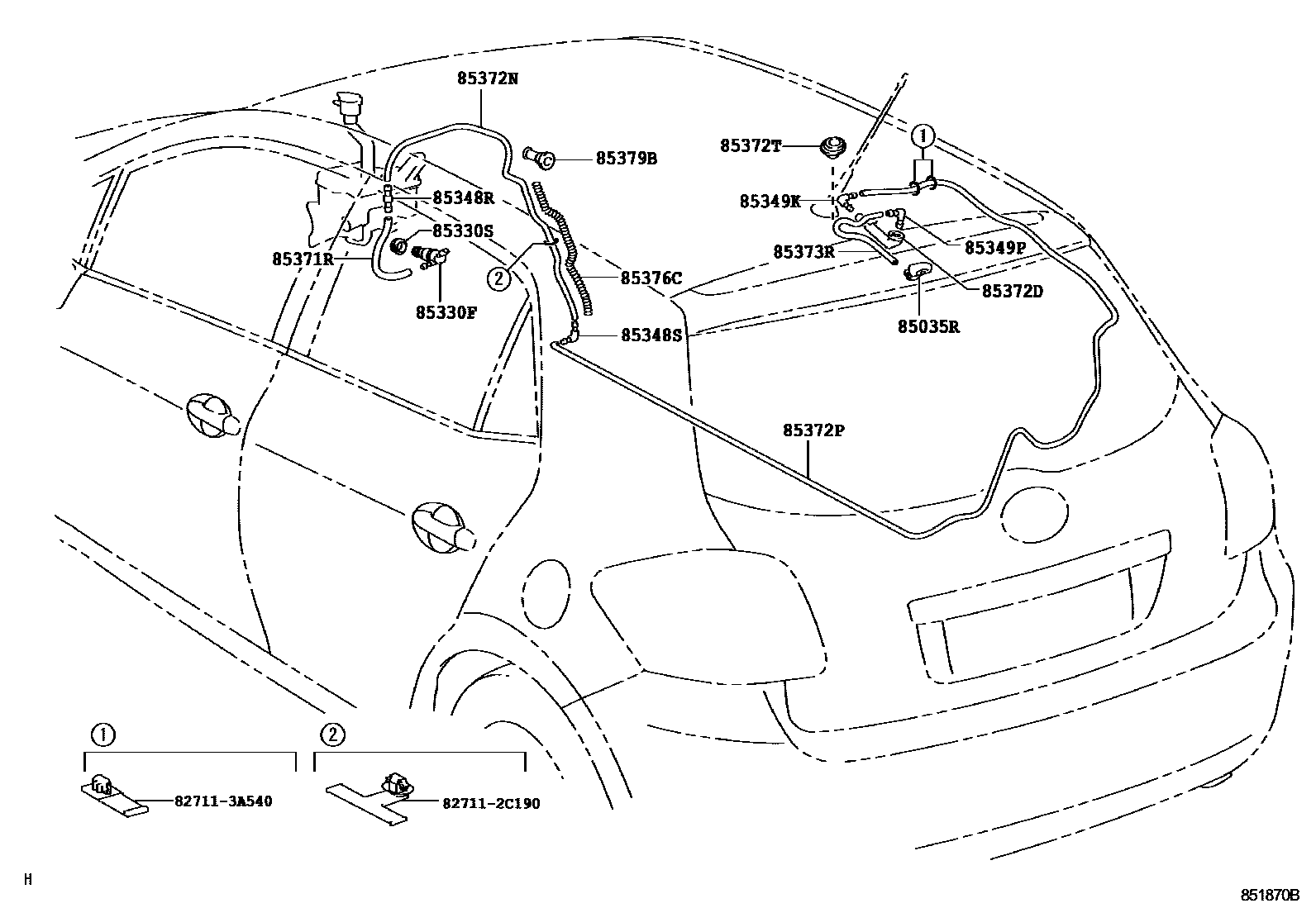

Toyota COROLLA EPC diagram 8504, 后清洗器, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035R | Rear washer nozzle sub-assembly | 85391-12070 |
| 85330F | Rear washer motor and pump assembly | 85330-02040 · 85330-60160 |
| 85330S | Rear washer fluid tank bushing | 85336-60300 · 90069-20005 |
| 85348R | No. 1 rear washer hose connector | 85375-10260 |
| 85348S | No. 1 rear cleaner elbow joint | 85355-20200 |
| 85349K | No. 2 rear cleaner elbow joint | 85355-20200 |
| 85349P | No. 3 rear cleaner elbow joint | 85355-20200 |
| 85371R | Rear washer hose (from motor to connector) | 90069-16009 |
| 85372D | Rear washer hose seal | 85373-12030 |
| 85372T | Cleaner seal | 85372-20020 |
| 85376C | washer hose spring | 85389-12850 |
| 85379B | Cleaner seal A | 85379-12850 |
