Toyota COROLLA 挡风玻璃刮水器 — Figure 8501

Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 14 PNC and OE references.

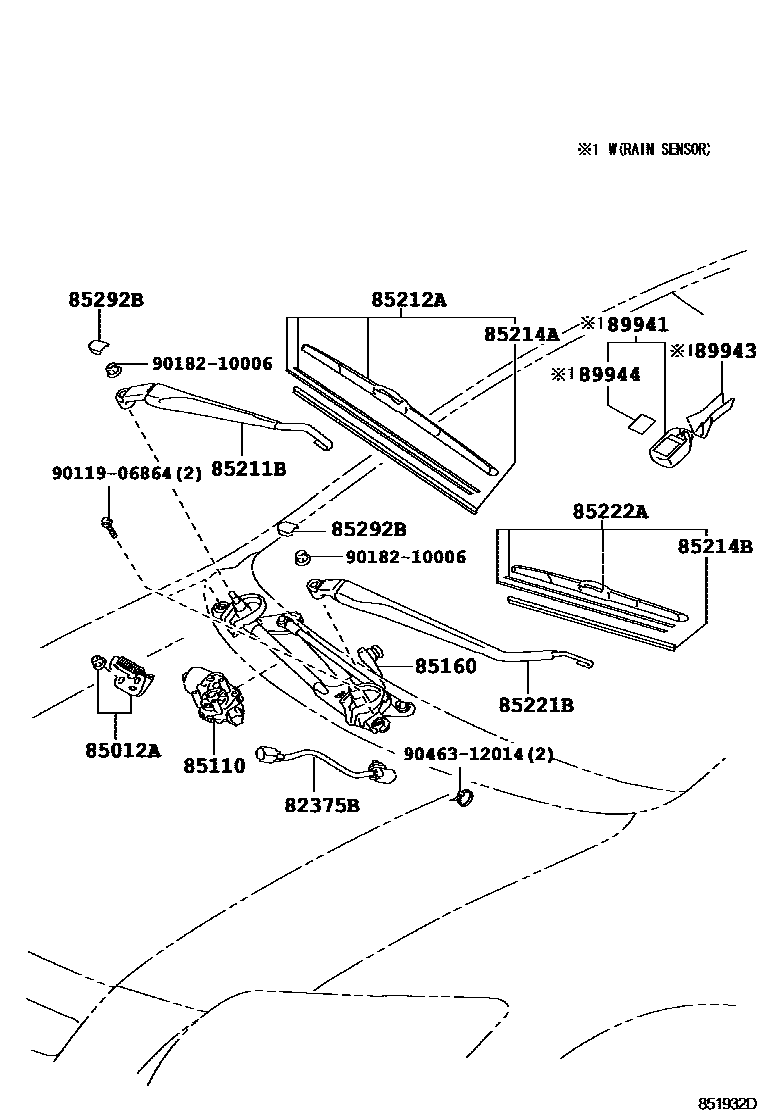

Toyota COROLLA 挡风玻璃刮水器 EPC diagram — 851932D
挡风玻璃刮水器 — 851932D (200703 – 999999)

PNC and OE references

PNCPart nameOE numbers
82375BWiper motor wiring harness82375-12320
85012AFront wiper elbow tie rod sub-assembly85012-58030
85110Windshield wiper motor assembly85110-1A080
85160Windshield wiper connecting rod assembly85150-12A00
85211BRight front wiper arm85211-12490 · 85211-12491
85212ARight front wiper blade85212-12450
85214ARight wiper rubber strip85214-68020
85214BLeft wiper rubber strip85214-28090
85221BLeft front wiper arm85221-12430 · 85221-12431
85222ALeft front wiper blade85222-28160
85292BFront wiper arm cap85292-13010
89941rain sensor89941-42010
89943Rain sensor cover89943-28010
89944Rain sensor tape89944-42010
