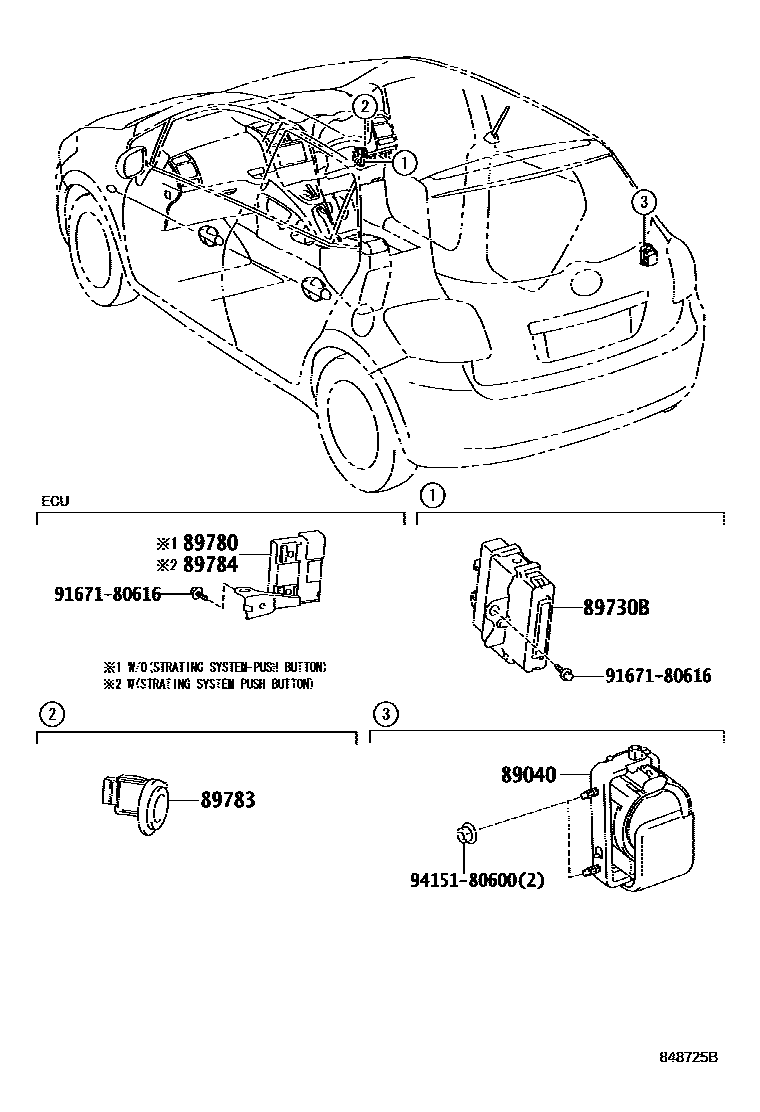

Toyota COROLLA 防盗装置 — Figure 8424
Toyota COROLLA EPC diagram 8424, 防盗装置, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89040 | Anti-theft alarm assembly | 89040-12010 · 89040-12020 |
| 89730B | Anti-theft warning ECU assembly | 89730-12090 · 89730-12110 |
| 89780 | Transceiver key ECU assembly | 89780-12180 · 89780-12260 |
| 89783 | transceiver key amplifier | 89783-35040 · 89783-35041 · 89783-42020 · 89783-42040 |
| 89784 | Shutdown code system ECU | 89784-12030 · 89784-12050 |
