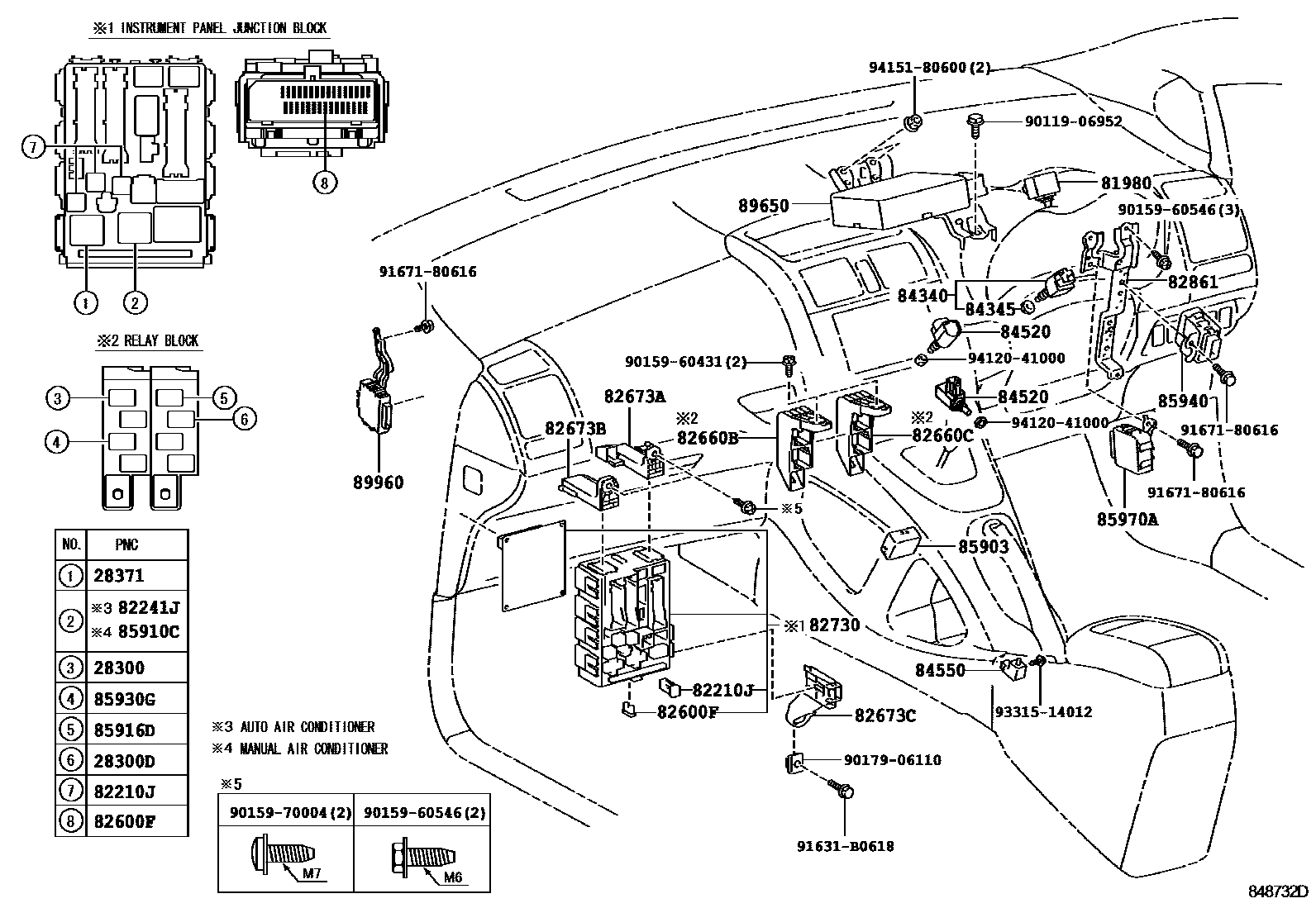

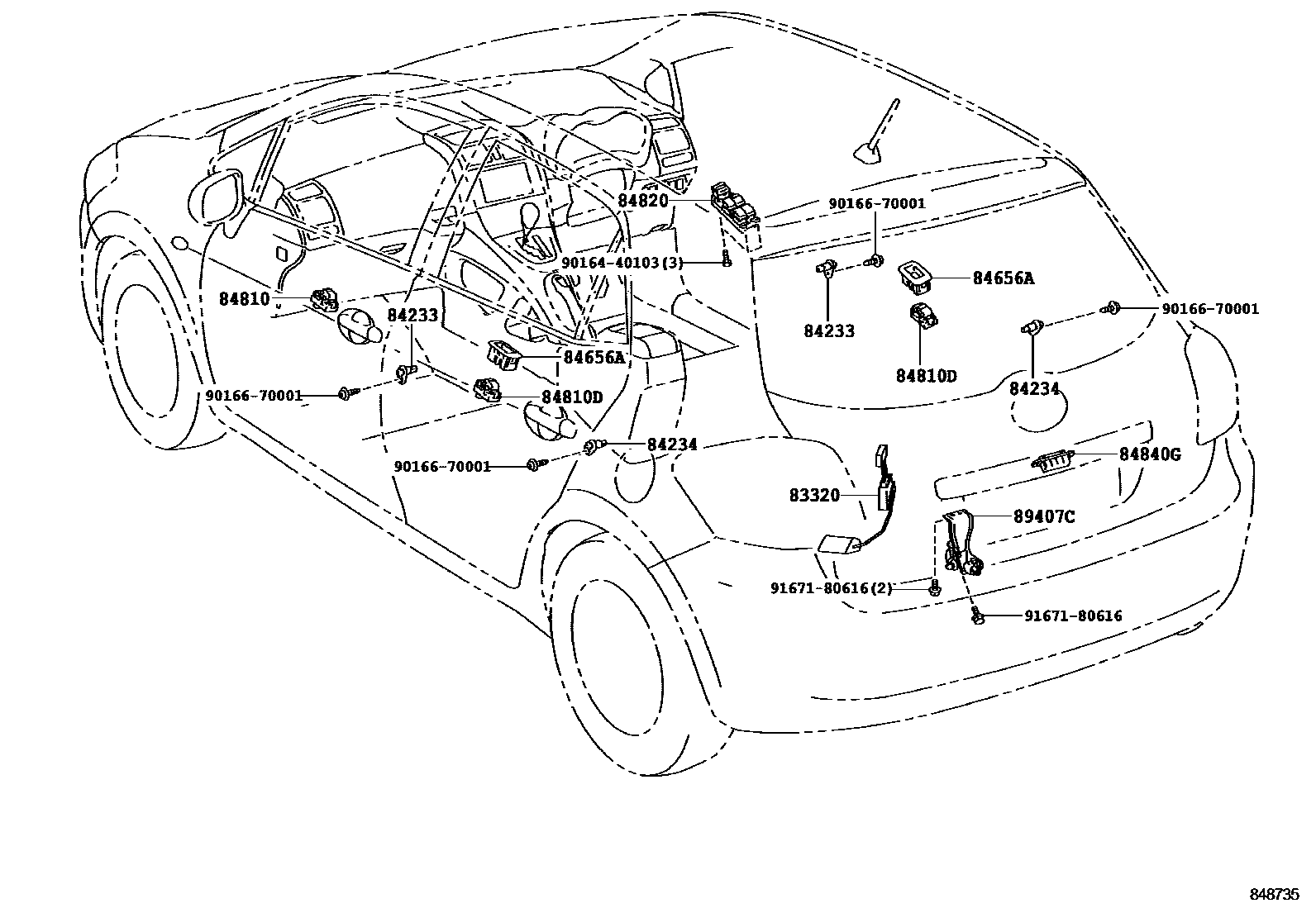

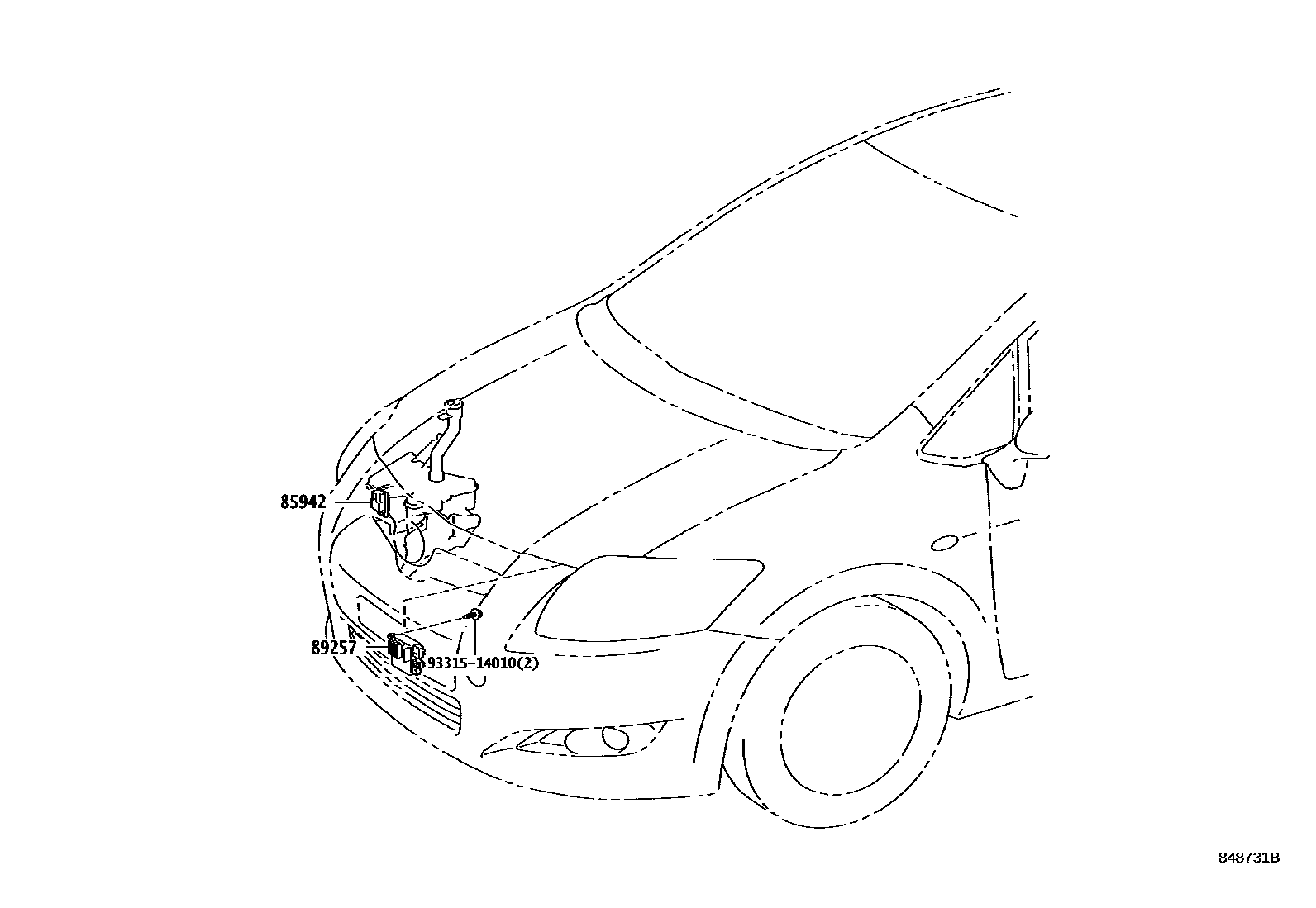

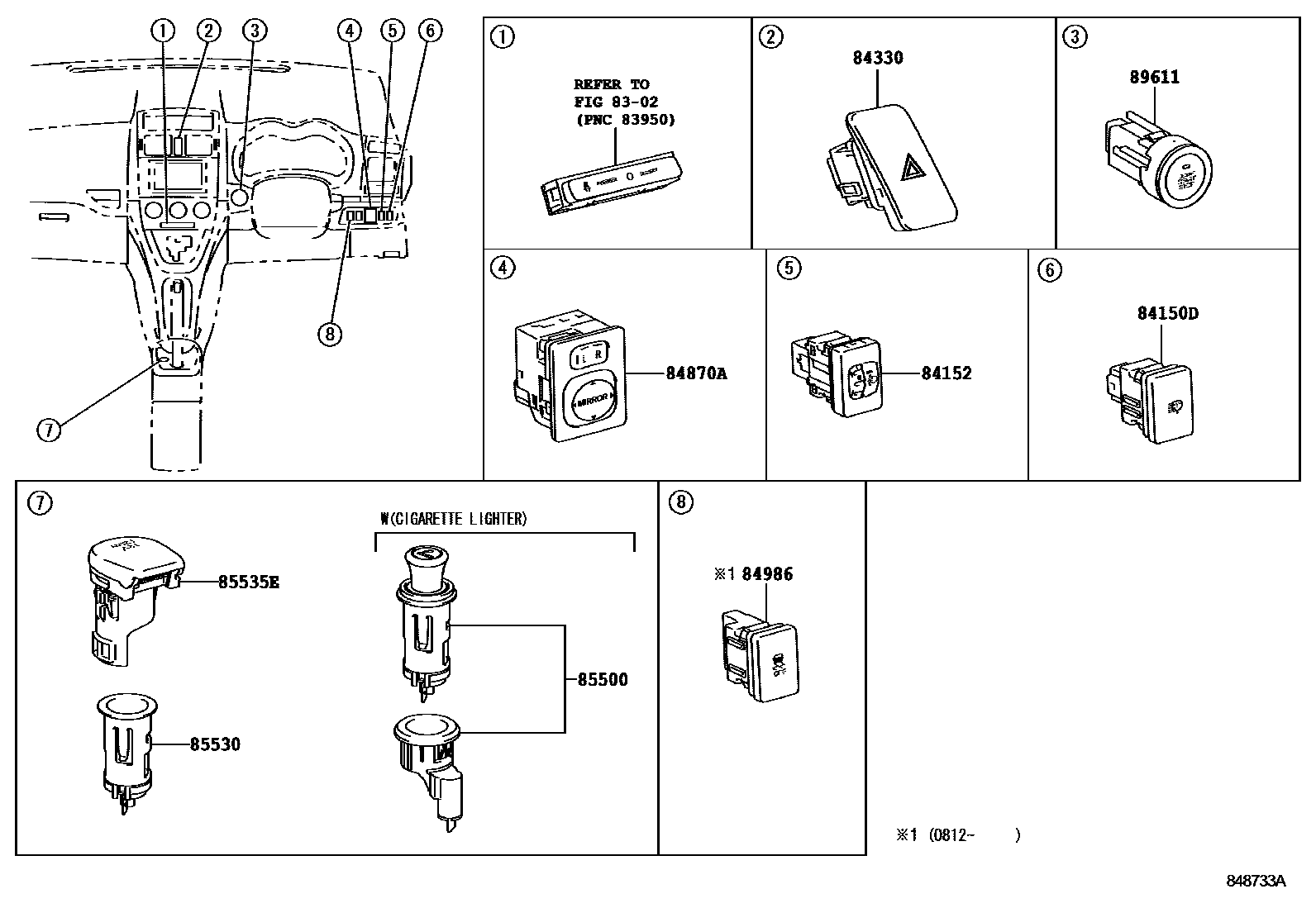

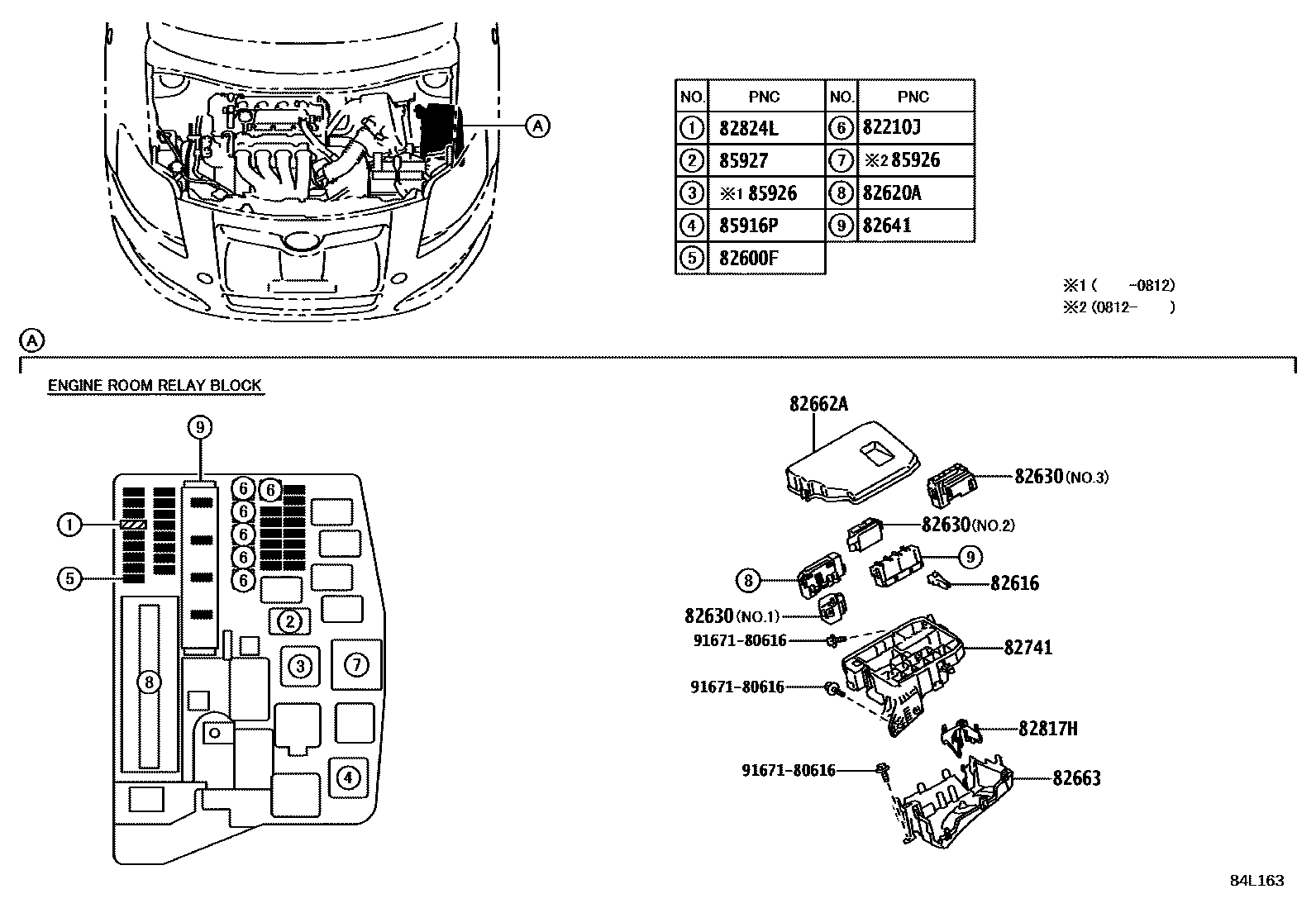

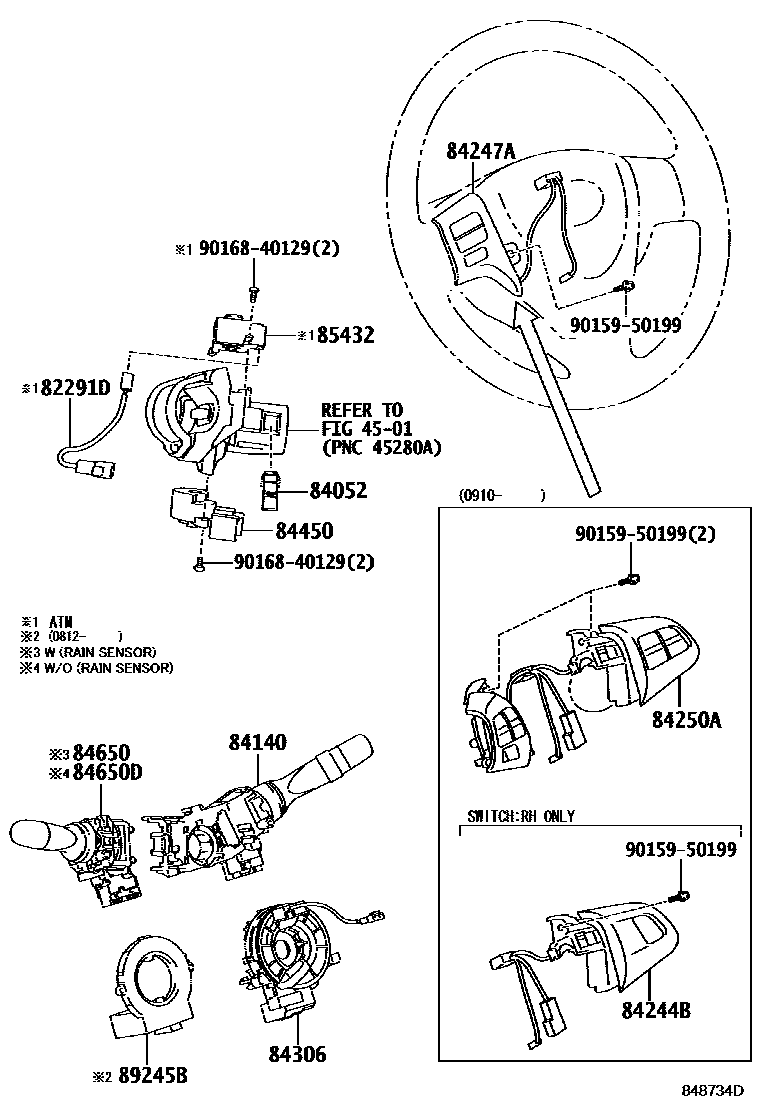

Toyota COROLLA 开关和继电器和ECU — Figure 8401
Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 7 images and 75 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-28010 |
| 28300D | starter cutoff relay | 90987-02027 |
| 28371 | No. 1 ignition relay | 90987-02030 |
| 81980 | Turn signal flasher relay assembly | 81980-46010 |
| 82210J | fuse | 90982-08294 · 90982-08295 · 90982-08296 |
| 82241J | Shorting pin | 82241-42010 |
| 82291D | Wiring harness (to solenoid valve) | 82291-42010 |
| 82600F | Spare fuse | 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-12280 |
| 82630 | Fuse holder assembly | 82631-12010 · 82631-12020 · 82631-12030 |
| 82641 | Integrated relay No. 1 | 82641-47020 |
| 82660B | Relay assembly | 82755-12010 |
| 82660C | Relay assembly | 82755-12020 |
| 82662A | No. 1 relay box upper cover | 82662-12270 · 82662-12290 · 82662-12570 · 82662-12580 |
| 82663 | Relay box lower cover | 82663-12060 |
| 82673A | Junction box bracket | 82673-12200 |
| 82673B | Junction box bracket | 82673-12210 |
| 82673C | Junction box bracket | 82673-12220 |
| 82730 | Instrument panel junction box assembly | 82730-12540 · 82730-12550 · 82730-12610 · 82730-12820 · 82730-12830 · 82730-12880 · 82730-12890 · 82730-12M40 · 82730-12M41 · 82730-12M50 · 82730-12M51 · 82730-12V20 |
| 82741 | Engine room relay box | 82741-12070 |
| 82817H | Harness protection device | 82817-12A80 |
| 82824L | Shorting pin | 82824-20140 |
| 82861 | No. 1 ECU integrated bracket | 82861-12010 |
| 83320 | Fuel gauge sensor assembly | 83320-12730 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-05010 · 83530-0E010 · 83530-28020 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84140 | Headlight dimmer switch assembly | 84140-12570 · 84140-12590 · 84140-42030 · 84140-42040 · 84140-42070 · 84140-52100 |
| 84150D | Headlight washer switch assembly | 84150-42020 |
| 84152 | Headlight beam height adjustment switch | 84152-12070 |
| 84210 | Reversing light switch assembly | 84210-12040 · 84210-52010 · 84210-52050 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-60070 |
| 84244B | Steering wheel decorative cover right switch | 84244-12030 |
| 84247A | Steering wheel decorative cover left switch | 84247-12040 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-12220 · 84250-12230 |
| 84306 | Spiral cable sub-assembly | 84306-12100 · 84306-12110 |
| 84330 | Hazard warning signal switch assembly | 84332-12510 |
| 84340 | brake light switch assembly | 84340-19025 · 84340-69025 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-12200 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84540 | Neutral start switch assembly | 84540-46010 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84650 | Windshield wiper switch assembly | 84652-1A870 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-48100 |
| 84810 | Electric window lift switch assembly | 84810-52030 |
| 84810D | Rear electric window lift switch assembly | 84810-52030 |
| 84820 | Electric window lift main switch assembly | 84820-12500 · 84820-12530 |
| 84840G | Back door opener switch assembly | 84840-28030 · 84840-28040 |
| 84870A | Exterior rearview mirror switch assembly | 84870-12190 · 84870-12200 · 84870-34010 |
| 84986 | vehicle stability control switch | 84986-12010 |
| 85432 | Key interlock solenoid valve | 85432-71010 |
| 85500 | Cigarette lighter assembly | 85500-09060 · 85500-09070 |
| 85530 | No. 1 power socket assembly | 85530-0D020 |
| 85535E | No. 2 power outlet cover | 85535-02040 |
| 85903 | Shift lock control ECU sub-assembly | 85903-52010 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04010 |
| 85916D | fog light relay | 90987-02027 |
| 85916P | headlight relay | 90987-02025 |
| 85926 | Headlight dimmer relay | 90987-02025 · 90987-04010 |
| 85927 | cooling fan relay | 90987-02027 |
| 85930G | ACC relay | 90987-02027 |
| 85940 | Windshield wiper relay assembly | 85940-12160 |
| 85942 | Headlight washer control relay | 85942-12010 · 85942-12040 |
| 85970A | Double lock door control relay assembly | 85970-12020 |
| 89245B | steering sensor | 89245-12020 |
| 89257 | Cooling fan ECU | 89257-12010 |
| 89407C | Rear height control sensor sub-assembly | 89407-12030 |
| 89465A | Oxygen sensor No. 2 | 89465-12800 |
| 89467B | air fuel ratio sensor | 89467-12030 |
| 89611 | One-button start switch | 89611-52020 · 89611-52021 · 89611-52022 · 89611-52023 |
| 89615 | knock control sensor | 89615-02020 · 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-12340 · 89650-12710 · 89650-12A40 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-12190 |
