Toyota COROLLA 后组合灯 — Figure 8111

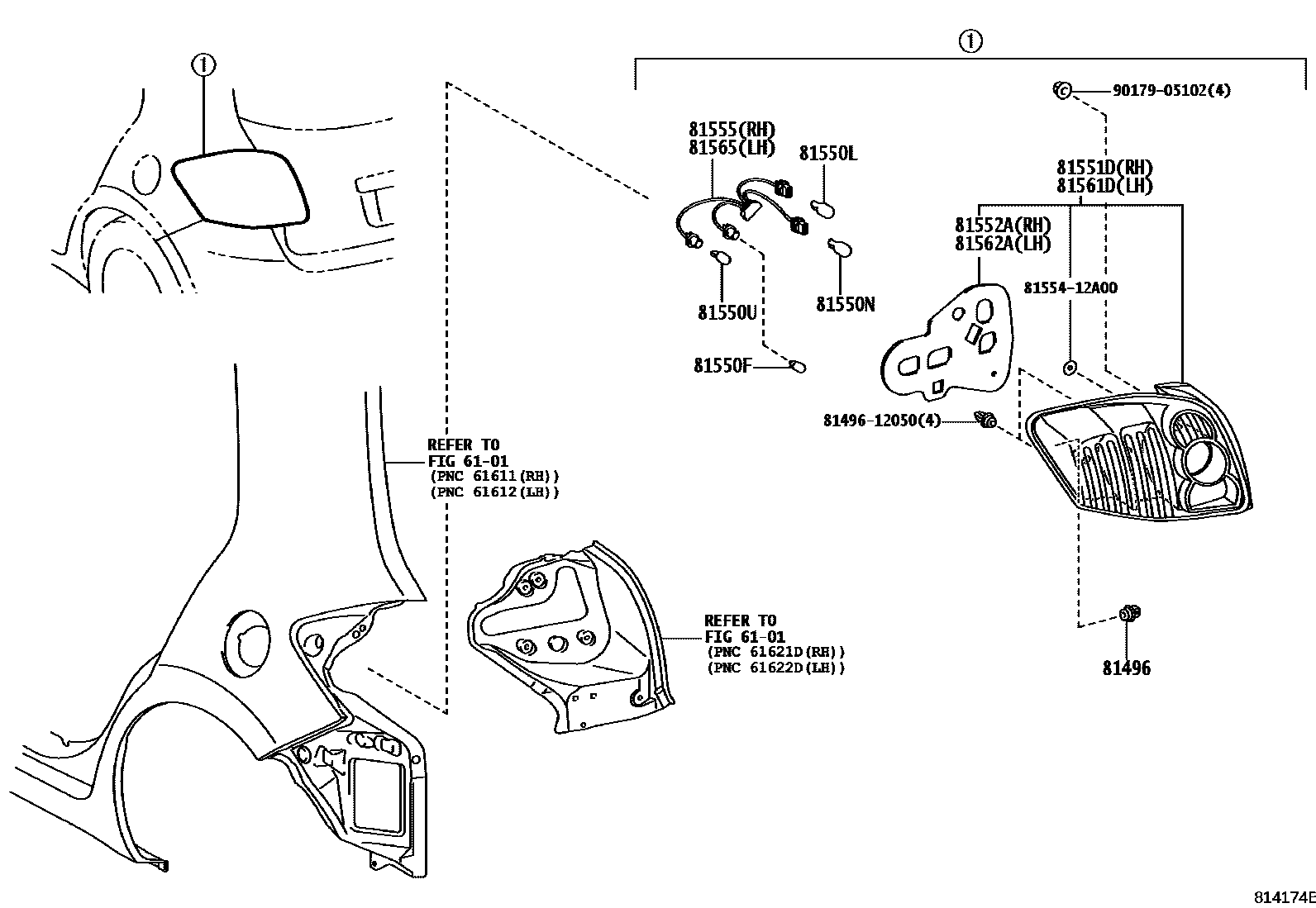

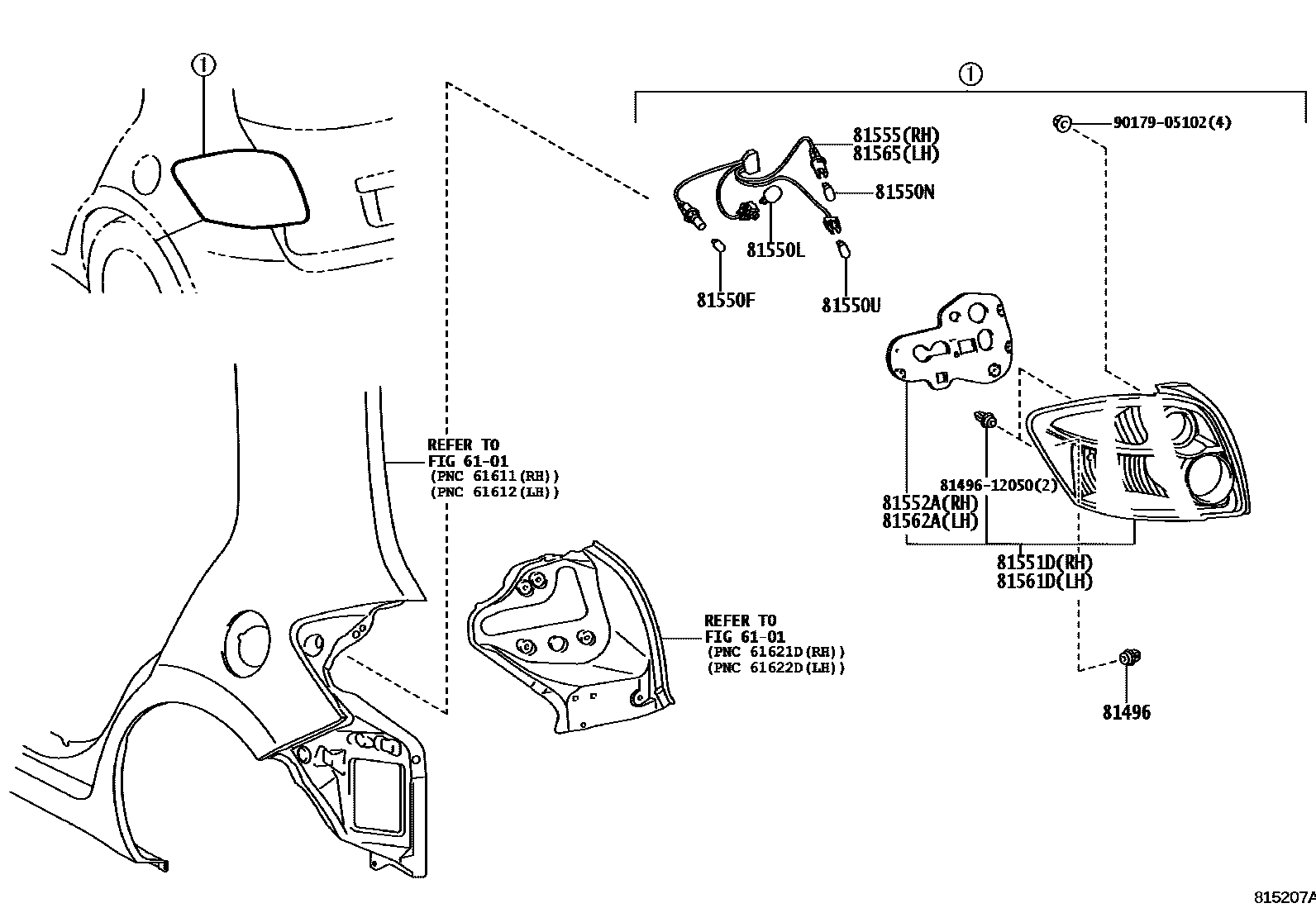

Toyota COROLLA EPC diagram 8111, 后组合灯, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-28010 |
| 81550F | tail light bulb | 90981-11051 · 99132-12050 |
| 81550L | Rear turn signal light bulb | 90981-15011 · 90981-15021 |
| 81550N | reversing light bulb | 90981-11059 · 90981-13043 |
| 81550U | brake light bulb | 90981-11059 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-12A00 · 81551-12B70 |
| 81552A | Right rear combination light gasket | 81552-12A00 · 81552-12B70 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-12B70 · 81556-12A00 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-12B70 · 81561-1E010 |
| 81562A | Left rear combination light gasket | 81562-12A00 · 81562-12B70 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81565-12B70 · 81566-1E010 |
