Toyota COROLLA Fog Lamp — Figure 8102

Toyota COROLLA EPC diagram 8102, Fog Lamp, with 2 images and 3 PNC and OE references.

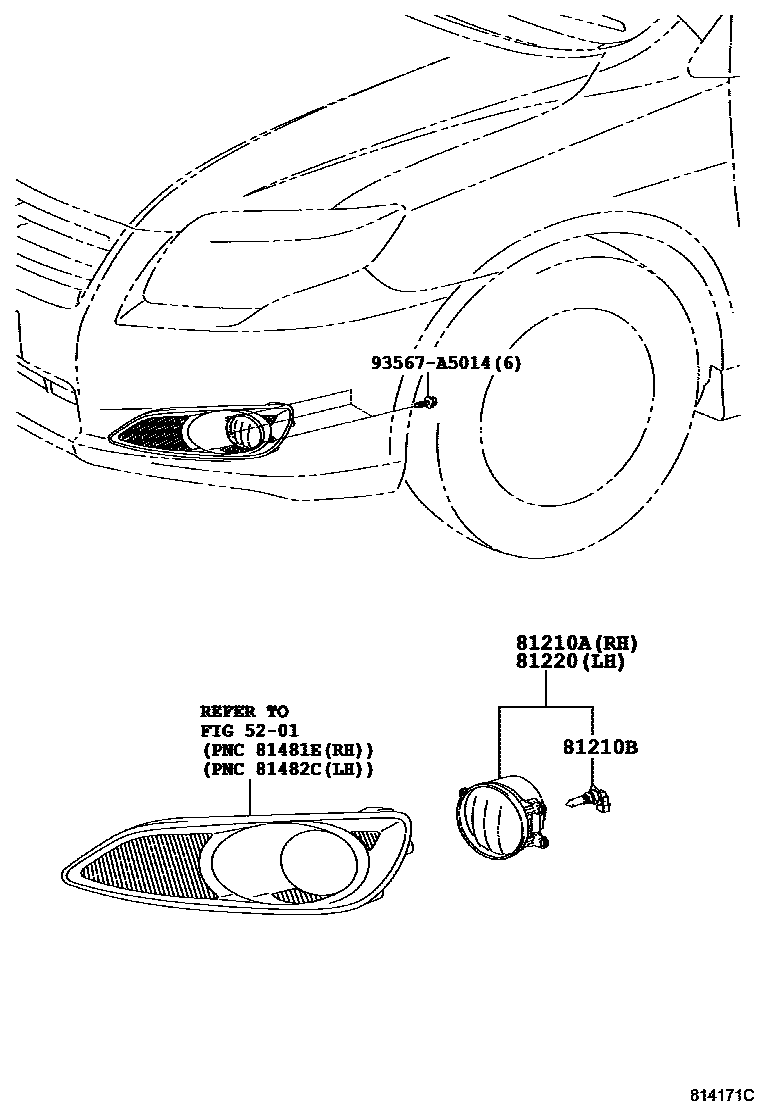

Toyota COROLLA Fog Lamp EPC diagram — 814171C
Fog Lamp — 814171C (200703 – 200910)

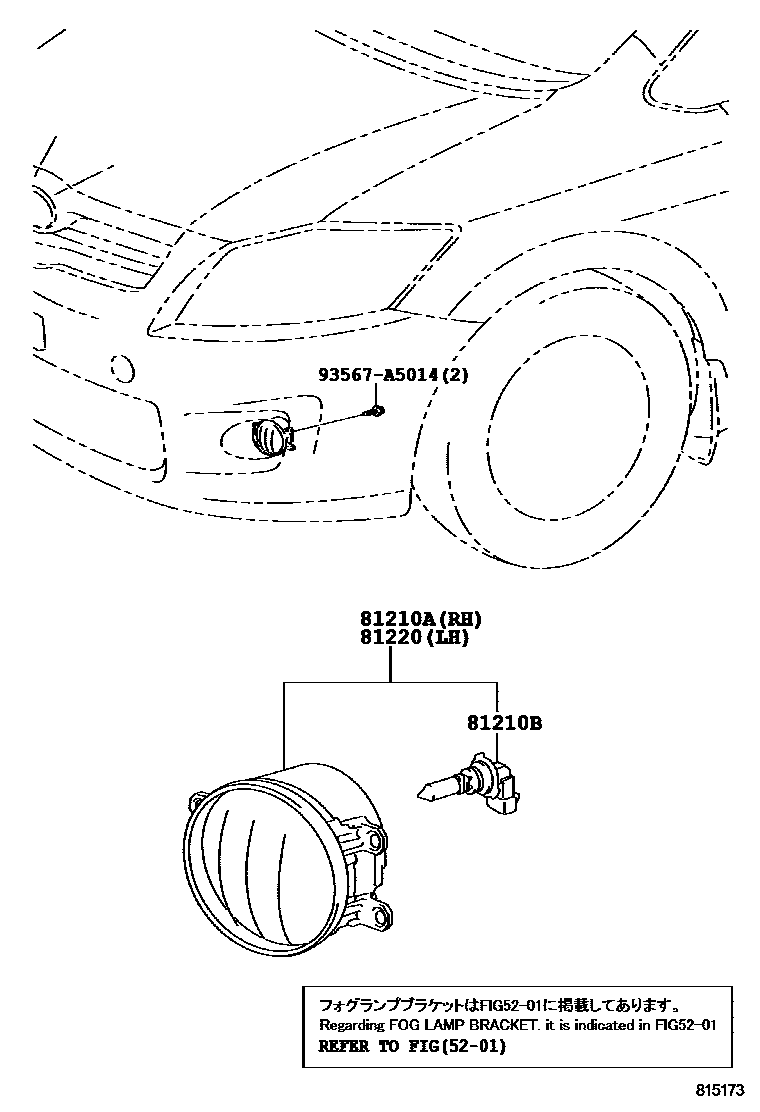

Toyota COROLLA Fog Lamp EPC diagram — 815173
Fog Lamp — 815173 (200910 – 999999)

PNC and OE references

PNCPart nameOE numbers
81210ARight fog light assembly81210-0D041 · 81210-0W050
81210Bfog light bulb90981-13075 · 90981-13081
81220Left fog light assembly81220-0D041 · 81220-0W040
