Toyota COROLLA Headlamp — Figure 8101

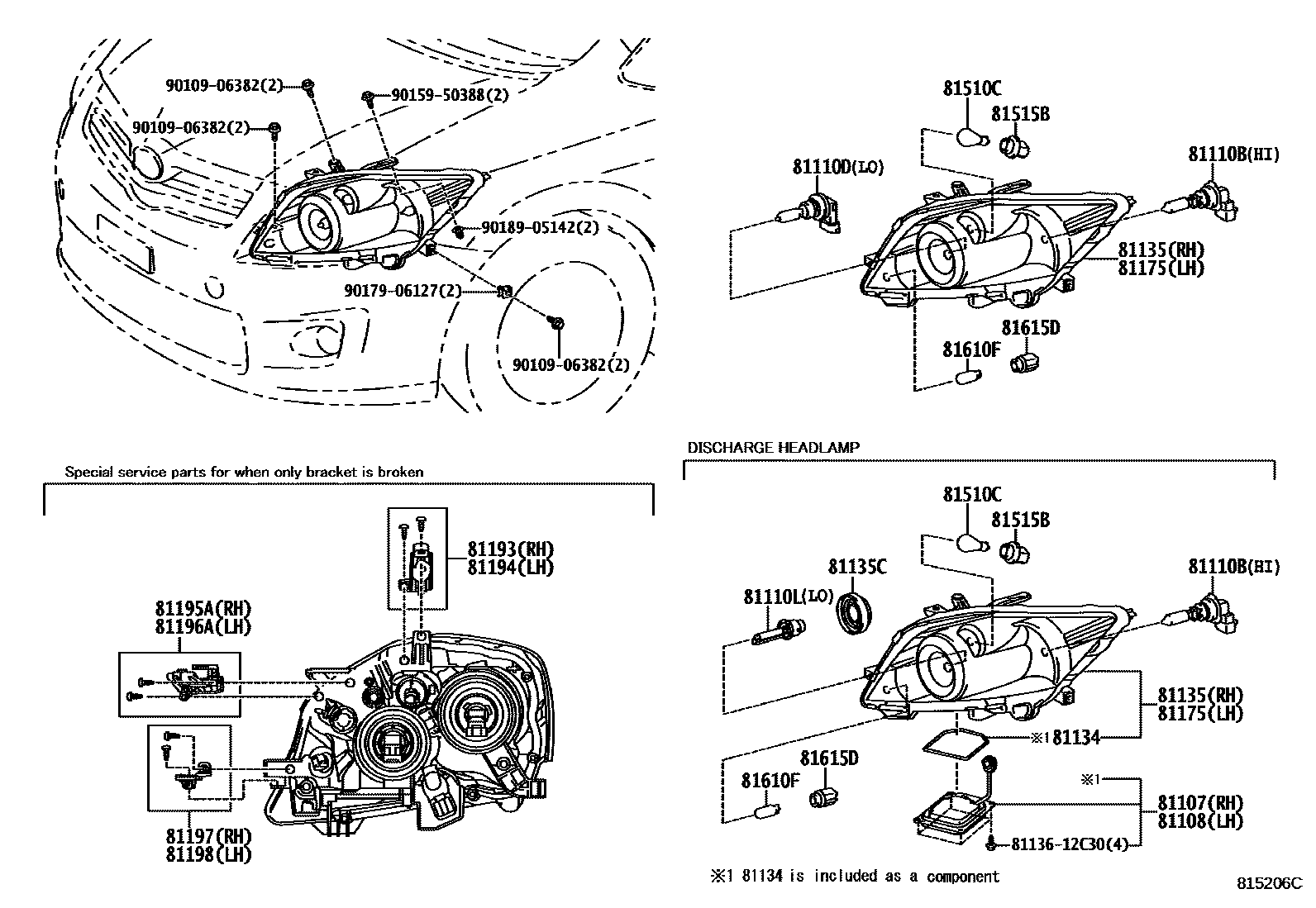

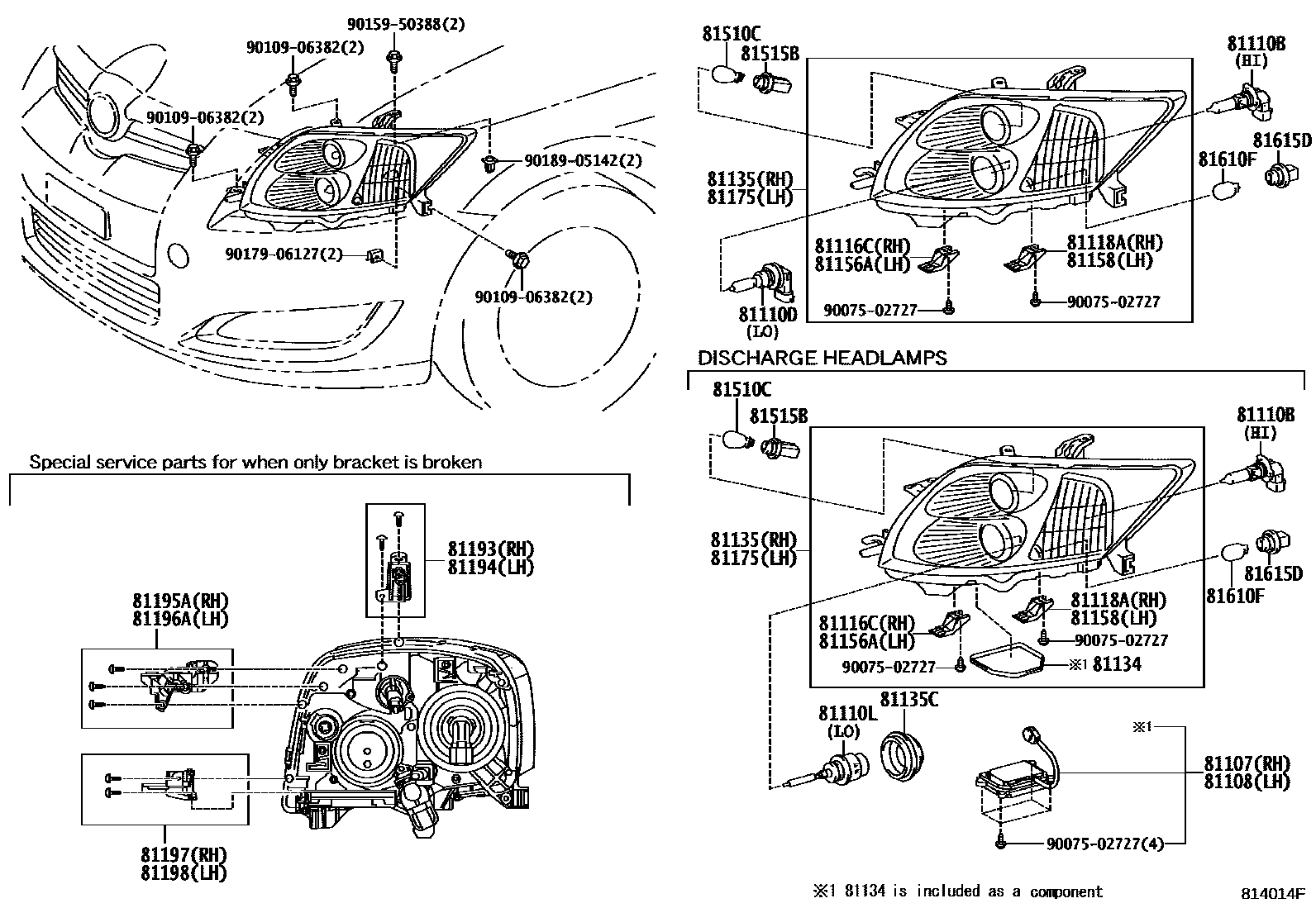

Toyota COROLLA EPC diagram 8101, Headlamp, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81107 | Right headlight control ECU sub-assembly | 81107-52680 · 81107-52681 |
| 81108 | Left headlight control ECU sub-assembly | 81107-52680 · 81107-52681 |
| 81110B | Bulb (for headlight No. 1) | 90981-13046 |
| 81110D | Bulb (for headlight No. 2) | 90981-13082 |
| 81110L | Discharge headlight bulb | 90981-20018 · 90981-20028 |
| 81116C | Right headlight bracket | 81116-1E480 |
| 81118A | Right headlight bracket | 81118-1E480 |
| 81134 | headlight gasket | 90075-68007 |
| 81135 | Right headlight assembly assembly | 81130-12D10 · 81130-1E480 · 81145-12A40 · 81145-12D30 · 81145-12D70 |
| 81135C | No. 1 headlight rear cover | 81135-12A40 |
| 81156A | Left headlight bracket | 81156-1E350 |
| 81158 | Left headlight bracket | 81158-1E350 |
| 81175 | Left headlight assembly assembly | 81170-12D10 · 81170-1E350 · 81185-12A40 · 81185-12D30 · 81185-12D70 |
| 81193 | Right headlight upper protective ring | 81193-12040 · 81193-12060 |
| 81194 | Left headlight upper protective ring | 81194-12040 · 81194-12100 |
| 81195A | Right headlight lower protection ring | 81195-12040 · 81195-12130 |
| 81196A | Left headlight lower protection ring | 81196-12040 · 81196-12130 |
| 81197 | Right headlight lower bracket | 81197-12030 · 81197-12040 |
| 81198 | Left headlight lower bracket | 81198-12030 · 81198-12040 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15020 |
| 81515B | Front turn signal lamp holder | 81515-52570 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 81138-1E480 · 81138-52570 |
