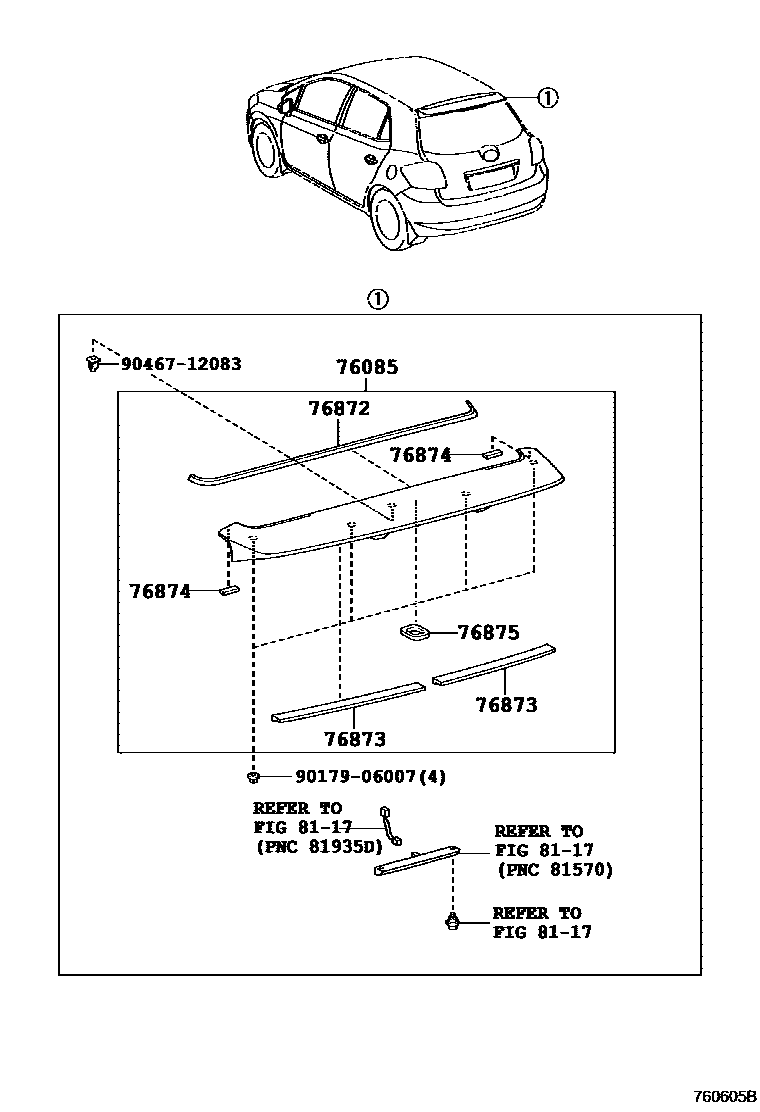

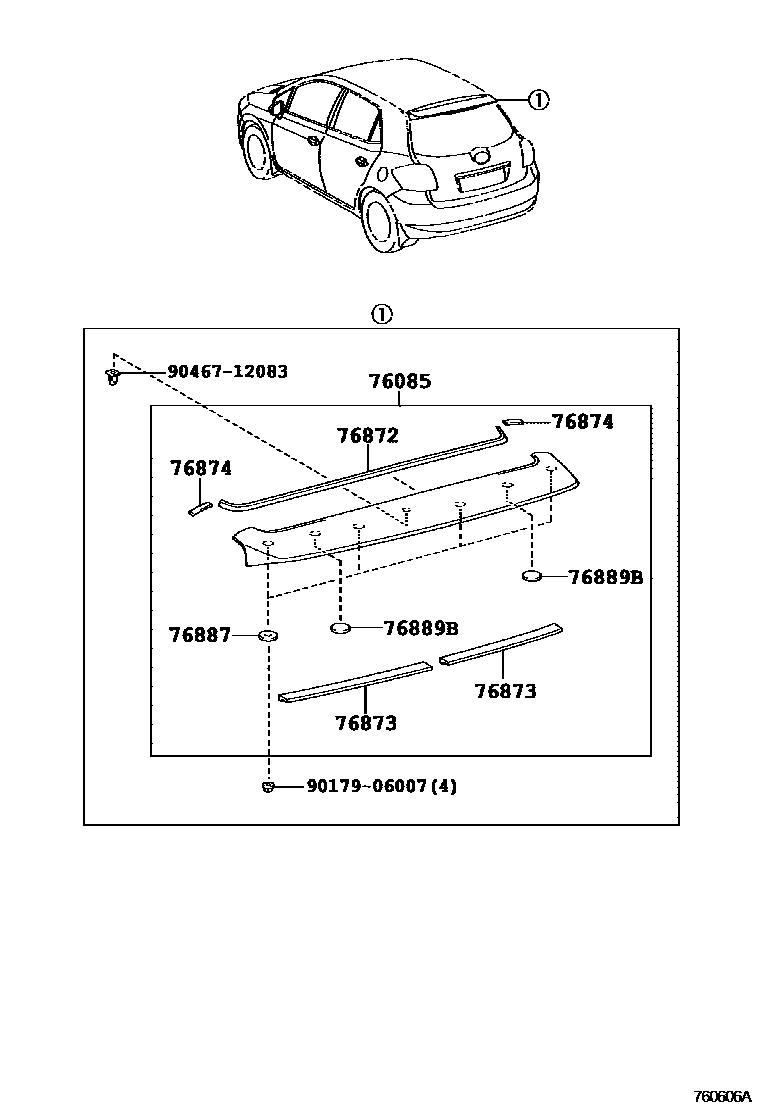

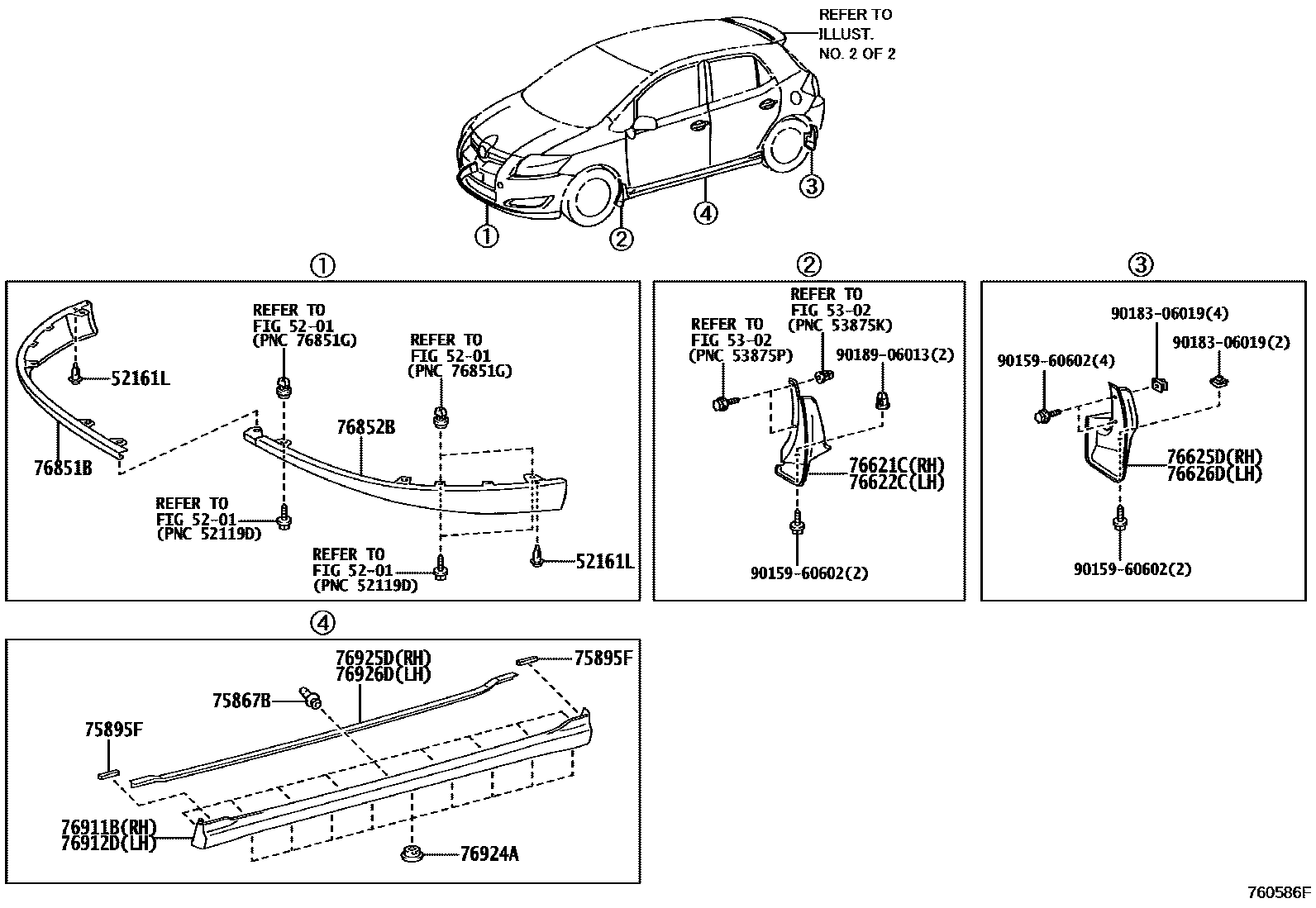

Toyota COROLLA 挡泥板和扰流板 — Figure 7601
Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161L | front spoiler insert | 52161-16010 |
| 75867B | Door sill panel protective strip clip | 75867-33030 |
| 75895F | No. 1 protective strip tape | 75895-12031 |
| 76621C | Right front fender fender | 76621-12240 |
| 76622C | Left front fender fender | 76622-12240 |
| 76625D | Right rear side fender | 76625-12520 |
| 76626D | Left rear side fender | 76626-12520 |
| 76851B | right front spoiler | 76851-12180 · 76851-12250 |
| 76852B | left front spoiler | 76852-12140 · 76852-12210 |
| 76872 | No. 1 rear spoiler protective strip | 76872-12170 |
| 76873 | No. 2 rear spoiler protective strip | 76873-12180 |
| 76874 | No. 3 rear spoiler protective strip | 76874-12200 |
| 76875 | No. 4 rear spoiler protective strip | 76875-12130 |
| 76887 | Rear spoiler seal | 76887-12050 |
| 76889B | No. 1 rear spoiler seal | 76889-12050 |
| 76924A | No. 2 side fender fixings | 76924-12040 · 76924-52021 |
