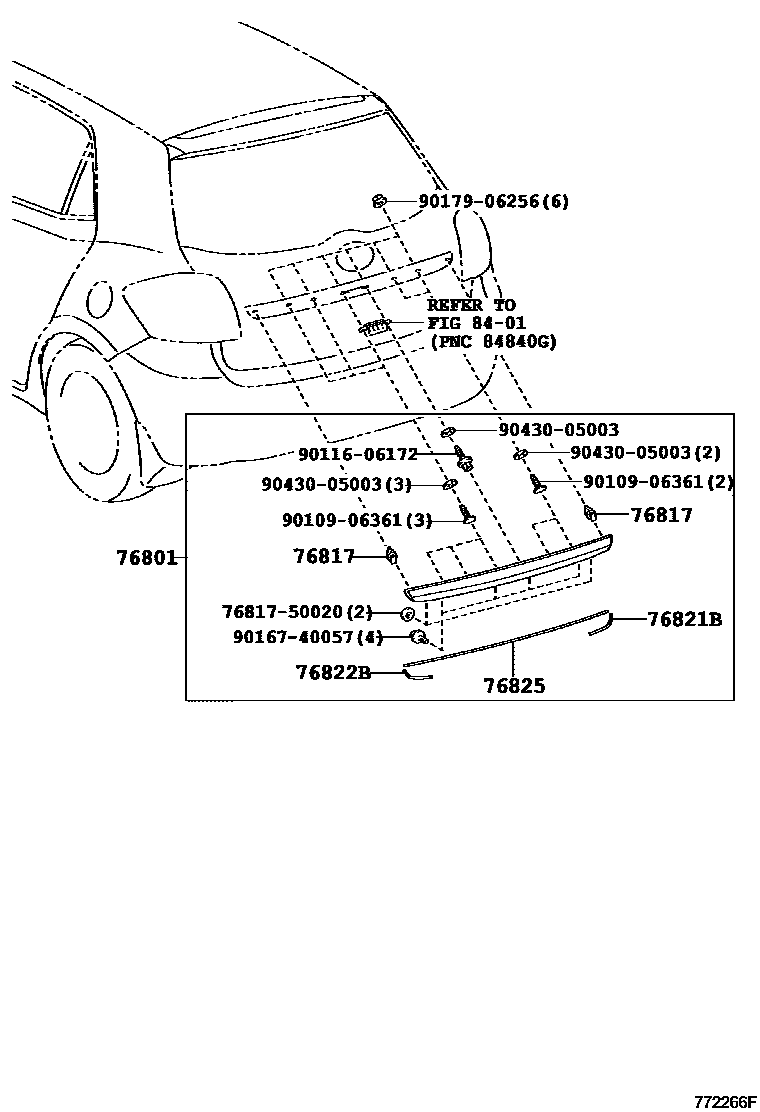

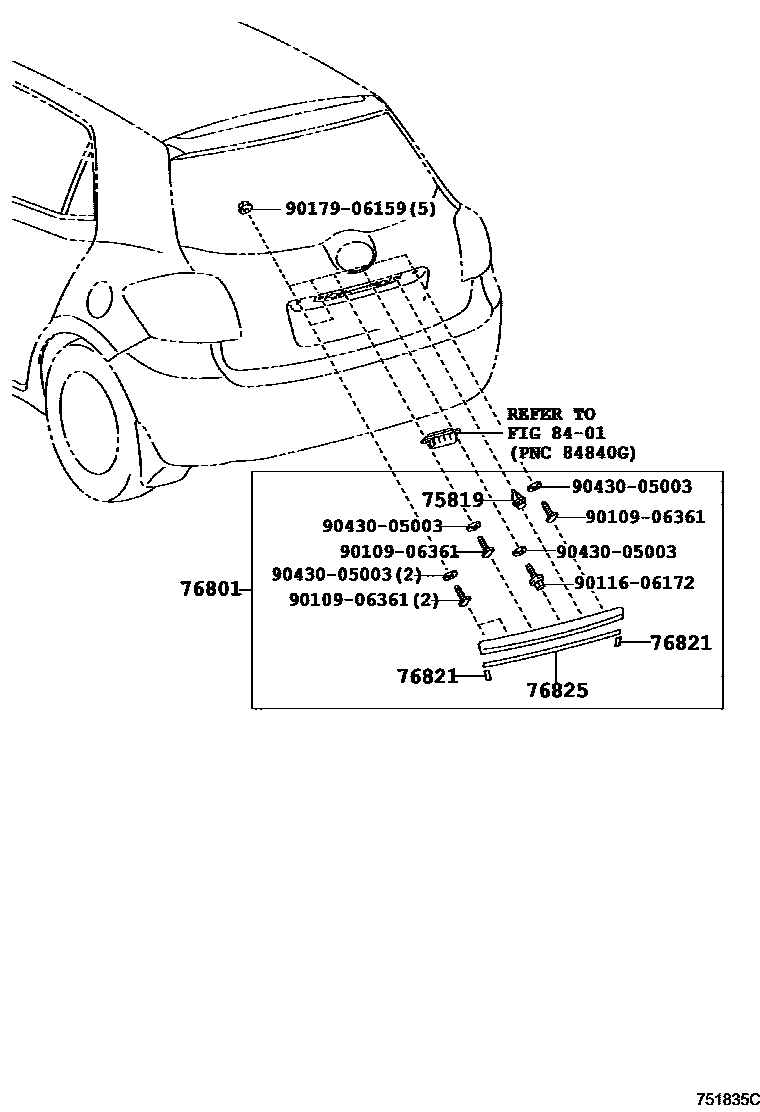

Toyota COROLLA 后防护条 — Figure 7504
Toyota COROLLA EPC diagram 7504, 后防护条, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75819 | Trunk door protective strip clip | 75819-33010 |
| 76817 | Rear door exterior decorative strip clip | 76817-12080 |
| 76821 | Protective cover for rear door trim strip | 76821-12200 |
| 76821B | Rear door right side decorative strip protective cover | 76821-12250 |
| 76822B | Rear door left side decorative strip protective cover | 76822-12110 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-12040 · 76825-12080 |
