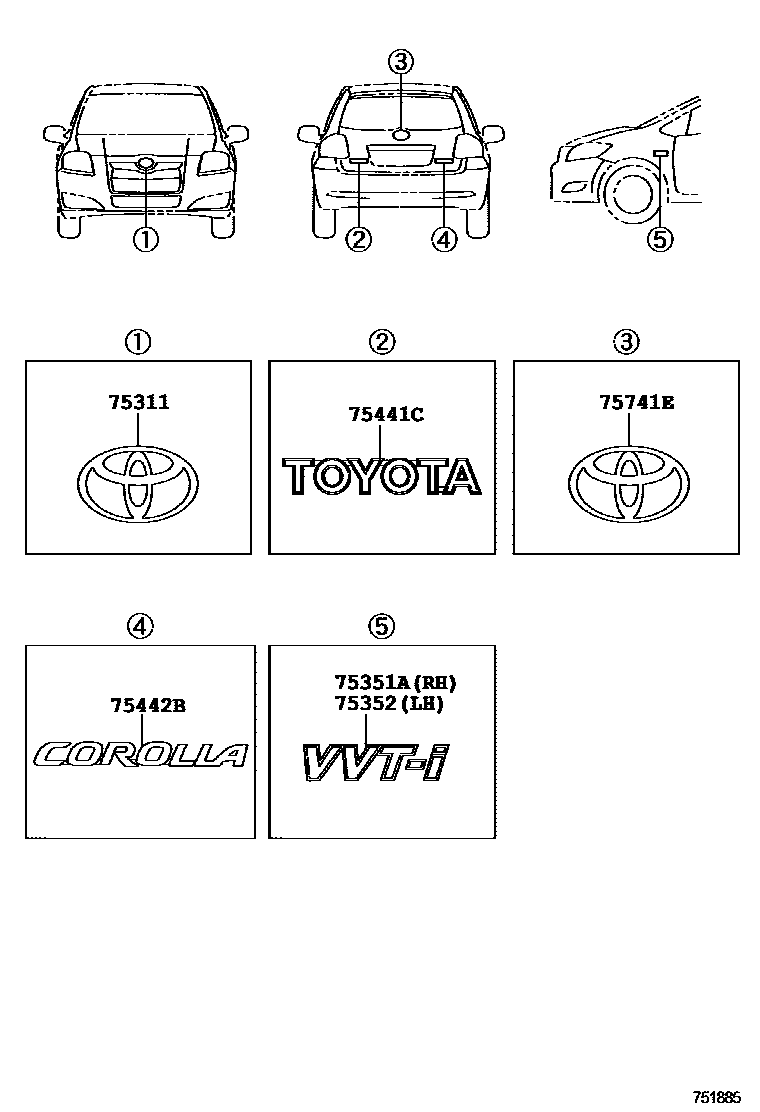

Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501
Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75301-12400 · 75301-12490 · 75311-12A10 |
| 75351A | Front fender label | 75351-12180 |
| 75352 | Front fender sign base | 75352-12040 |
| 75441C | Back door nameplate | 75441-12880 |
| 75442B | No. 2 nameplate on back door | 75442-12A00 · 75442-12A01 |
| 75741E | logo | 90975-02074 · 90975-02176 · 90975-02179 |
