Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

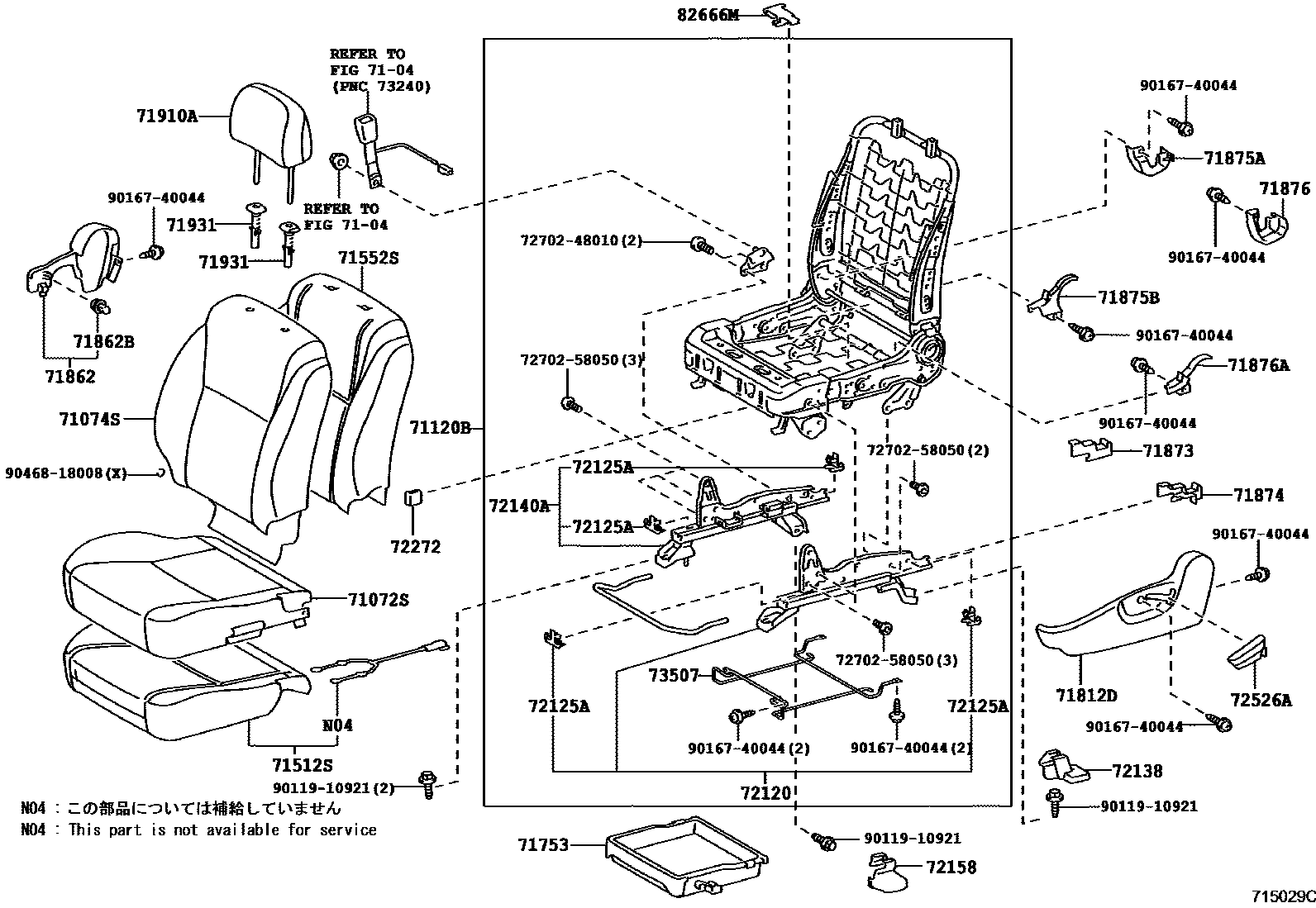

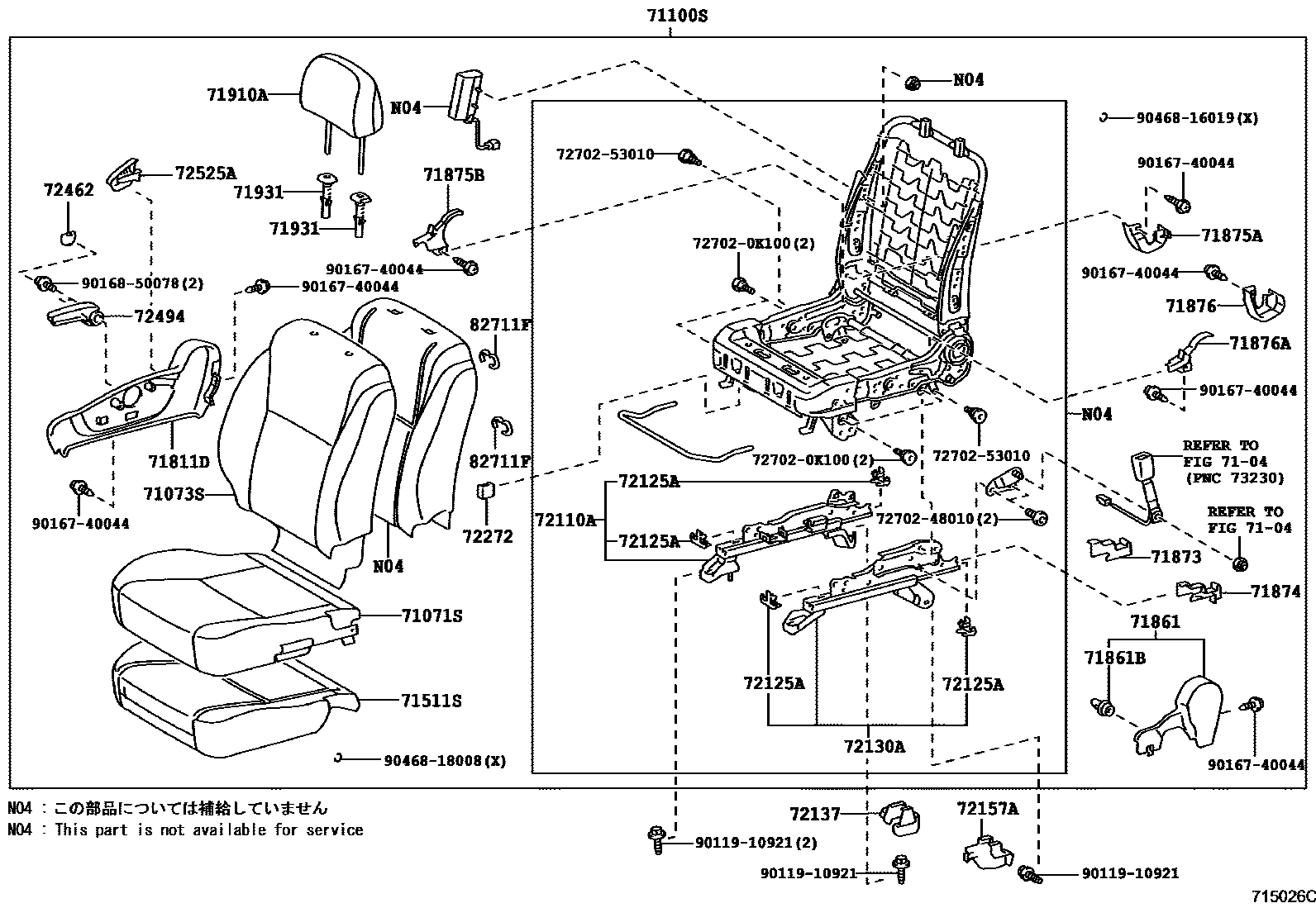

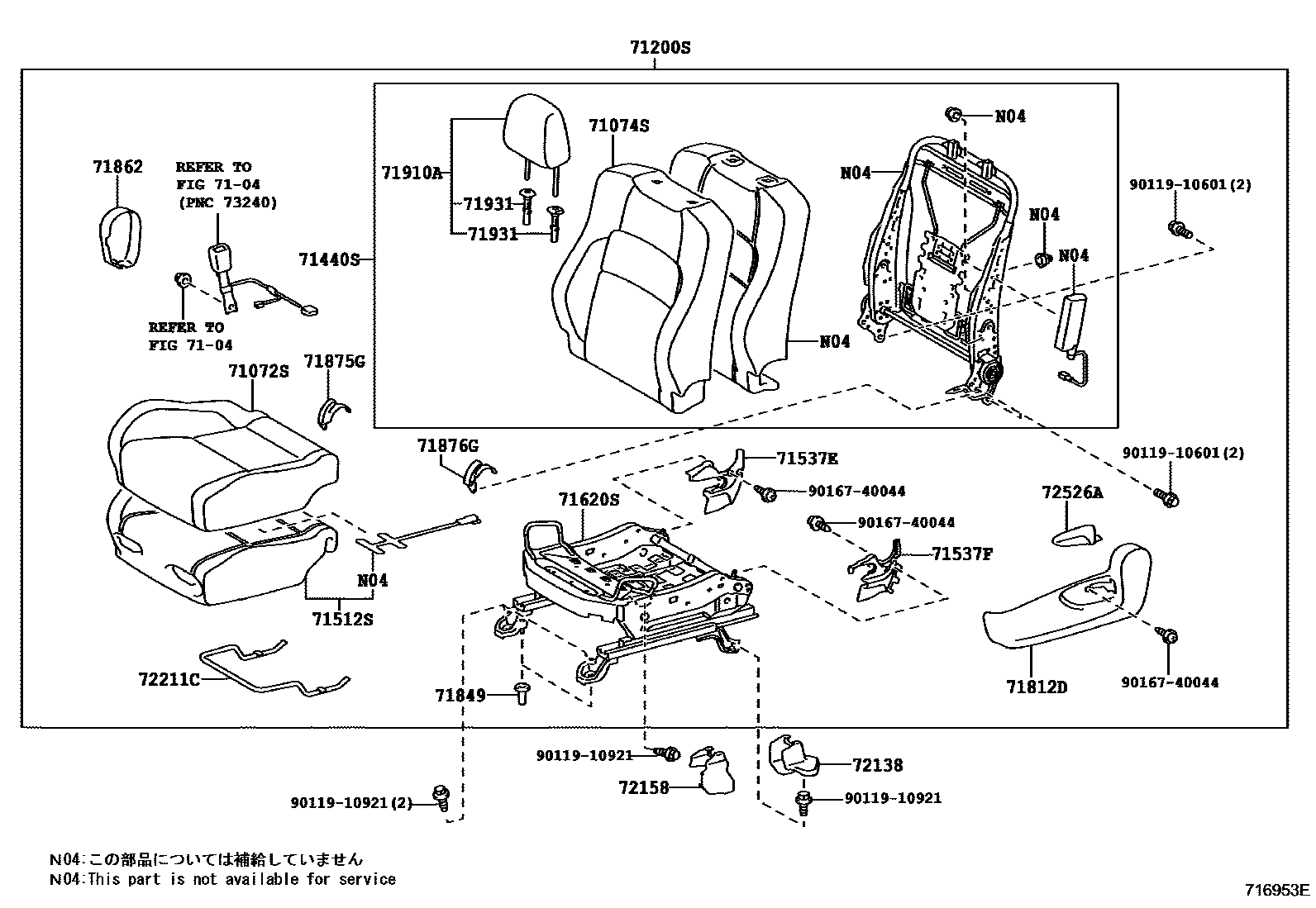

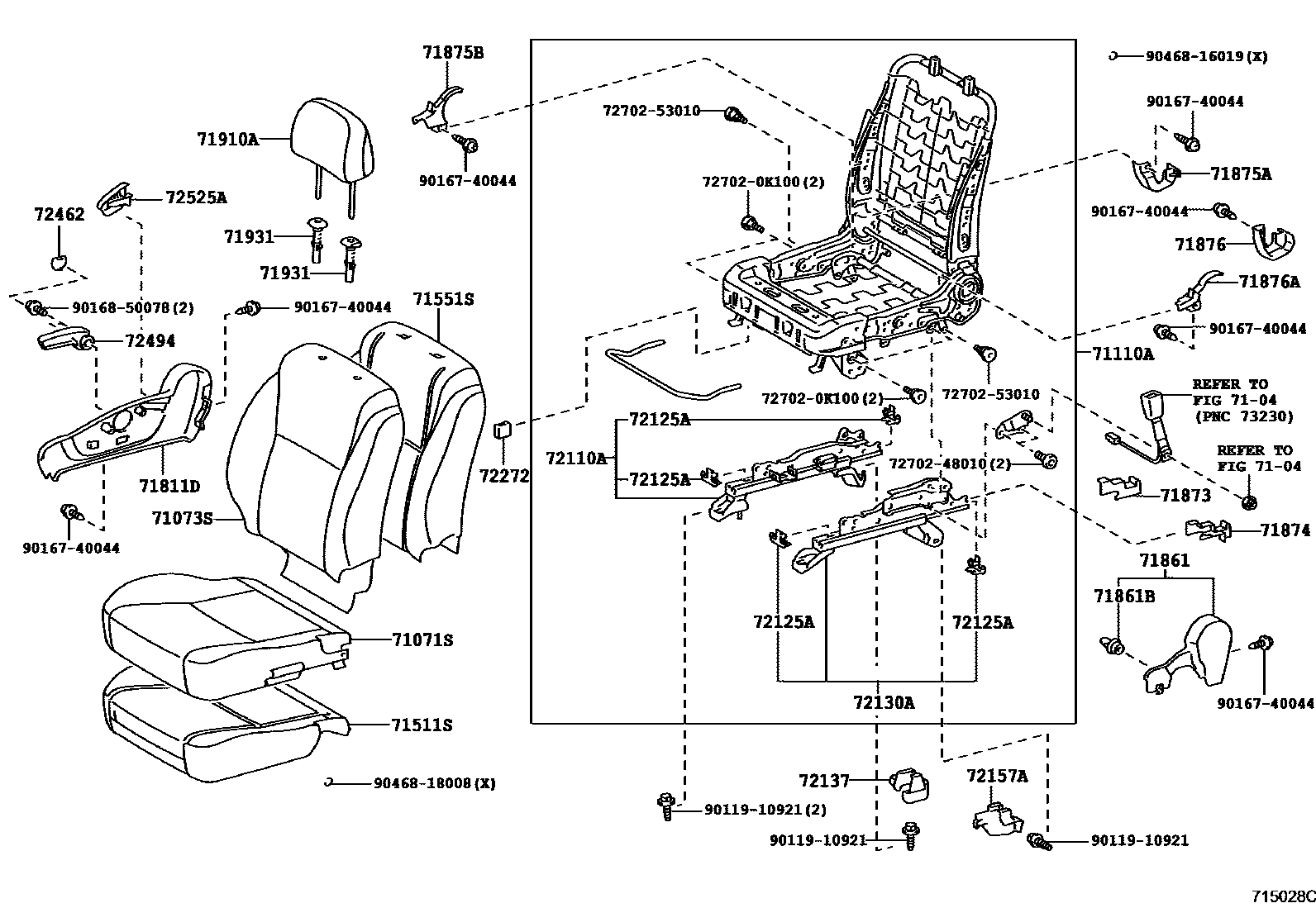

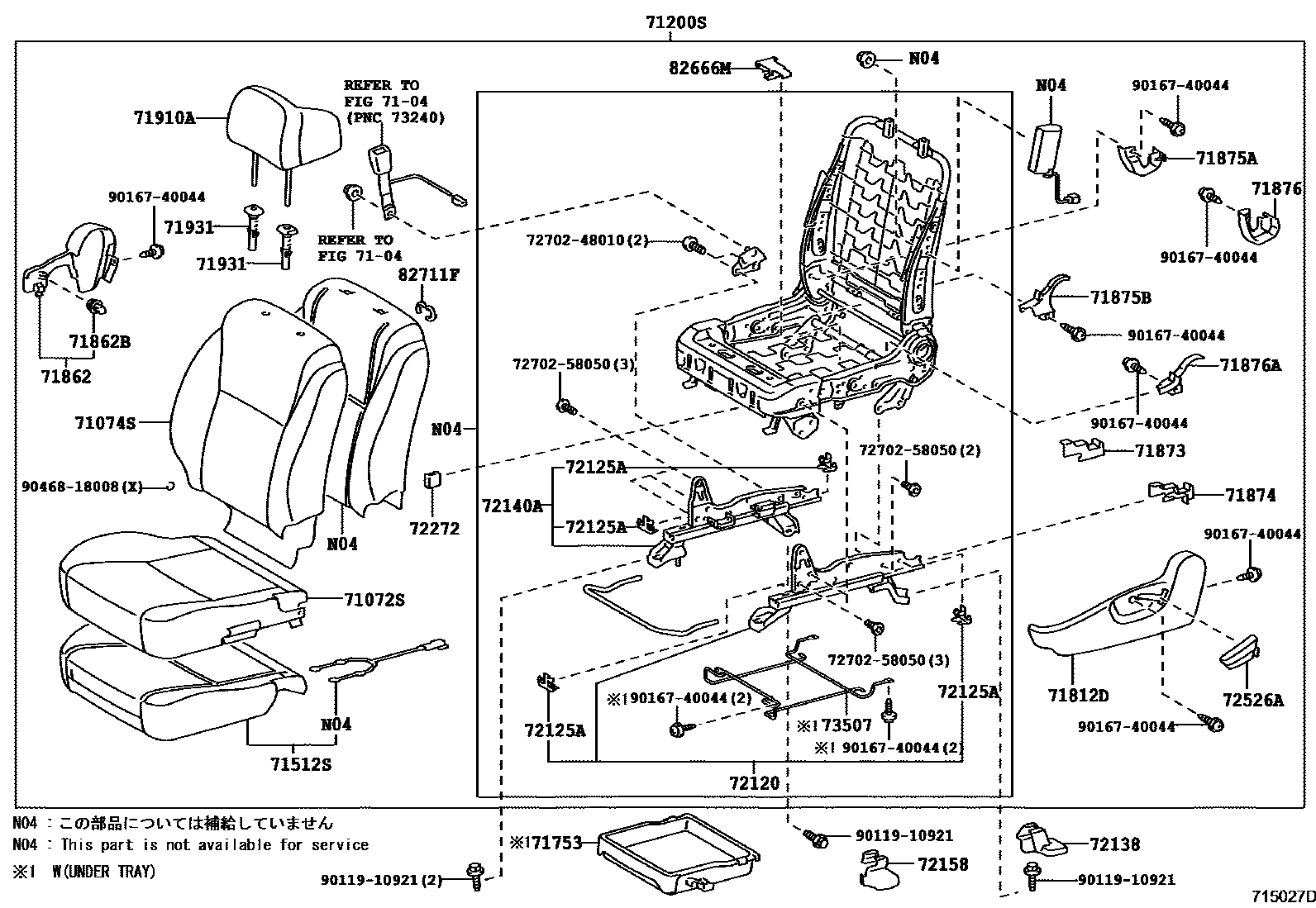

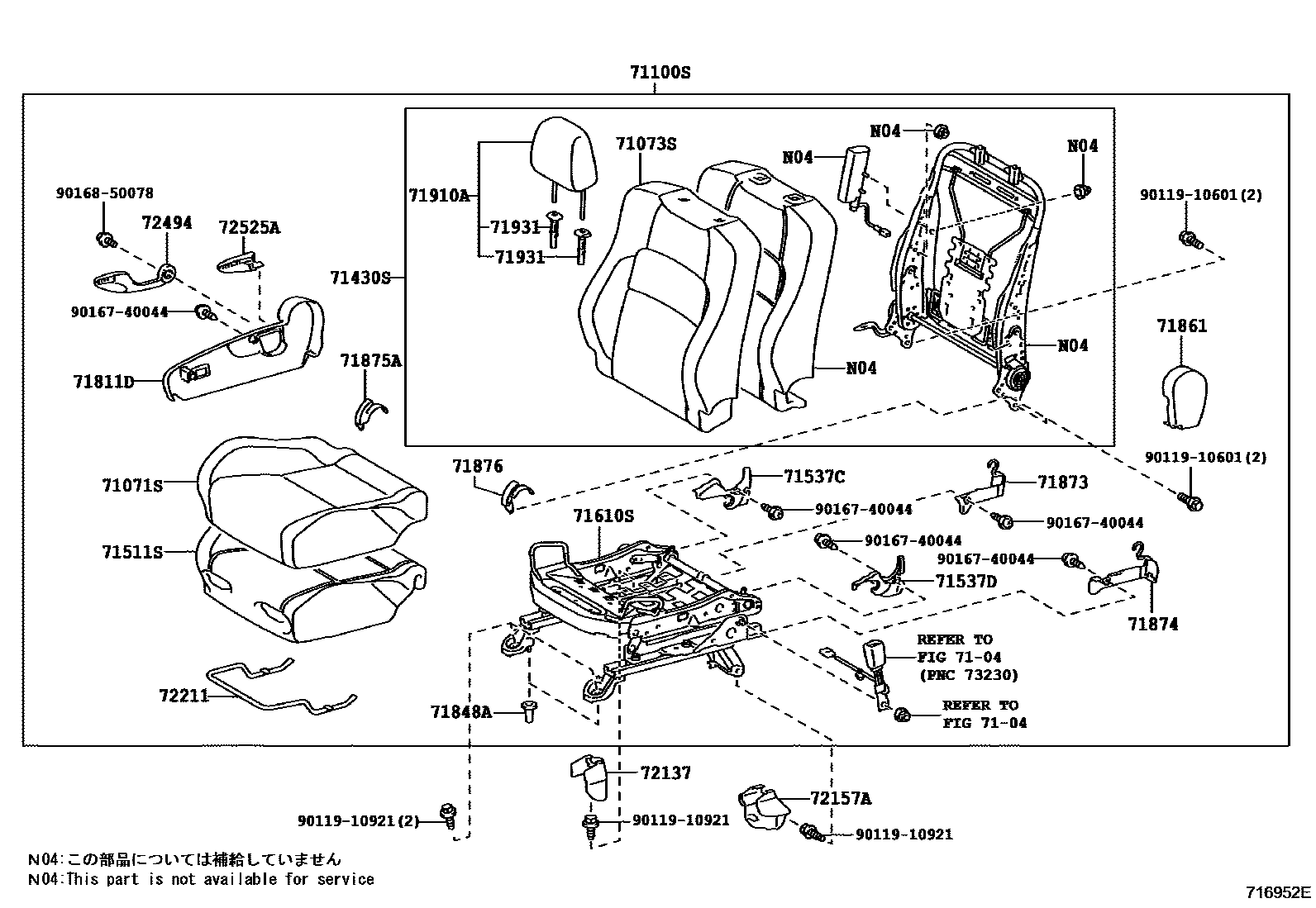

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 6 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71110A | Front right seat (with adjuster) frame assembly | 71110-12050 |
| 71120B | Front left seat (with adjuster) frame assembly | 71120-12190 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12B00 · 71511-12C00 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-12070 · 71502-12100 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12A90 |
| 71552S | Front left seat back cushion (for split seats) | 71552-12340 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-12490 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-12340 |
| 71753 | Front seat bottom bracket | 71753-12020 |
| 71848A | Right seat adjuster cover | 71848-47010 |
| 71849 | left seat adjuster cover | 71848-47010 |
| 71861B | Clip (for front right seat guard) | 71769-33020 |
| 71862B | Clip (for front left seat guard) | 71769-33020 |
| 71873 | Front right seat cushion lower guard panel | 71873-42030 · 71873-47040 |
| 71874 | Front left seat cushion lower guard | 71874-42020 · 71874-47040 |
| 72110A | Front right seat outer slide rail assembly | 72110-12170 |
| 72120 | Front left seat outer slide rail assembly | 72120-12140 |
| 72125A | Rear seat upper slide rail cover | 72125-13040 |
| 72130A | Front right seat inner slide rail assembly | 72130-12760 |
| 72140A | Front left seat inner slide rail assembly | 72140-12630 |
| 72211 | Seat slide adjustment handle | 72211-47020 |
| 72211C | Seat slide adjustment handle | 72211-47020 |
| 72272 | Seat rail control cable clip | 72272-12020 |
| 73507 | Front seat rail sub-assembly | 73507-12010 |
| 82666M | Connector holder | 82666-12420 |
| 82711F | Wire harness clip | 82711-12120 |
