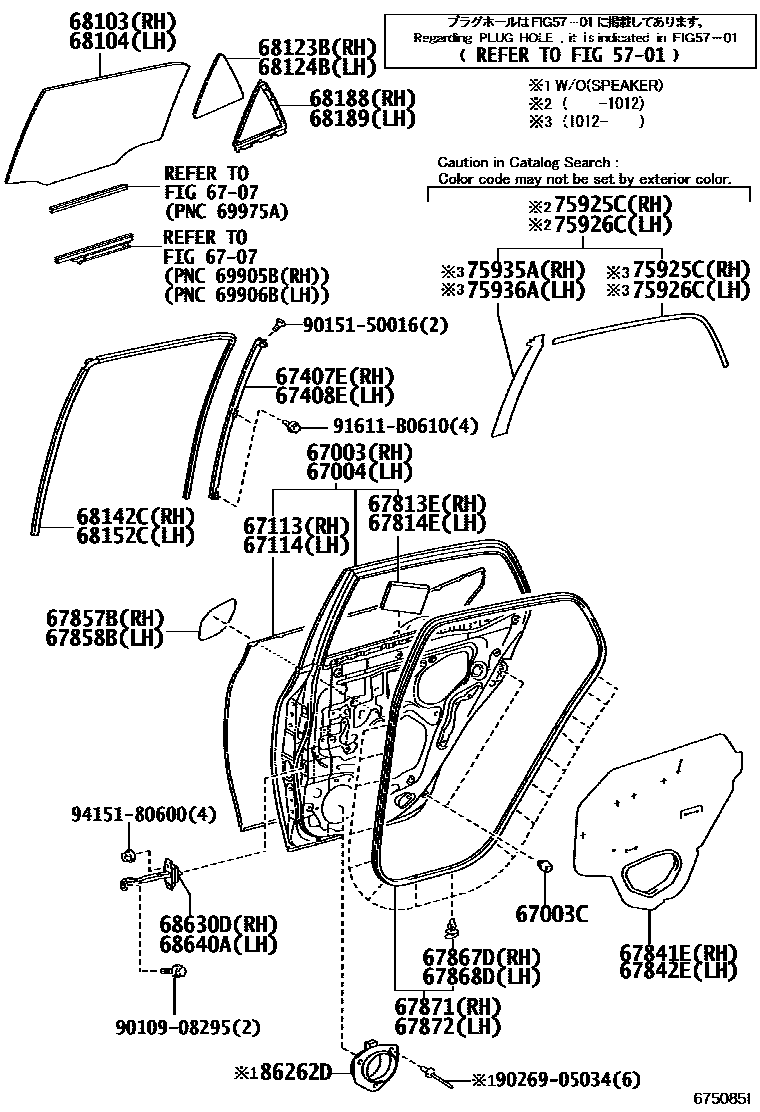

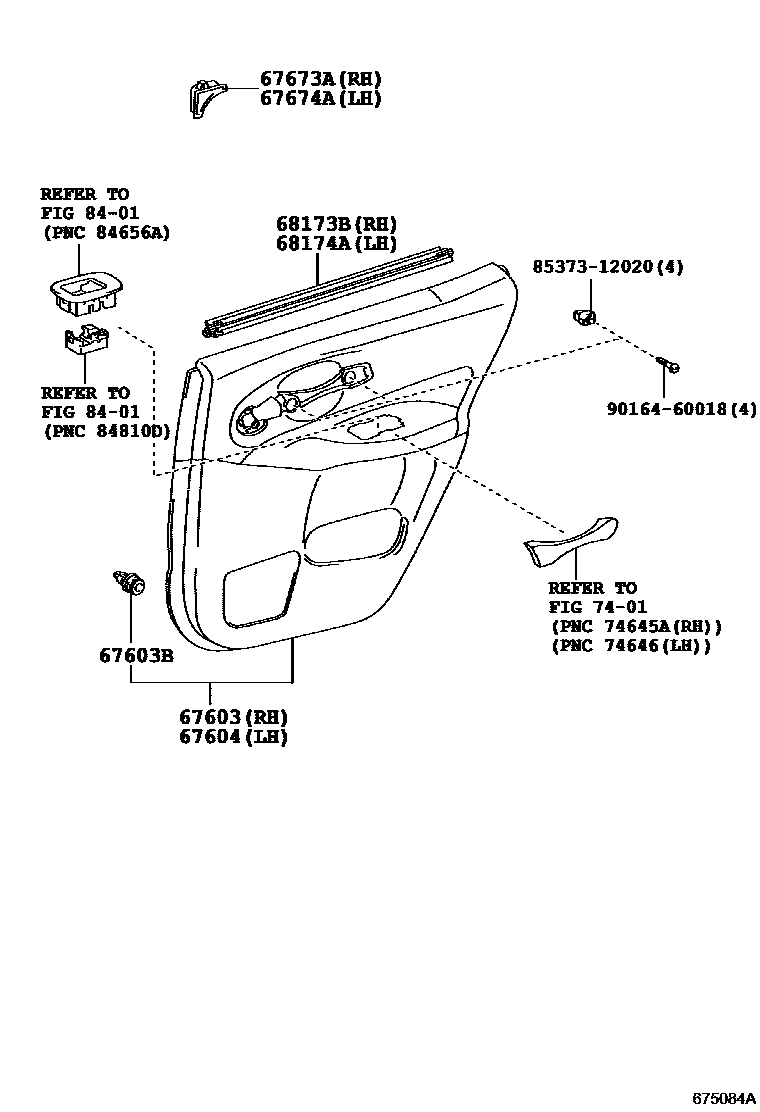

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-12A10 |
| 67003C | Rear door panel cushion | 90541-09124 · 90541-09143 |
| 67004 | Left rear door panel sub-assembly | 67004-12A10 |
| 67113 | Right rear door outer panel | 67113-12290 |
| 67114 | Left rear door outer panel | 67114-12290 |
| 67407E | Right rear door window divider sub-assembly | 67407-12280 |
| 67408E | Left rear door window divider sub-assembly | 67408-12280 |
| 67603B | Catch (for rear door trim panel) | 90467-09206 |
| 67673A | Right rear door frame decorative strip | 67673-48010 |
| 67674A | Left rear door frame decorative strip | 67674-48010 |
| 67813E | Right side enclosure silencer panel | 67817-47010 |
| 67814E | Left side enclosure silencer panel | 67817-47010 |
| 67841E | Right rear door access hole cover | 67841-12350 |
| 67842E | Left rear door access hole cover | 67842-12160 |
| 67857B | Right rear door panel protector | 67857-12100 |
| 67858B | Left rear door panel protector | 67858-12060 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-12520 · 67871-12521 |
| 67872 | Left rear door sealing strip | 67872-12520 · 67872-12521 |
| 68103 | Right rear door glass sub-assembly | 68113-12750 |
| 68104 | Left rear door glass sub-assembly | 68114-12750 |
| 68123B | Right rear door corner window glass | 68123-12850 |
| 68124B | Left rear door corner window glass | 68124-12850 |
| 68142C | Right rear door glass lift slot | 68142-12270 |
| 68152C | Left rear door glass lift slot | 68152-12180 |
| 68173B | Right rear door glass inner sealing strip | 68173-12300 |
| 68174A | Left rear door glass inner sealing strip | 68174-12160 |
| 68188 | Right rear door corner window seal | 68188-12320 |
| 68189 | Left rear door corner window seal | 68189-12320 |
| 68630D | Right rear door opening limiter assembly | 68630-12100 · 68630-12101 |
| 68640A | Left rear door opening limiter assembly | 68630-12100 · 68630-12101 |
| 75925C | No. 3 right side light-blocking film | 75925-12030 · 75925-12050 |
| 75926C | No. 3 left shading film | 75926-12030 · 75926-12050 |
| 75935A | No. 6 right side light-shielding film | 75935-12030 |
| 75936A | No. 6 left shading film | 75936-12030 |
| 86262D | Rear door speaker cover | 86262-13010 |
