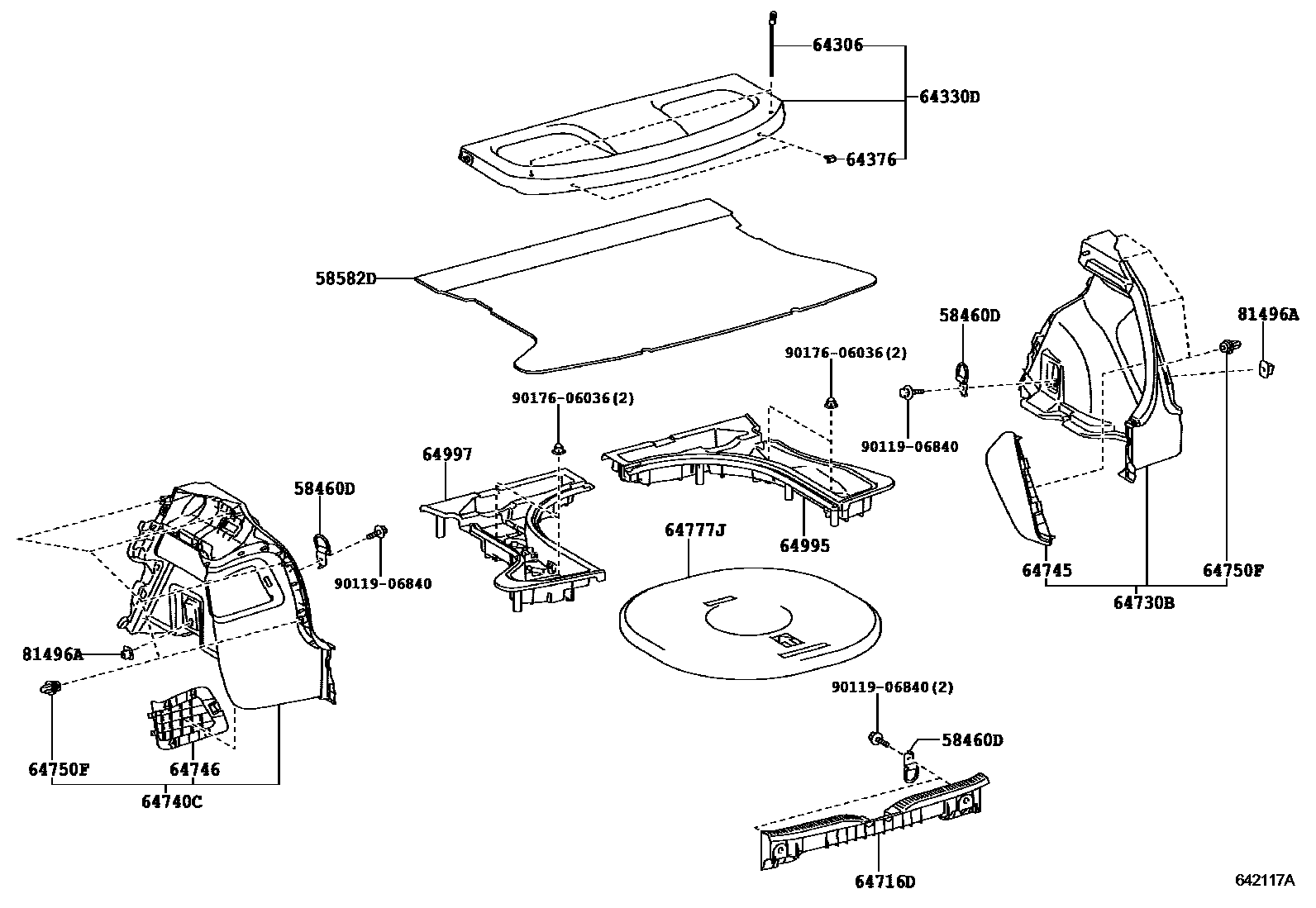

Toyota COROLLA 底板和底板装饰罩 — Figure 6404
Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58460D | Luggage fixing belt lock assembly | 58460-33020 |
| 64306 | Glove box decorative panel fixed rod sub-assembly | 64306-12080 · 64306-12081 |
| 64376 | No. 2 glove box decorative panel spacer | 64376-12020 |
| 64750F | Clip (for bottom panel side decorative panel) | 90467-10161 |
| 64777J | Spare tire cushion | 64777-12050 |
| 64995 | Bottom right floor box | 64995-12030 |
| 64997 | Bottom left floor box | 64997-12030 |
| 81496A | Rear combination light guide block | 81496-12030 |
