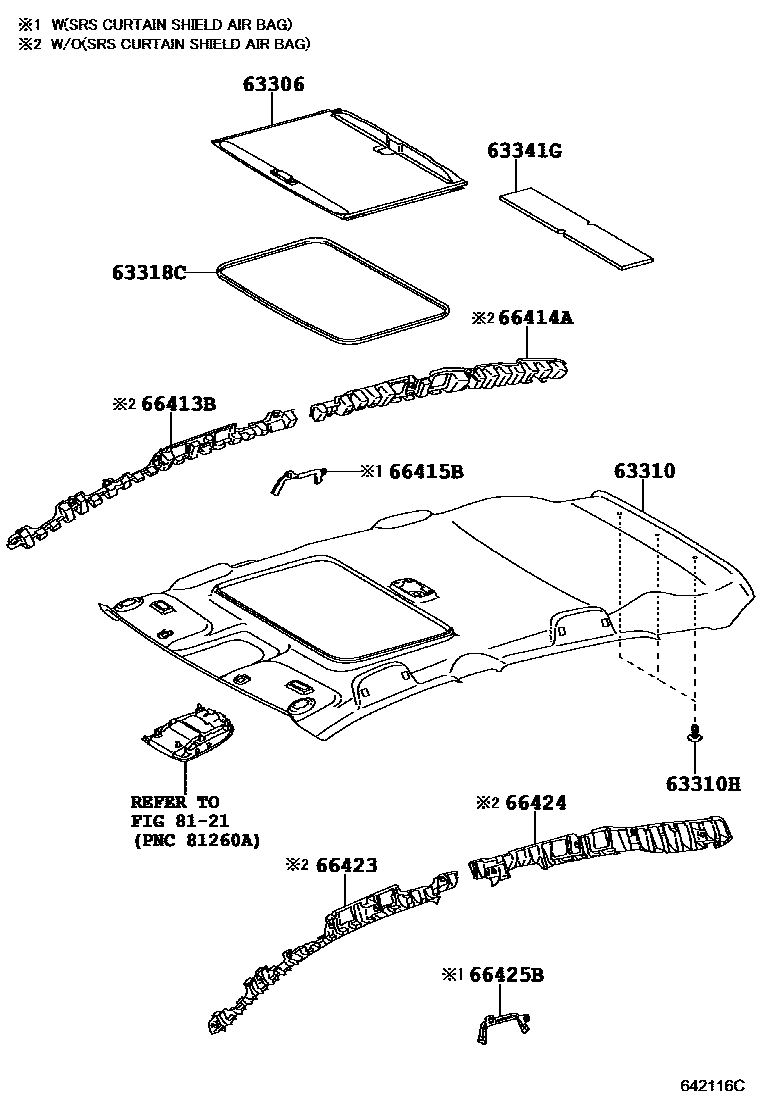

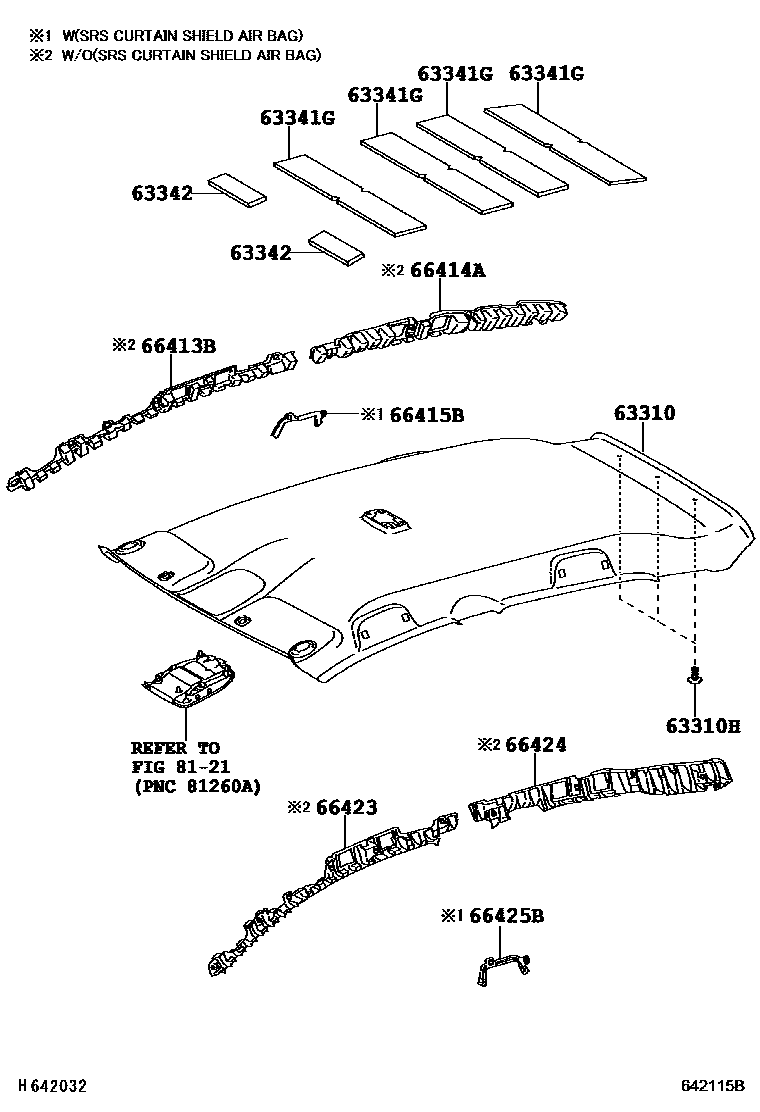

Toyota COROLLA 车顶内衬和消声垫 — Figure 6402
Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341G | roof muffler mat | 63341-12260 |
| 63342 | No. 2 roof muffler pad | 63341-12220 |
| 66413B | Right front longitudinal member spacer | 66413-12030 |
| 66414A | Right rear longitudinal member spacer | 66414-12040 |
| 66415B | No. 2 right rear longitudinal beam spacer | 66415-12030 |
| 66423 | Left front longitudinal member spacer | 66423-12030 |
| 66424 | Left rear longitudinal member spacer | 66424-12040 |
| 66425B | No. 2 left rear longitudinal beam spacer | 66425-12030 |
