Toyota COROLLA 侧梁 — Figure 6101

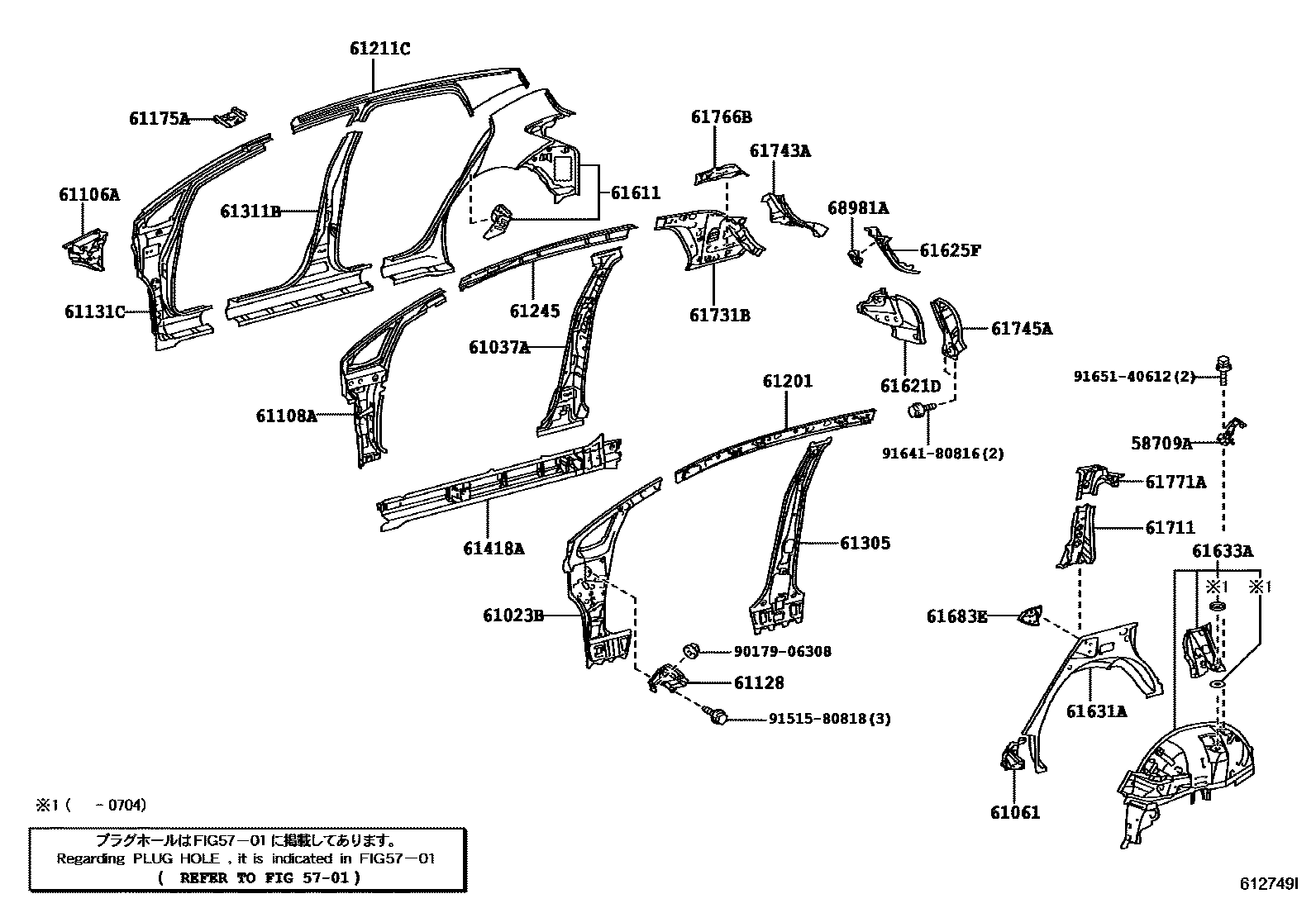

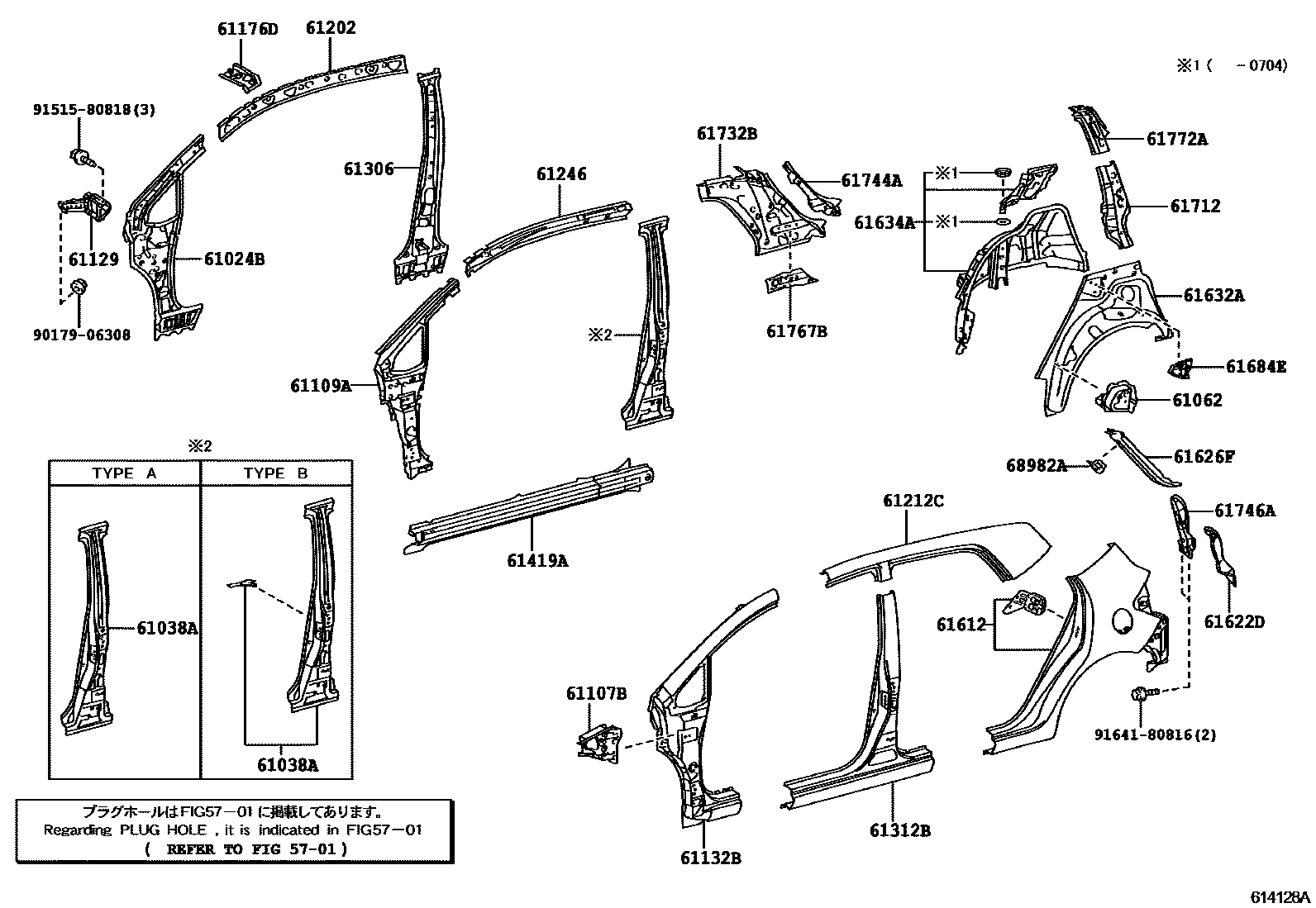

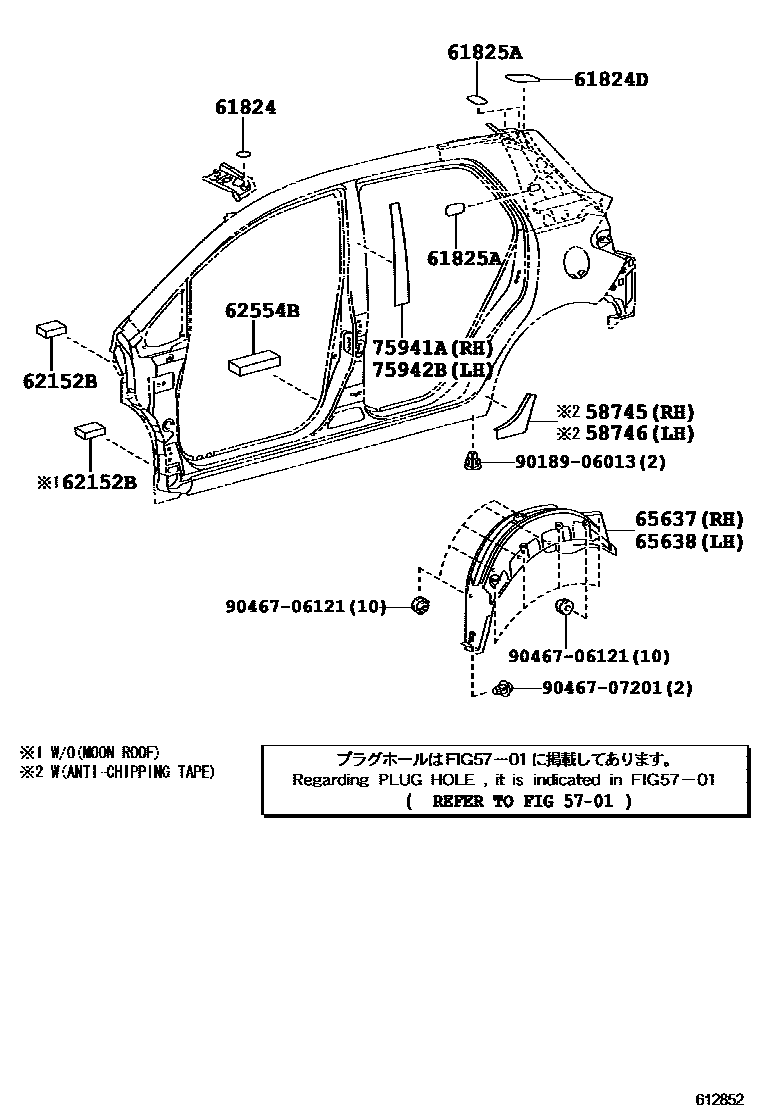

Toyota COROLLA EPC diagram 6101, 侧梁, with 3 images and 66 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58709A | Jack bracket sub-assembly | 58709-12070 |
| 58745 | Right front side panel protector | 58741-12150 |
| 58746 | Left front side panel protector | 58742-12150 |
| 61023B | Right body inner front pillar sub-assembly | 61023-12360 |
| 61024B | Left body inner front pillar sub-assembly | 61024-12360 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-12252 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-12252 · 61038-12340 |
| 61061 | Right wheel cover reinforcement sub-assembly | 61061-12010 |
| 61062 | Left wheel cover reinforcement sub-assembly | 61062-12010 |
| 61106A | Right body front pillar reinforcement sub-assembly | 61106-12160 |
| 61107B | Left side body front pillar reinforcement sub-assembly | 61107-12160 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-12250 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-12240 |
| 61128 | Right front wall side panel reinforcement | 61103-12220 |
| 61129 | Left front wall side panel reinforcement | 61104-12250 |
| 61131C | Right body outer front pillar | 61131-12730 · 61131-12770 |
| 61132B | Left body outer front pillar | 61132-12700 · 61132-12750 |
| 61175A | No. 2 right outer front pillar upper reinforcement | 61175-12160 |
| 61176D | No. 2 left body exterior front pillar reinforcement | 61176-12220 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-12200 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-12190 |
| 61211C | Roof right side rail | 61211-12480 |
| 61212C | Roof left side rail | 61212-12480 |
| 61245 | Roof right outer longitudinal beam reinforcement | 61245-12070 |
| 61246 | Roof left outer longitudinal beam reinforcement | 61246-12070 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-12140 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-12140 |
| 61311B | Right body outer center pillar | 61311-12410 · 61311-12450 |
| 61312B | Left body outer center pillar | 61312-12450 · 61312-12490 |
| 61418A | Right side door sill panel reinforcement | 61403-12060 · 61403-12061 |
| 61419A | Left side rocker panel reinforcement | 61404-12060 · 61404-12061 |
| 61611 | Right side hoarding | 61601-12A50 · 61601-12A60 |
| 61612 | left side panel | 61602-12A50 · 61602-12A60 |
| 61621D | Back door right opening slot | 61621-12510 |
| 61622D | Rear door left opening slot | 61622-12520 |
| 61625F | Extension on right side panel | 61625-12120 |
| 61626F | Extension on left side panel | 61626-12160 |
| 61631A | Right wheel cover outer panel | 61631-12440 · 61631-12520 |
| 61632A | Left side wheel cover outer panel | 61632-12450 · 61632-12530 |
| 61633A | Right wheel housing lining panel | 61607-12A91 · 61607-12A92 |
| 61634A | Left side wheel housing lining panel | 61608-12B01 · 61608-12B02 |
| 61683E | No. 3 side panel lower panel | 72607-12020 |
| 61684E | No. 4 side panel lower panel | 72608-12010 |
| 61711 | Roof right side outer panel | 61711-12320 |
| 61712 | Roof left outer panel | 61712-12350 |
| 61731B | Roof right inner panel | 61731-12780 |
| 61732B | Roof left inner panel | 61732-12730 |
| 61743A | Rear door opening right reinforcement | 61743-12070 |
| 61744A | Rear door opening left reinforcement | 61744-12070 |
| 61745A | Back door opening lower right reinforcement | 61745-12100 |
| 61746A | Rear door opening lower left reinforcement | 61746-12070 |
| 61766B | Right seat belt anchor to roof inner reinforcement | 61766-12310 |
| 61767B | Left-hand seat belt anchor to roof inner reinforcement | 61767-12250 |
| 61771A | Back window opening right corner panel | 61771-12070 |
| 61772A | Rear window opening left corner panel | 61772-12070 |
| 61824 | Noise Control Panel No. 1 | 61824-12070 |
| 61824D | Noise Control Panel No. 1 | 61815-16030 |
| 61825A | Noise Control Panel No. 2 | 61825-52060 |
| 62152B | No. 2 silencer pad on cowl side | 62152-12050 |
| 62554B | No. 4 column pad | 62554-12180 |
| 65637 | Right rear wheel house lining | 65637-12020 |
| 65638 | Left rear wheel house lining | 65638-12020 |
| 68981A | Back door right side support rod fixing | 68981-12050 |
| 68982A | Back door left support rod fixing | 68982-12040 |
| 75941A | Right center pillar trim | 75941-12030 |
| 75942B | Left center pillar trim | 75942-12030 |
