Toyota COROLLA 中央扶手箱和支架 — Figure 5806

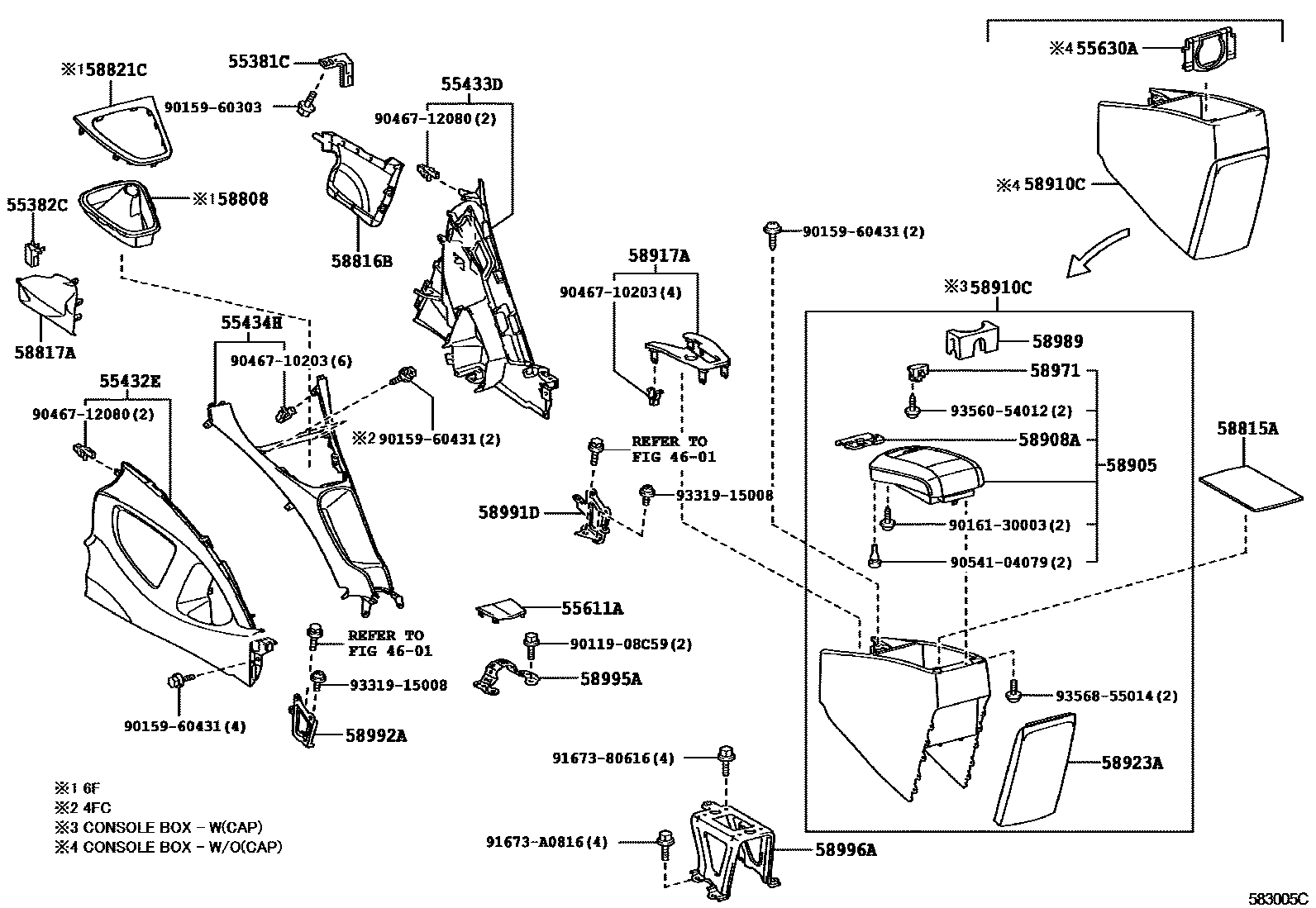

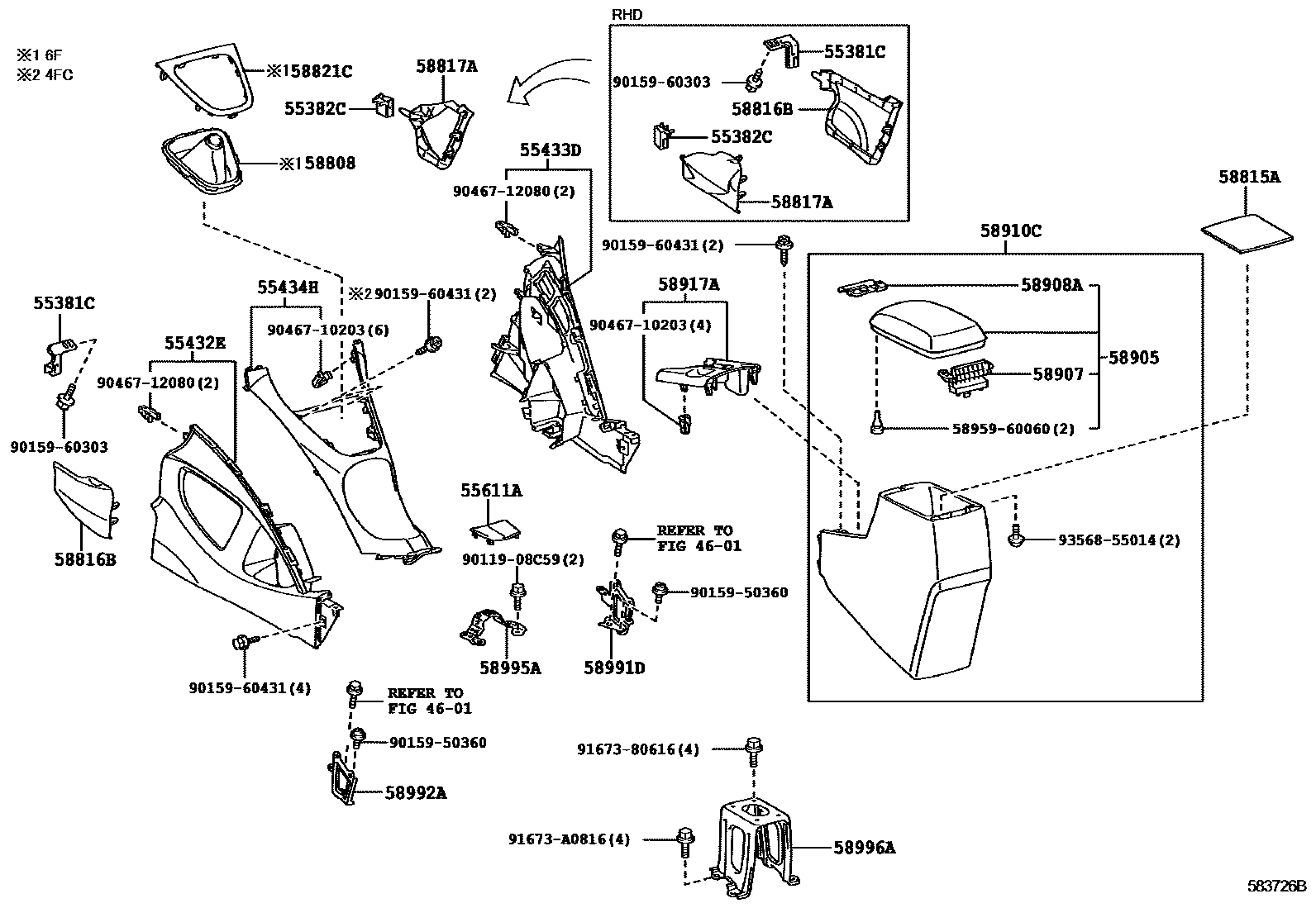

Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55381C | No. 1 decorative panel mounting bracket | 55389-42020 |
| 55382C | No. 2 decorative panel mounting bracket | 55388-42020 |
| 58815A | Armrest box felt pad | 58815-12100 · 58815-12190 |
| 58821C | Armrest box upper panel | 58821-12190 · 58821-12200 · 58821-12230 |
| 58908A | Armrest box lid lock assembly | 58908-33030 |
| 58991D | Armrest box upper right mounting bracket | 58991-12060 |
| 58992A | Armrest box upper left mounting bracket | 58992-12030 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-12100 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-12110 · 58996-12150 |
