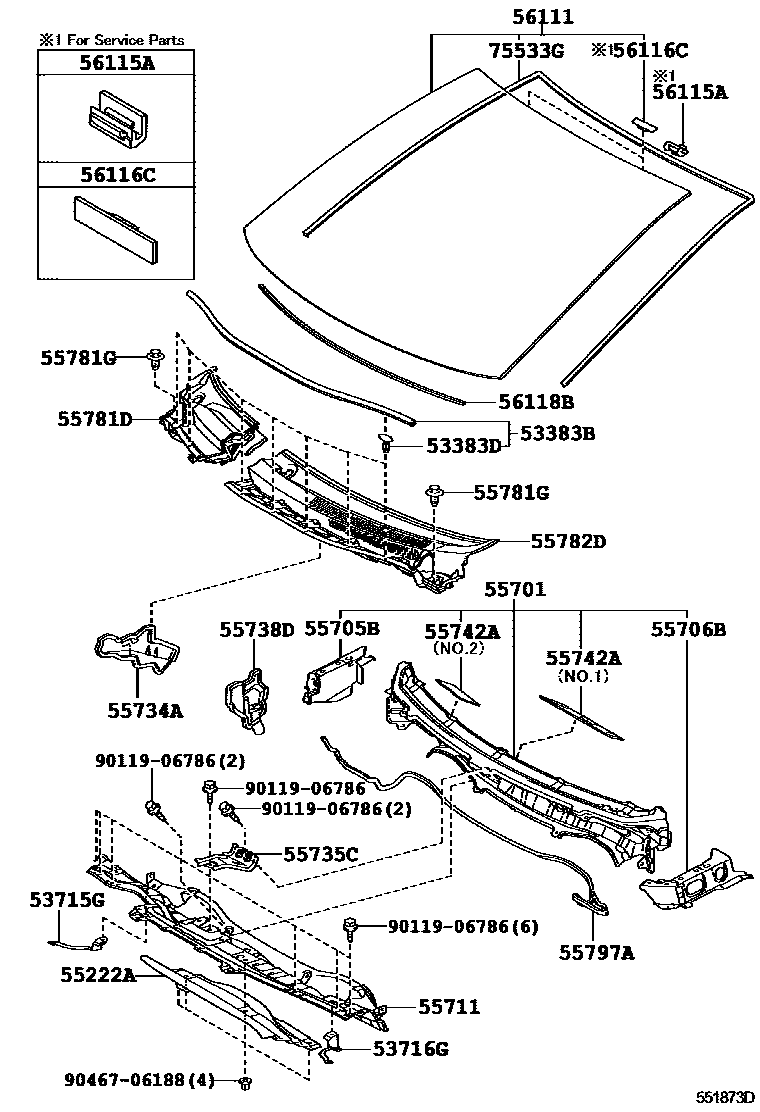

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-12150 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 67867-12150 |
| 53715G | Right front fender fender rear extension | 53715-12061 |
| 53716G | Left front fender fender rear extension | 53716-12071 |
| 55222A | Center heat insulation pad on outer side of front cowl | 55224-12010 |
| 55701 | Front apron sub-assembly | 55700-12A60 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-12070 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-12080 |
| 55711 | Front outer panel | 55701-12A10 |
| 55734A | Right waterproof cover | 55734-12110 |
| 55735C | Right front wall body-mounted reinforcement | 55735-12070 |
| 55738D | No. 2 heater duct splash guard seal | 55738-12120 |
| 55742A | Heat insulation panel on front wall | 55742-12130 · 55743-12040 |
| 55781D | Ventilation grille on right front apron | 55708-12310 · 55708-12311 |
| 55782D | Ventilation grille on left front apron | 55709-12090 · 55709-12091 |
| 55797A | Front wall pumping device seal | 55797-12030 |
| 56111 | windshield | 56101-12100 · 56101-12170 · 56101-12750 · 56101-12770 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56118B | Window Glass No. 2 Adhesive Sealing Strip | 56117-12290 |
| 75533G | Windshield outer protective strip | 75533-12630 |
