Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

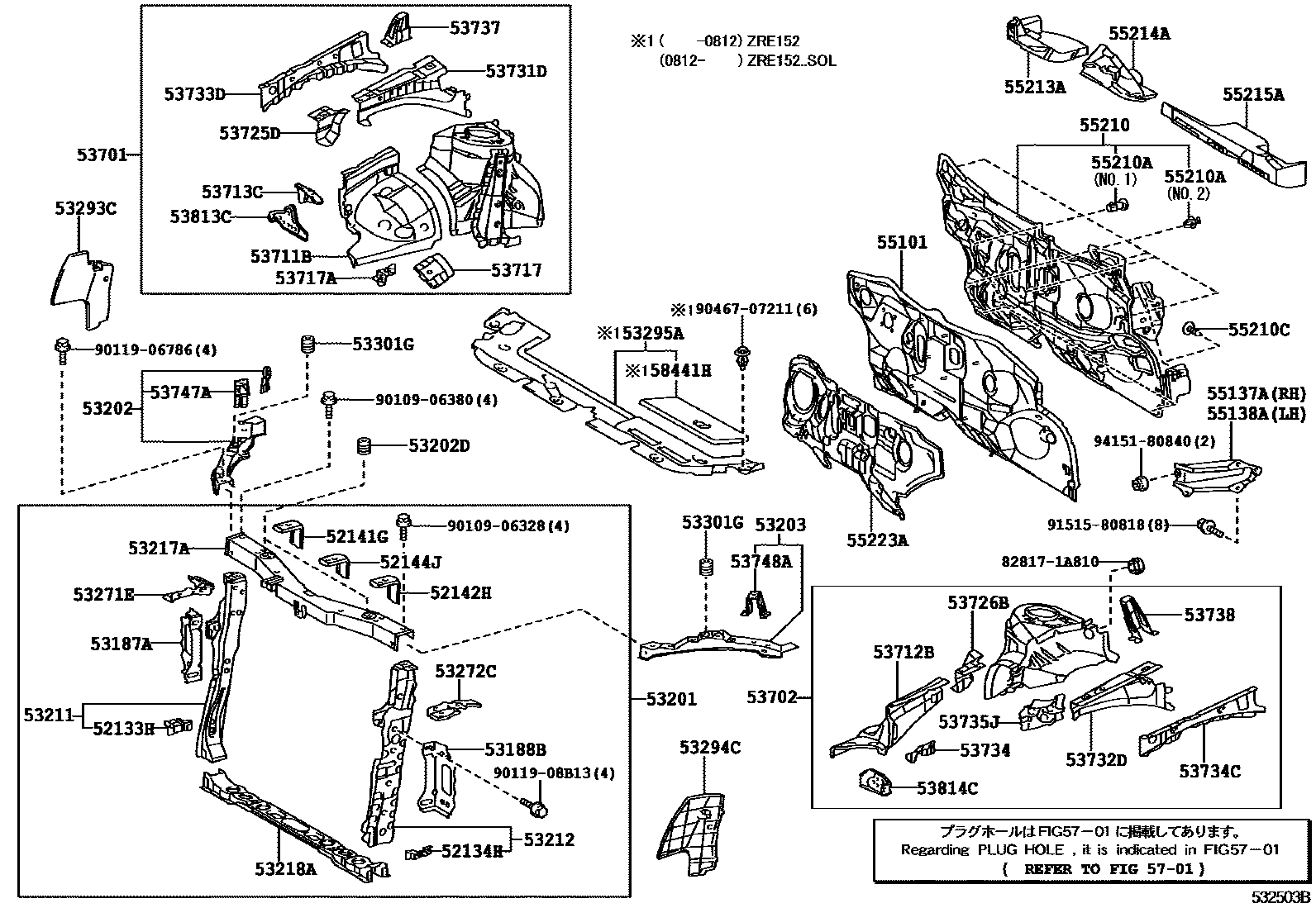

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52133H | Front bumper right side bracket | 52133-12150 |
| 52134H | Front bumper left bracket | 52134-12090 |
| 52141G | Front bumper right side stay | 52081-12020 |
| 52142H | Front bumper left stay | 52082-12020 |
| 52144J | Front bumper center stay | 52085-12010 |
| 53187A | Radiator right side bracket stay | 53187-12030 |
| 53188B | Radiator left bracket stay | 53188-12030 |
| 53201 | Radiator bracket sub-assembly | 53201-12902 |
| 53202 | Radiator right side bracket sub-assembly | 53202-12480 |
| 53202D | Radiator bracket cushion | 90541-15022 |
| 53203 | Radiator left bracket sub-assembly | 53203-12430 |
| 53211 | Radiator right side support | 53209-12140 |
| 53212 | Radiator left support | 53204-12060 |
| 53217A | engine cover lock bracket | 53208-12560 |
| 53218A | Radiator lower support | 53218-12901 |
| 53271E | Right headlight mounting bracket | 53271-12050 |
| 53272C | Left headlight mounting bracket | 53272-12030 |
| 53293C | Radiator right baffle | 53293-12030 · 53293-12090 |
| 53294C | Radiator left baffle | 53294-12050 · 53294-12120 |
| 53295A | Air deflector on radiator | 53140-12010 |
| 53301G | engine cover cushion | 53384-50010 · 90541-15019 |
| 53701 | Right front fender fender sub-assembly | 53701-1A170 |
| 53702 | Left front fender fender sub-assembly | 53702-1A100 |
| 53711B | Right front fender front fender | 53711-12270 |
| 53712B | Left front fender front fender | 53712-12220 |
| 53713C | Right front fender fender front extension | 53713-12160 |
| 53717 | Right fender fender side panel | 53717-12070 |
| 53717A | fender fender | 53718-12060 |
| 53725D | No. 2 front spring bracket right side reinforcement | 53725-12040 |
| 53726B | No. 2 front spring bracket left reinforcement | 53726-12040 |
| 53731D | Right front fender to cowl side upper beam | 53731-12170 |
| 53732D | Left front fender to cowl side upper beam | 53732-12150 |
| 53733D | Right front fender to cowl side front lower beam | 53733-12070 |
| 53734 | No. 4 front fender fender liner | 53736-12070 |
| 53734C | Left front fender to cowl side front lower beam | 53734-12070 |
| 53735J | No. 5 front fender fender liner | 53735-12070 |
| 53737 | Right front fender to front wall side sill | 53737-12070 |
| 53738 | Left front fender to front wall side sill | 53738-12040 |
| 53747A | Fender fender right extension | 53747-12020 |
| 53748A | Fender fender left extension | 53748-12030 |
| 53813C | Right front fender extension | 53813-12100 |
| 53814C | Left front fender extension | 53814-12050 |
| 55101 | Front apron sub-assembly | 55101-12B10 · 55101-12B20 |
| 55137A | Right side bracket (front wall to frame) | 55137-12030 |
| 55138A | Left side bracket (front wall to frame) | 55138-12010 |
| 55210 | Front wall insulation pad assembly | 55210-12540 |
| 55210A | clip | 90467-11122 · 90467-11127 |
| 55213A | Front wall muffler pad | 55213-12660 |
| 55214A | No. 2 insulation pad for front wall panel | 55214-12020 |
| 55215A | No. 3 insulation pad for front wall panel | 55215-12110 |
| 55223A | Front wall outer heat insulation pad | 55223-12170 |
| 58441H | Battery access hole cover | 58441-12010 |
