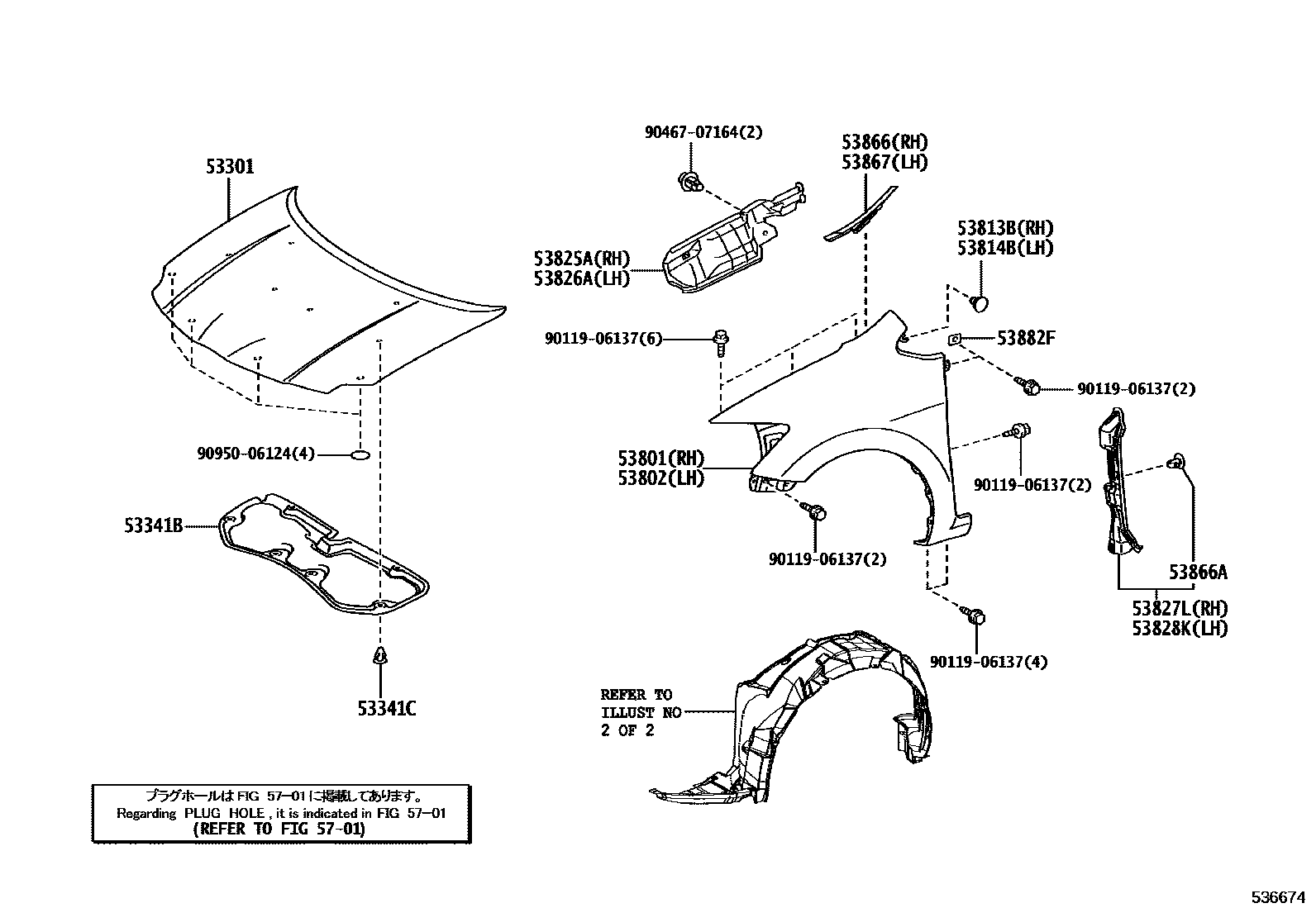

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 4 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-12A10 · 53301-12B00 |
| 53341B | engine cover gasket | 53341-12240 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 · 90467-W0003 |
| 53801 | Right front fender sub-assembly | 53801-12A00 · 53801-12A10 · 53801-12A80 · 53801-12A90 |
| 53802 | Left front fender sub-assembly | 53802-12A00 · 53802-12A10 · 53802-12A80 · 53802-12A90 |
| 53813B | Right front fender extension | 53813-52020 |
| 53814B | Left front fender extension | 53813-52020 |
| 53825A | Right front fender protection piece | 53825-12040 |
| 53826A | Protection piece on left front fender | 53826-12020 |
| 53827L | Right front fender side panel protector | 53827-12070 |
| 53828K | Left front fender side panel protector | 53828-12070 |
| 53851D | Right front fender outer panel pad | 53851-12080 · 53851-12140 |
| 53852B | Left front fender exterior panel pad | 53852-12070 · 53852-12130 |
| 53866 | Right front fender to cowl side seal | 53866-12030 |
| 53866A | Clip (for front fender to cowl side seal) | 90467-08136 |
| 53867 | Left front fender to cowl side seal | 53867-12040 |

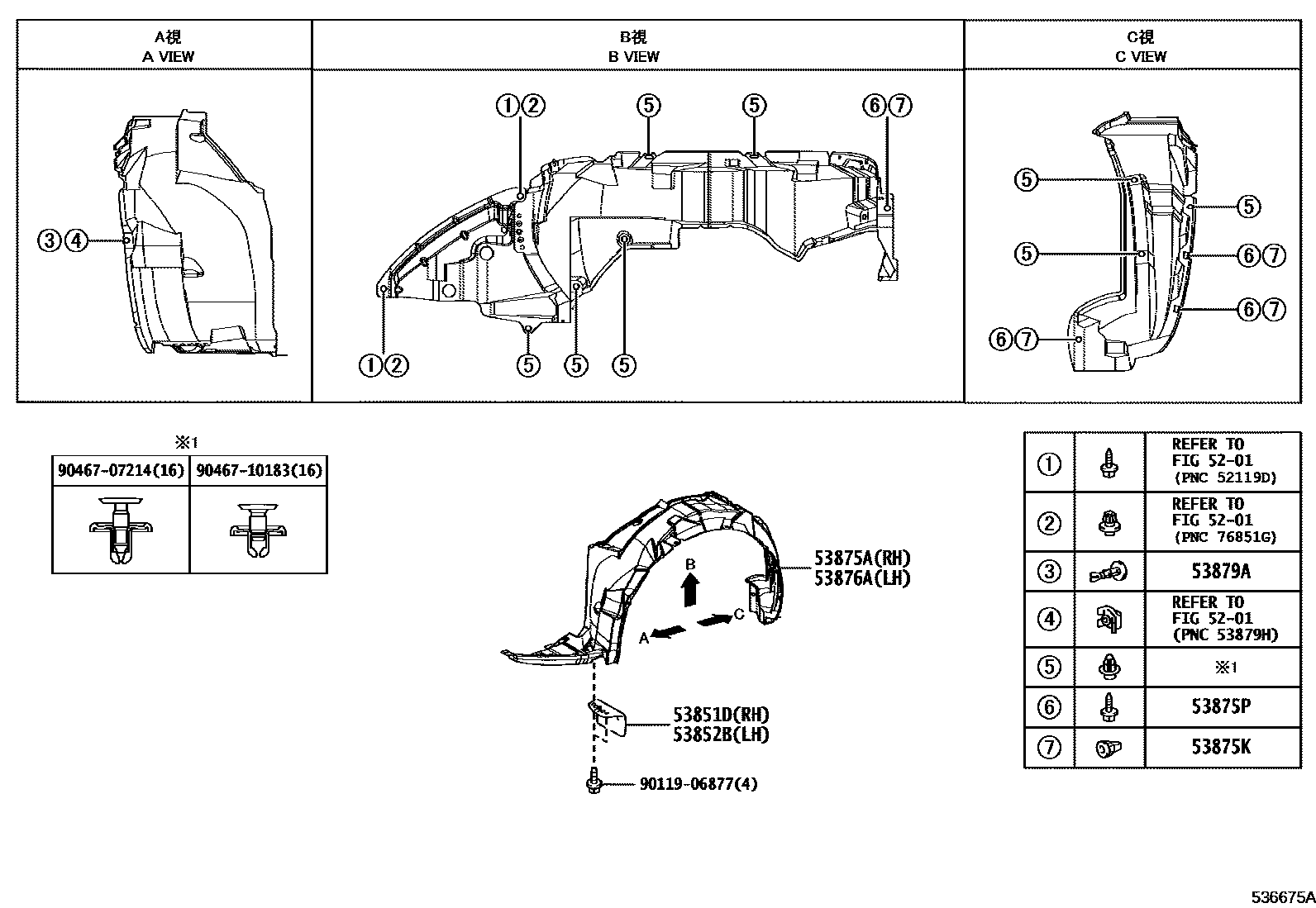

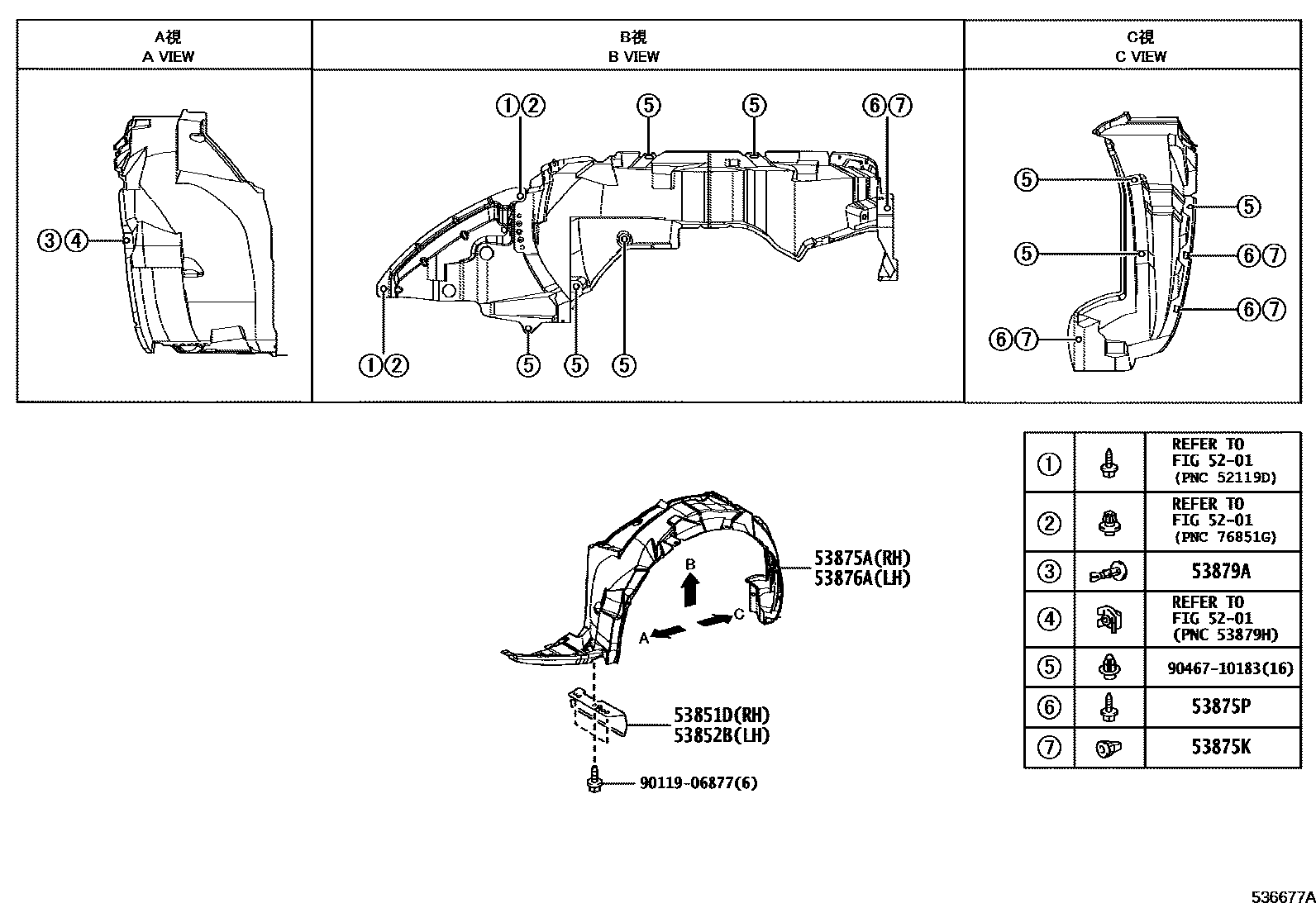

| 53875A | Right front fender lining | 53875-12350 · 53875-12390 · 53875-12420 · 53875-12510 |
| 53875K | screw seal | 90189-06013 |
| 53875P | Screw No. 1 | 90159-60602 |
| 53876A | Left front fender lining | 53876-12340 · 53876-12380 · 53876-12490 · 53876-12500 |
| 53879A | Front fender lining fixing parts | 47749-58010 |
| 53882F | front fender seal | 53882-16030 |
