Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 1 PNC and OE references.

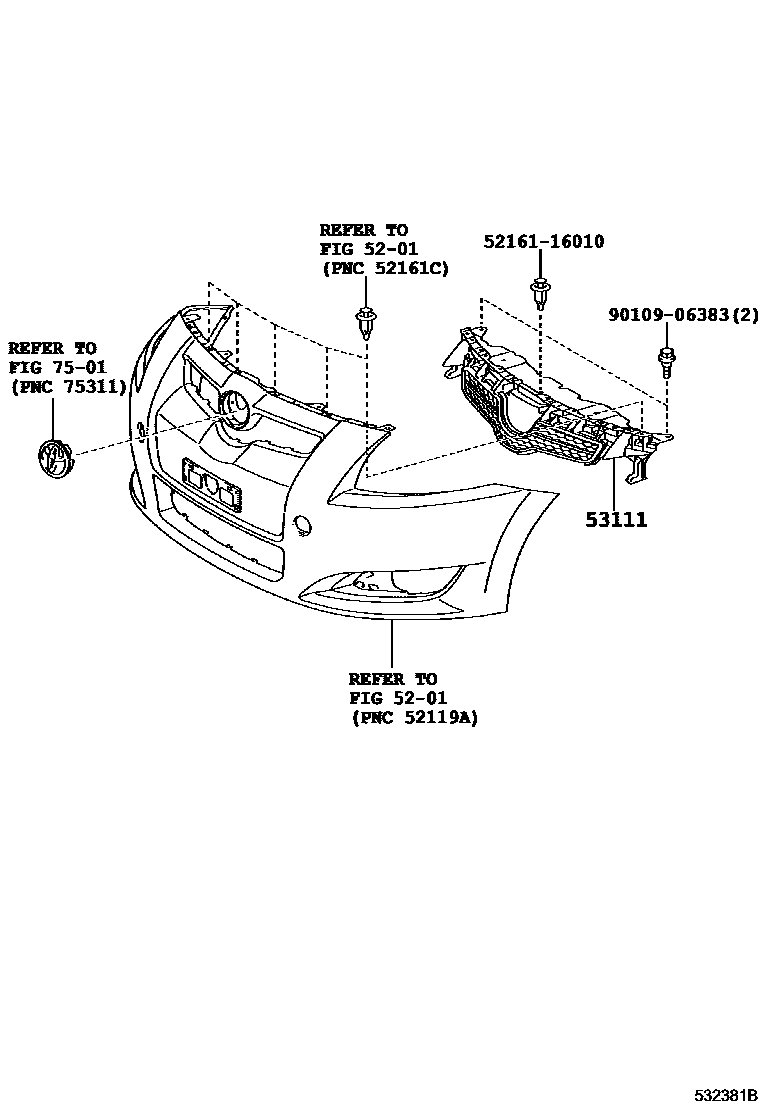

Toyota COROLLA radiator grille EPC diagram — 532381B
radiator grille — 532381B (200703 – 200910)

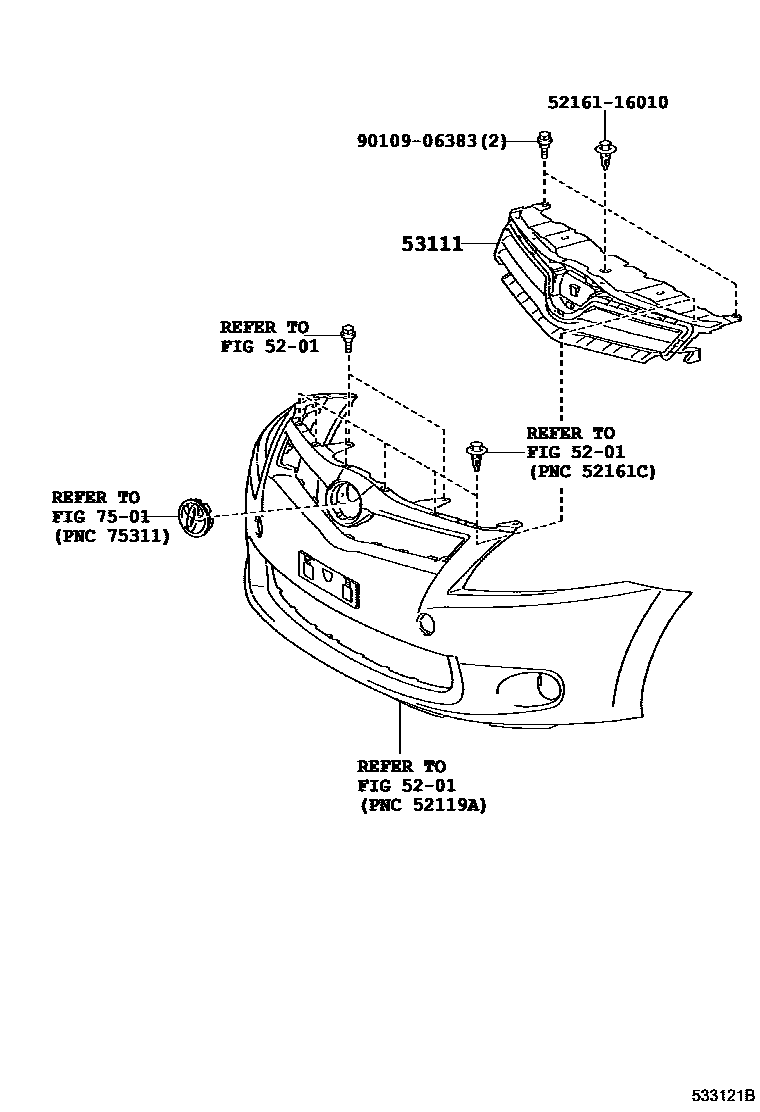

Toyota COROLLA radiator grille EPC diagram — 533121B
radiator grille — 533121B (200910 – 999999)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53111-12A00
